5960-72NL-H

5960-72NL-H

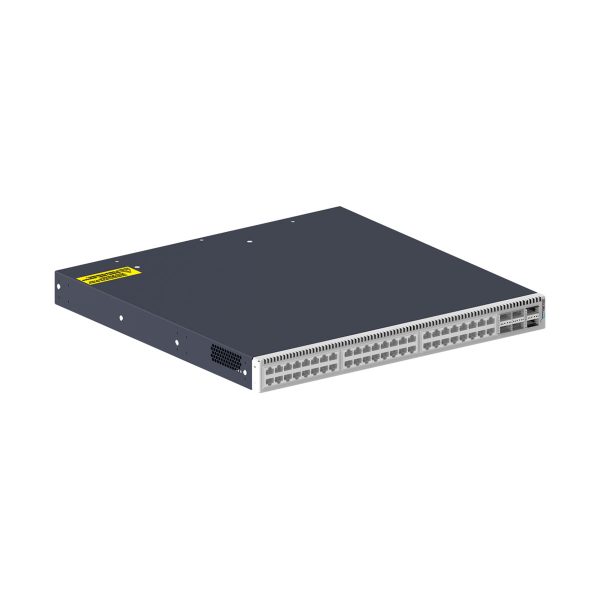

ZTE ZXR10 5960-72NL-H with 48 10GE/1000Base-T, 6 40GE

ZTE

3-5 days

Shenzhen Warehouse

SKU: 5960-72NL-H Category:

Description

ZXR10 5960-72NL-H with 48 10GE/1000Base-T, 6 40GE

Switching Capacity: 1440Gbps

Item ZXR10 5960- 32LC-H ZXR10 5960- 52DU-H ZXR10 5960- 72NL-H
Dimensions (H×W×D) 43.6 mm×442 mm×440 mm
Weight ≤ 9 kg ≤ 9 kg ≤ 9 kg
Power Module AC power supply: 100 V~127 V/200 V~240 V, 50 Hz~60 Hz, support 240 V/336 V high voltage DC input
DC power supply: -38.4 V to -57.6 V
Power consumption Typical power consumption 213 W

Maximum power consumption < 298 W

Typical power consumption 170 W

Maximum power consumption < 260 W

Typical power consumption 275 W

Maximum power consumption < 327 W

Reliability
MTBF:> 300000 hours
MTTR:< 30 minutes
EMC ETSI EN 300 386
Safety standard
IEC 60950
EN 60950
EN60825-1
EN60825-2
IEC 60825-1
IEC 60825-2
Ambient temperature

Working temperature -5 ℃ ~ 45 ℃

Storage environment temperature: -40 ℃ ~ 70 ℃

Switch capacity
2560 Gbps
1760 Gbps
1440 Gbps
