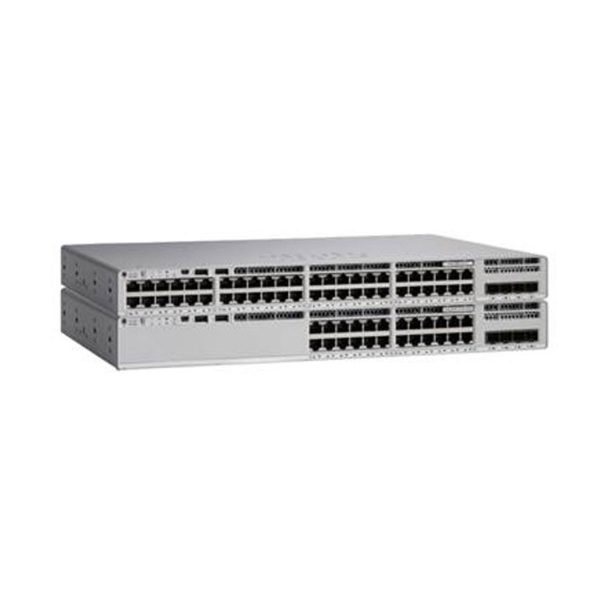

C9200-48T

Cisco C9200-48T switch supports 48-port Data Switch, Network Advantage

Cisco

3-5 days

Hongkong Warehouse

SKU: 2010170 Category: Tags: ,

Description

C9200-48T overview

Cisco C9200-48T switch supports 48-port Data Switch, Network Advantage.

Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.

C9200-48T highlights
  • Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
  • Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
  • Flexible downlink options with data, PoE+ or mGig
  • Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
  • UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
  • Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
  • Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
  • Advanced network monitoring using Full Flexible NetFlow
Description C9200 SKUs C9200L SKUs C9200CX SKUs
Virtual Networks 4 for C9200-24T,

C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL

32 for C9200-24PB, C9200-48PB

1 16
Stacking bandwidth 160 Gbps 80 Gbps N/A
Total number of MAC addresses 32,000 16,000 32,000
Total number of IPv4 routes (ARP plus learned routes) 14,000 (10,000 direct routes and 4,000 indirect routes) 11,000 (8,000 direct routes and 3,000 indirect routes) 14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries 4,000 3,000 4,000
IPv6 routing entries 2,000 1,500 2,000
Multicast routing scale 1,000 1,000 1,000
QoS scale entries 1,000 1,000 1,000
ACL scale entries 1,600 1,500 1,600
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models 6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models 6 MB buffers
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models 16,000 flows on 24- and 48- port Gigabit Ethernet models, 32,000 flows on 24 or 48 port multigigabit models 16,000 flows
DRAM 4 GB 2 GB 4 GB
Flash 4 GB 4 GB 8 GB
VLAN IDs 4096 4096 4096
PVST Instances 128 128 128
STP Virtual Ports 13,000 13,000 13,000
(Port *VLANs) for PVST
STP Virtual Ports 13,000 13,000 13,000
(Port *VALNs) for MST
Total Switched Virtual Interfaces (SVIs) 1000 512 1000
Jumbo frames 9198 bytes 9198 bytes 9198 bytes
Wireless bandwidth per switch Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model N/A
IP SGT binding scale 8K 10K 8K
Number of IPv4 bindings 8K 10K 8K
Number of SGT/DGT policies 2K 2K 2K
Number of SXP Sessions 200 200 200
Switch model Downlinks total 10/100/1000 or PoE+ copper ports Uplink configuration Default primary AC power supply Fans
Modular uplink models
C9200-24T 24 ports data Modular uplink options PWR-C6-125WAC FRU redundant
C9200-24P 24 ports full PoE+ Modular uplink options PWR-C6-600WAC FRU redundant
C9200-24PB 24 ports full PoE+ Modular uplink options PWR-C6-600WAC FRU redundant
C9200-24PXG 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) Modular uplink options PWR-C6-600WAC FRU redundant
C9200-48T 48 ports data Modular uplink options PWR-C6-125WAC FRU redundant
C9200-48P 48 ports full PoE+ Modular uplink options PWR-C6-1KWAC FRU redundant
C9200-48PL 48 Ports partial PoE+ Modular uplink options PWR-C6-600WAC FRU redundant
C9200-48PB 48 ports full PoE+ Modular uplink options PWR-C6-1KWAC FRU redundant
C9200-48PXG 48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) Modular uplink options PWR-C6-1KWAC FRU redundant
Fixed uplink models
C9200L-24T-4G 24 ports data 4x 1G fixed uplinks PWR-C5-125WAC Fixed redundant
C9200L-24P-4G 24 ports full PoE+ 4x 1G fixed uplinks PWR-C5-600WAC Fixed redundant
C9200L-48T-4G 48 ports data 4x 1G fixed uplinks PWR-C5-125WAC Fixed redundant
C9200L-48P-4G 48 ports full POE+ 4x 1G fixed uplinks PWR-C5-1KWAC Fixed redundant
C9200L-48PL-4G 48 Ports partial PoE+ 4X 1G Fixed uplinks PWR-C5-600WAC Fixed redundant
C9200L-24T-4X 24 ports data 4x 1/10G fixed uplinks PWR-C5-125WAC Fixed redundant
C9200L-24P-4X 24 ports full PoE+ 4x 1/10G fixed uplinks PWR-C5-600WAC Fixed redundant
C9200L-48T-4X 48 ports data 4x 1/10G fixed uplinks PWR-C5-125WAC Fixed redundant
C9200L-48P-4X 48 ports full PoE+ 4x 1/10G fixed uplinks PWR-C5-1KWAC Fixed redundant
C9200L-48PL-4X 48 Port partial PoE+ 4X 1/10G Fixed Uplinks PWR-C5-600WAC Fixed redundant
C9200L-24PXG-4X 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) 4x 1/10G fixed uplinks PWR-C5-600WAC Fixed redundant
C9200L-48PXG-4X 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) 4x 1/10G fixed uplinks PWR-C5-1KWAC Fixed redundant
Switch model Downlinks total 10/100/1000 or PoE+ copper ports Uplink configuration Default primary AC power supply Fans
C9200L-24PXG-2Y 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) 2x 1/10/25G fixed uplinks PWR-C5-600WAC Fixed redundant
C9200L-48PXG-2Y 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) 2x 1/10/25G fixed uplinks PWR-C5-1KWAC Fixed redundant
Compact models
C9200CX-12T-2X2G 12 ports data 2x 1G copper, 1x 1G CU PD 802.3bt Class 8, 2x 10G SFP+ fixed uplinks 80W External Power Adapter Fanless
C9200CX-12P-2X2G 12 ports PoE+ 2x 1G copper, 2x 10G SFP+ fixed uplinks 310W internal Fanless
C9200CX-8P-2X2G 8 ports full PoE+ 2x 1G copper, 2x 10G SFP+ fixed uplinks 310W internal Fanless
