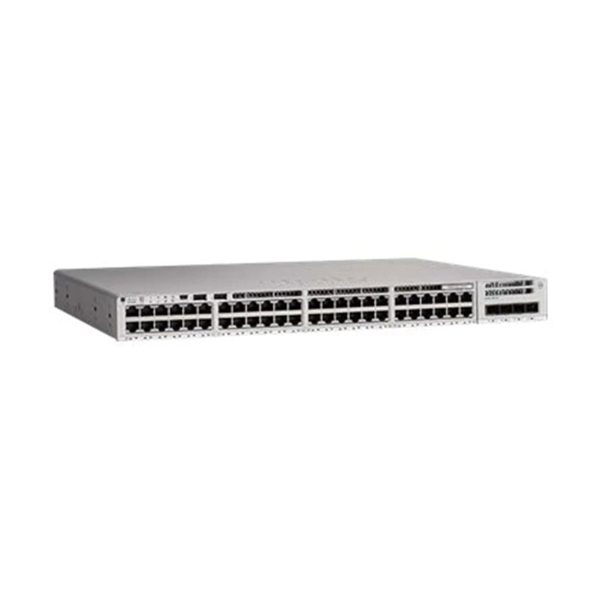

C9200L-48PL-4X
Cisco C9200L-48PL-4X switch supports 48-port partial PoE+ 4x10G uplink Switch, Network Advantage
Cisco
3-5 days
Hongkong Warehouse
- Description
- DATASHEET
- Comparison
- Reviews (0)
Description
C9200L-48PL-4X overview
Cisco C9200L-48PL-4X switch supports 48-port partial PoE+ 4x10G uplink Switch, Network Advantage.
Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.
C9200L-48PL-4X highlights
- Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
- Flexible downlink options with data, PoE+ or mGig
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- Advanced network monitoring using Full Flexible NetFlow
| Description | C9200 SKUs | C9200L SKUs | C9200CX SKUs |
| Virtual Networks | 4 for C9200-24T,
C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL 32 for C9200-24PB, C9200-48PB |
1 | 16 |
| Stacking bandwidth | 160 Gbps | 80 Gbps | N/A |
| Total number of MAC addresses | 32,000 | 16,000 | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 | 3,000 | 4,000 |
| IPv6 routing entries | 2,000 | 1,500 | 2,000 |
| Multicast routing scale | 1,000 | 1,000 | 1,000 |
| QoS scale entries | 1,000 | 1,000 | 1,000 |
| ACL scale entries | 1,600 | 1,500 | 1,600 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models | 6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models | 6 MB buffers |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models | 16,000 flows on 24- and 48- port Gigabit Ethernet models, 32,000 flows on 24 or 48 port multigigabit models | 16,000 flows |
| DRAM | 4 GB | 2 GB | 4 GB |
| Flash | 4 GB | 4 GB | 8 GB |
| VLAN IDs | 4096 | 4096 | 4096 |
| PVST Instances | 128 | 128 | 128 |
| STP Virtual Ports | 13,000 | 13,000 | 13,000 |
| (Port *VLANs) for PVST | |||
| STP Virtual Ports | 13,000 | 13,000 | 13,000 |
| (Port *VALNs) for MST | |||
| Total Switched Virtual Interfaces (SVIs) | 1000 | 512 | 1000 |
| Jumbo frames | 9198 bytes | 9198 bytes | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model | N/A | |
| IP SGT binding scale | 8K | 10K | 8K |
| Number of IPv4 bindings | 8K | 10K | 8K |
| Number of SGT/DGT policies | 2K | 2K | 2K |
| Number of SXP Sessions | 200 | 200 | 200 |
| Switch model | Downlinks total 10/100/1000 or PoE+ copper ports | Uplink configuration | Default primary AC power supply | Fans |
| Modular uplink models | ||||
| C9200-24T | 24 ports data | Modular uplink options | PWR-C6-125WAC | FRU redundant |
| C9200-24P | 24 ports full PoE+ | Modular uplink options | PWR-C6-600WAC | FRU redundant |
| C9200-24PB | 24 ports full PoE+ | Modular uplink options | PWR-C6-600WAC | FRU redundant |
| C9200-24PXG | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | Modular uplink options | PWR-C6-600WAC | FRU redundant |
| C9200-48T | 48 ports data | Modular uplink options | PWR-C6-125WAC | FRU redundant |
| C9200-48P | 48 ports full PoE+ | Modular uplink options | PWR-C6-1KWAC | FRU redundant |
| C9200-48PL | 48 Ports partial PoE+ | Modular uplink options | PWR-C6-600WAC | FRU redundant |
| C9200-48PB | 48 ports full PoE+ | Modular uplink options | PWR-C6-1KWAC | FRU redundant |
| C9200-48PXG | 48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) | Modular uplink options | PWR-C6-1KWAC | FRU redundant |
| Fixed uplink models | ||||
| C9200L-24T-4G | 24 ports data | 4x 1G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
| C9200L-24P-4G | 24 ports full PoE+ | 4x 1G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48T-4G | 48 ports data | 4x 1G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
| C9200L-48P-4G | 48 ports full POE+ | 4x 1G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| C9200L-48PL-4G | 48 Ports partial PoE+ | 4X 1G Fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-24T-4X | 24 ports data | 4x 1/10G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
| C9200L-24P-4X | 24 ports full PoE+ | 4x 1/10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48T-4X | 48 ports data | 4x 1/10G fixed uplinks | PWR-C5-125WAC | Fixed redundant |
| C9200L-48P-4X | 48 ports full PoE+ | 4x 1/10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| C9200L-48PL-4X | 48 Port partial PoE+ | 4X 1/10G Fixed Uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-24PXG-4X | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 4x 1/10G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-4X | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) | 4x 1/10G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| Switch model | Downlinks total 10/100/1000 or PoE+ copper ports | Uplink configuration | Default primary AC power supply | Fans |
| C9200L-24PXG-2Y | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 2x 1/10/25G fixed uplinks | PWR-C5-600WAC | Fixed redundant |
| C9200L-48PXG-2Y | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 2x 1/10/25G fixed uplinks | PWR-C5-1KWAC | Fixed redundant |
| Compact models | ||||
| C9200CX-12T-2X2G | 12 ports data | 2x 1G copper, 1x 1G CU PD 802.3bt Class 8, 2x 10G SFP+ fixed uplinks | 80W External Power Adapter | Fanless |
| C9200CX-12P-2X2G | 12 ports PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 310W internal | Fanless |
| C9200CX-8P-2X2G | 8 ports full PoE+ | 2x 1G copper, 2x 10G SFP+ fixed uplinks | 310W internal | Fanless |
