CE-L48XS-FDA Huawei CE12800 switch 48-port 10GE, 2-port 40GE, 2-port 100GE interface card (FDA, SFP+, QSFP+, QSFP28)

Huawei

3-5 days

Shenzhen Warehouse

SKU: 03023CLU Category:

Description

CE-L48XS-FDA card overview

CE-L48XS-FDA Huawei CE12800 series 48-port 10GE, 2-port 40GE, 2-port 100GE interface card (FDA, SFP+, QSFP+, QSFP28)

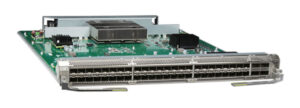

CE-L48XS-FDA appearance

CE-L48XS-FDA



CE-L48XS-FDA function and feature
Function and Feature CE-L48XS-FDA
Basic function The CE-L48XS-FDA provide data packet processing and traffic management on 48 10GE optical ports. The CE-L48XS-FDA in this series also provide two 40GE and two 100GE/40GE uplink optical ports in addition to the 10GE ports.
Maximum port density If all LPUs are CE-L48XS-FDA cards:

  • The CE12804/CE12804S chassis provides a maximum of 192 10GE optical ports. The chassis also provides a maximum of 16 40GE or 8 100GE uplink ports.
  • The CE12808/CE12808S chassis provides a maximum of 384 10GE optical ports. The chassis also provides a maximum of 32 40GE or 16 100GE uplink ports.
  • The CE12812 chassis provides a maximum of 576 10GE optical ports. The chassis also provides a maximum of 48 40GE or 24 100GE uplink ports.
  • The CE12816 chassis provides a maximum of 768 10GE optical ports. The chassis also provides a maximum of 64 40GE or 32 100GE uplink ports.
High 10GE/GE port density (48x10GE/GE)
  • When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, and can work with 10GE Twinax high-speed cables or AOC cables.
  • On a CE-L48XS-FDA card, if any one of optical ports 24-35 is working in GE mode, the 1000BASE-T copper module on the port can only work at 1000 Mbit/s, the GE optical modules on the port work in non-auto-negotiation mode by default and do not support the auto-negotiation mode configuration.
  • On a CE-L48XS-FDA card:
  • A 40GE uplink port can be split into two 10GE ports. The two 40GE ports on the card must work in the 40GE or 2*10GE mode simultaneously. A 100GE uplink port can be split into four 25GE ports.
  • The two 40GE uplink optical ports support QSFP+ optical modules, LC fibers, MPO-MPO fibers, QSFP+ high-speed cables, and active optical cables (AOCs).
  • The two 100GE/40GE uplink optical ports work in either 100GE or 40GE mode. In 100GE mode, they support QSFP28 optical modules, MPO-MPO fibers and QSFP28 AOC cables. In 40GE mode, they support QSFP+ optical modules, LC fibers, MPO-MPO fibers, QSFP+ high-speed cables, and AOC cables.
Limitations and Descriptions For the CE-L48XS-FDA card:

  • When 48 x 10G, 2 x 40G, and 2 x 100G ports are used at the same time, data cannot be forwarded at the line rate.
  • When the total port bandwidth does not exceed 480 Gbit/s, SFUs can forward data at the line rate in the 4+1 backup mode.
  • When the total port bandwidth does not exceed 600 Gbit/s, SFUs can forward data at the line rate in the 5+1 backup mode.
  • When the total port bandwidth does not exceed 720 Gbit/s, SFUs can forward data at the line rate in the 6+0 backup mode.
Item CE-L48XS-FDA
CPU Eight-core, 1.5 GHz clock speed
DDR3/DDR4 DDR3, standard 2 GB
Flash Standard 128 MB
Physical specifications
  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 5.9 kg (13.01 lb)
  • Typical power consumption: 201 W
  • Maximum power consumption: 312 W
  • Typical heat dissipation: 687 BTU/hour
  • Maximum heat dissipation: 1066 BTU/hour
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
