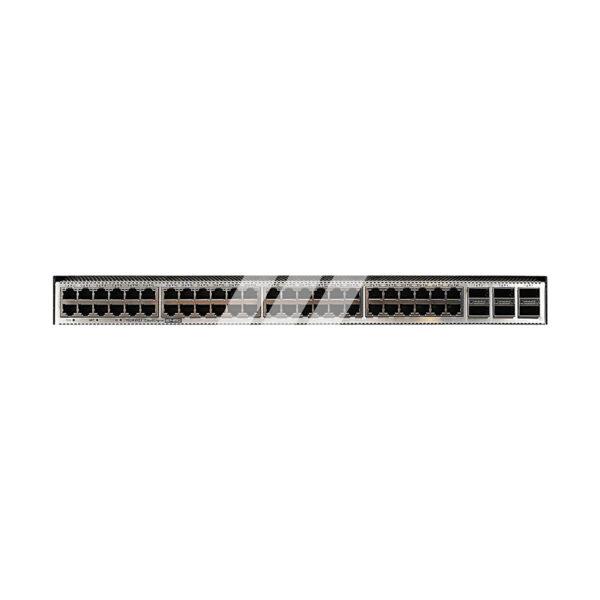

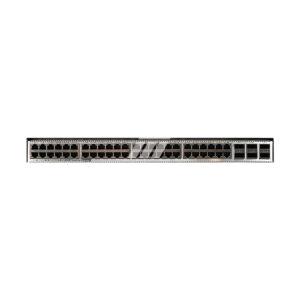

CE6857F-48T6CQ Huawei CE6800 switch supports 48*10GE RJ45, 6*100GE QSFP28

Description

CE6857F-48T6CQ overview

CE6857F-48T6CQ Huawei CE6800 switch supports 48*10GE RJ45, 6*100GE QSFP28

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well suited to both the core and aggregation layers and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

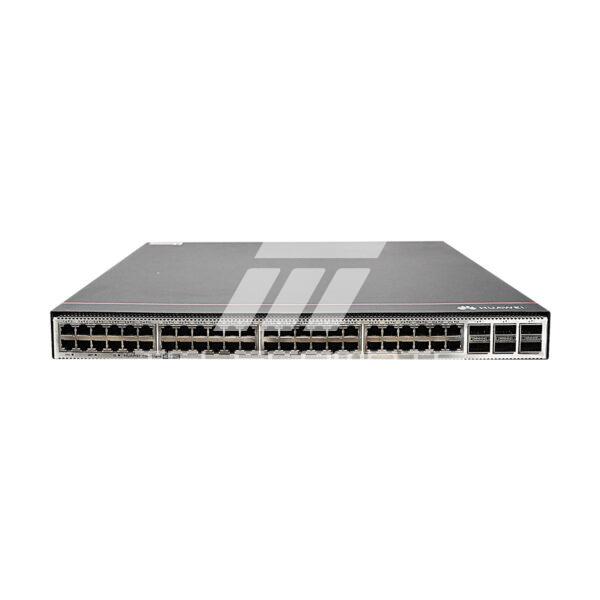

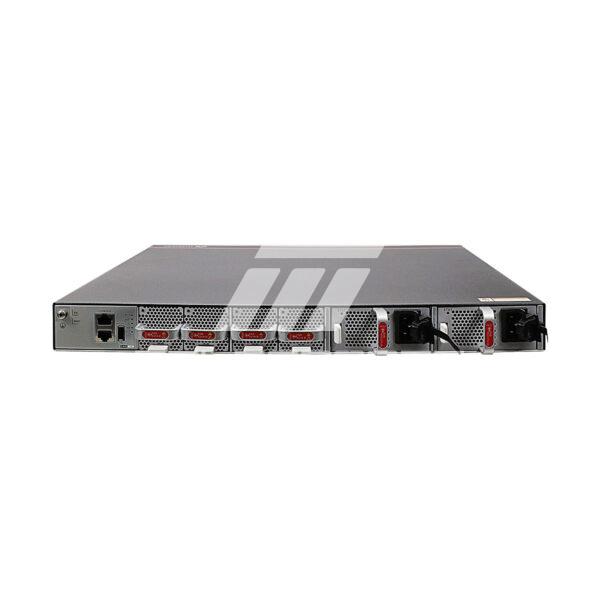

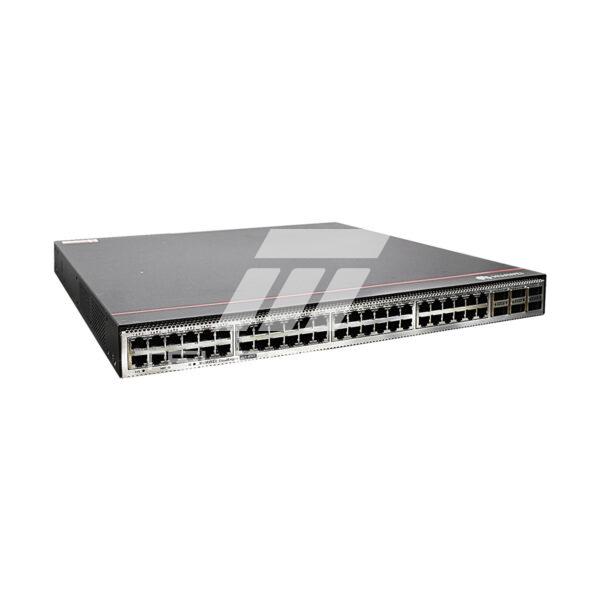

CE6857F-48T6CQ appearance
1 Ground screw 2 Equipment serial number (ESN)
3 Console port 4 ETH management port (RJ45)
5 USB port 6 Fan slot 1
7 Fan slot 2 8 Fan slot 3
9 Fan slot 4 10 Power supply slot 1
11 Power supply slot 2 12 Forty-eight 10GBASE-T Ethernet electrical ports
13 Six 40GE/100GE QSFP28 Ethernet optical ports 14 Three port-side mounting holes for mounting brackets
15 Two middle mounting holes for mounting brackets 16 Equipotential bonding
Ground screws for a ground cable with a two-hole OT terminal
17 Four power-supply-side mounting holes for mounting brackets



Item CE6857F-48T6CQ
Memory DRAM: 4 GB
NOR Flash 64 MB
NAND Flash 4GB
USB Supported
Power supply mode AC
DC
HVDC
Console port RJ45
Downlink Service interface 48*10GE RJ45 (10GE interfaces are compatible with GE but do not support 100M/10M electrical interfaces. They only support full-duplex, not half-duplex.)
Uplink Service interface 6*100GE QSFP28 (Note: 1. 100GE interfaces are compatible with 40GE; 2. Only 40G/100G uplink ports 3 and 4 can be configured to work in 4x25G or 4x10G mode.)
Service port supporting the stack function 10GE electrical ports and 100GE optical ports
RTC Supported
Typical power consumption [W] 252 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
270 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour] 860 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
921 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Static power consumption [W] 136 W
Static heat dissipation [BTU/hour] 464 BTU/hr
Maximum power consumption [W] 363 W
Maximum heat dissipation 1239 BTU/hr
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V] 600 W AC&240 V DC power module : AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
1000 W DC power module : -48 V DC to -60 V DC
1200 W high-voltage DC power module: 240 V DC to 380V DC
Input voltage range [V] 600 W AC&240 V DC power module : AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
1000 W DC power module : -38.4 V DC to -72 V DC
1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A] 600 W AC&240 V DC power module : 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
1000 W DC power module : 30 A (-48 V DC to -60 V DC)
1200 W high-voltage DC power module: 8 A
Rated output power [W] 600 W AC&240 V DC power module : 600 W
1000 W DC power module : 1000 W
1200 W high-voltage DC power module: 1200 W
Certification Safety standards compliance
EMC standards compliance
Environmental standards compliance
Power supply surge protection [kV] AC: 6 kV in common mode and 6 kV in differential mode.
DC: 4 kV in common mode and 2 kV in differential mode.
HVDC: 4 kV in common mode and 2 kV in differential mode.
Types of fans Pluggable
Number of fans 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability 0.999996178
MTBF [year] 46.59 years
MTtr [hour] 1.56 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)] Front-to-back airflow: average 50 dBA (maximum: 54 dBA)
Back-to-front airflow: average 53 dBA (maximum: 57 dBA)
Noise at high temperature (40°C, sound pressure) [dB(A)] Front-to-back airflow: average 69 dBA (maximum: 73 dBA)
Back-to-front airflow: average 72 dBA (maximum: 77 dBA)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage altitude [m (ft.)] < 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)] -40°C to +70°C (-40°F to +158°F)
