CE6881-48S6CQ-K Huawei CE6800 switch supports 48*10GE SFP+, 6*100GE QSFP28

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE6881-48S6CQ-K overview

CE6881-48S6CQ-K Huawei CE6800 switch supports 48*10GE SFP+, 6*100GE QSFP28

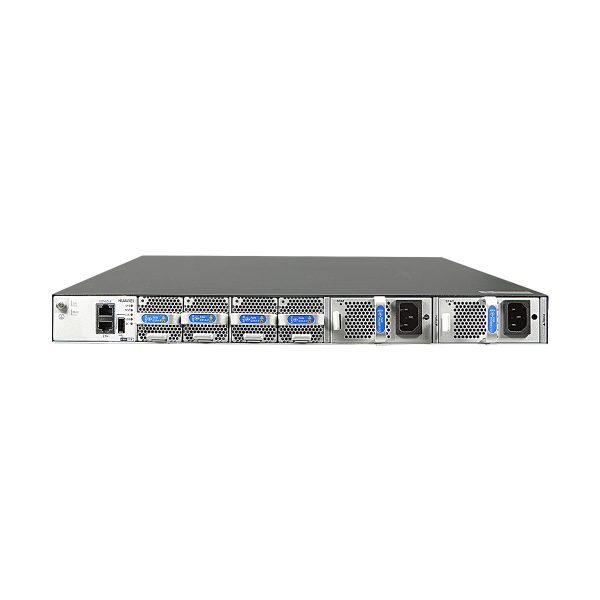

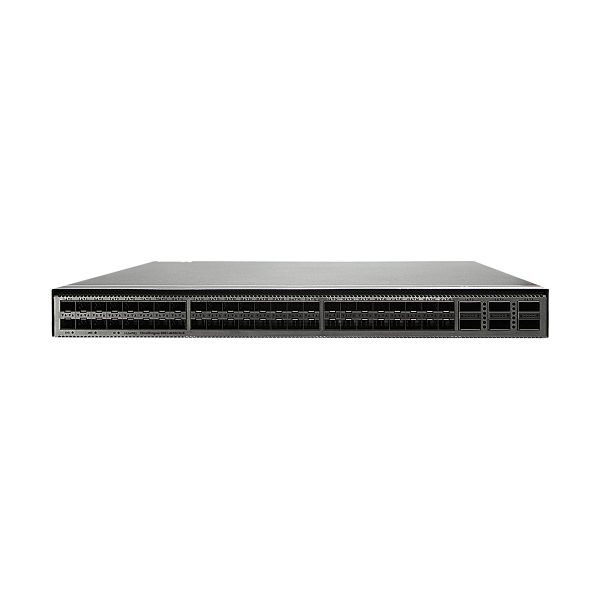

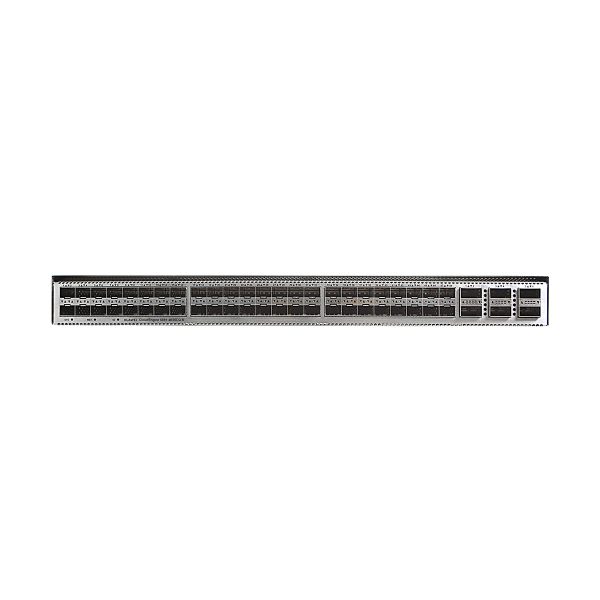

CE6881-48S6CQ-K appearance

CE6881-48S6CQ-K

1 Ground screw 2
Equipment serial number (ESN)

NOTE:

You can scan the code to view the ESN and MAC address of the switch.
3 Console port 4 ETH management port (RJ45)
5 USB port 6 Fan slot 1
7 Fan slot 2 8 Fan slot 3
9 Fan slot 4 10 Power supply slot 1
11 Power supply slot 2 12 Forty-eight 10GE SFP+ Ethernet optical ports
13 Six 40GE/100GE QSFP28 Ethernet optical ports 14 Three port-side mounting holes for mounting brackets
15 Two middle mounting holes for mounting brackets 16 Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal
17 Four power-supply-side mounting holes for mounting brackets – –



CE6881-48S6CQ-K application

Device Series Sub-series Device Model Short Name Supported Version
CE6800 CE6881 CE6881-48S6CQ-K CE6881K V200R019C10 and later
Show More Show Less
Item CE6881-48S6CQ-K
Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 57 dBA
  • Front-to-back airflow: < 58 dBA
Power source type AC/DC/HVDC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input
  • Rated voltage range: 240 V DC
  • Maximum voltage range: 190 V DC to 290 V DC
Rated input current
  • 600 W AC&240 V DC power module (PAC600S12 series):
    • 8 A (100 V AC to 240 V AC)
    • 4 A (240V DC)
  • 1000 W DC power module (PDC1000S12 series): 30 A (-48 V DC to -60 V DC)
Maximum power consumption 349 W
Typical power consumption
  • 194 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
  • 240 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Maximum heat dissipation 1191 BTU/hr
Typical heat dissipation
  • 662 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules)
  • 819 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Power module backup 1+1 backup
Fan module backup The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 45.9 years
Mean time to repair (MTTR) 1.57 hours
Availability 0.9999960856
Processor 1.4 GHz, four-core
DRAM memory 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
Physical specifications
  • Dimensions (H x W x D)
    • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
    • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 7.8 kg (17.20 lb)
