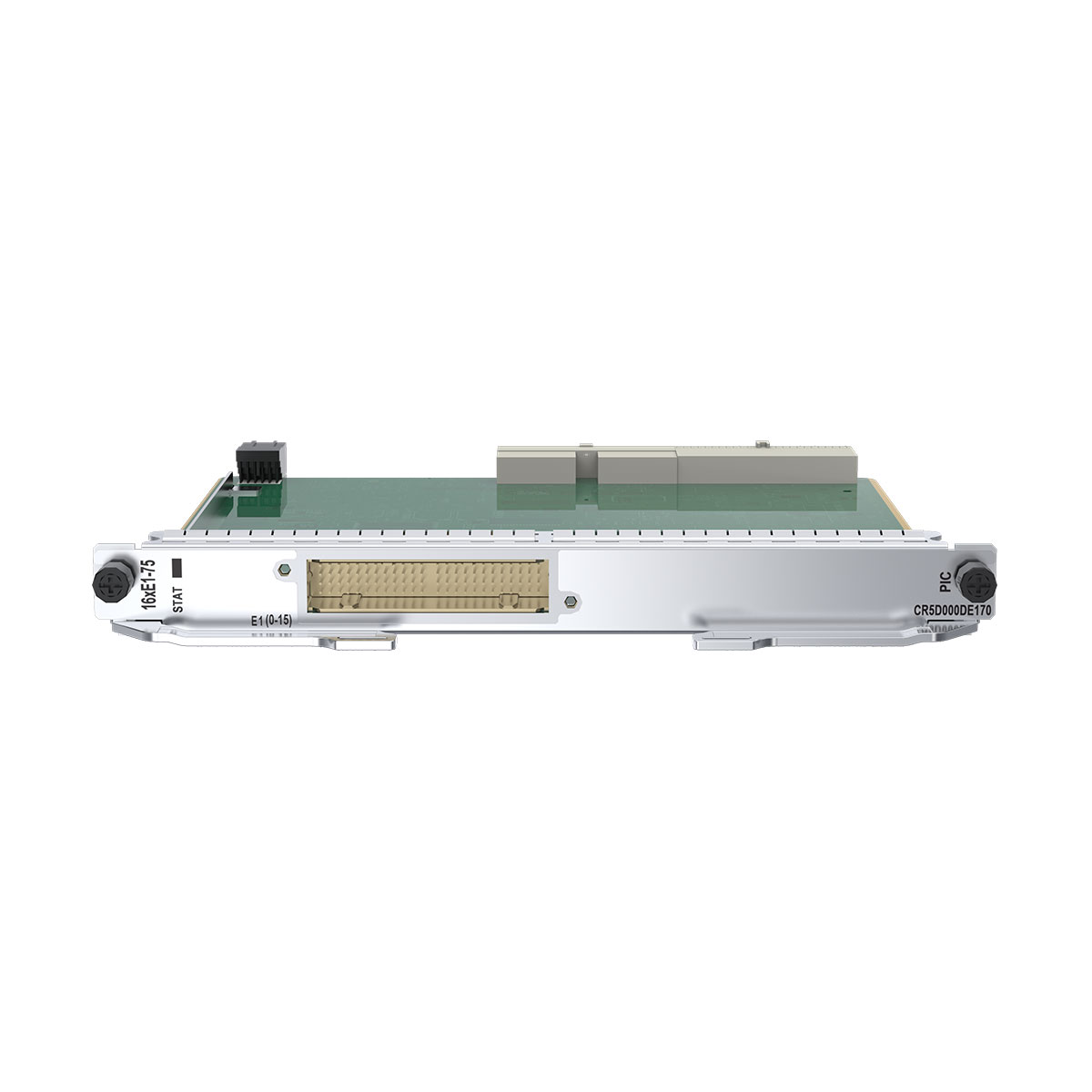

CR5D000DE170
NE8000 CR5D000DE170 16*Port E1 Physical Interface Card(PIC,75ohm)
Huawei
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (0)
Description
Basic information about the CR5D000DE170
| Item | Details |
|---|---|
| Description | 16-Port E1 Physical Interface Card(PIC,75ohm) |
| Card type | Interface Card |
| Part Number | 03030REX |
| Model | CR5D000DE170 |
| Silkscreen | 16xE1-75 |
Mappings between CR5D000DE170 and product models
|
Product Sub-Series
|
Product Model
|
First Supported Version
|
Limitations
|
|---|---|---|---|
| NetEngine 8000 M14 | CR8B0BKPACC2 | NetEngine 8000 M V800R012C10 | – |
| NetEngine 8000 M14 | CR8B0BKPDCC1 | NetEngine 8000 M V800R012C10 | – |
| NetEngine 8000 M14 | CR8B0BKPACC1 | NetEngine 8000 M V800R012C10 | – |
| NetEngine 8000 M8 | CR8BM8BKPDC1 | NetEngine 8000 M V800R012C10 | – |
| NetEngine 8000 M8 | CR8BM8BKPAC1 | NetEngine 8000 M V800R012C10 | – |
| Item | CR5D000DE170 |
|---|---|
| Basic function | Supports a maximum of 16 E1 interfaces. Services on each interface can be configured. |
| Reliability and availability | Support for hot swap. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| Link protocol | TDM, PPP, MP, ATM, IMA |
| Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
| Weight without packaging [kg(lb)] | 0.5 kg(1.1 lb) |
| Typical power consumption [W] | 9.5 W |
| Typical heat dissipation [BTU/hour] | 30.66 BTU/hour |
| Long-term operating temperature [°C(°F)] | -40°C to 65°C(-40°F to 149°F) |
