Description

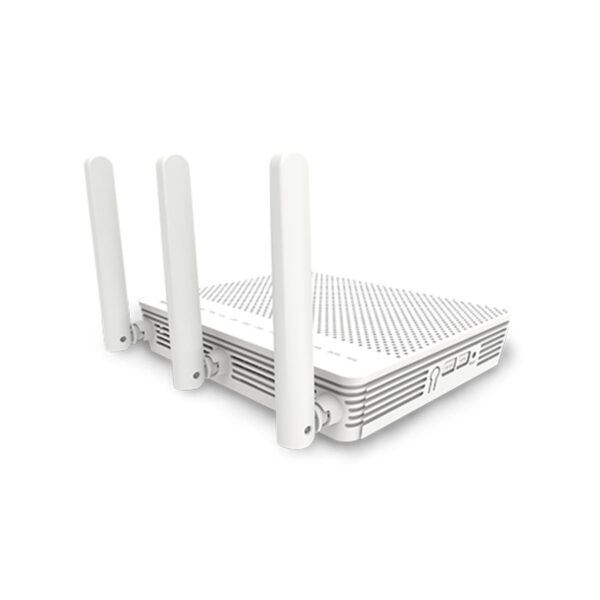

EG8245Q GPON ONT with 4*GE +2*POTS+ 2.4G/5G Wi-Fi + 1*USB, SC/APC
The EG8245Q is an intelligent, routing-type Optical Network Terminal (ONT) used in FTTH solution and designed for wall-mounted installation scenarios. The EG8245Q supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure the smooth transmission of voice, Internet, and HD video services.
WLAN:
- IEEE 802.11 b/g/n (2.4G)
- IEEE 802.11 a/n/ac (5G)
- 3 x 3 MIMO (2.4G/5G)
- Antenna gain: 2 dBi
- WMM/Multiple SSIDs/WPS
- 2.4G/5G concurrent
- Air interface rates: 450 Mbit/s (2.4G); 1,300 Mbit/s (5G)
GPON Port:
- Class B+
- Receiver sensitivity: -27 dBm
- Overload optical power: -8 dBm
- Wavelengths: US 1,310 nm, DS 1,490 nm
- WBF
- Flexible mapping between GEM Port and TCONT
- GPON: Consistent with the SN or password
- Authentication defined in G.984.3
- Bi-directional FEC
- SR-DBA and NSR-DBA
Ethernet Port:
- Ethernet port-based VLAN tags and tag removal
- 1:1 VLAN, N:1 VLAN, or VLAN transparent
- Transmission
- QinQ VLAN
- Limit on the number of learned MAC addresses
- MAC address learning
- Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1,000 Mbit/s
POTS Port:
- Maximum REN: 4
- G.711A/μ, G.729a/b and G.722 encoding/decoding
- T.30/T.38/G.711 fax mode
- DTMF
- Emergency calls (with the SIP protocol)
| Item | EG8245Q |
| Power Adapter Input | 100V to 240V AC, 50/60 Hz |
| System Power Supply | 11V to 14V DC, 1.5A |
| Static Power Consumption | 4.3W |
| Maximum Power Consumption | 18W |
| NNI | GPON |
| UNI | 2 POTS + 4 GE + 2.4G/5G Wi-Fi + 1 USB |
| Optical Connector | SC/APC |
| Indicators | POWER, PON, LOS, LAN, TEL, USB, WLAN, and WPS |
| WLAN | IEEE 802.11 b/g/n (2.4G)
IEEE 802.11 a/n/ac (5G) 3 x 3 MIMO (2.4G/5G) Antenna gain: 2 dBi WMM/Multiple SSIDs/WPS 2.4G/5G concurrent Air interface rates: 450 Mbit/s (2.4G); 1,300 Mbit/s (5G) |
| GPON Port | Class B+
Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Wavelengths: US 1,310 nm, DS 1,490 nm WBF Flexible mapping between GEM Port and TCONT GPON: Consistent with the SN or password Authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA |
| Ethernet Port | Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transparent Transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1,000 Mbit/s |
| POTS Port | Maximum REN: 4
G.711A/μ, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol) |
| Weight | < 1,500g |
| Dimensions (L x W x H) | 188 mm x 143 mm x 32 mm (without external antenna and pads) |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
