Huawei H801X2CS 2-port GE/10GE optical uplink board without SFP+ Module, apply to Huawei MA5680T/MA5683T

3-5 days

Huawei

Shenzhen Warehouse

SKU: 03020KKP Category:

Description

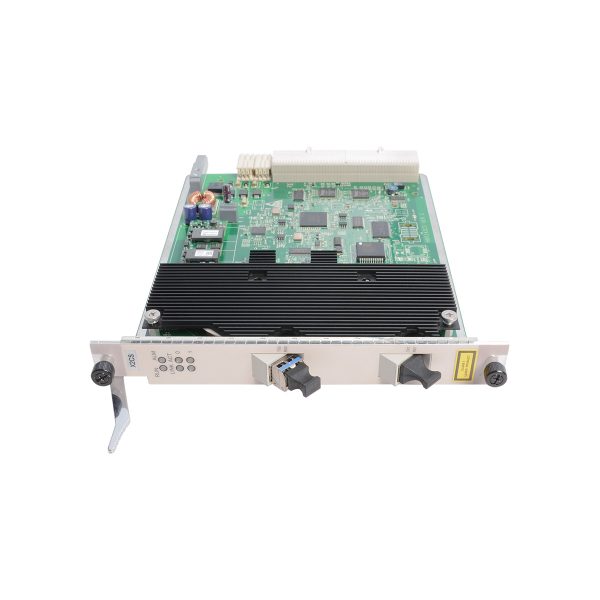

The H801X2CS board is a 2-port GE/10GE uplink board, which provides two GE/10GE upstream or cascading optical ports, can be used in the Huawei MA5600T series OLTs: MA5683T MA5680T.

This board comes without any optical transceivers, it is supposed to work with 10GE SFP+ modules: 10GE 0.3km SFP+10GE 10km SFP+.



Front Panel

H801X2CS

Working principle of the H801X2CS board

H801X2CS Datasheet
Item H801X2CS
Port 2 GE/10GE Uplink Ports
Pluggable Module SFP+ Module
Corresponding Control Board SCUF/SCUN/SCUL/SCUH
Dimensions (mm) 25.40 (W) x 237.00 (D) x 197.20 (H)
Power Consumption Static: 17.6 W
Maximum: 18 W
Maximum Frame Size 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported
Operating temperature -25°C to +65°C

Additional information

Weight 2.5000 kg
Dimensions 34.0000 × 25.5000 × 10.0000 cm

The differences between different Upstream interface board:

Board Clock Feature Port Whehter the Port Supports Pluggable Module Corresponding Control Board
Optical Module Electrical Module
H801GICF × Two GE ports √ (SFP) √ (SFP) SCUN/SCUL/SCUH
H801GICG × Two GE electrical ports × × SCUN/SCUL/SCUH
H801GICK GE synchronous Ethernet Two GE ports √ (SFP) × SCUN/SCUL/SCUF/SCUH
H801GSCA GE synchronous Ethernet Four GE ports √ (SFP) × SCUB/SCUF/SCUH
H801X1CA × One 10GE port √ (XFP) × SCUN/SCUF/SCUL/SCUH
H801X2CA × Two 10GE ports √ (XFP) × SCUN/SCUL/SCUH
H801X2CS 10GE synchronous Ethernet Two 10GE ports √ (SFP+) × SCUN/SCUF/SCUL/SCUH
H802P2CA × Two PON ports √ (SFP) × SCUB/SCUN

2 reviews for H801X2CS

  1. 5 out of 5

    Javier Gonzales

    I wanna get the diference between the H801X2CS and H802X2CS, the account manager of Telecomate.com told me that H802X2CS board supports Pluggable Electrical Module, but the H801 one no, which help us a lot in the procurement process.

  2. 5 out of 5

    Crystal

    Fast delivery. Happy with the product and service all the time. This board works well with my OLT.
