LSS7C06HX6S0

LSS7C06HX6S0 Huawei S7700 switch 6-Port 100GE QSFP28 Interface Card (X6S, QSFP28)

Huawei

3-5 days

Shenzhen Warehouse

SKU: 03033DBC Category:

Description

LSS7C06HX6S0 overview

LSS7C06HX6S0 Huawei S7700 switch 6-Port 100GE QSFP28 Interface Card (X6S, QSFP28)

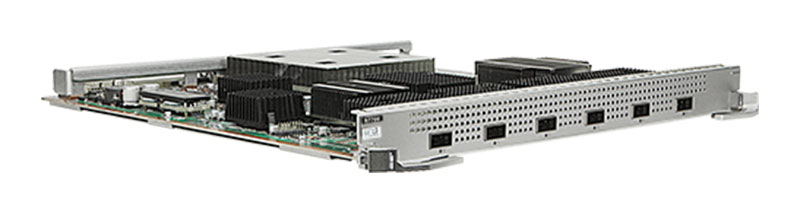

LSS7C06HX6S0 appearance

LSS7C06HX6S0

LSS7C06HX6S0 application

Card Name

Part Number

S7700 Chassis

LSS7C06HX6S0

03033DBC

S7703 chassis: supported in V200R013C02 and later versions

S7703 PoE, S7706, S7706 PoE, and S7712 chassis: supported in V200R019C00 and later versions

NOTE:

As for cards manufactured since June 2021:

  • If they are used in V200R019C00, load V200R019SPH029 or a later patch, and load S7700_V200R019C00SPC500_BOARD_MOD002.mod or a later .mod file.
  • If they are used in V200R013C02, upgrade the system software to V200R019C10SPC500.

03033DBC-001

V200R021C10 and later versions.

NOTE:

  • If the card is used in V200R019C10SPC500, install V200R019SPH058 or a later patch and S7700_V200R019C10SPC500_BOARD_MOD003.mod or a later mod file. For the sequence of loading patches and mod files, see the Patch Notes and MOD Plug-in Installation Guide of the corresponding version.
  • If the card is used in V200R021C00SPC100 or V200R021C01, install V200R021SPH010 or a later patch.
LSS7C06HX6S0 functions and features

Function

Description

Basic function

Provides six 100GE optical ports for data transmission and switching.

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Hot swapping

Supported
