Home/Enterprise Router/Huawei Router/NE8000 Series/NE8000 M Series/NetEngine 8000 M1C

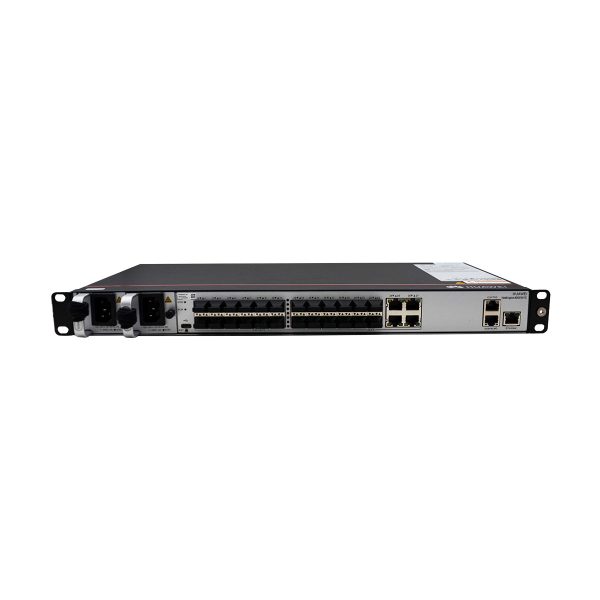

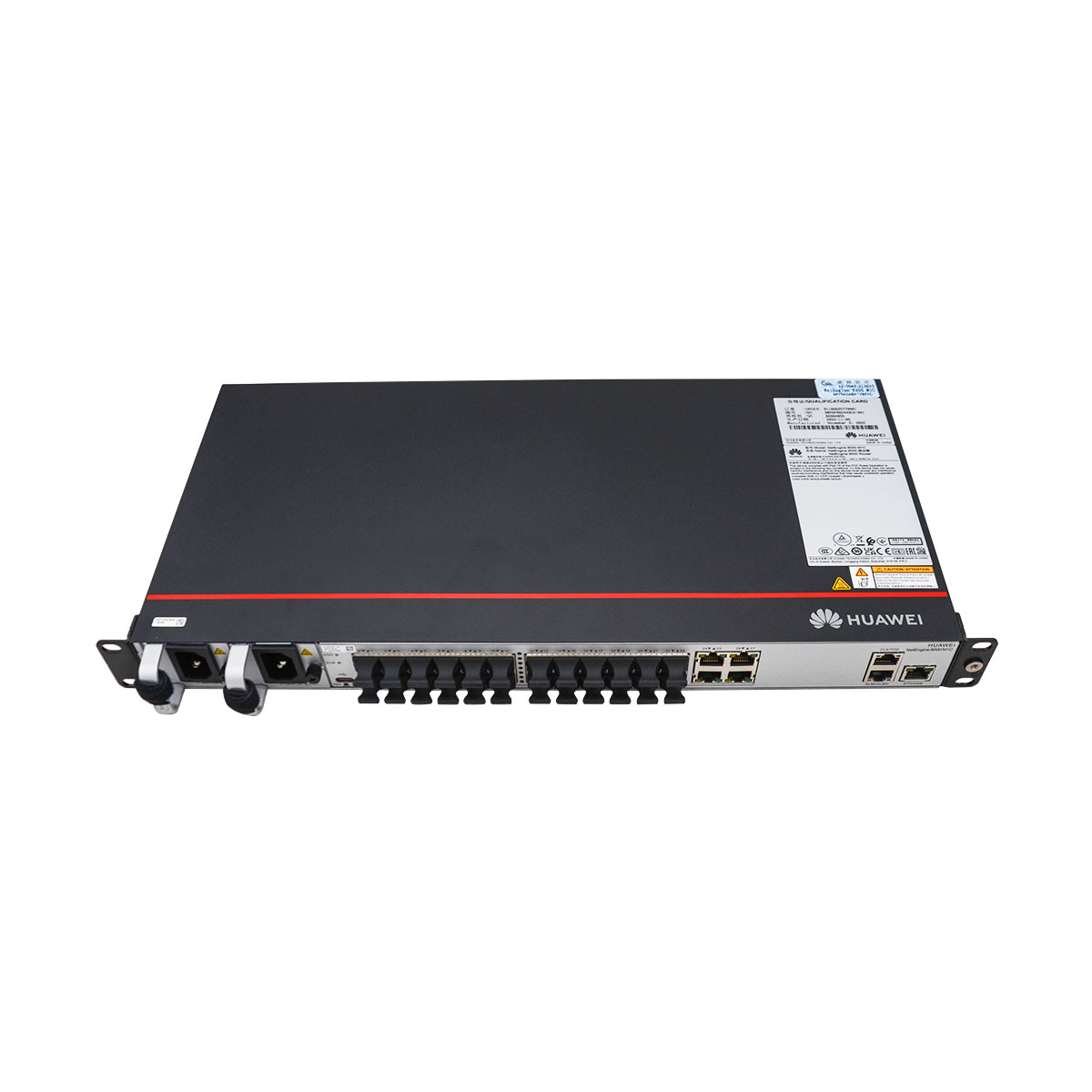

NE8000 M1C 1
NE8000 M1C 2
NE8000 M1C 3
NE8000 M1C 4
NE8000 M1C 5
Categories:

NetEngine 8000 M1C

4 Reviews Write a review
PN02354ARL
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(4*10GE + 12*GE), 2*AC Power

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

NetEngine 8000 M1C is ahigh-density compact router designed forthe cloud era. It’s featured forits 1Ucompact size, 220 mm depth, and supports up to 172G port capacity. The compact design saves precious space resources. Su pports flexible service access of 10GE and GE (optical and electrical ports) and supports features such as SRv6, EVPN, Port Slicing, Telemetry, and 15 88v2 high-preci sion clock, which is the best choice for multi-service high-density bearer in the future cloud era.



Basic information about the NetEngine 8000 M1C

Description Part Number Model First Supported Version Remarks
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(4*10GE + 12*GE),2*DC Power,without Software and Document) 02354ARK CR8PM1CBASC0 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(4*10GE + 12*GE),2*AC Power,without Software and Document) 02354ARL CR8PM1CBASC1 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(6*10GE + 22*GE),2*DC Power,without Software and Document) 02354ARP CR8PM1CBASC2 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(6*10GE + 22*GE),2*AC Power,without Software and Document) 02354ARQ CR8PM1CBASC3 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(16*10GE + 12*GE),2*DC Power,without Software and Document) 02354ART CR8PM1CBASC4 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(16*10GE + 12*GE),2*AC Power,without Software and Document) 02354ARU CR8PM1CBASC5 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
NetEngine 8000 M1C, 2*DC Power, Port Capacity 16*10GE+8*GE(o)+4*GE(e), Default 2*10GE+8*GE 02354ARX CR8PM1CBASC6 V800R013C00SPC100 Integrated equipment, excluding auxiliary material packages.
NetEngine 8000 M1C, 2*AC Power, Port Capacity 16*10GE+8*GE(o)+4*GE(e), Default 2*10GE+8*GE 02354ARY CR8PM1CBASC7 V800R013C00SPC100 Integrated equipment, excluding auxiliary material packages.
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(2*10GE+20*GE), 2*DC Power,without Software and Document) 02354JEM CR8PM1CBASC8 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(2*10GE+20*GE), 2*AC Power,without Software and Document) 02354JEN CR8PM1CBASC9 V800R013C00SPC100 Integrated equipment, including auxiliary material packages.
Item NetEngine 8000 M1C
Cabinet installation standards ETSI (21-inch); IEC (19-inch); IMB (3U)
Dimensions without packaging (H x W x D) [mm(in.)] 44.5 mm x 442 mm x 220 mm (1.75 in. x 17.4 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 255 mm x 585 mm x 390 mm (10.04 in. x 23.03 in. x 15.35 in.)
Chassis height [U] 1 U
Weight without packaging (base configuration) [kg(lb)] 3.9 kg (8.60 lb)
Weight with packaging (base configuration) [kg(lb)] 6.1 kg (13.45 lb)
Typical power consumption [W] 89.21 W
Typical heat dissipation [BTU/hour] 289.43 BTU/hour
MTBF [year] 45.43 year
MTTR [hour] 2 hour
Availability 0.99999
CPU 8-core 1.5GHz
SDRAM 8 GB
Flash memory 64 MB
Storage 8 GB
Power supply mode AC
Rated input voltage [V] 200 V to 240 V/100 V to 127 V dual live wires, support 240V HVDC
Input voltage range [V] 100 V to 240 V
Maximum input current [A] 4 A
Maximum input cable size [mm²] Standard C13 cable
Front-end circuit breaker/fuse [A] ≥2A
Heat dissipation Air cooling
Airflow direction From left to right
Noise at normal temperature (acoustic power) [dB(A)] 55 dB(A)
Switching capacity 344G bit/s(Bidirectional). The maximum allowed error is 0.01%. To be specific, 99.99% of the line rate is guaranteed.
Redundant power supply 1+1
Redundant fans If a single fan fails, the system can still work for a short period of time at an ambient temperature of 50°C (122°F).
Long-term operating temperature [°C(°F)] -40°C to 65°C (-40°F to 149°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 30°C/hour (54°F/hour)
Storage temperature [°C(°F)] -40°C to 70°C (-40°F to 158 °F)
Long-term operating relative humidity [RH] 5% to 95% RH, non-condensing
Storage relative humidity [RH] 5% to 100% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)] < 5000 m (16404 ft.)
RTU supported Yes
  • 82601473: NetEngine 8000 M1 Fixed Port 1*10GE Upgrade RTU
  • 82601474: NetEngine 8000 M1 Fixed Port 1*GE Upgrade RTU
  • 88037AWW: NetEngine 8000 M1C basic configuration upgrade package (upgrade from 52G to 82G)
  • 88037AWX: NetEngine 8000 M1C basic configuration upgrade package (upgrade from 82G to 172G)
For details about how to use the RTU, see "Installation - License Usage Guide".

Additional information

Brand

Huawei
Warranty

12 Months
Item NetEngine 8000 M1C
Cabinet installation standards ETSI (21-inch); IEC (19-inch); IMB (3U)
Dimensions without packaging (H x W x D) [mm(in.)] 44.5 mm x 442 mm x 220 mm (1.75 in. x 17.4 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 255 mm x 585 mm x 390 mm (10.04 in. x 23.03 in. x 15.35 in.)
Chassis height [U] 1 U
Weight without packaging (base configuration) [kg(lb)] 3.9 kg (8.60 lb)
Weight with packaging (base configuration) [kg(lb)] 6.1 kg (13.45 lb)
Typical power consumption [W] 89.21 W
Typical heat dissipation [BTU/hour] 289.43 BTU/hour
MTBF [year] 45.43 year
MTTR [hour] 2 hour
Availability 0.99999
CPU 8-core 1.5GHz
SDRAM 8 GB
Flash memory 64 MB
Storage 8 GB
Power supply mode AC
Rated input voltage [V] 200 V to 240 V/100 V to 127 V dual live wires, support 240V HVDC
Input voltage range [V] 100 V to 240 V
Maximum input current [A] 4 A
Maximum input cable size [mm²] Standard C13 cable
Front-end circuit breaker/fuse [A] ≥2A
Heat dissipation Air cooling
Airflow direction From left to right
Noise at normal temperature (acoustic power) [dB(A)] 55 dB(A)
Switching capacity 344G bit/s(Bidirectional). The maximum allowed error is 0.01%. To be specific, 99.99% of the line rate is guaranteed.
Redundant power supply 1+1
Redundant fans If a single fan fails, the system can still work for a short period of time at an ambient temperature of 50°C (122°F).
Long-term operating temperature [°C(°F)] -40°C to 65°C (-40°F to 149°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 30°C/hour (54°F/hour)
Storage temperature [°C(°F)] -40°C to 70°C (-40°F to 158 °F)
Long-term operating relative humidity [RH] 5% to 95% RH, non-condensing
Storage relative humidity [RH] 5% to 100% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)] < 5000 m (16404 ft.)
RTU supported Yes
  • 82601473: NetEngine 8000 M1 Fixed Port 1*10GE Upgrade RTU
  • 82601474: NetEngine 8000 M1 Fixed Port 1*GE Upgrade RTU
  • 88037AWW: NetEngine 8000 M1C basic configuration upgrade package (upgrade from 52G to 82G)
  • 88037AWX: NetEngine 8000 M1C basic configuration upgrade package (upgrade from 82G to 172G)
For details about how to use the RTU, see "Installation - License Usage Guide".

Reviews

  1. Lopez –

    Telecomate.com has a professional sales team, recommended me this cost-effective router.

  2. Arif –

    NE8000 has many configuration interfaces.

  3. Carletti –

    NetEngine 8000 M1C needs to pre-order from Huawei, lead time is about 30 days.

  4. Maurice –

    Huawei NetEngine 8000 M1C has only AC chassis in the market, DC chassis is controlled by Huawei.
