ZTE RA-DPIU-04GE-Cmb 4-port GE Interface Board

ZTE

3-5 days

Shenzhen Warehouse

SKU: RA-DPIU-04GE-Cmb Category:

Description

RA-DPIU-04GE-Cmb overview

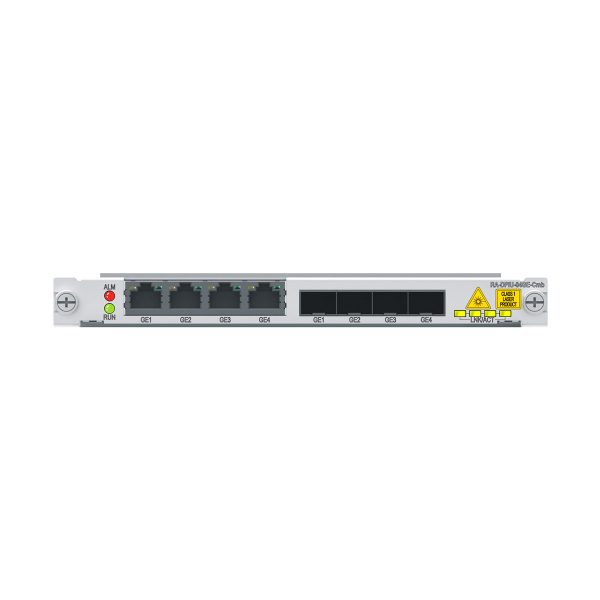

ZTE RA-DPIU-04GE-Cmb 4-port GE Interface Board

  • Provides four GE ports, each of which can be configured to operate as an optical port or an electrical port.
  • Supports 10BASE-T/100BASE-TX/1000BASE-TX GE electrical interfaces and 1000BASE-X/100BASE-FX GE optical interface.
  • Supports hot swapping.
Property Description
Connector type RJ-45 connector (with LED)
Electrical interface property 10BASE-T/100BASE-TX/1000BASE-TX
Operational mode Full duplex
Applied standard IEEE 802.3z Gigabit Ethernet standard
Supported frame format Ethernet frame
Supported network protocol IP
Parameter Specification
Silk screen name RA-DPIU-04GE-Cmb
Dimensions (H × W × D) 19.92 mm × 197.2 mm × 175 mm
Power consumption 12 W
Weight 0.54 kg
Rate 1 Gbps × 4
