PN 98010634
$581.00 Bulk Purchase

Huawei S5720-28TP-PWR-LI-ACL switch supports 8 10/100/1000BASE-T ports, 16 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports, fixed AC power, PoE+

Shenzhen Warehouse
lead time 3-5 days
- +
S5720-28TP-PWR-LI-ACL Overview


The S5720-LI series support intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes specialized models to meet customer requirements and to suit special scenarios. S5720-28TP-PWR-LI-AC supports 24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports. provides a full range of Huawei switch series, if you have any demands, please contact:


S5720-28TP-PWR-LI-ACL Quick Spec


24 10/100/1000BASE-T ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000BASE-T or SFP ports

Forwarding performance is 46.5 Mpps

Switching capacity is 336 Gbps

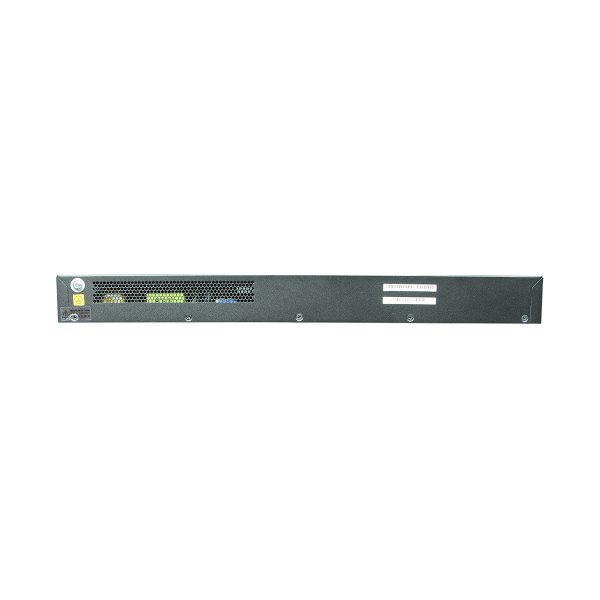

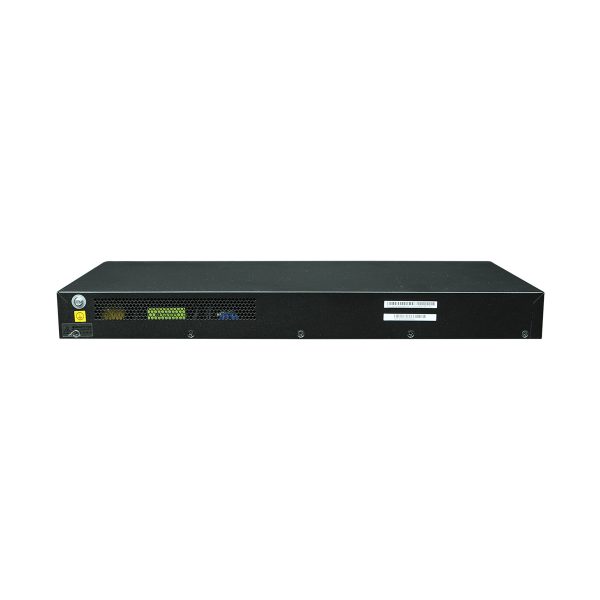

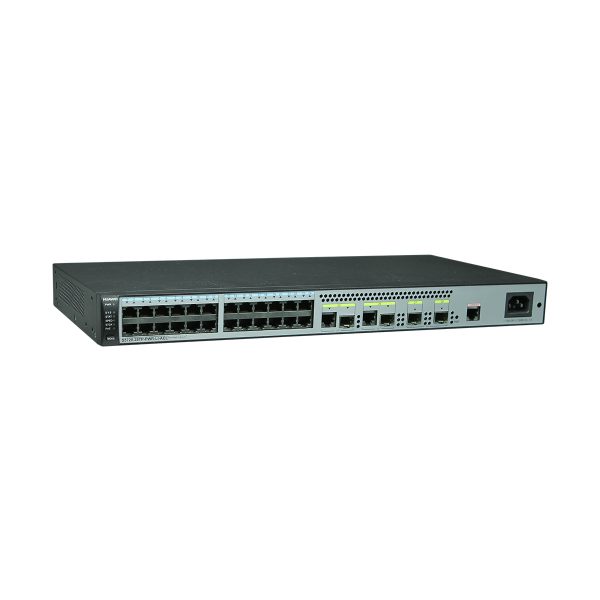

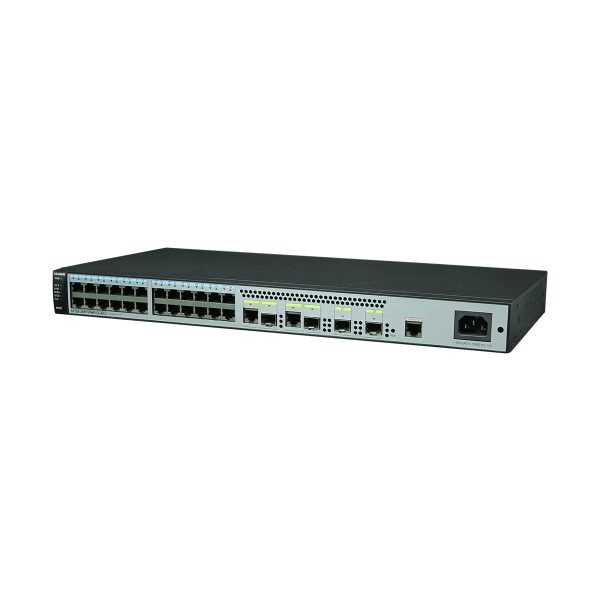

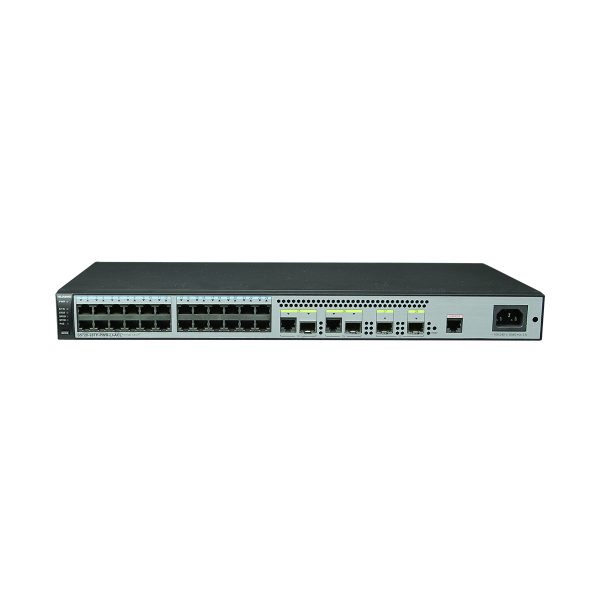

S5720-28TP-PWR-LI-ACL appearance and structure


S5720-28TP-PWR-LI-ACL appearance and structure



Eight PoE+ 10/100/1000BASE-T ports


One console port


Sixteen 10/100/1000BASE-T ports


AC socket


Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)


Jack for AC power cable locking strap


Two 1000BASE-X ports


Ground screw


One PNP button



S5720-28TP-PWR-LI-ACL Datasheet


Item S5720-28TP-PWR-LI-ACL
Forwarding performance 46.5 Mpps
Switching capacity 336 Gbit/s
Ports description 8 10/100/1000 Ethernet PoE+ ports, 16 10/100/1000Base-T Ethernet ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000Base-T or SFP ports
Fixed port GE port 28
10GE port NA
Multi-GE port NA
Management port Console port (RJ45) Supported
USB port NA
CPU Frequency 800 MHz
Cores 1
Storage Memory (RAM) 512 MB
Flash memory Hardware: 512 MB, of which 240 MB is available for users
Power supply system Power supply type Built-in AC
Power supply redundancy NA
Rated voltage range 100-240V AC; 50/60Hz
Maximum voltage range 90-264V AC; 47Hz-63Hz
Maximum input current 2.5 A
Maximum power consumption of the device Without PDs: 24.4 W
With PDs: 165.528 W
(PDs: 123.2 W)
Power consumption in the case of 30% traffic load 19.4 W
Power consumption in the case of 100% traffic load 24 W
Heat dissipation system Heat dissipation mode Natural heat dissipation
Number of fan modules NA
Airflow NA
Maximum heat dissipation of the device (BTU/hour) Without PDs: 83.3
With PDs: 564.8
Environment parameters Operating temperature 0-1800 m: 0°C to 45°C
1800–5000 m: The operating temperatur e decreases 1°C for every 220 m increase in altitude.
Storage temperature -40°C to+70°C
Relative humidity 5%-95%(non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) Silent (fan- free)

Noise under high temperature

(sound power)

Silent (fan- free)
Noise under normal temperature (sound pressure) Silent (fan- free)

Surge protection specification

(RJ45 service port)

±7 kV in common mode

Surge protection specification

(power port)

±6 kV in differential or common mode
Reliability MTBF (year) 42
MTTR (hour) 2
Availability > 0.99999

EMC certification

Safety certification

Manufacturing certification

For details about certifications, see the section Safety and Regulatory Compliance.

Physical specifications Chassis dimensions (W x D x H, mm) 442 x 220 x 43.6 (front- access)
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 4.5 kg
