Huawei S5720S-28P-PWR-LI-AC switch supports 24 10/100/1000BASE-T ports, 4 GE SFP ports, fixed AC power, PoE+


S5720S-28P-PWR-LI-AC Overview

Huawei S5720S-28P-PWR-LI-AC switch with 24 10/100/1000BASE-T ports, 4 GE SFP ports, fixed AC power, PoE+, which is one of the S5720 serie switch.

Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact [email protected].

S5720S-28P-PWR-LI-AC Quick Specs

24 10/100/1000BASE-T ports

4 GE SFP ports

Fixed AC power


Forwarding performance is 51 Mpps

Switching capacity is 336 Gbit/s

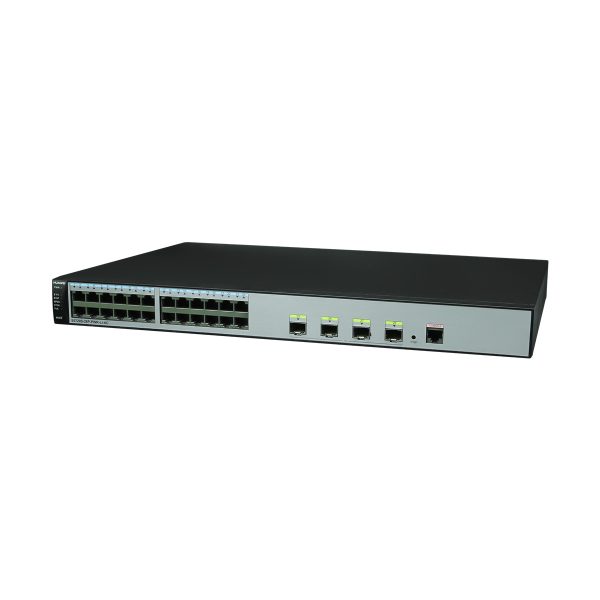

S5720S-28P-PWR-LI-AC appearance and structure

 S5720S-28P-PWR-LI-AC appearance and structure

1. Twenty-four 10/100/1000BASE-T ports 5. Ground screw
2. Four 1000BASE-X ports 6. Jack for AC power cable locking strap
3. One PNP button 7. AC socket
4. One console port
 S5720S-28P-PWR-LI-AC Datasheet
Item S5720S-28P- PWR-LI-AC
Fixed ports 24 Ethernet 10/100/1000Base-T ports, 4 Gig SFP ports
Forwarding performance 51Mpps
Switching capacity 336Gbit/s
Input voltage Rated voltage range: 100-240 V AC; 50/60 Hz
Maximum voltage range: 90-264 V AC; 47–63 Hz
Maximum power consumption Without PD: 40.4 W
With PD: 446.7 W (PoE: 370 W)
Typical power consumption (Without PoE) 26.0 W
Operating temperature  0-1800 m altitude: -5°C to +45°C
1800-5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m.
Relative humidity 5% to 95% (non- condensing)
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
Dimensions (W x D x H) 442 mm x 310 mm x 43.6 mm

Additional information

Weight 5.5000 kg
Dimensions 46.0000 × 52.2000 × 10.5000 cm
