Description

Huawei S5731S-H24HB4XZ-A overview



The Huawei S5731S-H24HB4XZ-A switch comes with 20 Hybrid GE SFP ports, 4 Hybrid 10GE SFP+ ports, 4 10GE SFP+ ports, 1 expansion slot, PoE++, 2 pluggable power supply slots, and 1*AC power equipped



The Huawei S5731S-H series fixed Ethernet switches integrate access and transmission functions, providing reliable access/aggregation and high-quality service transmission for enterprise networks. The Ethernet switch is built on an integrated hardware platform, and the hardware system consists of a chassis, a power module, a fan module, an expansion card, and an SCU (Switch Control Unit). The flag “HB” in the switch model indicates that the model supports GE or 10GE hybrid optical-electrical port.



There are various S series fixed Ethernet switches models for you to choose from according to your network requirements. If you don’t know which switch suits your network, you can contact csd@telecomate.com to get your exclusive technical sales manager for professional pre-sales consultation and technical services.



Basic information about the S5731S-H24HB4XZ-A





Item Details
Description S5731S-H24HB4XZ Bundle(20*Hybrid GE SFP ports, 4*Hybrid 10GE SFP+ ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 1*AC power)
Part Number 02354QXE
Model S5731S-H24HB4XZ-A
First supported version V200R021C10SPC500
Supported Patch Version If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch

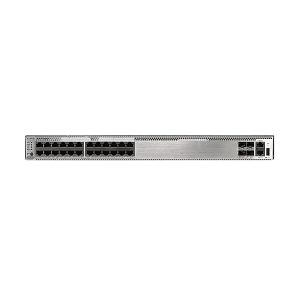

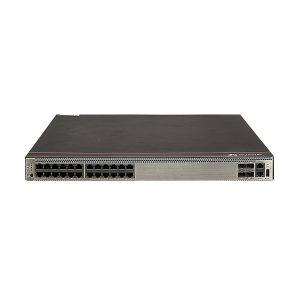

Huawei S5731S-H24HB4XZ-A appearance

S5731S H24HB4XZ A appearance



1 Twenty 100/1000BASE-X hybrid optical-electrical ports (supporting PoE++) 2 Four 10GE SFP+ hybrid optical-electrical ports (supporting PoE++)
3 Four 10GE SFP+ optical ports 4 One ETH management port
5 One console port 6 One USB port
7 One PNP button 8 Ground screw
NOTICE: NOTE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. It is used with a ground cable.
To reset the switch, press the button. Two OT grounding holes are provided on the side of the switch. If two OT terminals are required for grounding, you can purchase the two OT terminals separately.
Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.
9 Rear card slot 10 Fan module slot 1
NOTE: NOTE:
Applicable card: Applicable fan module:

FAN-023A-B (Fan box(B,FAN panel side exhaust))
ES5D21X08T00
ES5D21Q02Q00
S7X08000 (02312URW)
S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions)
S7Q02001 (02313UBW)
S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions)
11 Fan module slot 2 12 Power module slot 1
NOTE: NOTE:
Applicable fan module:

FAN-023A-B (Fan box(B,FAN panel side exhaust))

 Applicable power module:
PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module)
PDC1000S56-CB (1000 W PoE DC Power Module)
PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust))
13 Power module slot 2 – –
NOTE:
Applicable power module:
PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module)
PDC1000S56-CB (1000 W PoE DC Power Module)
PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust))



Ports on the S5731S-H24HB4XZ-A

Port Connector Type Description Available Components
100/1000BASE-X hybrid optical-electrical port SFP A 100/1000BASE-X hybrid optical-electrical port can send and receive data at 100 Mbit/s or 1000 Mbit/s. It can provide PoE power through a hybrid cable. FE SFP/eSFP optical modules
GE eSFP optical modules
GE-CWDM eSFP optical modules
GE-DWDM eSFP optical modules
GE SFP copper module
Optical module dedicated for hybrid cable (SFP-GE-Hybrid)
Hybrid cable 2.0
10GE SFP+ hybrid optical-electrical port SFP+ A 10GE SFP+ hybrid optical-electrical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. It can provide PoE power through hybrid cable. GE eSFP optical modules
GE-CWDM eSFP optical modules
GE-DWDM eSFP optical modules
GE SFP copper module
10GE SFP+ optical modules (OSXD22N00 not supported)
10GE-CWDM SFP+ optical modules
10GE-DWDM SFP+ optical modules
1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
3 m and 10 m SFP+ AOC cables
Optical modules dedicated for hybrid cable (SFP-10G-Hybrid and SFP-GE-Hybrid)
Hybrid cable 2.0
10GE SFP+ optical port SFP+ A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. GE eSFP optical modules
GE-CWDM eSFP optical modules
GE-DWDM eSFP optical modules
GE SFP copper module
10GE SFP+ optical modules (OSXD22N00 not supported)
10GE-CWDM SFP+ optical modules
10GE-DWDM SFP+ optical modules
1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
3 m and 10 m SFP+ AOC cables
0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
Console port RJ45 The console port is connected to a console for on-site configuration. Console cable
ETH management port RJ45 You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely.
You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port.		 Ethernet cable
USB port USB 2.0 Type A The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.		 USB flash drive
Item Description
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left, front, and right and air exhaust from rear
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 6.6 kg (14.55 lb)
Weight with packaging [kg(lb)] 8.4 kg (18.52 lb)
Typical power consumption [W] 87 W
Typical heat dissipation [BTU/hour] 296.85 BTU/hour
Maximum power consumption [W] Without PoE: 127 W (without cards)
Full PoE load: 1927 W (PoE: 1768 W, without cards)
Maximum heat dissipation [BTU/hour] Without PoE: 433.34 (without cards)
Full PoE load: 6575.12 (without cards)
Static power consumption [W] 66 W
MTBF [year] 53.82 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] Dual-AC 600 W, 70% load: 57.77 dBA
Dual-AC 1000 W, 70% load: 63.78 dBA
Dual-DC 1000 W, 70% load: 62.38 dBA
Dual-AC 600 W, 100% load: 63.78 dBA
Dual-AC 1000 W, 100% load: 68.07 dBA
Dual-DC 1000 W, 100% load: 66.26 dBA
Number of card slots 1
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC; 45–65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum input current [A] The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Additional information

Weight 8.4 kg
Dimensions 65 × 55 × 18.5 cm
Brand

Huawei
Campus Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Warranty

12 Months
Item Description
Memory 2 GB
Flash memory 1 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV] Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left, front, and right and air exhaust from rear
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 6.6 kg (14.55 lb)
Weight with packaging [kg(lb)] 8.4 kg (18.52 lb)
Typical power consumption [W] 87 W
Typical heat dissipation [BTU/hour] 296.85 BTU/hour
Maximum power consumption [W] Without PoE: 127 W (without cards)
Full PoE load: 1927 W (PoE: 1768 W, without cards)
Maximum heat dissipation [BTU/hour] Without PoE: 433.34 (without cards)
Full PoE load: 6575.12 (without cards)
Static power consumption [W] 66 W
MTBF [year] 53.82 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] Dual-AC 600 W, 70% load: 57.77 dBA
Dual-AC 1000 W, 70% load: 63.78 dBA
Dual-DC 1000 W, 70% load: 62.38 dBA
Dual-AC 600 W, 100% load: 63.78 dBA
Dual-AC 1000 W, 100% load: 68.07 dBA
Dual-DC 1000 W, 100% load: 66.26 dBA
Number of card slots 1
Number of power slots 2
Number of fans modules 2
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC; 45–65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum input current [A] The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
