S5735S-L12T4S-A

S5735S-L12T4S-A

Huawei S5735S-L12T4S-A switch supports 12 1000BASE-T ports, 4 1000BASE-X ports, 1 AC power fixed

Huawei

3-5 days

Shenzhen Warehouse

SKU: 98010919 Category:

Description

S5735S-L12T4S-A overview

Huawei S5735S-L12T4S-A switch comes with 12 1000BASE-T ports, 4 1000BASE-X ports, 1 AC power fixed

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735S-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



S5735S-L12T4S-A quick specs

12 10/100/1000BASE-T ports

4 GE SFP+ ports

Forwarding performance is 33/108Mpps

Switching capacity is 336Gbps/3.36Tbps

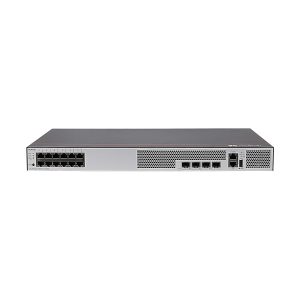

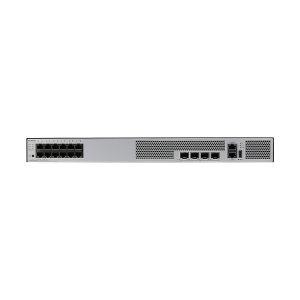

S5735S-L12T4S-A appearance and structure

S5735S-L12T4S-A appearance and structure

1 Twelve 10/100/1000BASE-T ports    SFP-1000Base-T 6 One PNP button
2 Four GE SFP ports 7 Ground screw
3 One console port 8  Jack for AC power cable locking strap
4 One ETH management port 9  AC socket
5 One USB port
Item
S5735S-L12T4S-A
Fixed port Twelve 10/100/1000BASE-T ports, Four GE SFP+ 4-ports
Memory(RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures(MTBF) 98.6 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Service port surge protection Common mode: ±7 kV
Stack ports Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC
Maximum voltage range AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz; High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption

(100% throughput, full speed of fans)

29 W
Typical power consumption

(30% of traffic load)

23 W
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm
Weight (with packaging) 3.83 kg

Additional information

Weight 3.8000 kg
Dimensions 43.6000 × 44.2000 × 22.0000 cm
