1120

S5735S-L24P4S-A

PN 98010925
$1,120.00 Bulk Purchase

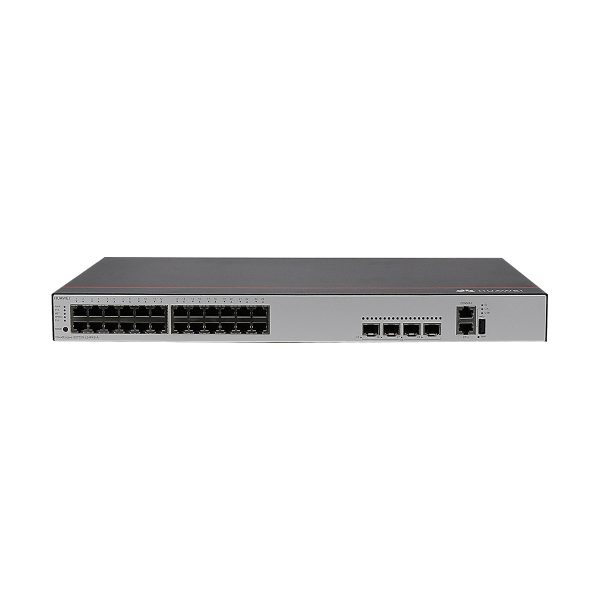

Huawei S5735S-L24P4S-A switch supports 24 1000BASE-T ports, 4 1000BASE-X ports, 1 AC power fixed, PoE+

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
S5735S-L24P4S-A Overview



Huawei S5735S-L24P4S-A switch supports 24 1000BASE-T ports, 4 1000BASE-X ports, 1 AC power fixed, PoE+

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei's Versatile Routing Platform (VRP), CloudEngine S5735S-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



S5735S-L24P4S-A Quick Specs



24 10/100/1000BASE-T ports, 4 GE SFP+ ports

Forwarding performance is 51/126Mpps

Switching capacity is 336Gbps/3.36Tbps

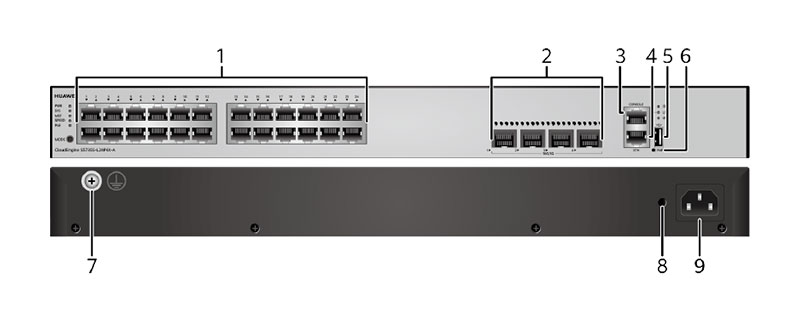

S5735S-L24P4S-A appearance and structure



S5735S-L24P4S-A appearance and structure



1

Twenty-four 10/100/1000BASE-T ports

6

One PNP button

2

Four GE SFP+ ports

7

Ground screw

3

One console port

8

Jack for AC power cable locking strap

4

One ETH management port

9

AC socket

5

One USB port




Datasheet
S5735S-L24P4S-A Datasheet



Item
S5735S-L24P4S-A

Fixed port

Twenty-four 10/100/1000BASE-T ports, Four GE SFP+ 4-ports

Memory(RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures(MTBF)

92.2 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Service port surge protection

Common mode: ±7 kV

Stack ports

Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)

Rated voltage range

AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-Voltage DC input: 190 V DC to 290 V DC

Maximum power consumption

(100% throughput, full speed of fans)

Not providing the PoE function: 53 W

100% PoE loads: 451 W (PoE: 380 W)

Typical power consumption

(30% of traffic load)

39 W

Certification

EMC certification; Safety certification; Manufacturing certification

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm

Weight (with packaging)

4.31 kg
