S5735S-S24P4X-A

PN 98010969

Huawei S5735S-S24P4X-A switch supports 4 10GE SFP+ ports, 24 1000BASE-T ports, 1 AC power module equipped, PoE+

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
S5735S-S24P4X-A Overview



Huawei S5735S-S24P4X-A switch supports 4 10GE SFP+ ports, 24 1000BASE-T ports, 1 AC power module equipped, PoE+

Huawei CloudEngine S5735S-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735S-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.



S5735S-S24P4X-A Quick Specs



24 10/100/1000BASE-T ports, 4 10GE SFP+ ports

Forwarding performance is 108/126Mpps

Switching capacity is 336Gbps/3.36Tbps

The S5735S-S24P4X-A has a AC power module and support pluggable power modules.



S5735S-S24P4X-A appearance and structure

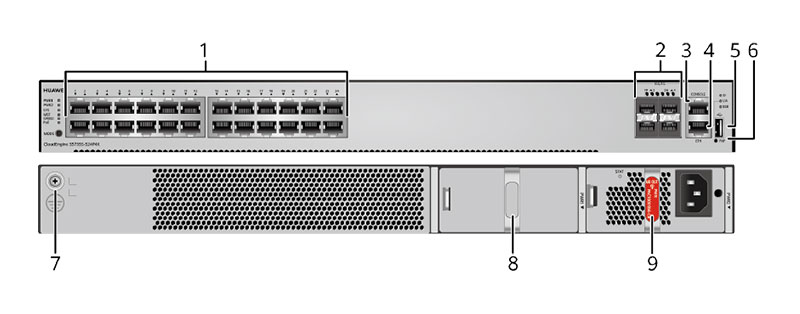

S5735S-S24P4X-A appearance and structure



1

Twenty-four 10/100/1000BASE-T ports

6

One PNP button

2

Four 10GE SFP+ ports

7

Ground screw

3

One console port

8

Power module slot 1

4

One ETH management port

9

Power module slot 2

5

One USB port




Datasheet
S5735S-S24P4X-A Datasheet



Item

S5735S-S24P4X-A

Fixed port

Twenty-four 10/100/1000BASE-T ports Four 4-ports 10GE SFP+

Memory(RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures(MTBF)

59.88 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Service port surge protection

Common mode: ±7 kV

Stack ports

Any 10/100/1000BASE-T ports or 10GE SFP+  4-ports (applicable in V200R019C10 and later versions)

Rated voltage range

AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-Voltage DC input: 190 V DC to 290 V DC

Maximum power consumption

(100% throughput, full speed of fans)

Not providing the PoE function: 65 W; 100% PoE loads: 847 W (PoE: 720 W)

Typical power consumption

(30% of traffic load)

51 W

Certification

EMC certification; Safety certification; Manufacturing certification

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm

Weight (with packaging)

8.49 kg
