TN55TQX 4x10G 10km

0 Reviews Write a review
PN03021ETL
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

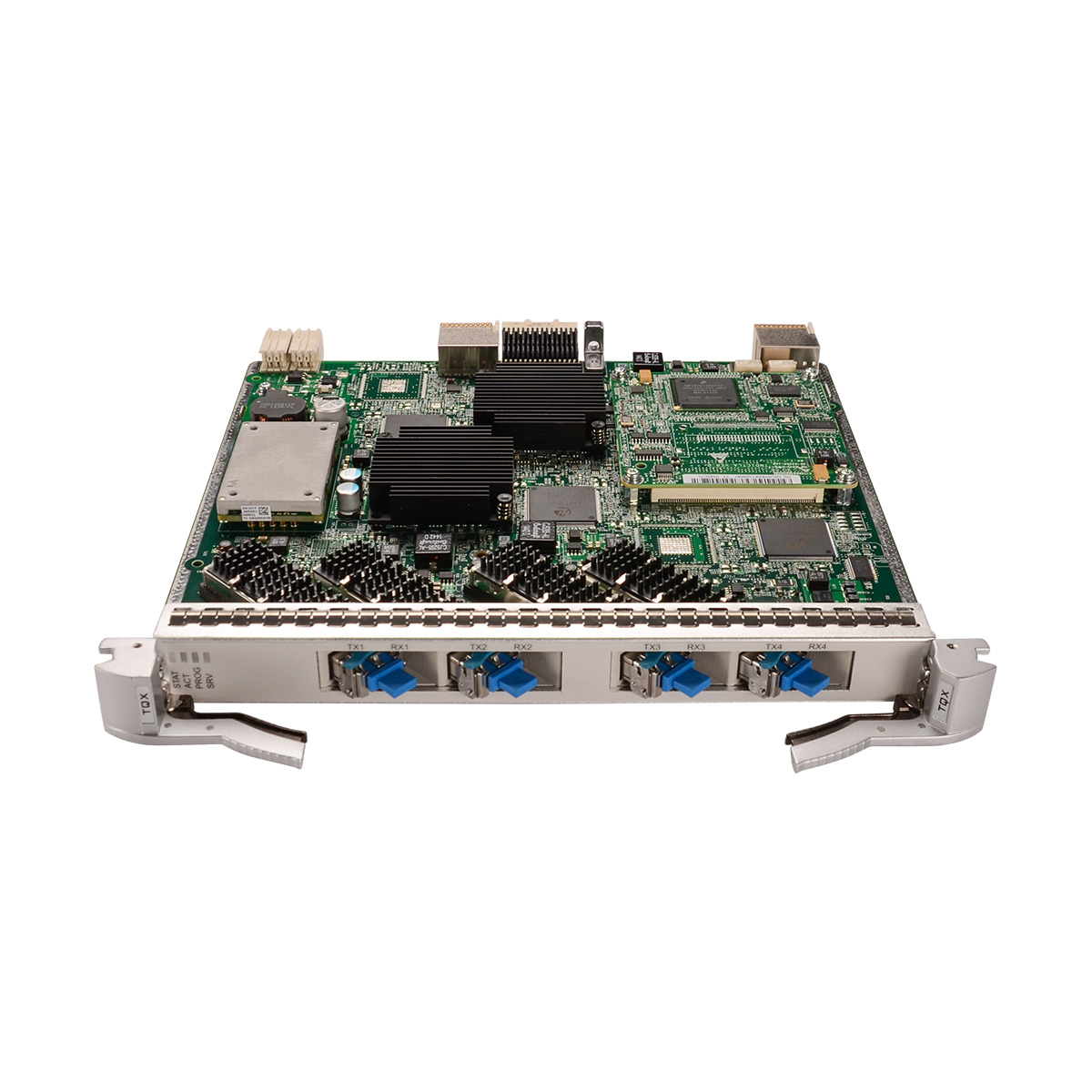

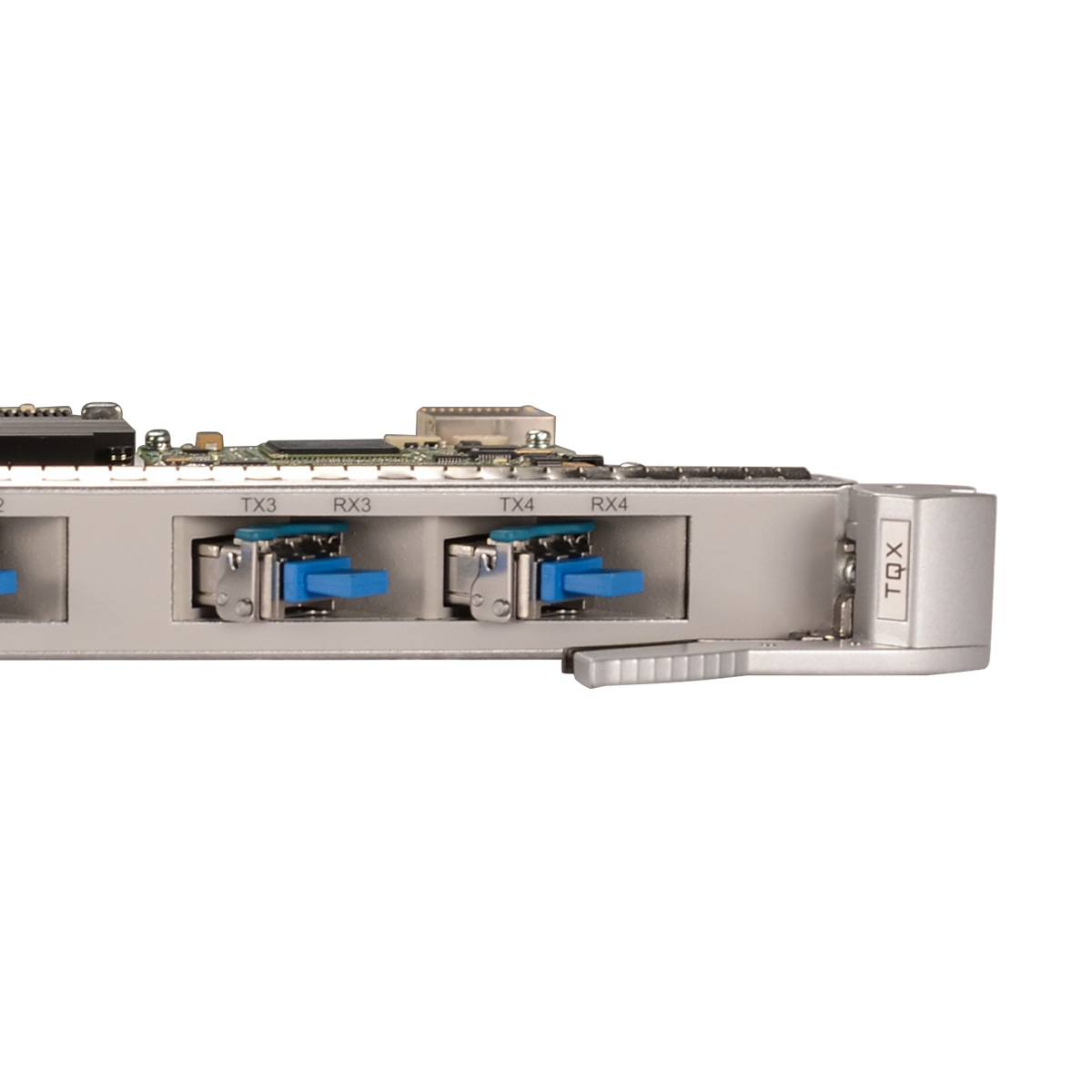

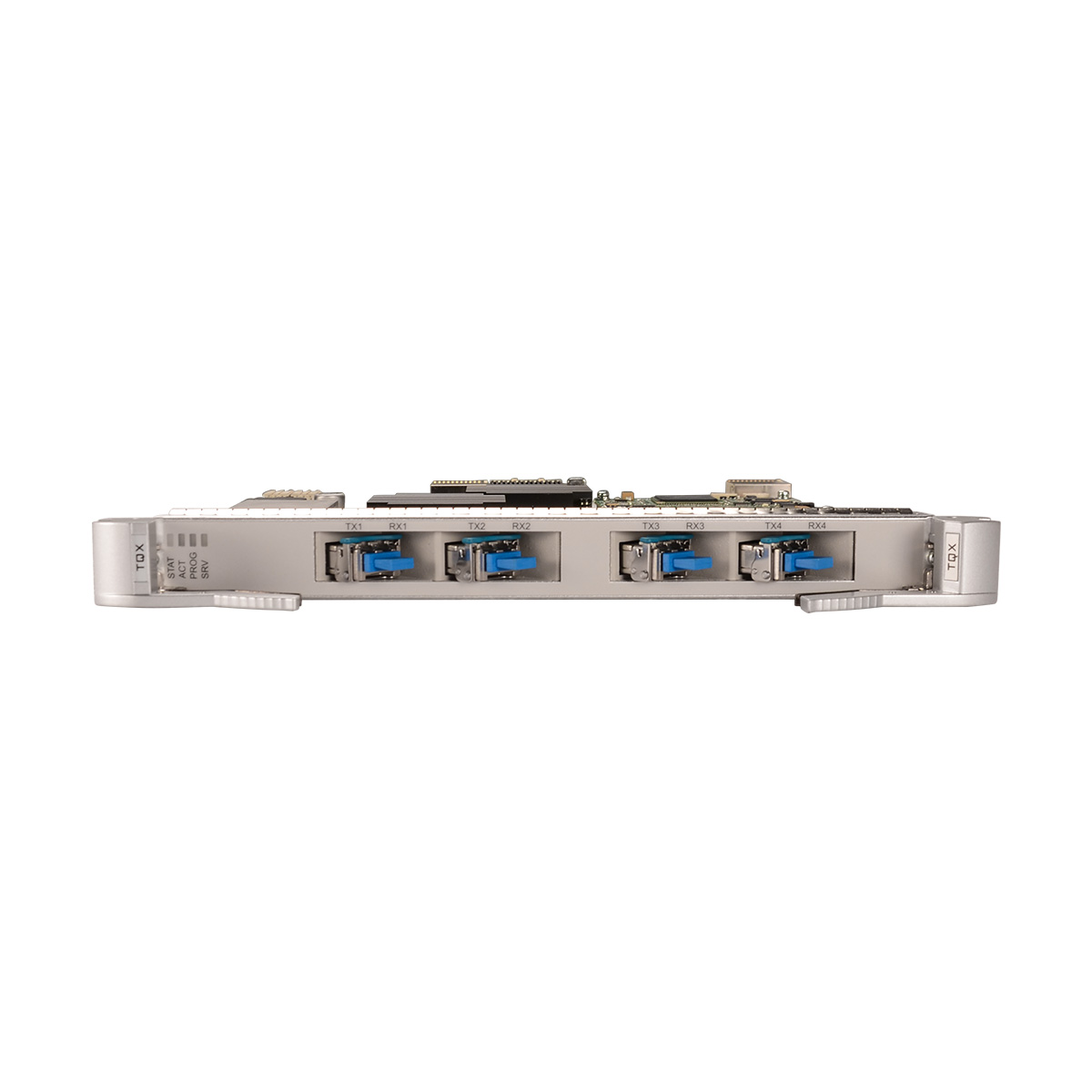

Huawei OSN6800 OSN8800 4x10G tributary service processing board with 4pcs 10G-10km-XFP client-side pluggable modules

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei OSN6800 OSN8800 4x10G Tributary Service Processing Board With 4PCS 10G-10km-XFP Client-Side Pluggable Modules.

The available functional versions of the TQX board are TN11, TN52, TN53, and TN55.

TQX converts signals as follows:

  • 4xFC800/10GE LAN/10GE WAN/STM-64/OC-192/OTU2<->4xODU2
  • 4xFC1200/10GE LAN/OTU2e<->4xODU2e.
  • 4xFC800<->4xODUflex



Model Client-Side Pluggable Optical Module
TN55TQX 10 Gbit/s Multirate-10 km-XFP

10 Gbit/s Multirate-40 km-XFP

10 Gbit/s Multirate-80 km-XFP

10 Gbit/s Single Rate-0.3 km-XFP

800-SM-LC-L-10 km-XFP

10 Gbit/s Multirate-TX1330/RX1270nm-10km-XFP

10 Gbit/s Multirate-TX1270/RX1330nm-10km-XFP

10 Gbit/s Multirate (CWDM)-1120ps-XFP

10 Gbit/s Multirate (CWDM:1571)-1260ps-XFP

10 Gbit/s Multirate (CWDM:1591/1611)-1260ps-XFP



Item TN55TQX
WDM Client-Side optical module
Parameter Value
Optical Module Type 10 Gbit/s Multirate-10 km-XFP
Line code format NRZ
Optical source type SLM
Target transmission distance(km) 10 km (6.2 mi.)
Transmitter parameter specifications at point S
Operating wavelength range(nm) 1290 to 1330
Maximum mean launched power(dBm) -1
Minimum mean launched power(dBm) -6
Minimum extinction ratio(dB) 6
Minimum side mode suppression ratio(dB) 30
Eye pattern mask G.691-compliant
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1260 to 1565
Receiver sensitivity (multirate)(dBm) -11
Receiver sensitivity (10GE LAN)(dBm) -14.4
Minimum receiver overload(10GE LAN)(dBm) 0.5
Minimum receiver overload (STM-64)(dBm) -1
Maximum reflectance(dB) -27
Mechanical Specifications
Dimensions(mm) 25.4(W) x 220(D) x 264.6(H)
Weight(kg) 1.6

Additional information

OTN

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item TN55TQX
WDM Client-Side optical module
Parameter Value
Optical Module Type 10 Gbit/s Multirate-10 km-XFP
Line code format NRZ
Optical source type SLM
Target transmission distance(km) 10 km (6.2 mi.)
Transmitter parameter specifications at point S
Operating wavelength range(nm) 1290 to 1330
Maximum mean launched power(dBm) -1
Minimum mean launched power(dBm) -6
Minimum extinction ratio(dB) 6
Minimum side mode suppression ratio(dB) 30
Eye pattern mask G.691-compliant
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1260 to 1565
Receiver sensitivity (multirate)(dBm) -11
Receiver sensitivity (10GE LAN)(dBm) -14.4
Minimum receiver overload(10GE LAN)(dBm) 0.5
Minimum receiver overload (STM-64)(dBm) -1
Maximum reflectance(dB) -27
Mechanical Specifications
Dimensions(mm) 25.4(W) x 220(D) x 264.6(H)
Weight(kg) 1.6
