Huawei OptiX OSN 9800 TNS7N404 4*100Gbit/s Universal Line Service Processing Board



    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNS7N404 overview



TNS7N404 supports 4*100Gbit/s Universal Line Service Processing Board, applied to Huawei OptiX OSN 9800.

The TNS7N404 board is a hybrid line board and supports a mixture of OTN, SDH services. The TNS7N404 board processes and converts the received service signals into two OTU4 signals.

The TNS7N404 board processes and converts the received service signals into four OTU4 signals. The OTU4 signals are carried over ITU-T G.694.1-compliant DWDM wavelengths.

It uses coherent receiving technologies and applies to coherent systems.



Variants

The TNS7N404 board has two variants: TNS7N404C01 and TNS7N404C06. The two variants are interchangeable.

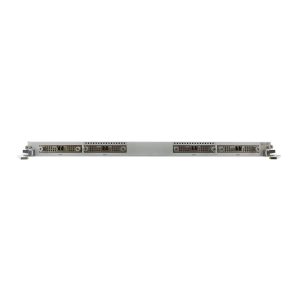

Appearance of the TNS7N404

Appearance of the TNS7N404



Valid slots for the TNS7N404 board in a U64/U32/U16 subrack
Product Valid Slots
OptiX OSN 9800 U32 Standard subrack IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack IU1-IU32
OptiX OSN 9800 U64 Standard subrack IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack IU1-IU64
OptiX OSN 9800 U16 Subrack IU1-IU14



Show More Show Less

Functions and Features of the TNS7N404 Board (OTN Line)


Function and Feature Description
Backplane capacity The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.


Functions and Features of the TNS7N404 Board (SDH)

Function and Feature Description
Basic function Provides four line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.


Functions and Features of the TNS7N404 Board (Regeneration)

Function and Feature Description
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode
  • Unidirectional regeneration
  • Bidirectional regeneration
Regeneration rate OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • In unidirectional regeneration scenarios, for the WDM-side A51 or A62 optical module, the receive and transmit wavelengths must be the same. Both A51 and A62 modules do not support wavelength change by configuring regeneration boards.
ALS Supported
NOTE:
When using the WDM-side A51 or A62 optical module, the board does not support the regeneration ALS function in unidirectional relay mode.
Outband DCN Supports ESC communication.
Loopback In bidirectional regeneration mode, optical port outloop is supported.
NOTE:
Loopback of both ports is not supported.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.


Mechanical Specifications

Board Item Unit Value
TNS7N404 Dimensions (H x W x D) mm 477.30×30.50×220.00
Dimensions (H x W x D) in. 18.81×1.20×8.67
Weight kg 3.1
Weight lb. 6.83
Typical Power Consumption W 212
Maximum Power Consumption W 225

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse

Functions and Features of the TNS7N404 Board (OTN Line)


Function and Feature Description
Backplane capacity The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.


Functions and Features of the TNS7N404 Board (SDH)

Function and Feature Description
Basic function Provides four line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.


Functions and Features of the TNS7N404 Board (Regeneration)

Function and Feature Description
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode
  • Unidirectional regeneration
  • Bidirectional regeneration
Regeneration rate OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 100G mDQPSK
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • In unidirectional regeneration scenarios, for the WDM-side A51 or A62 optical module, the receive and transmit wavelengths must be the same. Both A51 and A62 modules do not support wavelength change by configuring regeneration boards.
ALS Supported
NOTE:
When using the WDM-side A51 or A62 optical module, the board does not support the regeneration ALS function in unidirectional relay mode.
Outband DCN Supports ESC communication.
Loopback In bidirectional regeneration mode, optical port outloop is supported.
NOTE:
Loopback of both ports is not supported.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.


Mechanical Specifications

Board Item Unit Value
TNS7N404 Dimensions (H x W x D) mm 477.30×30.50×220.00
Dimensions (H x W x D) in. 18.81×1.20×8.67
Weight kg 3.1
Weight lb. 6.83
Typical Power Consumption W 212
Maximum Power Consumption W 225
