Huawei OptiX OSN 9800 TNV1T601 1*400GE Tributary Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNV1T601 overview



TNV1T601 1*400GE Tributary Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV1T601 board has only one variant: TNV1T601C01.

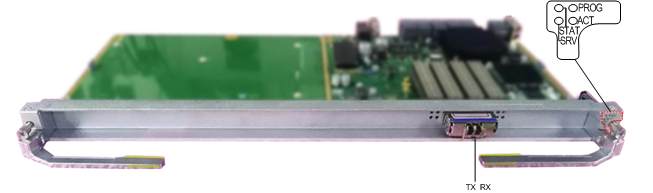

Front panel of the TNV1T601 board

TNV1T601





Front panel of the TNV1T601 board



Valid slots for the TNV1T601 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNV1T601
Backplane capacity The total bandwidth is 400 Gbit/s.
NOTE:
Supports backplane cross-connections of four ODUflex signals from/to the cross-connect board.
Client-side service type 400GE: Ethernet service at a rate of 425 Gbit/s.
Service mapping mode 400GE (Bit Transparent Mapping)
FEC coding RSFEC
OTN overhead Provides PM for ODUflex.
NOTE:
Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
LPT Not supported
Client 1+1 protection Not supported
ODUk SNCP Supported
NOTE:
After multiple ODUK SNCP protection groups are created for the T601 board, the protection groups must be bound to implement unified switching of multiple ODUK SNCP protection groups.
Tributary SNCP Not supported
Electrical-layer ASON Supported
L1 service encryption Supported
ALS Supported
LLDP Supported
Physical clock Not supported
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Not supported
Test frame Supported
PRBS Supported the PRBS function in the backplane direction.
Latency measurement Supports the latency measurement of the PM section in the backplane direction (upstream direction).
Channel loopback Supports inloops and outloops on channels.
Port loopback Supports inloops and outloops on the client side.
Alarm and performance event monitoring
  • Monitors BIP8 bytes to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Provides remote monitoring (RMON) of the Ethernet service.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.50 kg
  • 5.51 lb.

Additional information

Item TNV1T601
Backplane capacity The total bandwidth is 400 Gbit/s.
NOTE:
Supports backplane cross-connections of four ODUflex signals from/to the cross-connect board.
Client-side service type 400GE: Ethernet service at a rate of 425 Gbit/s.
Service mapping mode 400GE (Bit Transparent Mapping)
FEC coding RSFEC
OTN overhead Provides PM for ODUflex.
NOTE:
Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
LPT Not supported
Client 1+1 protection Not supported
ODUk SNCP Supported
NOTE:
After multiple ODUK SNCP protection groups are created for the T601 board, the protection groups must be bound to implement unified switching of multiple ODUK SNCP protection groups.
Tributary SNCP Not supported
Electrical-layer ASON Supported
L1 service encryption Supported
ALS Supported
LLDP Supported
Physical clock Not supported
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Not supported
Test frame Supported
PRBS Supported the PRBS function in the backplane direction.
Latency measurement Supports the latency measurement of the PM section in the backplane direction (upstream direction).
Channel loopback Supports inloops and outloops on channels.
Port loopback Supports inloops and outloops on the client side.
Alarm and performance event monitoring
  • Monitors BIP8 bytes to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Provides remote monitoring (RMON) of the Ethernet service.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.50 kg
  • 5.51 lb.
