Huawei OptiX OSN 9800 TNV3T402 2 x 100 Gbit/s Tributary Service Processing Board

Description

TNV3T402 overview



TNV3T402 2 x 100 Gbit/s Tributary Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV3T402 board has only one variant: TNV3T402C21.

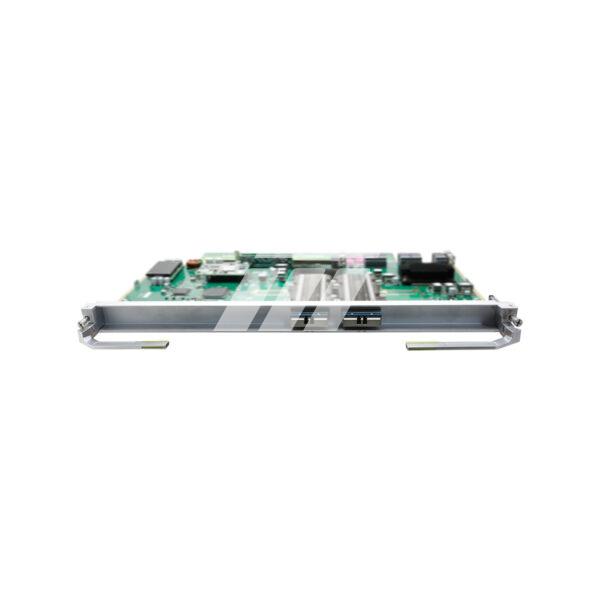

Front panel of the TNV3T402 board

TNV3T402

Front panel of the TNV3T402 board



Valid slots for the TNV3T402 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNV3T402
Backplane capacity The total bandwidth is 200 Gbit/s.
NOTE:
Supports backplane cross-connections of two ODU4/ODUflex signals from/to the cross-connect board.TNV3T402 board supports ODUflex when receiving 100GE (MAC Transparent Mapping) services on the client side.
Client-side service type
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • OTU4: OTN service at a rate of 111.81 Gbit/s
Service mapping mode 100GE service: Supports Bit Transparent Mapping ODU4, MAC Transparent Mapping ODU4, and MAC Transparent Mapping ODUFlex.
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU4.
  • When the TNV3T402 board uses a converter to receive 100GE services, only RSFEC coding is supported.
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU4 layer: When the client-side service type is 100GE, supports PM overhead processing.
  • ODU4 layer: When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU4 layer: supports SM overhead processing.
NOTE:
Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Not supported
Client 1+1 protection Supported
NOTE:
When the client-side uses CFP2-100G(10x10G)-850nm(SR10)-MPO-MMF-0.1km, QSFP28-100G(4x25G)-850nm(SR4)-MPO-MMF-0.1km or QSFP28-100G(4x25G)-1271 to 1331nm(CLR4)-SMF-2km optical module, the TNV3T402 board does not support client-side 1+1 protection.
ODUk SNCP Supported
NOTE:
The board supports ODUk SNCP when k = 4, flex.
Tributary SNCP Supported
NOTE:
Supports the tributary SNCP protection, only when the client side service type is OTU4.
Electrical-layer ASON Supported
L1 service encryption Supported
NOTE:
When receiving OTU4 services on the client side, the board does not support the encryption.
ALS When the client-side service type is 100GE, the board supports the ALS function.
LLDP Not supported
Physical clock
  • Bit Transparent Mapping ODU4: Supports synchronous Ethernet transparent transmission
  • Mac Transparent Mapping ODU4: Supports synchronous Ethernet processing
IEEE 1588v2 Supports this function when receiving100GE(MAC transparent mapping) services on the client side.
ITU-T G.8275.1 Supports this function when receiving100GE(MAC transparent mapping) services on the client side.
ITU-T G.8273.2 Supported
NOTE:
The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN Supported communication over ESCs when the client-side service type is OTU4.
Test frame When the client-side service type is 100GE, the board supports test frame.
PRBS Supported
NOTE:
When a TNV3T402 board receives OTU4 services, the PRBS test function is supported in both the optical port direction and the backplane direction. When the board receives 100GE services, the PRBS test function is supported only in the backplane direction.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Not supported
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Provides remote monitoring (RMON) of the Ethernet service.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.50 kg
  • 5.51 lb.
