Huawei OptiX OSN 9800 TNV7T402 2*100G Tributary Service Processing Board(QSFP28)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNV7T402 overview



TNV7T402 2*100G Tributary Service Processing Board(QSFP28) applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV7T402 board has only one variant: TNV7T402Q01.

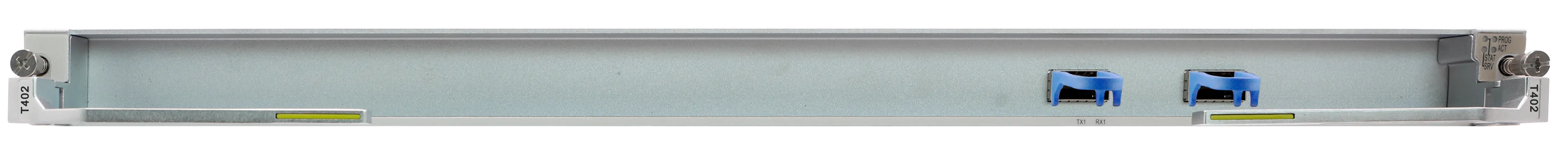

Front panel of the TNV7T402 board

TNV7T402

Front panel of the TNV7T402 board



Valid slots for the TNV7T402 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNV7T402
Backplane capacity The total bandwidth is 200 Gbit/s.
NOTE:
Supports backplane cross-connections of two ODU4/ODU3/ODUflex signals from/to the cross-connect board.
Client-side service type
  • 100G FlexE unaware: The rate is 103.125 Gbit/s
  • OTU4: The rate is 111.81 Gbit/s
  • 40GE: The rate is 41.25 Gbit/s
  • 100GE: The rate is 103.125 Gbit/s
Service mapping mode 100GE service: Supports Bit Transparent Mapping ODU4, MAC Transparent Mapping ODU4, and MAC Transparent Mapping ODUFlex.
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) when the client-side service type is OTU4.
  • When the client-side service type is 100GE/FlexE, only RS_FEC coding is supported.
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU3 layer: supports PM overhead processing.
  • ODU4 layer: When the client-side service type is 100GE, supports PM overhead processing.
  • ODU4 layer: When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU4 layer: supports SM overhead processing.
NOTE:
Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Not supported
Client 1+1 protection Supported
NOTE:
  • Does not support client 1+1 protection when an MPO optical module is used on the client side to receive services.
  • Does not support client 1+1 protection when FlexE services are received on the client side.
ODUk SNCP Supported
NOTE:
  • The board supports ODUk SNCP when k = 3, 4, flex.
  • When FlexE services are received on the client side, ODUk SNCP protection groups in a FlexE group must be bound to implement unified switching of multiple ODUk SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
L1 service encryption Supports setting the encryption function by port.
NOTE:
When receiving OTU4 services on the client side, the board does not support the encryption.
ALS Supported on the client side when non-OTN services are received.
LLDP When the client-side service type is 40GE/100GE, the board supports the LLDP function.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • Bit Transparent Mapping ODU4: Supports synchronous Ethernet transparent transmission
  • Mac Transparent Mapping ODU4: Supports synchronous Ethernet processing
IEEE 1588v2 Supports this function when receiving100GE(MAC transparent mapping) services on the client side.
ITU-T G.8275.1 Supports this function when receiving100GE(MAC transparent mapping) services on the client side.
ITU-T G.8273.2 Supported
NOTE:
The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN Supported communication over ESCs when the client-side service type is OTU4.
Test frame When the client-side service type is 40GE/100GE, the board supports test frame.
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS Supported
NOTE:
  • When the board receives OTU4 services, the PRBS test function is supported in both the optical port direction and the backplane direction.
  • When the board receives 40GE/100GE services, the PRBS test function is supported only in the backplane direction.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Not supported
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Provides remote monitoring (RMON) of the Ethernet service.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.00 kg
  • 6.61 lb.

Additional information

Item TNV7T402
Backplane capacity The total bandwidth is 200 Gbit/s.
NOTE:
Supports backplane cross-connections of two ODU4/ODU3/ODUflex signals from/to the cross-connect board.
Client-side service type
  • 100G FlexE unaware: The rate is 103.125 Gbit/s
  • OTU4: The rate is 111.81 Gbit/s
  • 40GE: The rate is 41.25 Gbit/s
  • 100GE: The rate is 103.125 Gbit/s
Service mapping mode 100GE service: Supports Bit Transparent Mapping ODU4, MAC Transparent Mapping ODU4, and MAC Transparent Mapping ODUFlex.
FEC coding
  • Supports ITU-T G.709-compliant forward error correction (FEC) when the client-side service type is OTU4.
  • When the client-side service type is 100GE/FlexE, only RS_FEC coding is supported.
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU3 layer: supports PM overhead processing.
  • ODU4 layer: When the client-side service type is 100GE, supports PM overhead processing.
  • ODU4 layer: When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU4 layer: supports SM overhead processing.
NOTE:
Supports overhead processing defined by ITU-T G.709. The service mapping process complies with ITU-T G.709 and G.Sup43.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Not supported
Client 1+1 protection Supported
NOTE:
  • Does not support client 1+1 protection when an MPO optical module is used on the client side to receive services.
  • Does not support client 1+1 protection when FlexE services are received on the client side.
ODUk SNCP Supported
NOTE:
  • The board supports ODUk SNCP when k = 3, 4, flex.
  • When FlexE services are received on the client side, ODUk SNCP protection groups in a FlexE group must be bound to implement unified switching of multiple ODUk SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
L1 service encryption Supports setting the encryption function by port.
NOTE:
When receiving OTU4 services on the client side, the board does not support the encryption.
ALS Supported on the client side when non-OTN services are received.
LLDP When the client-side service type is 40GE/100GE, the board supports the LLDP function.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • Bit Transparent Mapping ODU4: Supports synchronous Ethernet transparent transmission
  • Mac Transparent Mapping ODU4: Supports synchronous Ethernet processing
IEEE 1588v2 Supports this function when receiving100GE(MAC transparent mapping) services on the client side.
ITU-T G.8275.1 Supports this function when receiving100GE(MAC transparent mapping) services on the client side.
ITU-T G.8273.2 Supported
NOTE:
The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN Supported communication over ESCs when the client-side service type is OTU4.
Test frame When the client-side service type is 40GE/100GE, the board supports test frame.
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS Supported
NOTE:
  • When the board receives OTU4 services, the PRBS test function is supported in both the optical port direction and the backplane direction.
  • When the board receives 40GE/100GE services, the PRBS test function is supported only in the backplane direction.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Not supported
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Provides remote monitoring (RMON) of the Ethernet service.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.00 kg
  • 6.61 lb.
