ZTE ZXA10 F803G-8 overview

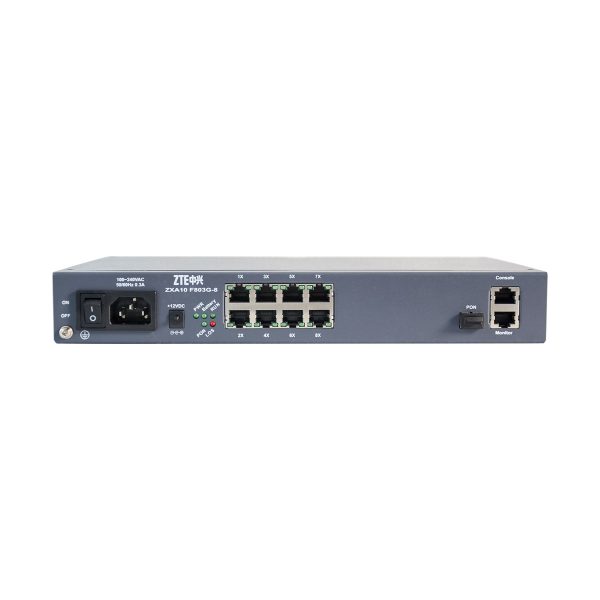

ZTE ZXA10 F803G-8 is an 8-port GPON ONU fiber optic terminal.
The F803G-8 fiber optic network terminal is designed mainly for use in FTTB and FTTO solutions with high throughput and QoS usability.
Plug-and-play technology will minimize the costs of configuration and management of the terminal. The remote management technology will allow for remote configuration without additional activities.
The ZTE F803G-8 terminal will allow you to connect to the Internet through the GPON interface and then forward it through the Ethernet ports in the Gigabit standard, which will provide speed and stability with the use of QoS (Quality of Service, which will contribute to better performance of applications such as VoIP, IPTV and Internet.
| Item | ZTE ZXA10 F803G-8 |
| Number of LAN ports | 8x 10/100BaseTX (RJ45) |
| Connections | 1 x GPON SC single-mode/single fibre GPON port Download: 2.5 Gb/s Transmission: 1.25 Gb/s |
| Wavelength | Transmission (Tx:) 1310 nm Reception (Rx): 1490 nm |
| Fibre optic interface | SC / PC |
| Receiver sensitivity | Below -28 dBm (1490 nm) |
| WLAN | IEEE 802.11b/g/n 300 Mb/s 1 x Internal antenna |
| LAN | 8 x 10/100/1000 Mbps Gigabit Ethernet RJ-45, full/half duplex Adapter Port |
| Capacity | 900 Mb/s |
| Power supply | 220 V, 2 A, DC from AC-DC adapter |
| Buttons | Reset Switch |
| Power consumption | Up to 8W |
| Working conditions | Temperature: From -5 to 55℃ Humidity: 10-90% (non-condensing) |
| Storage conditions | Temperature: 30 to 60℃ Humidity: 10-90% (non-condensing) |
| Dimensions of the device | 130 x 105 x 30 mm |
| Weight of the device | About 1 kg |
