2910E
ZTE 2910E switch supports 8 10/100 Ethernet ports, 2 Either 10/100/1000Base-T Ethernet ports or SFP ports (100Base-FX/1000Base-FX) can be configured as combo ports
ZTE
- Description
- DATASHEET
- Reviews (1)
Description
2910E overview
Introduction:
ZTE 2910E switch supports 8 10/100 Ethernet ports, 2 Either 10/100/1000Base-T Ethernet ports or SFP ports (100Base-FX/1000Base-FX) combo ports.
- Port switch capacity: 5.6 Gbps
- Packet Forwarding Rate: 4.2 Mpps
The ZXR10 2900E series switches are easy-maintenance secure switches developed by ZTE Corporation, which provide 100 Mbps access and support the Access Control List (ACL) function for ingress and egress. The ZXR10 2900E series switches are used in the access layers of educational networks, enterprise networks, political service networks, and carrier networks.
Depending on the switch capacity, the ZXR10 2900E series switches are divided into the following types:
- ZXR10 2910E
- ZXR10 2918E
- ZXR10 2928E
- ZXR10 2952E
- ZXR10 2910E-PS
- ZXR10 2918E-PS
- ZXR10 2928E-PS
- ZXR10 2952E-PS
Features:
The ZXR10 2900E series switches are environmental-friendly and highly-reliable products, which are easy to maintain and bring satisfactory experience to customers.
- Environment-friendly and energy-saving design
- Advanced lightning-protection technology
- Intelligent PoE supply
- Powerful security platform
- Abundant maintenance methods
Item | 2910E |
Dimensions (Height × Width × Depth) | (43.6 mm × 340 mm × 220 mm) |
Weight | < 6.17 lb (< 2.8 kg) |

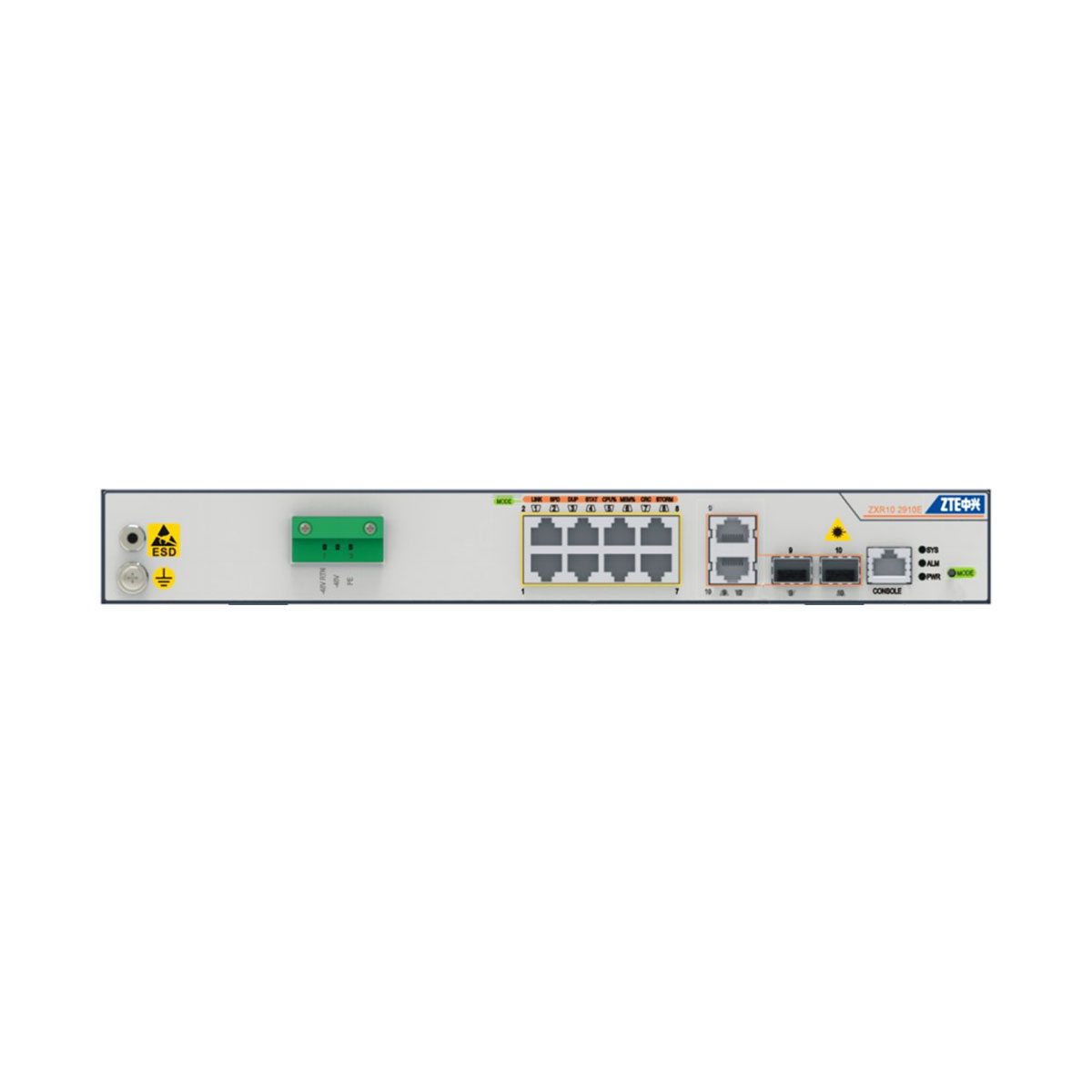

Power supply | Support AC and DC power supply. l AC power supply Rated voltage range: 100 V-240 V AC, 50 Hz/60 Hz l DC power supply Rated voltage: -48 V DC |
Power consumption | < 11 W |
Reliablity | MTBF>200000 hours MTtr<30 minutes EMC: l FCC Part 15 ( CFR47 ) Class A l EN 55022 Class A l ETSI EN 300 386 V1.3.1 l EN55024 l ICES-003 Class A Safety: l UL 60950 3rd Edition l CSA C22.2 No. 60950 3rd Edition l IEC 60950 l EN 60950 l EN60825–1+A1 and EN60825–2 |
Memory Size | 128 MB |
Capacity of MAC address table | 16 K |
Smit Stephan –
2910E has 2 either 10/100/1000Base-T Ethernet ports or SFP ports (100Base-FX/1000Base-FX) that can be configured as combo ports, nice work.
