ZTE ZXA10 C300 Overview
ZXA10 C300, the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as economy in mind. Its powerful functions and high performance make mass FTTx roll-out easier than ever before.

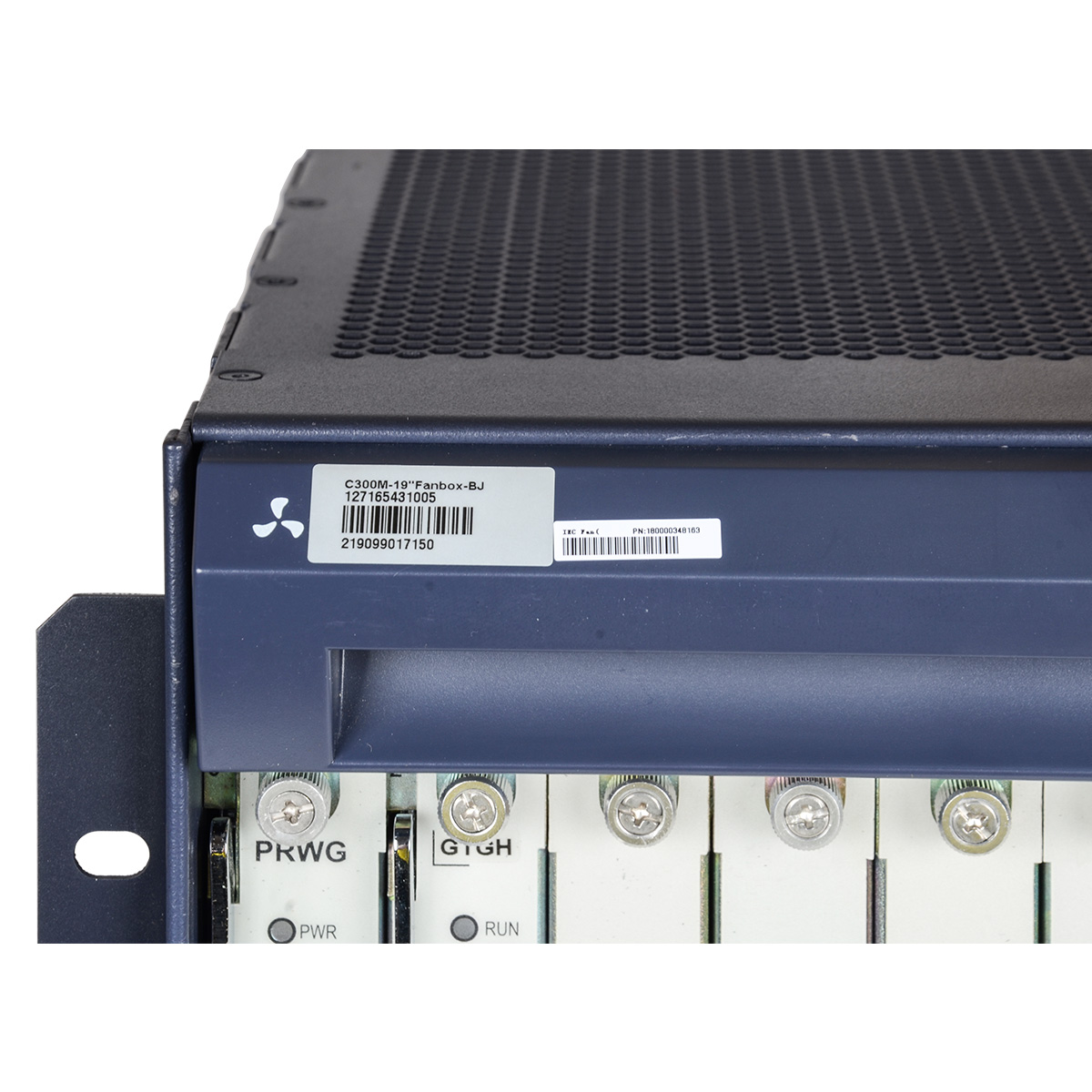

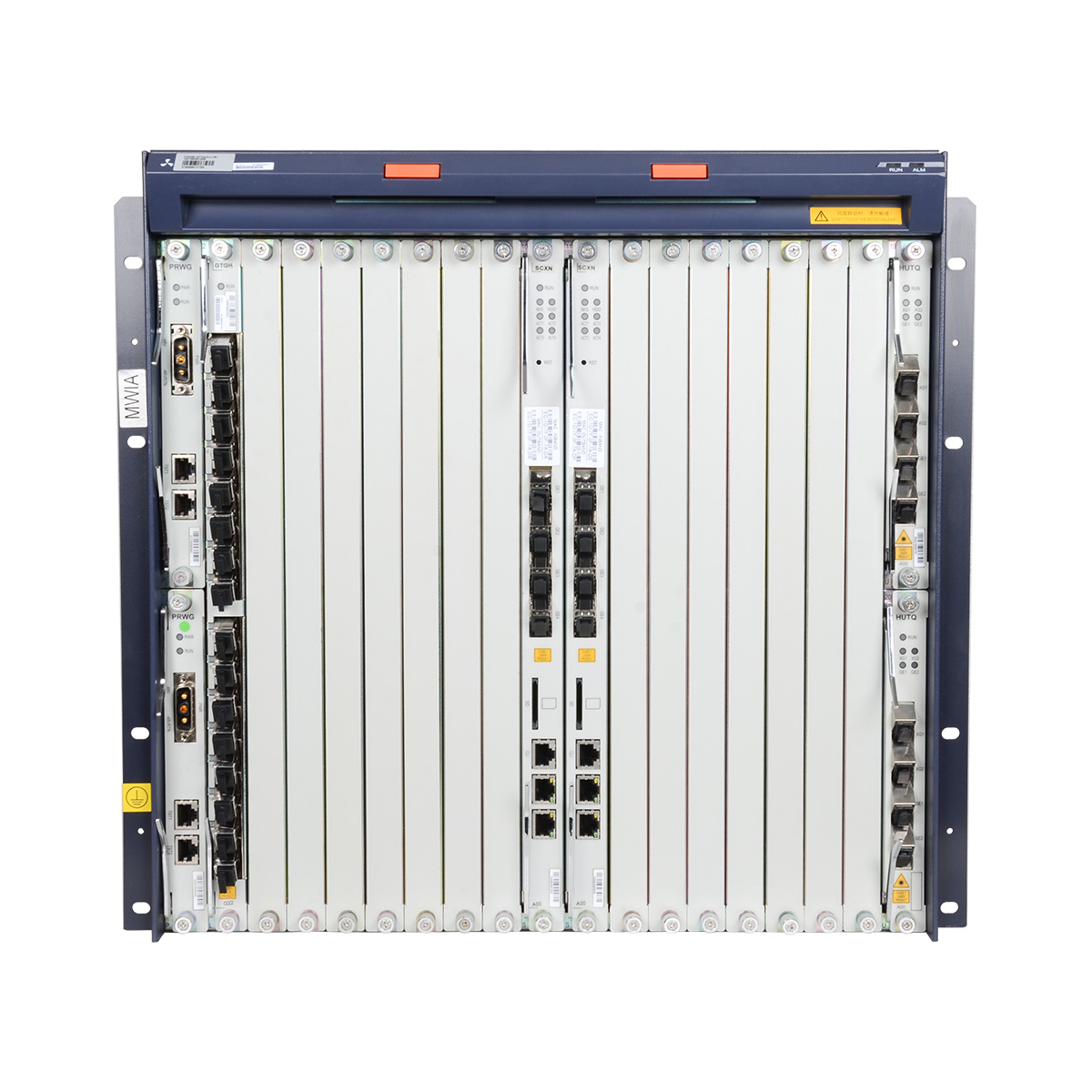

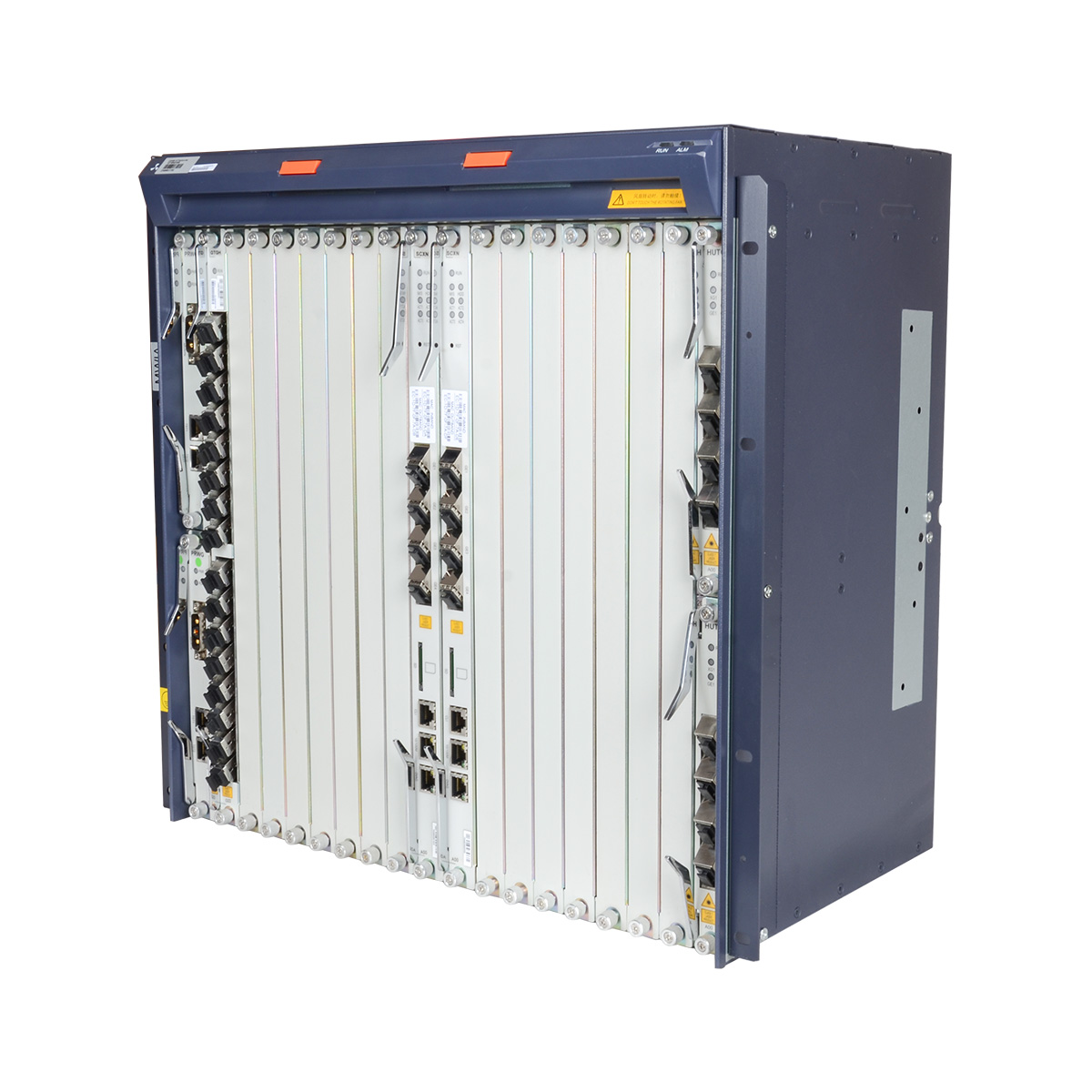

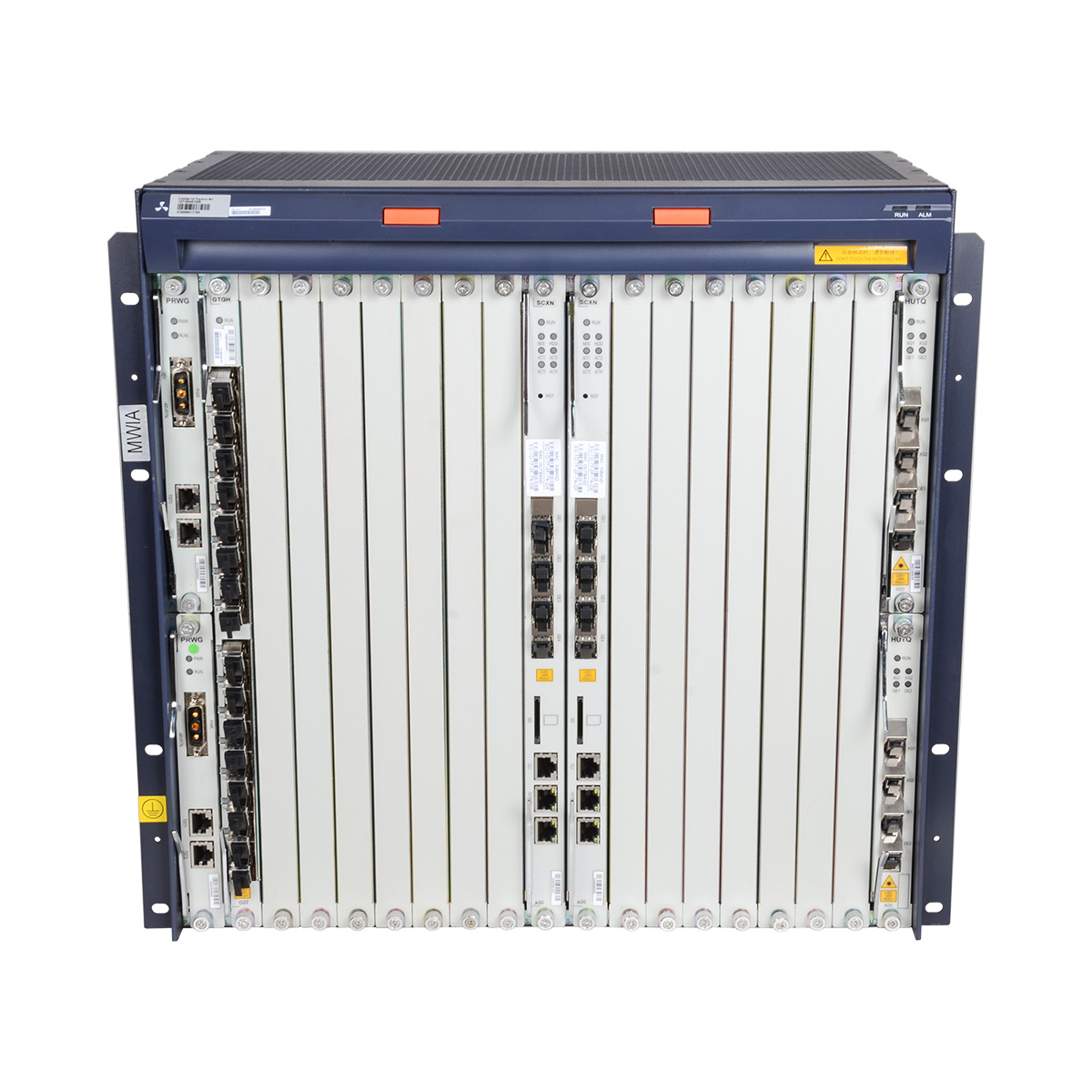

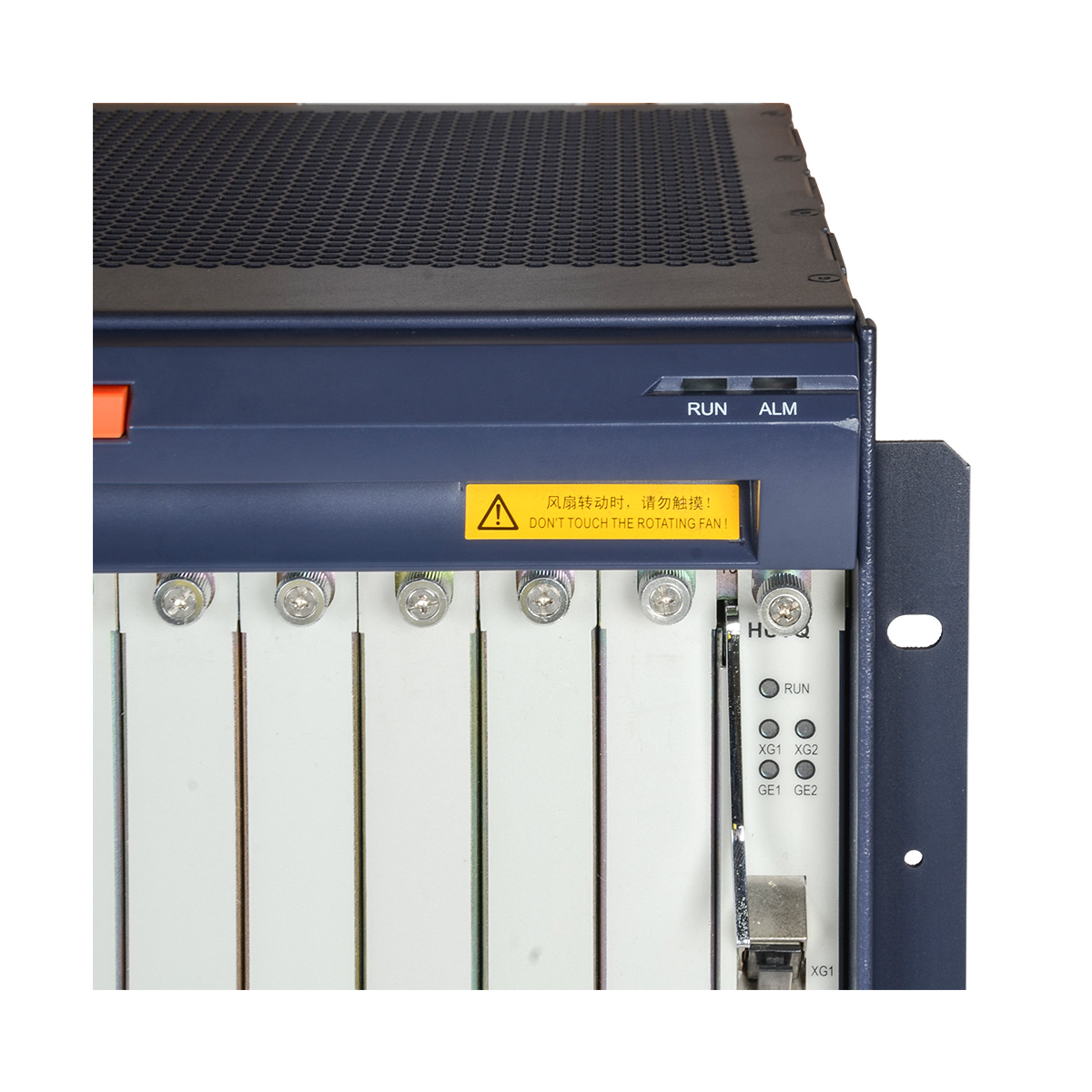

ZTE ZXA10 C300 19-inch Chassis with 2*SCTM Main Control Board with 4*10GE SFP+ uplink ports, 2*PRWG DC power board.
The ZXA10 C300 supports two types of shelves:
• ETSI 21–inch shelf
• IEC 19–inch shelf The two shelves are different in width and slot number. The two shelves share the same cards , except the backplanes and fanboxes.
Main Control Board: SCXN, SCTM, SCXM or SCXL.
• SCTM: supports 2.56 Tbps switching capacity, 256k MAC address table.
• SCXN: supports 480 Gbps switching capacity, 32k MAC address table, and VoIP function (with VoIP daughter-card).
• SCXM: supports 480 Gbps switching capacity and 32k MAC address table.
• SCXL: supports 800 Gbps switching capacity and 32k MAC address table.
Uplink Board:
• XUTQ: 4-port 10GE optical interface Ethernet uplink card.
• XUVQ: 4-port 10GE optical interface Ethernet uplink card, supports SynE and IEEE 1588 TC function.
• HUTQ: 2-port 10GE and 2-port GE optical interface Ethernet uplink card.
• HUVQ: 2-port 10GE and 2-port GE optical interface Ethernet uplink card, supports SynE and IEEE 1588 TC function.
• GUFQ: 4-port optical interface Ethernet uplink card Four optical interfaces can be GE optical interface (a GFSQ daughter-card needs to be configured), or FE optical interface (an FFSQ daughter-card needs to be configured).
• GUSQ: 2-port optical and 2-port electrical interface Ethernet uplink card → Two optical interfaces can be GE optical interface (with a GFSD daughter-card), or FE optical interface (with an FFSD daughter-card). → Two electrical interfaces are 10 M/100 M/1000 M adaptive electrical interfaces (with a GTSD daughter-card).
Power Board: PRWG or PRWH.
PRWG supports a maximum current of 30A.
PRWH supports a maximum current of 40A.
Supported Pon Board for ZTE OLT
| GPON | XG-PON | XGS-PON | XG-PON and GPON Combo | XGS-PON and GPON Combo | Port | ||
| ZTE | C300/C320/C350 | GTGO | GTXO | GTTO | GTBO | 8 | |
| GTGH | 16 | ||||||
| C600/C650/C680 | GFGH | GFXH | GFTH | GFBN/GFBH | GFCH | 16 | |
| Item | Single Fiber Bidirectional Optical Module, Class B+ | Single Fiber Bidirectional Optical Module, Class C+ | Single Fiber Bidirectional Optical Module, Class C++ |
|---|---|---|---|
| SN | 1 | 2 | 3 |
| Operating wavelength | Tx: 1490nm | Tx: 1490 nm | Tx: 1490 nm |
| Rx: 1310nm | Rx: 1310 nm | Rx: 1310 nm | |
| Encapsulation mode | SFP | SFP | SFP |
| Bandwidth | Tx: 2.488 Gbit/s | Tx: 2.488 Gbit/s | Tx: 2.488 Gbit/s |
| Rx: 1.244 Gbit/s | Rx: 1.244 Gbit/s | Rx: 1.244 Gbit/s | |
| Minimum output optical power | 1.5 dBm | 3.0 dBm | 4.5 dBm |
| Maximum output optical power | 5.0 dBm | 7.0 dBm | 8.0 dBm |
| Maximum receiver sensitivity | -28.0 dBm | -32.0 dBm |
-30 dBm @10E-10
-32 dBm @10E-10
|
| Optical connector type | SC/PC | SC/PC | SC/PC |
| Optical fiber type | Single mode | Single mode | Single mode |
| Transmission distance | 20.0 km | 20.0 km | 20.0 km |
| Saturation optical power | -8.0 dBm | -12.0 dBm | -12.0 dBm |
| Extinction ratio | 10.0 dB | 8.2 dB | 8.2 dB |
| Item | ZXA10 C300 Configuration | ZXA10 C320 Configuration |
|---|---|---|
| Management interface |
One serial interface (RS232)
One out-of-band NM interface (10/100BaseT)
|
One serial interface (RS232)
One out-of-band NM interface (10/100BaseT)
|
| Monitoring interface | External environment monitoring box interface (serial), interfaces for temperature, humidity, smog, flood, and security, trunk node digital input/output interface | External environment monitoring box interface (serial), trunk node digital input/output interface |
| GPON interface | 256/224 | 32 |
| XG-PON1 interface | 128/112 | 16 |
| XGS-PON interface | 128/112 | 16 |
| EPON interface | 256/224 | 32 |
| 10G-EPON interface | 128/112 | 16 |
| Uplink GE interface | 8 | 4 optical +2 electrical |
| Uplink 10GE interface |
SCXN: 8
SCTM: 16
|
