GFXH

ZTE GFXH 16-port XG-PON OLT interface board with N1/N2a module, apply to ZTE ZXA10 C620/C650/C680/C600 OLT

SKU: GFXH Category:

Description

GFXH Overview



ZTE GFXH 16-port XG-PON OLT interface board with N1/N2a module, which can be used in the ZTE OLT ZXA10 C600/C650/C680.

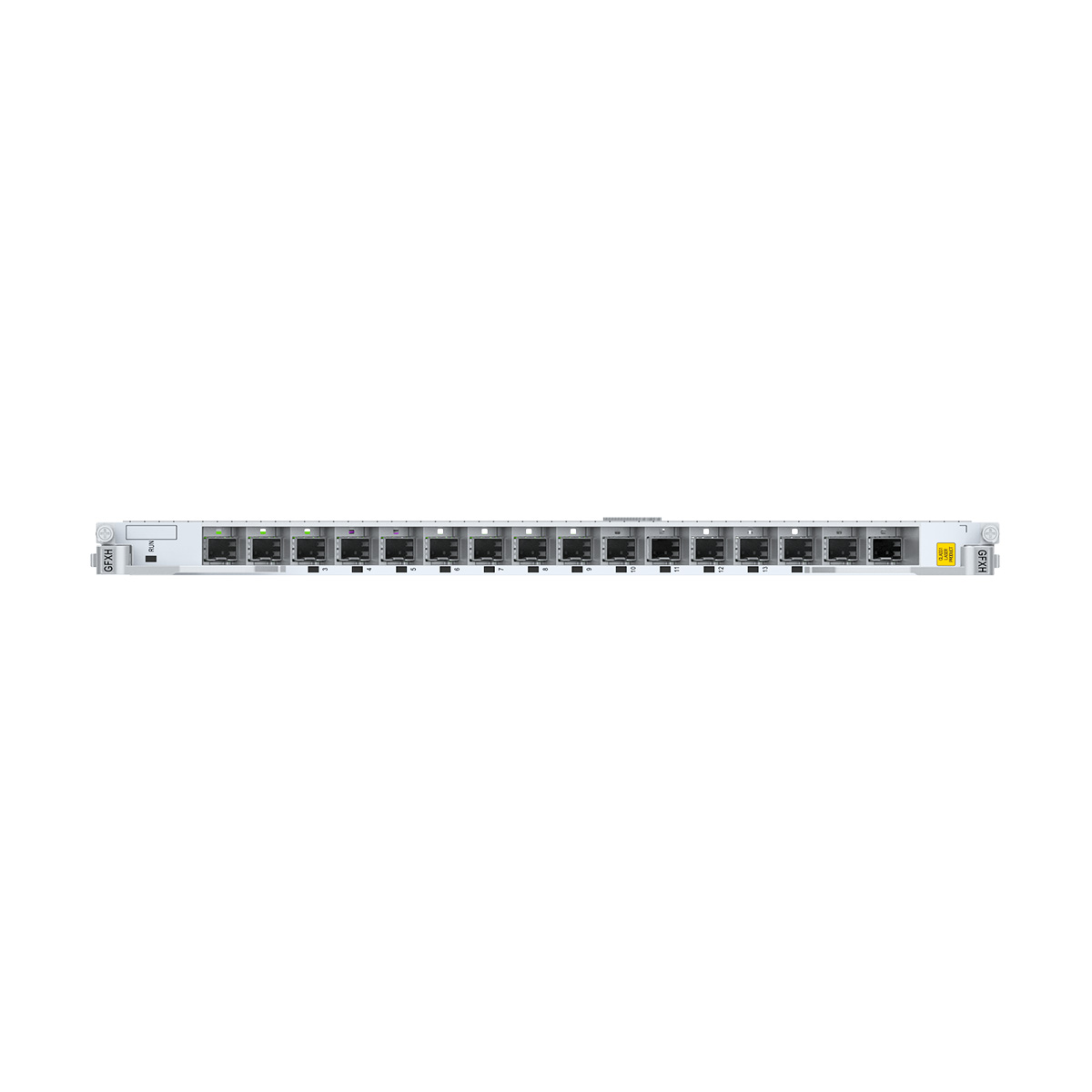

The GFXH panel

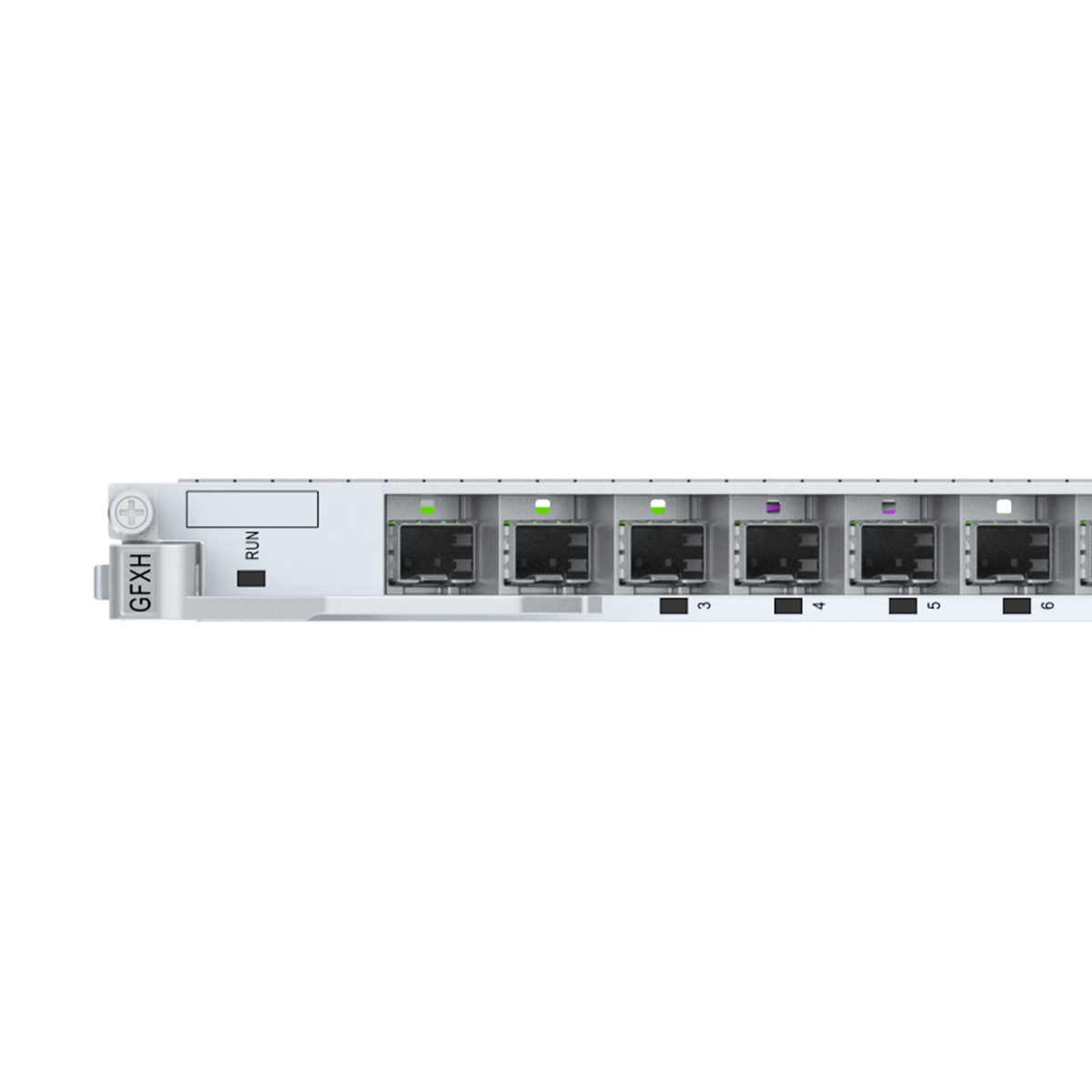

The GFXH panel



Modules of the GFGH Subscriber Card



Module Function
Management and control module Configures, controls, and manages the card.
PONMAC module Implements all the functions on the XGS-PON layer defined by ITU-T G.9807.
NP module Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
Optical module Provides an XGS-PON optical interface that complies with ITU-T G.9807.
Clock module Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.



Operating Principle of GFXH Subscriber Card



Operating Principle of GFXH Subscriber Card

GFXH Datasheet



Item GFXH
Port 16
Type

N1 Module: Single Fiber Bidirectional Optical Module N1

N2a Module: Single Fiber Bidirectional Optical Module N2a

Operating Wavelength Tx: 1577 nm, Rx: 1270 nm
Encapsulation Type SFP+
Port Rate Tx: 10 Gbit/s, Rx: 2.488 Gbit/s
Minimun Output Optical Power

N1 Module: 2dBm

N2a Module: 4dBm

Maximum Output Optical Power

N1 Module: 6dBm

N2a Module: 8dBm

Maximum Receiver Sensitivity

N1 Module: -27.5dBm

N2a Module: -29.50dBm

Optical Connector Type SC/UPC
Optical Fiber Type Single-mode
Reach 20.00 km
Saturation optical power

N1 Module: -7dBm

N2a Module: -9dBm

Extinction ratio

8.2dB

Weight 1.68kg
Dimensions (W x D x H) 393.1 mm(H) × 23.9 mm(W) × 214 mm(D)



Additional information

Weight 3.0000 kg
