GFCH

ZTE GFCH 16-port XGS-PON and GPON Combo OLT interface board with N1/B+ or N2/C+ module, apply to ZTE ZXA10 C600 Serie OLT

SKU: GFCH Category:

Description

GFCH Overview

ZTE GFCH 16-port XGS-PON and GPON Combo OLT interface board with N1/B+ or N2/C+ module, which can be used in the ZTE OLT ZXA10 C600/C650/C680.

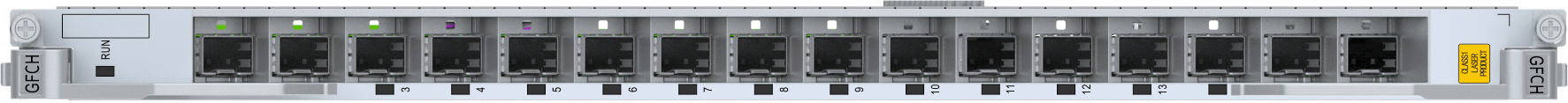

The GFCH panel

GFCH

Modules of the GFCH XGS-PON & GPON Combo Subscriber Card
Module Function
Management and control module Configures, controls, and manages the card.
PONMAC module Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.
NP module Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
Optical module Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.
Clock module Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
Operating Principle of GFCH  the XGS-PON & GPON Combo Subscriber Card

gfch 2

GFCH Datasheet
Item GFCH
Port 16
Type XGS-PON N1 GPON B+ XGS-PON N2 GPON C+
Operating wavelength Tx: 1577 nm Tx: 1490 nm Tx: 1577 nm Tx: 1490 nm
Rx: 1270 nm Rx: 1310 nm Rx: 1270 nm Rx: 1310 nm
Package type SFP+ SFP+
Bandwidth Tx: 10 Gbit/s Tx: 2.488 Gbit/s Tx: 10 Gbit/s Tx: 2.488 Gbit/s
Rx: 10 Gbit/s Rx: 1.244 Gbit/s Rx: 10 Gbit/s Rx: 1.244 Gbit/s
Minimum output optical power 2 dBm 1.5 dBm 4 dBm 3.0 dBm
Maximum output optical power 5 dBm 5.0 dBm 7 dBm 7.0 dBm
Maximum receiver sensitivity –26 dBm –28.0 dBm –28 dBm –32.0 dBm
Optical connector type SC/UPC SC/UPC
Optical fiber type Single mode Single mode
Transmission distance 20 km 20 km
Saturation optical power –5 dBm –8.0 dBm –7 dBm –12.0 dBm
Extinction ratio 8.2 dB 8.2 dB 8.2 dB 8.2 dB
Dimensions 393.1 mm(H)× 23.9 mm(W) × 214 mm(D)
Weight 1.72kg

Additional information

Weight 3.0000 kg
