ZTE ZXA10 C320/ C350/ C300/ 16-port GPON OLT interface board GTGH with C+/C++ module
Shenzhen Warehouse
lead time 3-5 days
Overview
GTGH Overview

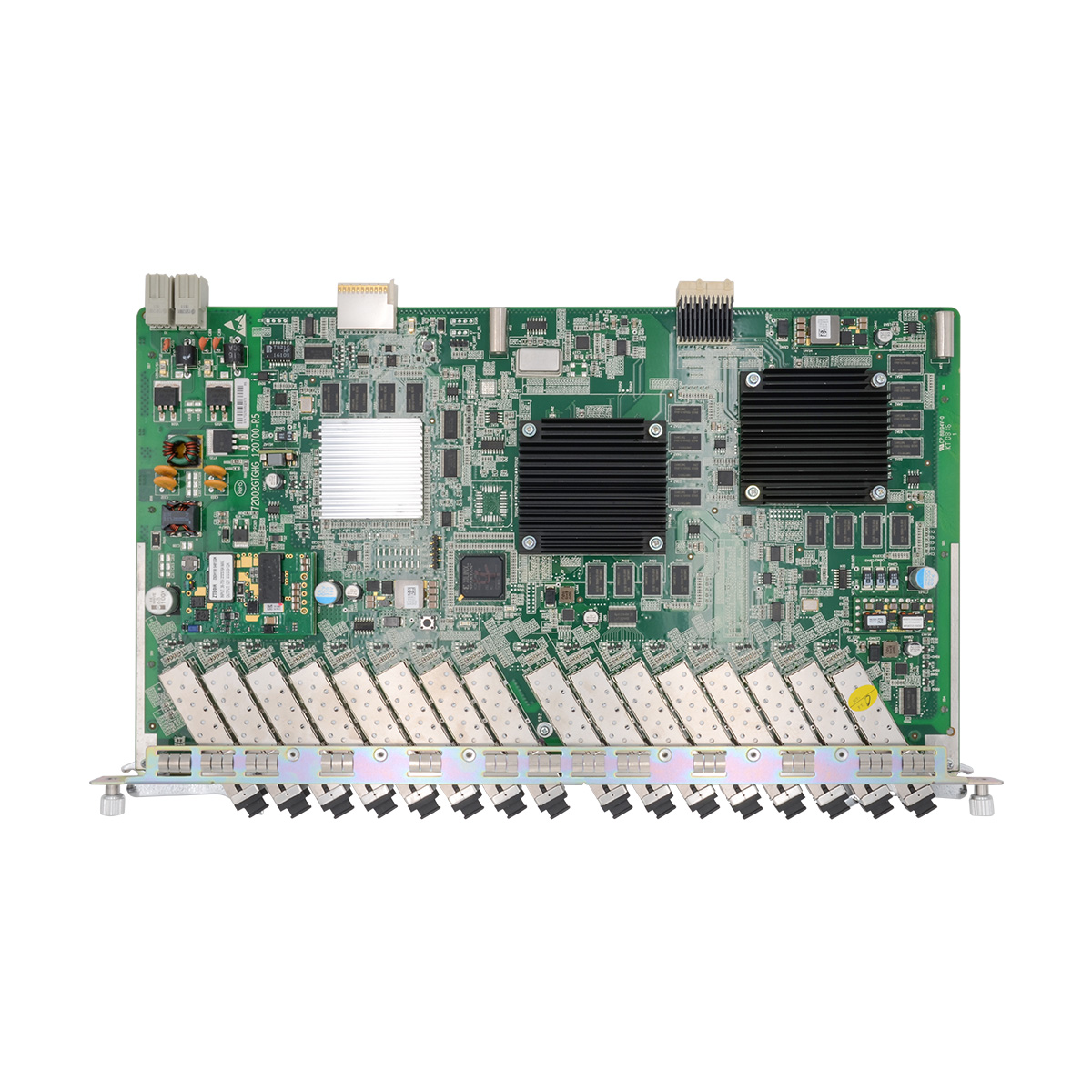

The GTGH card is 16-port GPON interface cards, which provides GPON access and could be applied to the ZTE OLT ZXA10 C300/C320/C350.
The GTGH card will come with C+ module, but you could also choose come with C++(D) level module also.
The GTGH Panel
The Indicator Description for GTGH GPON Interface Card
| Indicator | Status | Description | ||
| RUN | OFF | The card is not powered ON. | ||
| Green LED flashes slowly (1 Hz). | The card works properly (INSERVICE). | |||
| Green LED flashes quickly (2 Hz). | • | The card is in configuration process. | ||
| • | The card is in BOOT writing process. Do Not pull out the card. | |||
| Green LED is ON. | • | The card is in version starting process. | ||
| • | The card is in BOOTROM program. | |||
| • | The card is in PLD upgrading process. | |||
| Red LED is ON. | The card is seriously faulty, such as hardware fault. | |||
| Yellow LED flashes slowly (1 Hz). | The card type is inconsistent with configuration (TYPEMISMATCH). | |||
| ACTi (i = 1–16) | OFF | The PON interface has no configuration. | ||
| Green LED flashes. | The PON interface has no configuration and discovers new ONU. | |||
| Green LED is ON | ONUs are registered on the PON port and work properly. | |||
| Red LED is ON. | The GPON interface has LOS alarms. | |||
The Principle Diagram of GTGH Card
Datasheet
GTGH Datasheet
| Item | GTGH |
| GPON Port | 16-GPON Port |
| Type |
C+ Module : Single Fiber Bidirectional Optical Module, Class C+ C++ Module : Single Fiber Bidirectional Optical Module, Class C++ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power |
C+ Module : 3.00 dBm C++ Module : 4.50 dBm |
| Maximum Output Optical Power |
C+ Module : 7.00 dBm C++ Module : 8.00 dBm |
| Maximum Receiver Sensitivity |
C+ Module : -32.00 dBm C++ Module : -30 dBm @10E-10 -32 dBm @10E-10 |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Weight | 1kg |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
Related Products
Compare
ZTE OLT ZXA10 C300/350/C320 PON board comparison
| Model | Interface Type | Function | Specifications and optical modules |
| GTGO/ GTGH | GPON | GPON subscriber access | GPON SFP interface, including two types of optical modules: Class B+, Class C+, Class C++, SC/PC connector. |
| GTXO | XG-PON1 | XG-PON1 subscriber access | XG-PON1 XFP interface, including two types of optical modules: N1, N2a, SC/PC connector |
| GTBO | GPON & XG-PON1 combo | GPON & XG-PON1 subscriber access | GPON & XG-PON1 combo XFP interface, SC/PC connector. |
| GTTO | XGS-PON | XGS-PON subscriber access | XGS-PON XFP interface, including two types of optical modules: N1, N2, SC/PC connector. |
| ETGO/ ETGH | EPON | EPON subscriber access | EPON SFP interface, including three types of optical modules: PX20, PX20+, SC/PC connector. |
| ETTO | 10G EPON | 10G-EPON subscriber access | 10G-EPON XFP interface, including two types of optical modules: asymmetric PRX30, symmetric PR30, SC/PC connector. |
| FTGK | P2P | P2P subscriber access | P2P CSFP interface, including two types of optical modules: GE P2P and FE P2P, LC/PC connector. |
| CTLA | SDH | SDH uplink to TDM network | SDH interface, including two types of optical modules: STM-1, STM-4, LC/PC connector. |
| CTUB | Unbalanced E1 | Unbalanced E1 interface uplink to TDM network | Unbalanced E1 interface. |
| CTBB | Balanced E1 | Balanced E1 interface uplink to TDM network | Balanced E1 interface. |
| CTTB | T1 | T1 interface uplink to TDM network | T1 interface. |
| XUTQ | 10GE | 10GE interface uplink to 10GE network | 10GE SFP+ interface, including four types of optical modules: 300 m, 10 km, 40 km, 80 km, LC/PC connector. |
| XUVQ | 10GE | 10GE interface uplink to 10GE network | 10GE SFP+ interface, including four types of optical modules: 300 m, 10 km, 40 km, 80 km, LC/PC connector. |
| GUFQ | GE | GE interface uplink to GE network | GE SFP interface, including five types of optical modules: 550 m, 10 km, 40 km, 80 km, 120 km, LC/PC connector. |
| GUSQ | GE | GE interface uplink to GE network | GE SFP interface, including five types of optical modules: 550 m, 10 km, 40 km, 80 km, 120 km, LC/PC connector. |
| GE electrical interface | GE interface uplink to GE network | GE RJ45 interface, 10/100/1000M Base-T adaptive, built-in indicators, CAT–5 twisted pair. | |
| HUTQ | 10GE | 10GE interface uplink to 10GE network | 10GE SFP+ interface, including four types of optical modules: 300 m, 10 km, 40 km, 80 km, LC/PC connector. |
| GE | GE interface uplink to GE network | GE SFP interface, including five types of optical modules: 550 m, 10 km, 40 km, 80 km, 120 km, LC/PC connector. | |
| HUVQ | 10GE | 10GE interface uplink to 10GE network | 10GE SFP+ interface, including four types of optical modules: 300 m, 10 km, 40 km, 80 km, LC/PC connector. |
| GE | GE interface uplink to GE network | GE SFP interface, including five types of optical modules: 550 m, 10 km, 40 km, 80 km, 120 km, LC/PC connector. | |
| GDFO | GE | GE interface uplink to GE network | GE SFP interface, including five types of optical modules: 550 m, 10 km, 40 km, 80 km, 120 km, LC/PC connector. |
