Huawei HS8346X6-C GPON terminal with 4*GE+POTS+USB+2.4G&5G WIFI 6

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

HS8346X6-C Overview

The Huawei HS8346X6-C is an intelligent GPON and Wi-Fi 6 routing-type ONT. It uses the GPON Wi-Fi6 technology to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

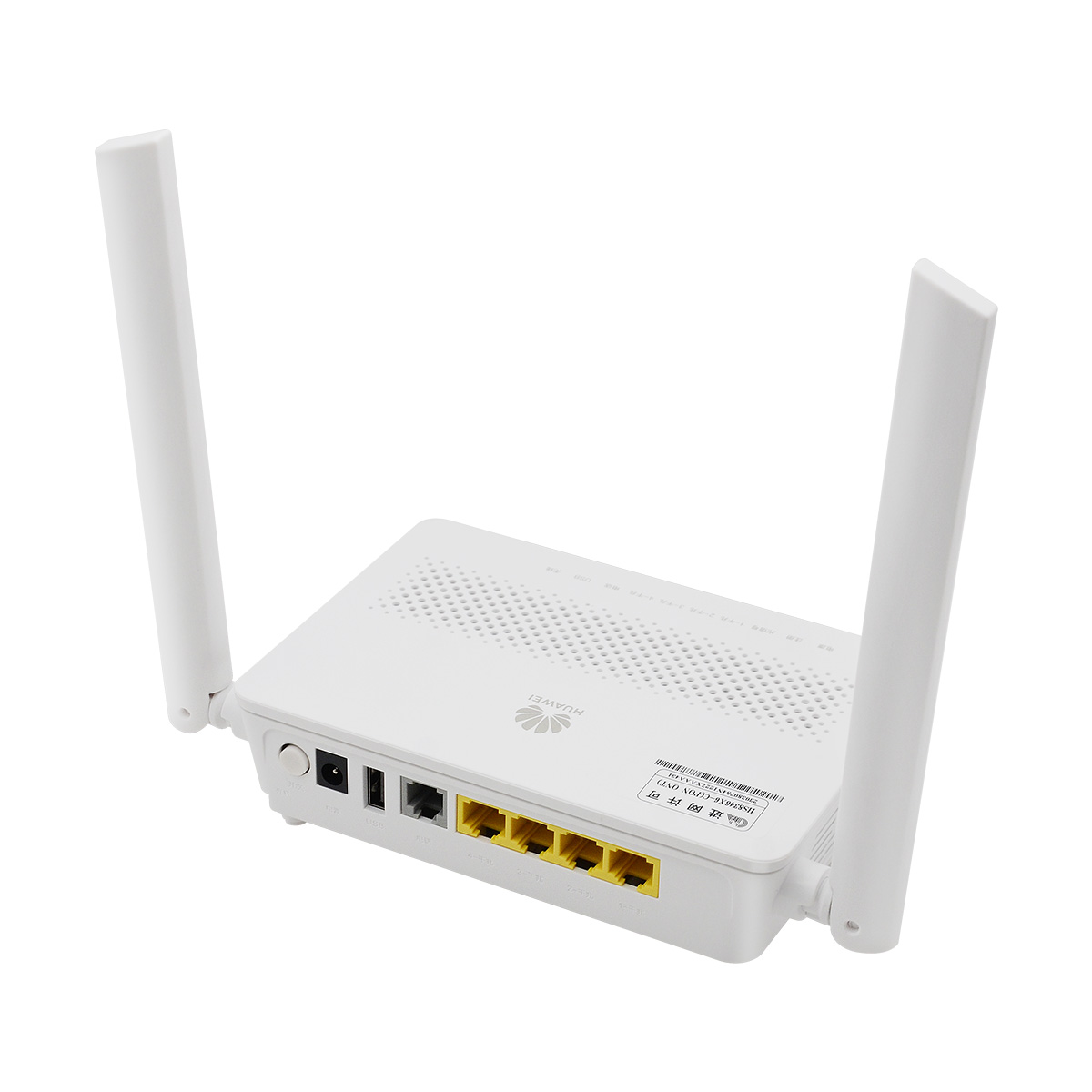

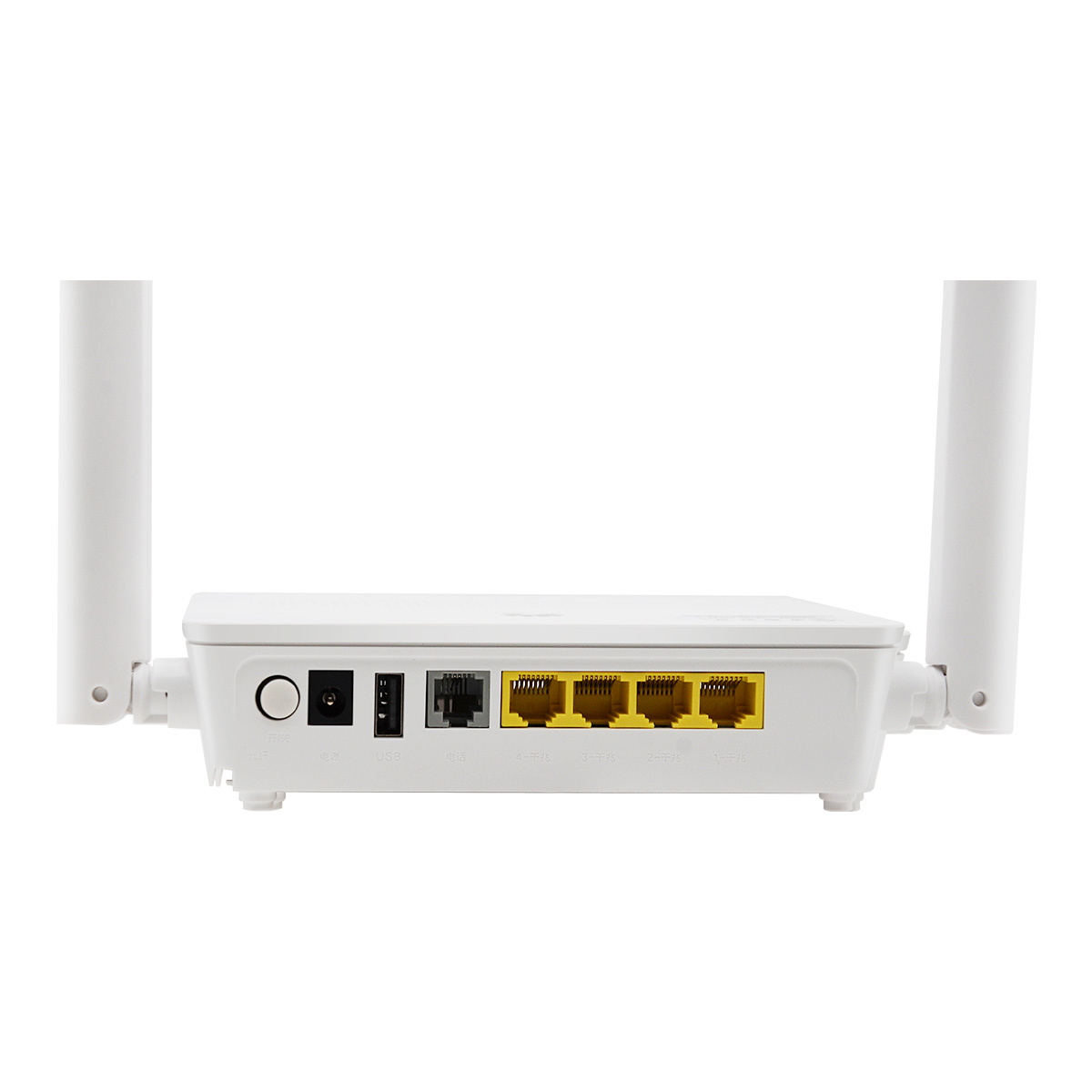

It provides four GE ports, one POTS port, one USB port and 2.4GHz&5GHz Wi-Fi 6 function.

HS8346X6 C

Hardware specifications

Item Specifications
Power supply: 12V DC, 1.5 A
Working environment temperature: 0°C ~ +40°C
Working environment humidity: 5% RH to 95% RH (non-condensing)
Power adapter rated input Range: 170 ~ 240 V AC, 50/60 Hz
Maximum power consumption: 12 W
Network side interface: GPON/EPON
User side interface: 1 POTS + 4 GE + 1 USB + 2.4G&5G Wi-Fi 6
Optical connector: SC/UPC
Storage: 256MB flash, 256MB RAM
Dimensions (H x W x D): 35mm x 155mm x 105mm (excluding antenna and foot pads)
Weight (excluding adapter) Approximately: 241 g


Interface parameters

Type Parameters
GPON/EPON port
  • GPON: Class B+/EPON: PX20+
  • Receiver sensitivity: -27dBm
  • Overload optical power: GPON:-8dBm/EPON: -3dBm
  • Wavelength: Upstream 1310nm, Downstream 1490nm
  • Support band-stop filter (WBF)
  • Authentication: SN/Password/LOID(GPON); MAC/Key/LOID(EPON)
  • Bidirectional FEC(Forward Error Correction)
  • Support SR, NSR DBA
USB port
  • USB 2.0
2.4G&5G Wi-Fi
  • IEEE 802.11 b/g/n/ax(2.4G)
  • IEEE 802.11 a/n/ac/ax(5G)
  • 2×2 MIMO(2.4G&5G)
  • Antenna gain: 5dBi
  • WMM(Wi-Fi Multi Media)
  • Multi-SSID
  • WPS
  • Air interface rate: 574 Mbit/s(2.4G); 2402 Mbit/s(5G)
  • Beamforming
  • Band steering
  • DL OFDMA
  • DL MU-MIMO
  • 1024QAM
  • 160MHz bandwidth
  • WPA3
Ethernet port
  • Limit on the number of learned MAC addresses
  • MAC address learning
  • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS port
  • Maximum ringer equivalence number (REN): 4
  • G.711A/u, G.729a/b and G.722 encoding/decoding
  • T.30/T.38/G.711 fax mode
  • DTMF
  • Emergency calls (with the SIP protocol)
