Huawei MA5800-X15

5 Reviews Write a review
SKU5203
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei MA5800-X15 chassis with dual MPLA/MPLB 10GE Main Control Board, 2xPILA DC Power Board

Description

MA5800-X15 Overview

The MA5800 is the industry’s first smart aggregation OLT with distributed architecture. It is positioned as the next-generation OLT for NG-PON. MA5800 series includes MA5800-X2, MA5800-X7, MA5800-X15, MA5800-X17.

Providing GPON, 10G GPON(including XG-PON and XGS-PON), P2PGE, and 10GE access, the MA5800 supports deployment on FTTH, FTTD, FTTB, FTTC, and distributed converged cable access platform (D-CCAP)networks. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to aggregate all services on one fiber network.

The MA5800 functions as large-cap aggregation device on the network to aggregate the traffic from ONTs, MDUs, and campus switches, thereby simplifying the network architecture and reducing the OPEX.

Huawei MA5800-X15 chassis equipped with dual MPLA/MPLB main control board, 2xPILA DC power board.

19inch, 11U height 15 service slots, 200G throughput each slot

Sopported Main Control Board and Service Board

Main control board:

  • H902MPLA main control board for MA5800-X2(Bandwidth: 100G)
  • H901MPLB main control board for MA5800-X2(Bandwidth: 200G)

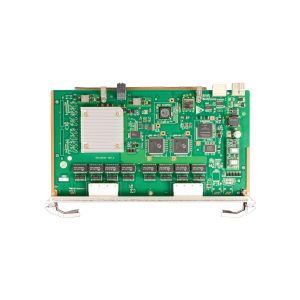

Service Board:

Upstream board:

  • H901NXED: 8-port upstream interface board

GPON Board:

  • H901GPHF: 16-port GPON OLT interface board
  • H901GPUF: 16-port GPON OLT interface board
  • H901GPSF: 16-port GPON OLT interface board

XG-PON Board:

  • H901XGHD: 8-port XG-PON OLT interface board
  • H901XGSF: 16-port XG-PON OLT interface board

XGS-PON Board:

  • H901XSHF: 16-port XGS-PON OLT interface board
  • H902XSHD: 8-port XGS-PON OLT interface board

Combo Pon Board:

  • H901CGID: 8-port XG-PON & GPON Combo OLT interface board
  • H901CGHF: 16-port XG-PON & GPON Combo OLT interface board
  • H902CGHD: 8-port XG-PON & GPON Combo OLT interface board
  • H901CSHF: 16-port XGS-PON & GPON Combo OLT interface board
  • H902CSHD: 8-port XGS-PON & GPON Combo OLT interface board

Flexible Pon Board:

  • H902FLHF: 16-port GPON&XG-PON&XGS-PON flexible OLT interface board

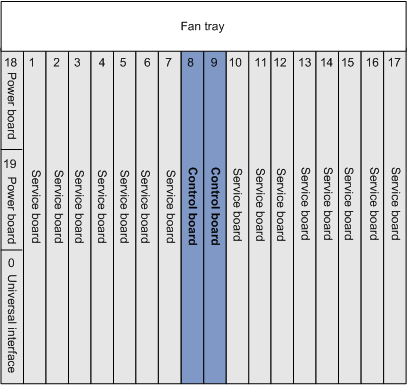

MA5800-X15 Layout

 MA5800-X15 Datasheet
Item MA5800-X15
Switching capacity of the system 7 Tbit/s
Maximum bandwidth per slot H901MPLB: 200 Gbit/s H901MPLA: 100 Gbit/s
Maximum number of MAC address 262143
Maximum number of ARP/routing entries 65536
Maximum number of concurrent 4K video users 16000
GPON ports 240
10G GPON ports 120
GE/FE ports 720
10GE ports 120
Cabinet supported N63E-22
Board supported
Control Board
H901MPLB It provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board
H901MPLA
H901CKUA Supports stratum-3 clock functions by working with MPLB and MPLA
Upstream interface board
H901NXED Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough.
Universal interface board
H901CIUA Provides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.
Service board
H901GPHF Provides 16 GPON ports for access services
H901GPSF Provides 16 GPON ports for home access services
H901XGHD Provides 8 asymmetric 10G GPON ports for access services.

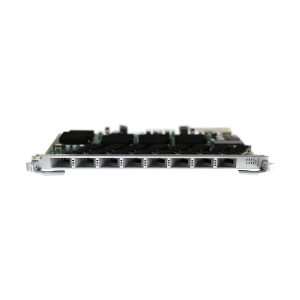

H901TWED Provides 8 symmetric 10G GPON ports for access services.

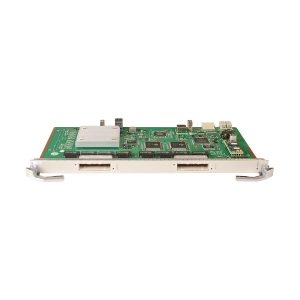

H901EDSH 32-channel E1 upstream board, supporting native TDM mode.
H901OGHK 48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
H901OXHD 8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
Power board
H901PILA Provides -48V DC input
Fan Monitoring board
H901FMLA Supplier power to fans; controls and moniotes the fans
H901FMMA Supplier power to fans; controls and moniotes the fans
Dimensions (W x D x H) (mm) 11 U high and 21 inch wide Excluding mounting brackets: 493x287x 486 Including mounting brackets: 535x287x486
Maximum weight(including mounting brackets) 35 kg
Maximum input current 60 A
Power supply Power supply mode: DC Working voltage range: -38.4 V to -72 V Rated voltage: -48 V / -60 V
Ambient temperature -40°C to +65°C The MA5800 can start up at a lowest The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
Ambient humidity 5% RH to 95% RH
Package Dimension     (W x D x H)(cm) 73×71×44

Additional information

Weight 48.0000 kg
Dimensions 73.0000 × 71.0000 × 44.0000 cm
Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

 MA5800-X15 Datasheet
Item MA5800-X15
Switching capacity of the system 7 Tbit/s
Maximum bandwidth per slot H901MPLB: 200 Gbit/s H901MPLA: 100 Gbit/s
Maximum number of MAC address 262143
Maximum number of ARP/routing entries 65536
Maximum number of concurrent 4K video users 16000
GPON ports 240
10G GPON ports 120
GE/FE ports 720
10GE ports 120
Cabinet supported N63E-22
Board supported
Control Board
H901MPLB It provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board
H901MPLA
H901CKUA Supports stratum-3 clock functions by working with MPLB and MPLA
Upstream interface board
H901NXED Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough.
Universal interface board
H901CIUA Provides synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports, and provides transparent transmission Ethernet ports.
Service board
H901GPHF Provides 16 GPON ports for access services
H901GPSF Provides 16 GPON ports for home access services
H901XGHD Provides 8 asymmetric 10G GPON ports for access services.
H901TWED Provides 8 symmetric 10G GPON ports for access services.
H901EDSH 32-channel E1 upstream board, supporting native TDM mode.
H901OGHK 48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
H901OXHD 8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
Power board
H901PILA Provides -48V DC input
Fan Monitoring board
H901FMLA Supplier power to fans; controls and moniotes the fans
H901FMMA Supplier power to fans; controls and moniotes the fans
Dimensions (W x D x H) (mm) 11 U high and 21 inch wide Excluding mounting brackets: 493x287x 486 Including mounting brackets: 535x287x486
Maximum weight(including mounting brackets) 35 kg
Maximum input current 60 A
Power supply Power supply mode: DC Working voltage range: -38.4 V to -72 V Rated voltage: -48 V / -60 V
Ambient temperature -40°C to +65°C The MA5800 can start up at a lowest The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack.
Ambient humidity 5% RH to 95% RH
Package Dimension     (W x D x H)(cm) 73×71×44
