H901CGHF

Huawei H901CGHF MA5800 series 16-port XG-PON and GPON combo OLT interface board, apply to Huawei MA5800 series with XG-PON & GPON C+/N2a optical module

Huawei

3-5 days

Shenzhen Warehouse

SKU: H901CGHF Category:

Description

H901CGHF overview

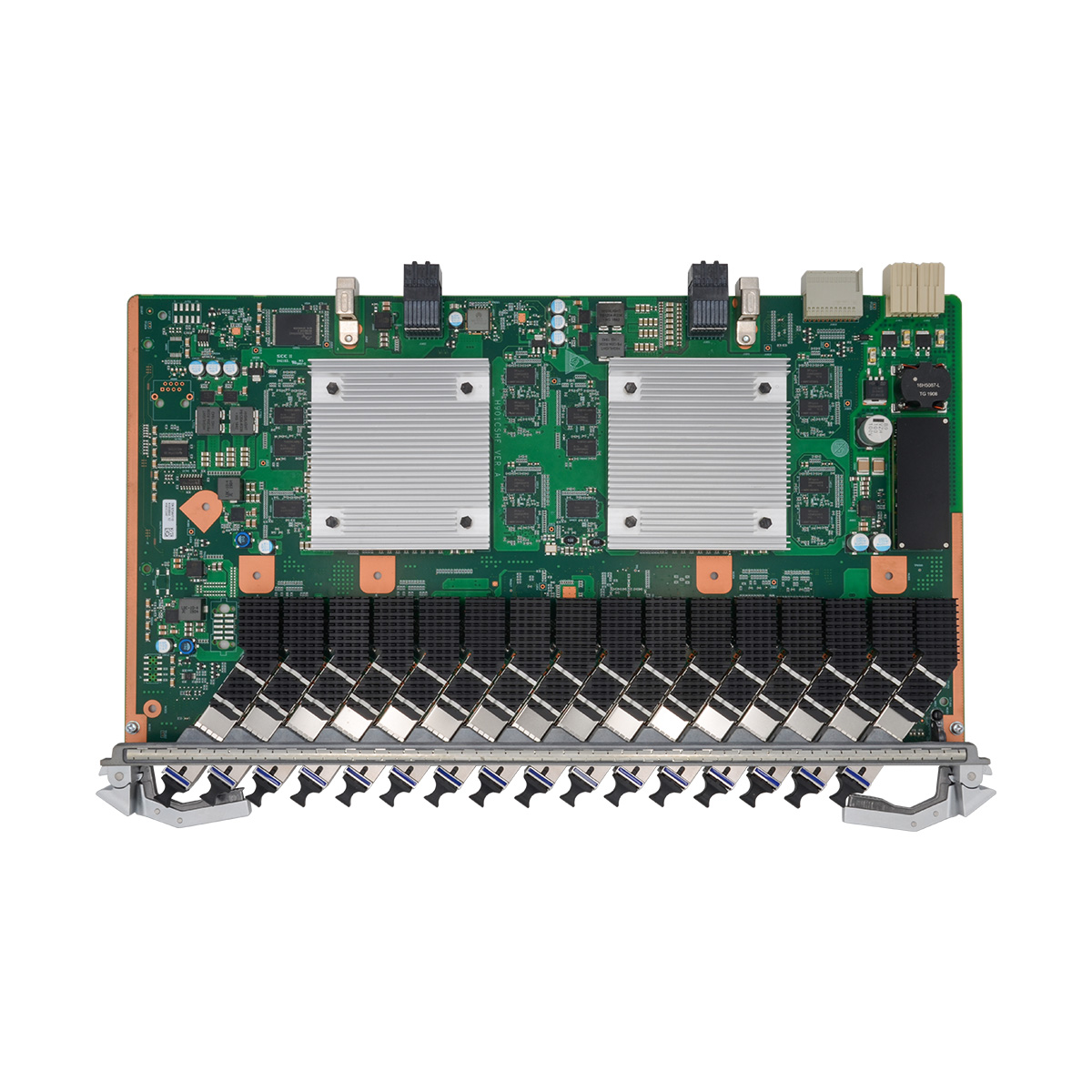

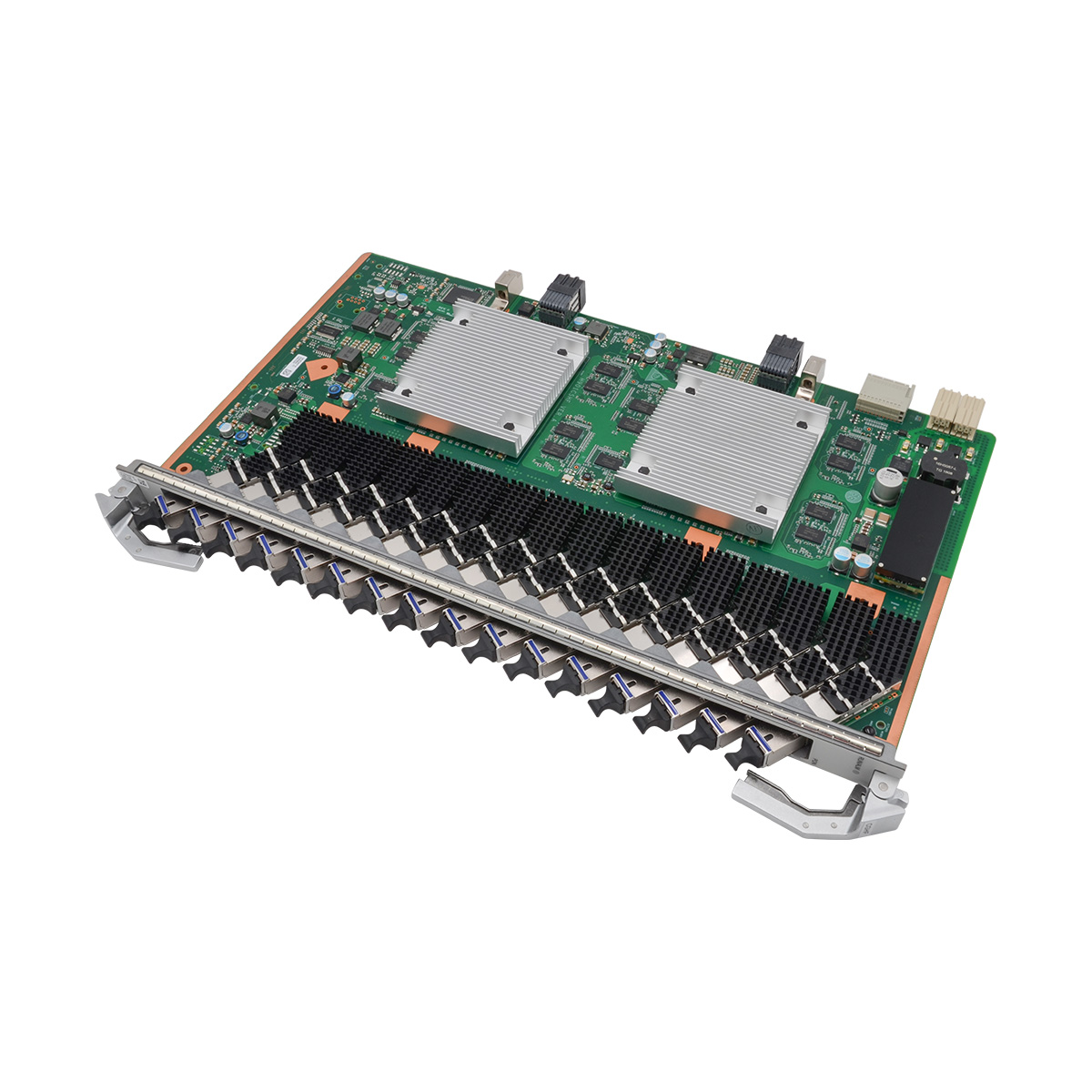

Huawei H901CGHF is a 16-port XG-PON and GPON Combo OLT interface board with XG-PON & GPON C+/N2a Optical Module, which applies to Huawei MA5800-X2, X7, X15, X17 NG OLT system. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

Forwarding Capability: 200 Gbit/s

Max split radio: 1:256

Kindly note H901CGHF comes with C+ or N2a SFP by default, you can also choose class B+ or D SFP modules.



Maximum frame size:

2052 bytes
9216 bytes (jumbo frame enabled)

T-CONTs per PON port:

GPON: 1024
XG-PON: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16352

GPON channel:

  • Tx: 2.488 Gbit/s
  • Rx: 1.244 Gbit/s

XG-PON channel:

  • Tx: 9.953 Gbit/s
  • Rx: 2.488 Gbit/s
Front Panel

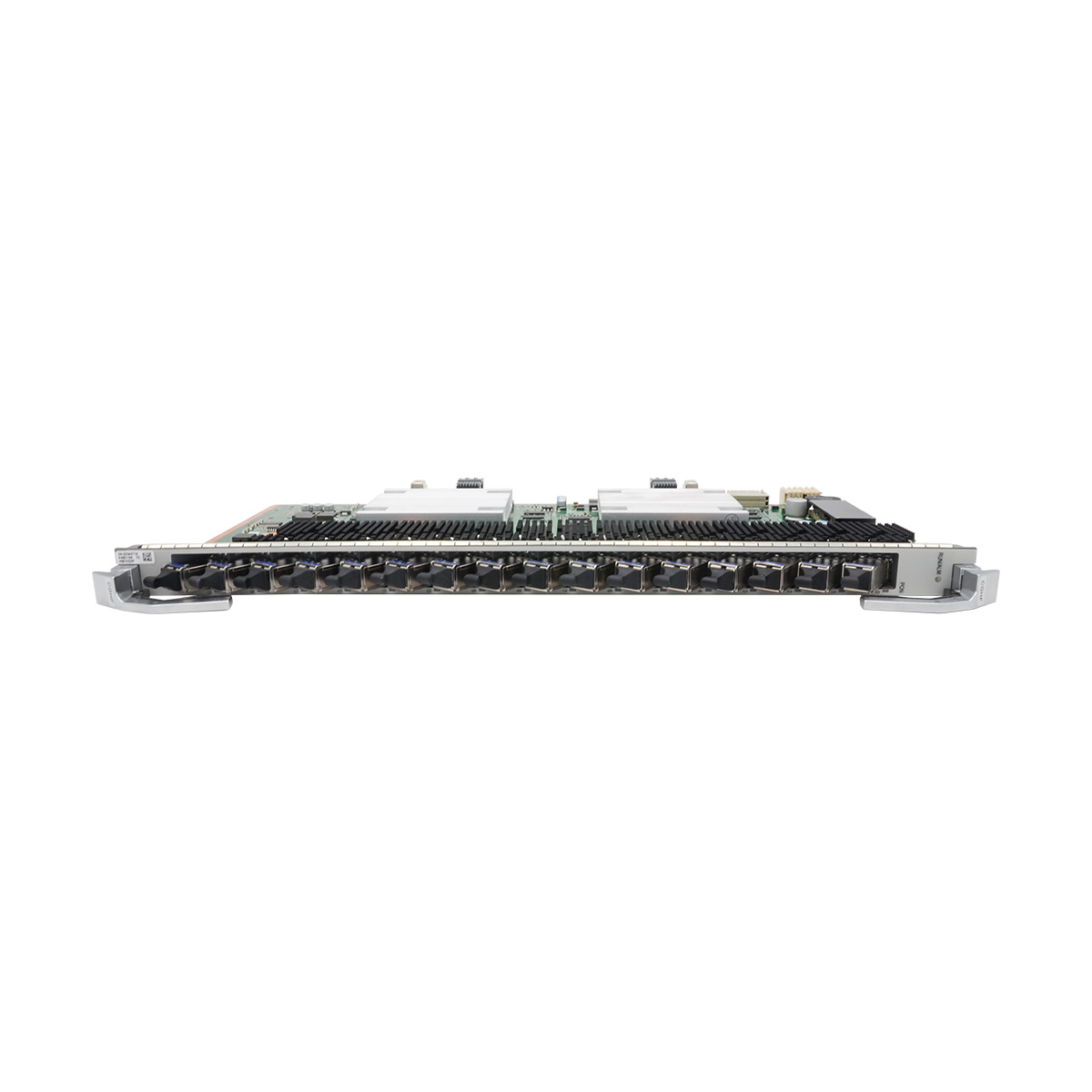

H901CGHF front panel

Item H901CGHF
Service ports
GPON Port 16 XG-PON & GPON ports
Forwarding Capality 200 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON: 1024

XG-PON: 2048

Service flows per PON board 16352
Maximum frame size 2052 bytes

9216 bytes (jumbo frame enabled)

Maximum number of MAC addresses 131072
Maximum distance difference between

two ONUs under the same PON port

 40 km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported(applicable to GPON channels)
Type C protection(single-homing) Supported(applicable to GPON channels)
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Not supported
GPON SFP Module Specification
Type One-fiber bi-directional optical module C+

One-fiber bi-directional optical module N2a

Operating Wavelength GPON channel:

Tx: 1490 nm

Rx: 1310 nm

XG-PON channel:

Tx: 1577 nm

Rx: 1270 nm

Encapsulation Type SFP+
Port Rate GPON channel:

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

XG-PON channel:

Tx: 9.953 Gbit/s

Rx: 2.488 Gbit/s

Minimum Output Optical Power N2a:

GPON channel: 3 dBm

XG-PON channel: 4 dBm

C+:

GPON channel: 3 dBm

XG-PON channel: 5 dBm

Maximum Output Optical Power N2a:

GPON channel: 7 dBm

XG-PON channel: 8 dBm

C+:

GPON channel: 7 dBm

XG-PON channel: 8 dBm

Maximum Receiver Sensitivity N2a:

GPON channel: -32 dBm

XG-PON channel: -29.5 dBm

C+:

GPON channel:-32dBm

XG-PON channel:-30.5dBm

Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N2a:

GPON channel: -12 dBm

XG-PON channel: -9 dBm

C+:

GPON channel: -12 dBm

XG-PON channel: -10 dBm

Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption
Power Consumption Static: 48 W

Maximum: 106 W

Operating temperature -40°C to +65°C

Additional information

Weight 3.0000 kg

Differences between PON Combo interface boards

Board Specifications

H901CGID

H901CGHF/H902CGHF

H901CSHF/H902CSHF

H902CGHD/H903CGHD

H902CSHD/H903CSHD

Port quantity

8

16

16

8

8

Forwarding capability

80 Gbit/s

200 Gbit/s

200 Gbit/s

100 Gbit/s

100 Gbit/s

Rate mode

Asymmetric rate

Asymmetric rate

Supports two modes:

  • Asymmetric
  • Symmetric

Asymmetric rate

Supports two modes:

  • Asymmetric
  • Symmetric

Port rates

  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • XGS-PON upstream: 9.953 Gbit/s
  • XGS-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • XGS-PON upstream: 9.953 Gbit/s
  • XGS-PON downstream: 9.953 Gbit/s

Maximum split ratio

  • GPON: 1:128
  • XG-PON: 1:256
  • GPON: 1:128
  • XG-PON: 1:256
  • GPON: 1:128
  • XG(S)-PON: 1:256
  • GPON: 1:128
  • XG-PON: 1:256
  • GPON: 1:128
  • XG(S)-PON: 1:256

T-CONTs per PON port

  • GPON/auto type ONU: 1024
  • XG-PON: 2048
  • GPON/auto type ONU: 1024
  • XG-PON: 2048
  • GPON/auto type ONU: 1024
  • XG(S)-PON: 2048
  • GPON/auto type ONU: 1024
  • XG-PON: 2048
  • GPON/auto type ONU: 1024
  • XG(S)-PON: 2048

Service flows per PON board

16368

16352

16352

16368

16368

Maximum number of MAC addresses

131072

131072

131072

131072

131072

Maximum distance difference between two ONUs under the same PON port

(board capability)

40 km

40 km

40 km

40 km

40 km

Supported ONU rates

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • XGS-PON: 10G/10G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • XGS-PON: 10G/10G (downstream rate/upstream rate)

FEC

Bidirection

Bidirection

Bidirection

Bidirection

Bidirection

CAR group

Yes

Yes

Yes

Yes

Yes

HQoS

Yes

Yes

Yes

Yes

Yes

PON ISSU

Yes

Yes

Yes

Yes

Yes

Variable-length OMCI

Yes

Yes

Yes

Yes

Yes

ONU-based shaping or queue-based shaping

Yes

Yes

Yes

Yes

Yes

Type B protection (single-homing)

Yes

Yes

Yes

Yes

Yes

Type B protection (dual-homing)

Yes

Yes

Yes

Yes

Yes

Type C protection (single-homing)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Type C protection (dual-homing)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

1588v2

Yes

Yes

Yes

Yes

Yes

9216-byte jumbo frames

Yes

Yes

Yes

Yes

Yes

Rogue ONT detection and isolation

Yes

Yes

Yes

Yes

Yes

Automatic shutdown at high temperature

Yes

Yes

Yes

Yes

Yes

Energy conservation for service boards

Yes

Yes

Yes

Yes

Yes
