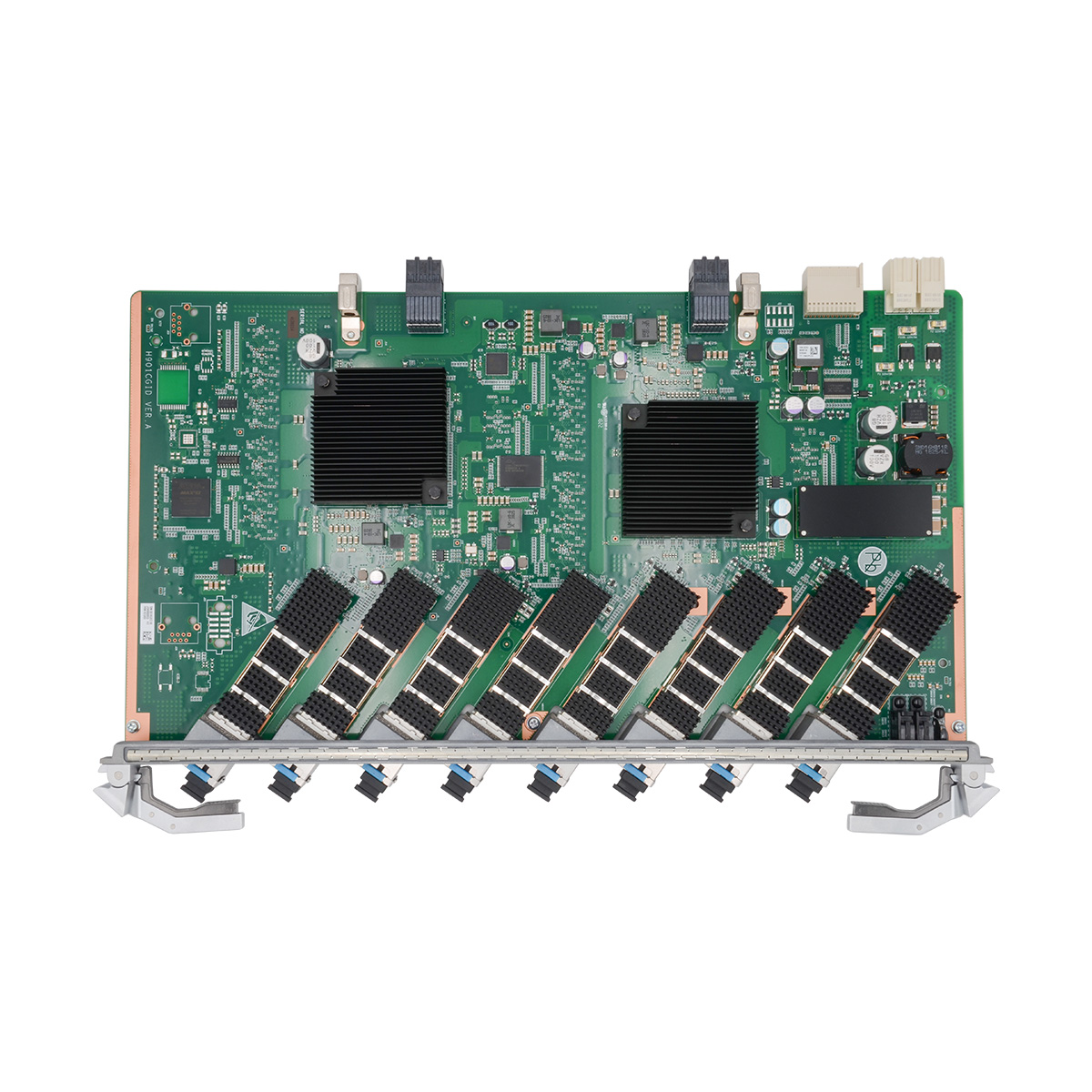

Huawei H901CGID MA5800 series 8-port XG-PON and GPON combo OLT interface board with XG-PON & GPON B+/N2a optical module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

H901CGID Overview

Huawei H901CGID is an 8-port XG-PON and GPON combo interface board with XG-PON & GPON B+/N2a optical module. It works with the optical network unit(ONU) to provide XG-PON and GPON access services.

Forwarding Capability: 80 Gbit/s

Max split radio: GPON: 1:128

XG-PON: 1:256

Maximum Frame Size: 2052 bytes 9216 bytes (jumbo frame enabled)



T-CONTs per PON port:

GPON: 1024

XG-PON: 2048

Maximum number of MAC addresses: 131072

Service flows per PON board: 16368

Maximum distance difference between two ONUS under the same pon port: 40 km

GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s

XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s

H901CGID Datasheet
Item H901CGID
Service ports
Port 8
Forwarding capability 80 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON:1024 XG-PON:2048
Service flows per PON board 16368
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUS under the same pon port 40km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported(applicable to GPON channels)
Type C protection(single-homing) Supported(applicable to GPON channels)
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Not supported
GPON SFP Module Specification
Type B+ Module: One-fiber bidirectional optical module, N1 N2a Module : One-fiber bi-directional optical module, N2a
Operating Wavelength B+/N2a Module: GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type SFP+
Port Rate B+/N2a Module: GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s
Minimun Output Optical Power B+ Module: GPON channel: 1.5 dBm XG-PON channel: 1 dBm N2a Module : GPON channel: 3 dBm XG-PON channel: 4 dBm
Maximum Output Optical Power B+ Module: GPON channel: 5 dBm XG-PON channel: 6 dBm N2a Module : GPON channel: 7 dBm XG-PON channel: 8 dBm
Maximum Receiver Sensitivity B+ Module: GPON channel: -28 dBm XG-PON channel: -26.5 dBm N2a Module : GPON channel: -32 dBm XG-PON channel: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: GPON channel: -8 dBm XG-PON channel: -7 dBm N2a Module: GPON channel: -12 dBm XG-PON channel: -9 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.3 mm x 257.90 mm x 399.20 mm
Power Consumption Static: 48 W Maximum: 78 W
Operating temperature -40°C to +65°C

Differences between PON Combo interface boards

Board Specifications

H901CGID

H901CGHF/H902CGHF

H901CSHF/H902CSHF

H902CGHD/H903CGHD

H902CSHD/H903CSHD

Port quantity

8

16

16

8

8

Forwarding capability

80 Gbit/s

200 Gbit/s

200 Gbit/s

100 Gbit/s

100 Gbit/s

Rate mode

Asymmetric rate

Asymmetric rate

Supports two modes:

  • Asymmetric
  • Symmetric

Asymmetric rate

Supports two modes:

  • Asymmetric
  • Symmetric

Port rates
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • XGS-PON upstream: 9.953 Gbit/s
  • XGS-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • GPON upstream: 1.244 Gbit/s
  • GPON downstream: 2.488 Gbit/s
  • XG-PON upstream: 2.488 Gbit/s
  • XG-PON downstream: 9.953 Gbit/s
  • XGS-PON upstream: 9.953 Gbit/s
  • XGS-PON downstream: 9.953 Gbit/s

Maximum split ratio
  • GPON: 1:128
  • XG-PON: 1:256
  • GPON: 1:128
  • XG-PON: 1:256
  • GPON: 1:128
  • XG(S)-PON: 1:256
  • GPON: 1:128
  • XG-PON: 1:256
  • GPON: 1:128
  • XG(S)-PON: 1:256

T-CONTs per PON port
  • GPON/auto type ONU: 1024
  • XG-PON: 2048
  • GPON/auto type ONU: 1024
  • XG-PON: 2048
  • GPON/auto type ONU: 1024
  • XG(S)-PON: 2048
  • GPON/auto type ONU: 1024
  • XG-PON: 2048
  • GPON/auto type ONU: 1024
  • XG(S)-PON: 2048

Service flows per PON board

16368

16352

16352

16368

16368

Maximum number of MAC addresses

131072

131072

131072

131072

131072

Maximum distance difference between two ONUs under the same PON port

(board capability)

40 km

40 km

40 km

40 km

40 km

Supported ONU rates

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • XGS-PON: 10G/10G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • GPON: 2.5G/1.25G (downstream rate/upstream rate)

  • XG-PON: 10G/2.5G (downstream rate/upstream rate)

  • XGS-PON: 10G/10G (downstream rate/upstream rate)

FEC

Bidirection

Bidirection

Bidirection

Bidirection

Bidirection

CAR group

Yes

Yes

Yes

Yes

Yes

HQoS

Yes

Yes

Yes

Yes

Yes

PON ISSU

Yes

Yes

Yes

Yes

Yes

Variable-length OMCI

Yes

Yes

Yes

Yes

Yes

ONU-based shaping or queue-based shaping

Yes

Yes

Yes

Yes

Yes

Type B protection (single-homing)

Yes

Yes

Yes

Yes

Yes

Type B protection (dual-homing)

Yes

Yes

Yes

Yes

Yes

Type C protection (single-homing)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Type C protection (dual-homing)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

Yes (applicable to GPON channels)

1588v2

Yes

Yes

Yes

Yes

Yes

9216-byte jumbo frames

Yes

Yes

Yes

Yes

Yes

Rogue ONT detection and isolation

Yes

Yes

Yes

Yes

Yes

Automatic shutdown at high temperature

Yes

Yes

Yes

Yes

Yes

Energy conservation for service boards

Yes

Yes

Yes

Yes

Yes

Additional information

Weight 3.0000 kg
