Huawei MA5800-X2 AC
PN Huawei MA5800-X2 AC
$0.00 Bulk Purchase

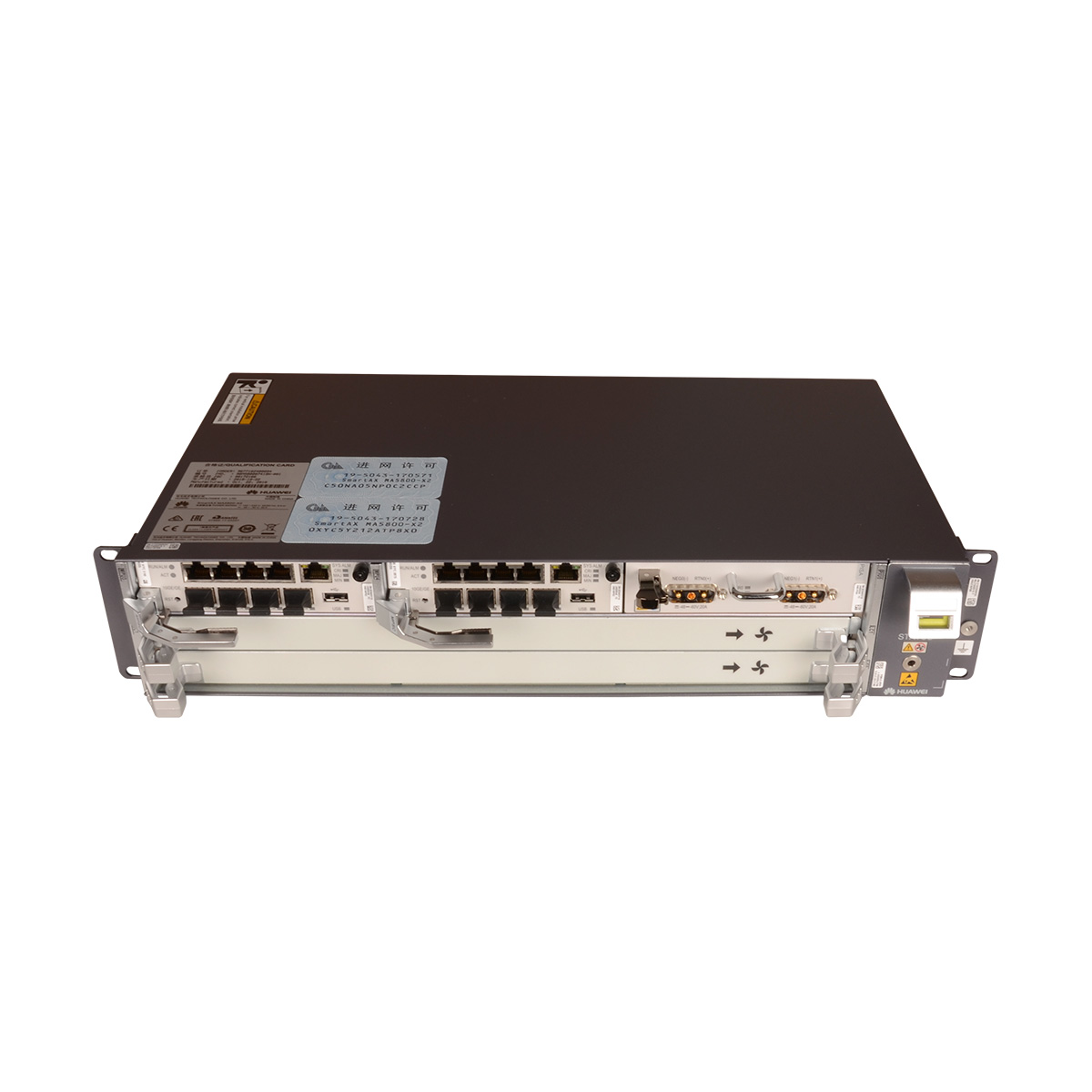

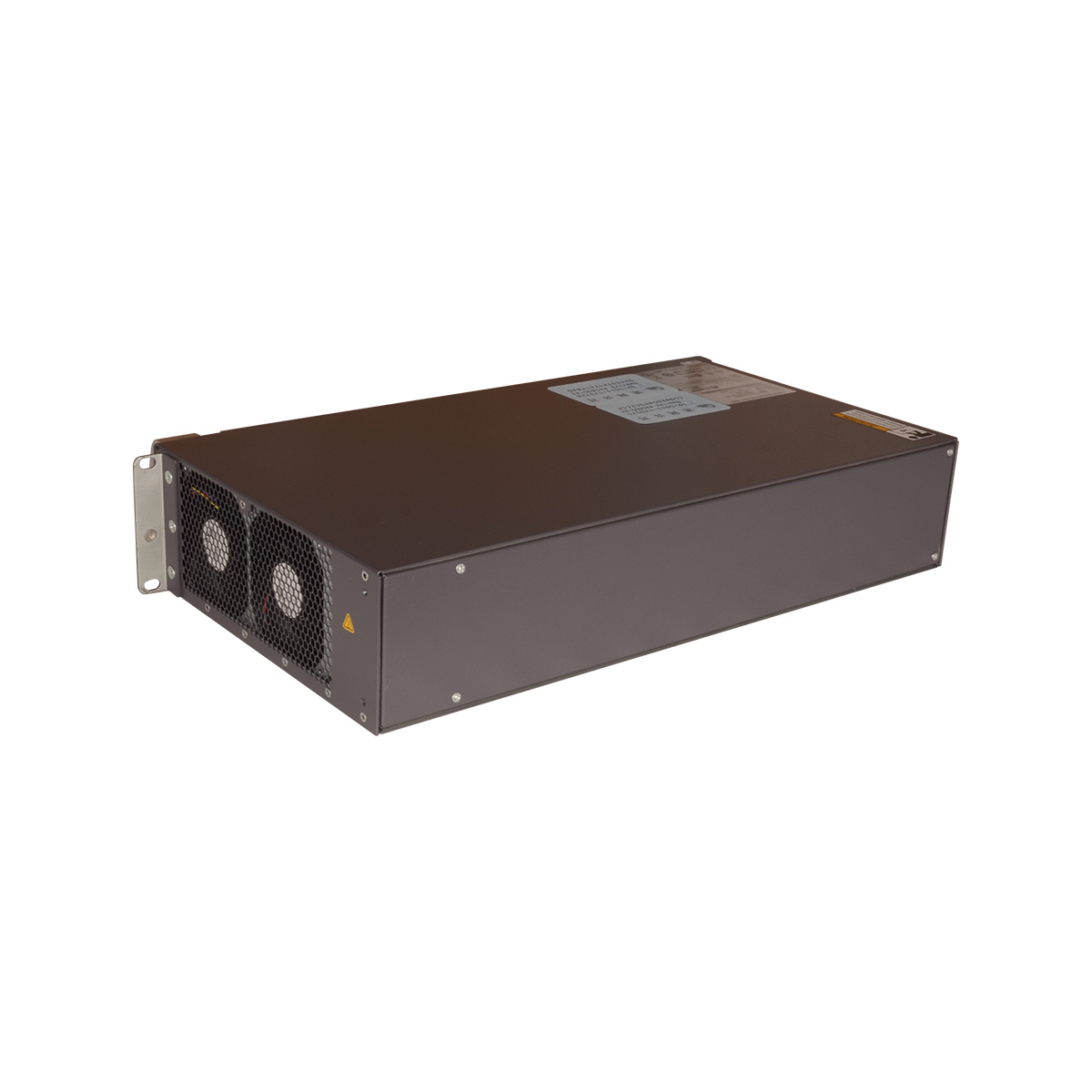

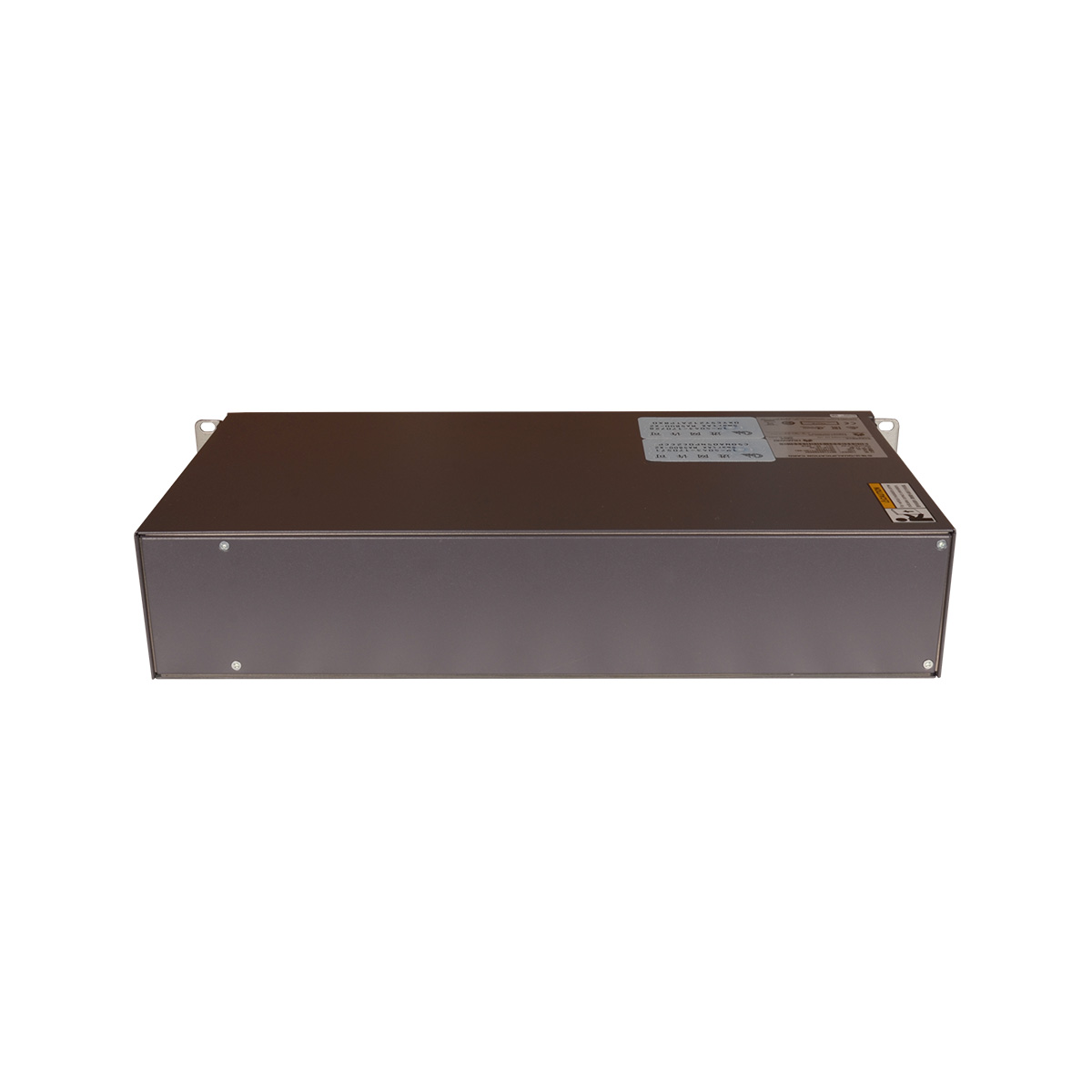

Huawei MA5800-X2 H901BPSB chassis equipped with single or dual H901MPSC/H901MPSA main control board, 1xH901PISB AC power board.
Shenzhen Warehouse
lead time 3-5 days
Overview
MA5800-X2 AC Overview
The MA5800 is the industry's first smart aggregation OLT with distributed architecture. It is positioned as the next-generation OLT for NG-PON. MA5800 series includes MA5800-X2, MA5800-X7, MA5800-X15, MA5800-X17.
Providing GPON, 10G GPON(including XG-PON and XGS-PON), P2PGE, and 10GE access, the MA5800 supports deployment on FTTH, FTTD, FTTB, FTTC, and distributed converged cable access platform (D-CCAP)networks. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to aggregate all services on one fiber network.
The MA5800 functions as large-cap aggregation device on the network to aggregate the traffic from ONTs, MDUs, and campus switches, thereby simplifying the network architecture and reducing the OPEX.
MA5800-X2 H901BPSB chassis equipped with single or dual H901MPSC/H901MPSA main control board, 1xH901PISB DC power board.
Sopported Main Control Board and Service Board
Main control board:
- H901MPSC main control board for MA5800-X2
- H901MPSA main control board for MA5800-X2
Service Board:
Upstream board:
- H901NXED: 8-port upstream interface board
GPON Board:
- H901GPHF: 16-port GPON OLT interface board
- H901GPUF: 16-port GPON OLT interface board
- H901GPSF: 16-port GPON OLT interface board
XG-PON Board:
- H901XGHD: 8-port XG-PON OLT interface board
- H901XGSF: 16-port XG-PON OLT interface board
XGS-PON Board:
- H901XSHF: 16-port XGS-PON OLT interface board
- H902XSHD: 8-port XGS-PON OLT interface board
Combo Pon Board:
- H901CGID: 8-port XG-PON & GPON Combo OLT interface board
- H901CGHF: 16-port XG-PON & GPON Combo OLT interface board
- H902CGHD: 8-port XG-PON & GPON Combo OLT interface board
- H901CSHF: 16-port XGS-PON & GPON Combo OLT interface board
- H902CSHD: 8-port XGS-PON & GPON Combo OLT interface board
MA5800-X2 Layout
Datasheet
MA5800-X2 Datasheet
| Item | MA5800-X2 | ||
| Switching capacity of the system | 480 Gbit/s | ||
| Maximum bandwidth per slot | H901MPSC: 80 Gbit/s | ||
| Maximum number of MAC address | 262144 | ||
| Maximum number of ARP/routing entries | 65536 | ||
| Maximum number of concurrent 4K video users | 2000 | ||
| GPON ports | 32 | ||
| XG-PON ports | 32 | ||
| XGS-GPON ports | 16 | ||
| GE/FE ports | 96 | ||
| 10GE ports | 16 | ||
| Cabinet supported | N63E-22 | ||
| Board Supported | |||
| Power board | |||
| H901PISA | Provides -48V DC input | ||
| H901PISB | Provides one AC power input and supports battery for power backup. | ||
| Fan Monitoring board | |||
| H901FMSA | Supplier power to fans; controls and moniotes the fans | ||
| Dimensions (W x D x H) (mm) |
2 U high and 19 inch wide442 mm x 268.7 mm x 88.1 mm
Including IEC mounting brackets: 482.6 mm x 268.7 mm x 88.1 mm Including ETSI mounting brackets: 535 mm x 268.7 mm x 88.1 mm |
||
| Maximum weight(including mounting brackets) | 9.4 kg | ||
| Maximum input current |
8A |
||
| Power supply |
Working voltage range:100 V to 240 V Rated voltage:110 V/220 V |
||
| Ambient temperature | -40°C to +65°C The MA5800 can start up at a lowest The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack. |
||
| Ambient humidity | 5% RH to 95% RH | ||
Compare
Slot configurations of a service subrack
| Service Subrack | Number of Slots | Slots for Control Boards | Slots for Service Boards | Slots for Upstream Interface Boards | Slot for Power Boards |
| MA5800-X17 | 22 | 9, 10 | 1-8, 11-19 | 9, 10 (control board for upstream transmission is recommended. If more Ethernet ports are required for upstream transmission, the upstream board can be installed on any of service slots for upstream port expansion.) | 20, 21 |
| MA5800-X15 | 20 | 8, 9 | 1-7, 10-17 | 8, 9 (control board for upstream transmission is recommended. If more Ethernet ports are required for upstream transmission, the upstream board can be installed on any of service slots for upstream port expansion.) | 18, 19 |
| MA5800-X7 | 12 | 8, 9 | 1-7 | 8, 9 (control board for upstream transmission is recommended. If more Ethernet ports are required for upstream transmission, the upstream board can be installed on any of service slots for upstream port expansion.) | 10, 11 |
| MA5800-X2 | 5 | 3, 4 | 1, 2 | 3, 4 | 0 |
EA5801-GP08 VS MA5800-X2 VS MA5608T
| Product name | EA5801-GP08 | MA5800-X2 | MA5608T |
| Indoor cabinet | N/A | N63E-22 | N63E-22 |
| Outdoor cabinet | F01T100 | F01M50 F01T100 F01S200 |
F01S200 F01T100 |
| Dimensions ( W x D x H) | 442.0 mm x 222.3 mm x 43.6 mm | 442.0 mm × 268.7 mm × 88.1 mm | 442 mm x 244.5 mm x 88.1mm |
| Dimensions ( W x D x H) | 482.6 mm x 222.3 mm x 43.6 mm | 482.6 mm × 268.7 mm × 88.1mm | 482.6 mm x 244.5 mm x 88.1mm |
| Dimensions ( W x D x H) | 535.0 mm x 222.3 mm x 43.6 mm | 535.0 mm × 268.7 mm × 88.1mm | 535 mm x 244.5 mm x 88.1mm |
| Maximum Weight at full configuration | 4.6 kg | 9.4 kg | 8.83 kg |
| Power supply mode | DC power supply (dual for backup) AC power supply (dual for backup) |
DC power supply (dual for backup) AC power supply + battery for backup |
DC power supply (dual for backup) AC power supply + battery for backup |
| Rated voltage | DC Power supply: -48 V/-60 V AC Power supply: 110 V/220 V |
DC Power supply: -48 V/-60 V AC Power supply: 110 V/220 V |
DC Power supply: -48 V/-60 V AC Power supply: 110 V/220 V |
| Working voltage range | DC Power supply: -38.4 V to -72 V AC Power supply: 100 V to 240 V |
DC Power supply: -38.4 V to -72 V AC Power supply: 100 V to 240 V |
DC Power supply: -38.4 V to -72 V AC Power supply: 100 V to 240 V |
| Maximum input current | DC Power supply: 6 A AC Power supply: 2.5 A |
DC Power supply: 20 A AC Power supply: 8 A |
DC Power supply: 10 A AC Power supply: 6 A |
| Ambient temperature (for normal device running) |
-40 °C to +65 °C | -40 °C to +65 °C | -40 °C to +65 °C |
| Ambient temperature (for normal device startup) |
-25 °C to +65 °C | -25 °C to +65 °C | -25 °C to +65 °C |
| Ambient humidity | 5%RH to 95%RH | 5%RH to 95%RH | 5%RH to 95%RH |
| Atmospheric pressure | 70 kPa to 106 kPa | 70 kPa to 106 kPa | 70 kPa to 106 kPa |
| Altitude | ≤4000 m | ≤4000 m | ≤4000 m |
| Control board slot | 3 | 3, 4 | 2, 3 |
| Service board slot | 1 | 1, 2 | 0, 1 |
| upstream interface board slot | 2 | N/A | N/A |
| Universal interface board slot | 0 | N/A | N/A |
| Power board slot | 4, 5 | 0 | 4 (H801MPWC, H801MPWD Power board) 4, 5 (H801MP WE Power board) |
| GE/10GE ports (Control board) | N/A | 4*GE + 4*GE/10GE | MCUD: 8 x GE (in the load-sharing mode) MCUD1: 4 x GE + 2 x GE/10GE (in the load-sharing mode) |
| GPON ports | 8 | 32 | 32 |
| XG-PON ports | N/A | 32 | N/A |
| XGS-PON ports | N/A | 32 | N/A |
| GE/FE ports | N/A | 96 | 96 |
| 10GE ports | N/A | 16 | N/A |
| VDSL2 ports | N/A | N/A | 128 |
| POTS ports | N/A | N/A | 128 |
| SHDSL ports | N/A | N/A | 64 |
| ISDN ports | N/A | N/A | 64 |
| Band Width per slot | N/A | MPSA: 40 Gbit/s | N/A |
| Bit error rate (BER) in full load | <10 e-7 | <10 e-7 | <10 e-7 |
| System forwarding capacity | 40 Gbit/s | N/A | N/A |
| Switching capacity of the control board | N/A | MPSA: 248 Gbit/s | 128 Gbit/s in active/standby mode 256 Gbit/s in load-sharing mode |
| MAC address | 32768 | 262143 | 32768 |
| Access ONT | 1024 | 4096 | 2048 |
| IPv4 routing table | 8192 | 65536 | 5120 |
| IPv6 routing table | 4096 | 16384 | 5120 |
| ARP table | 16384 | 32768 | 8192 |
