Description

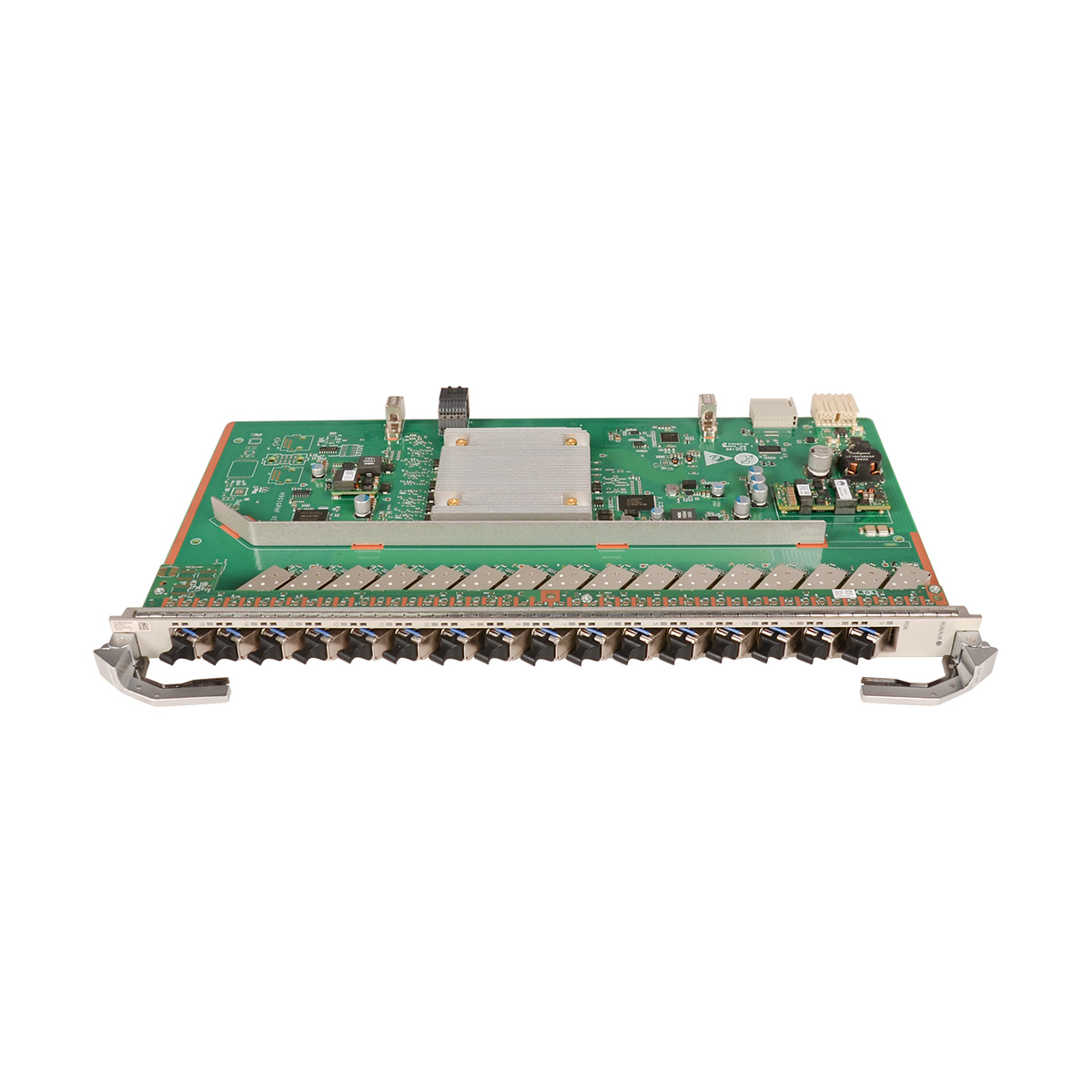

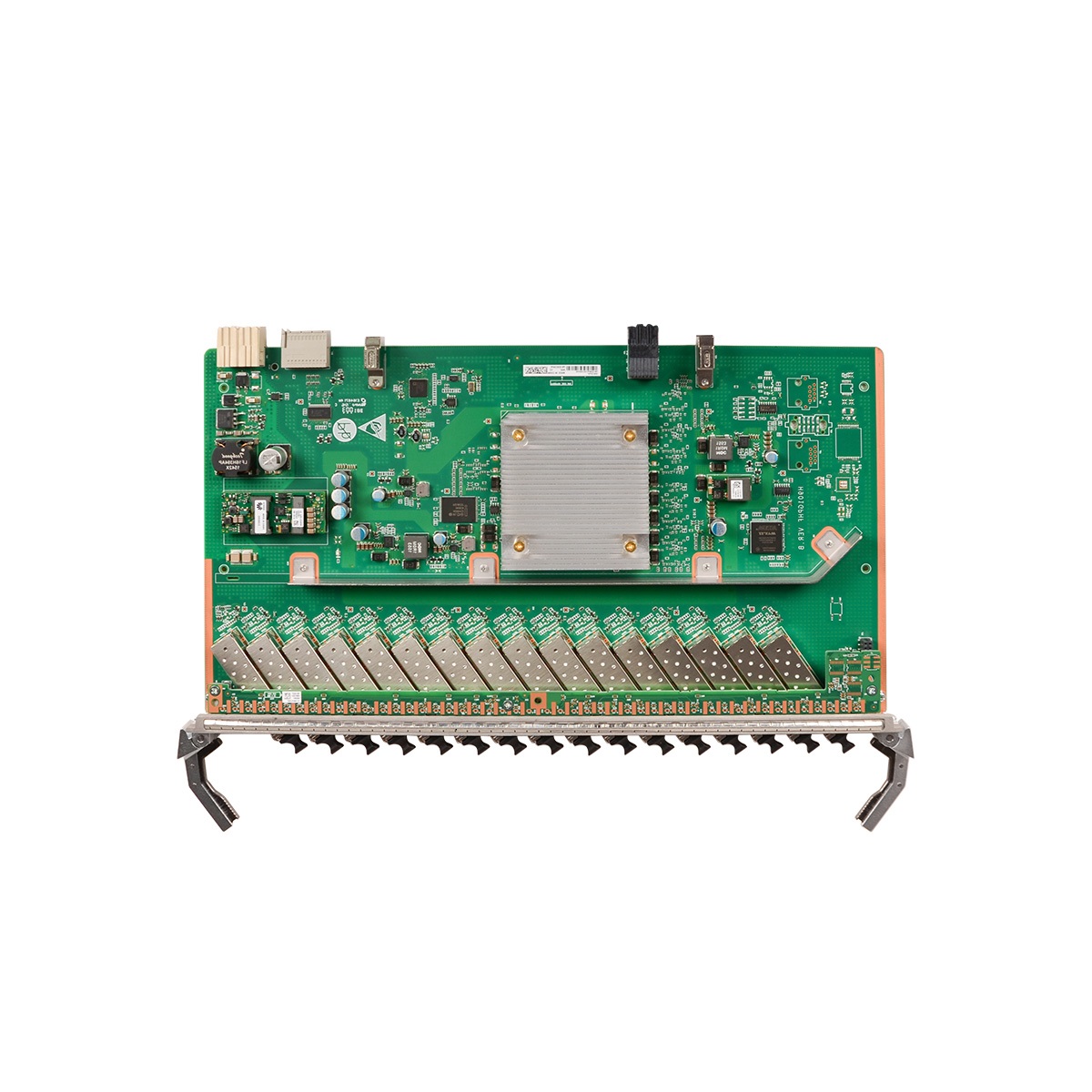

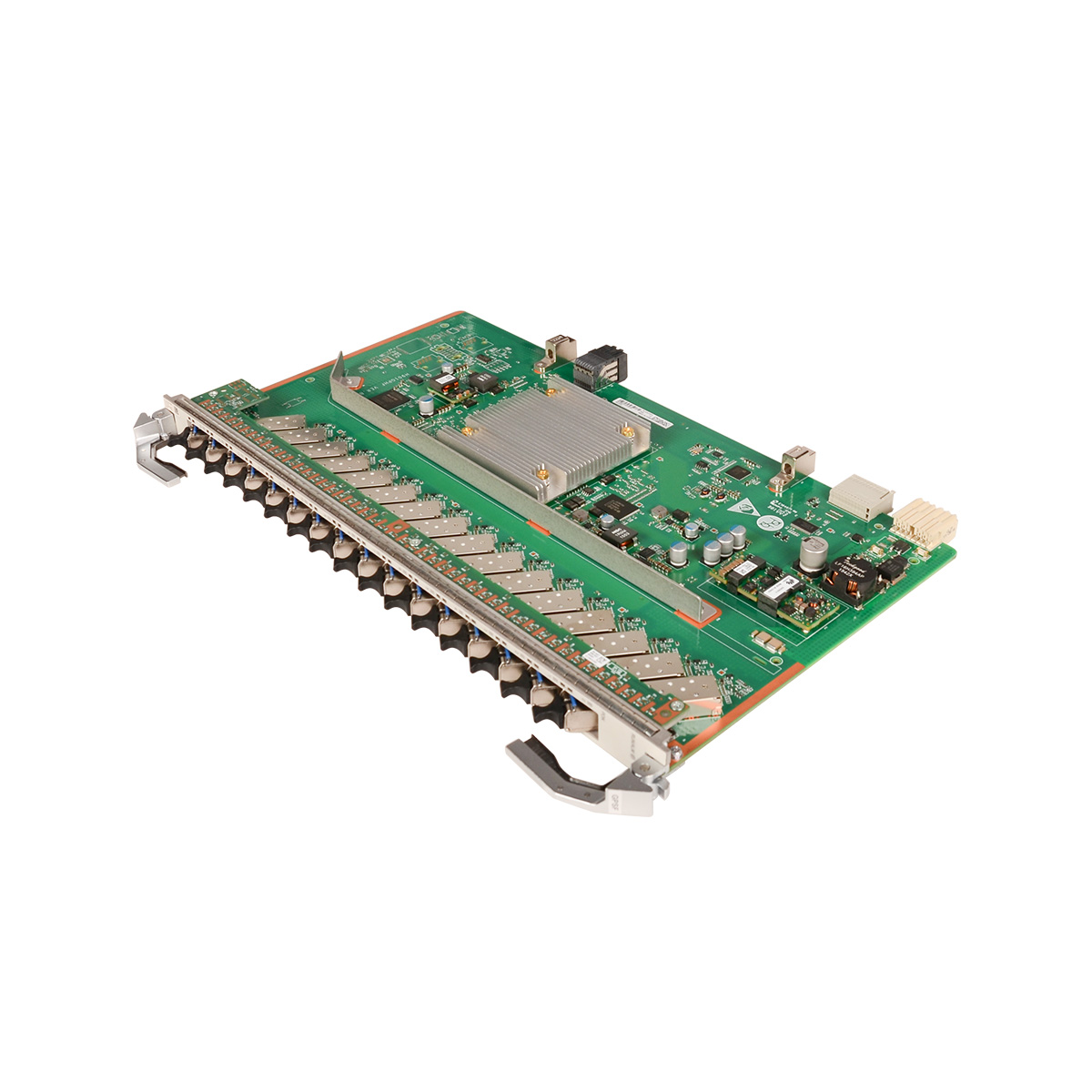

H901GPSF Overview
The H901GPSF board a 16-port GPON OLT interface board. lt works together with ONU to provide the GPON acess service. Apply to Huawei MA5800 series, MA5800-X2, X7, X15, X17
Forwarding Capability: 40Gbit/s
Max. split radio: Class B+: 1:64; Class C+/++: 1:128
- B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm
- C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
- C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm
Class B+/C+: Tx:2.49Gbit/s Rx:1.24Gbit/s
Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
T-CONTs per PON port:1024
Maximum number of MAC addresses: 16384
Service flows per PON board: 16368
Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

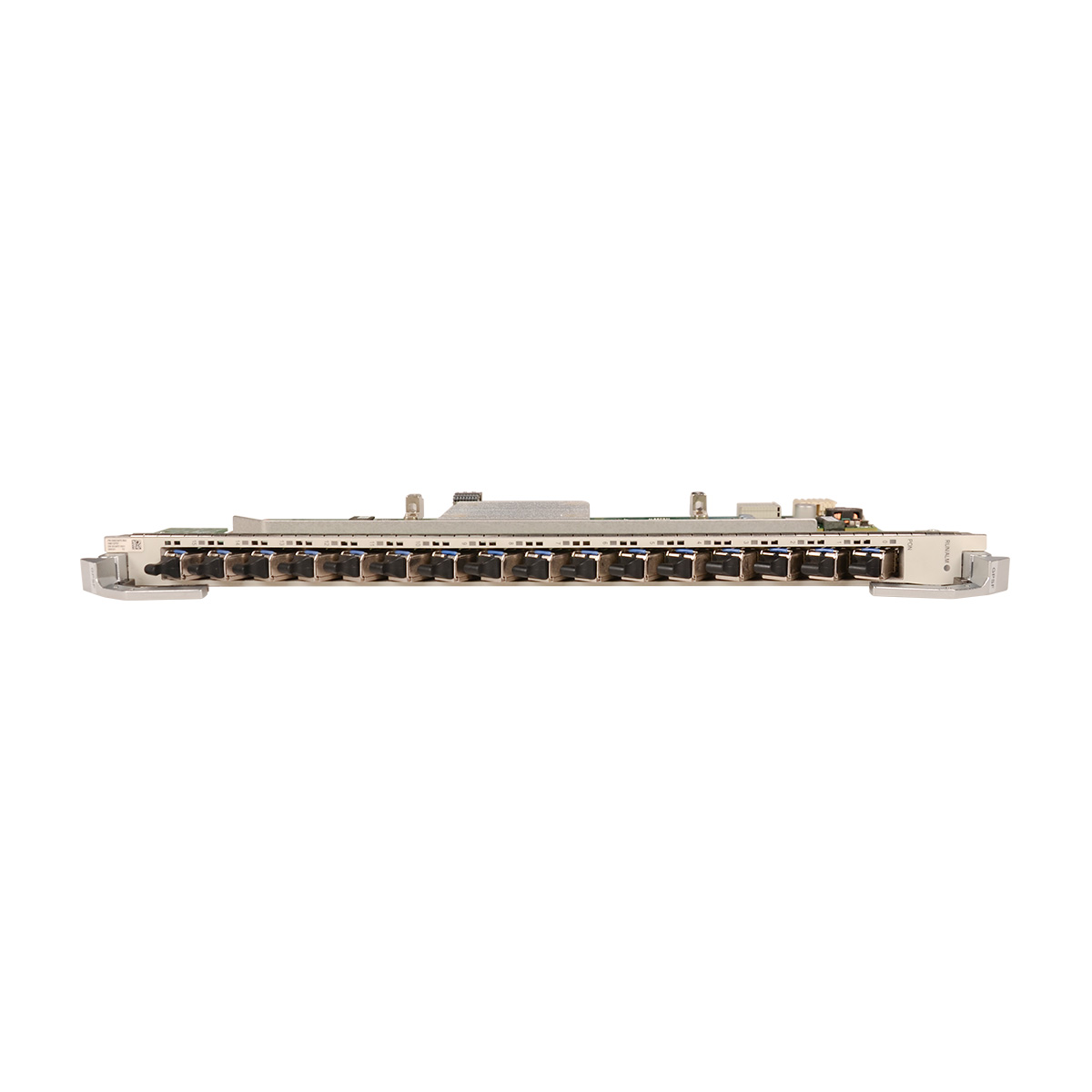

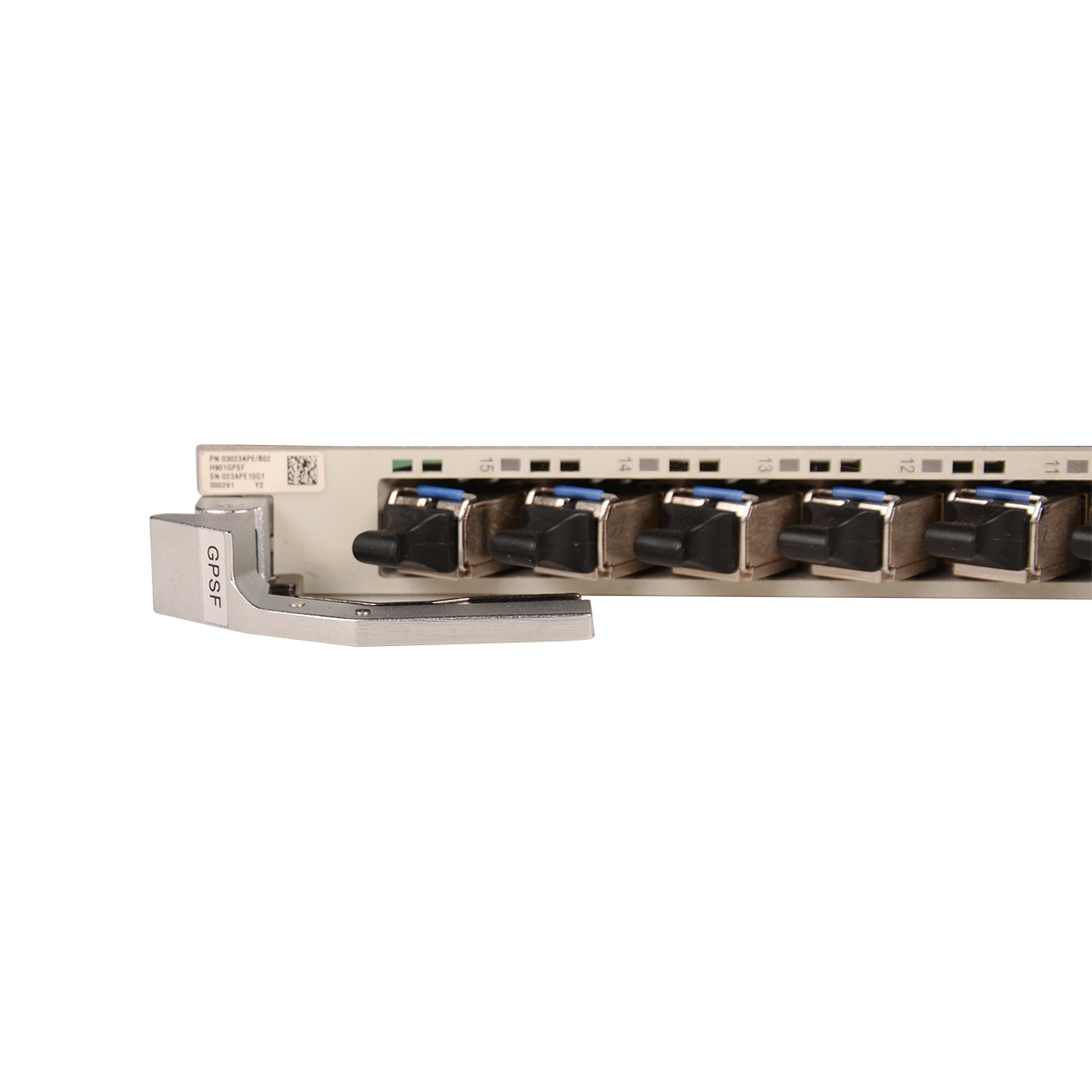

Front Panel
H901GPSF Datasheet
| Item | H901GPSF |
| Service Ports | |
| GPON Port | 16-GPON Port |
| Forwarding Capability | 40Gbit/s |
| T-CONTs per PON port | 1024 |
| Service flows per PON board | 16368 |
| Maximum number of MAC addresses | 16384 |
| Maximum frame size | 2052 bytes |
| Maximum distance difference between two ONUs under the same PON port | 40km |
| FEC | Bidirection |
| CAR group | Supported |
| HQoS | Not supported |
| Variable-length OMCI | Supported |
| ONU-based shaping or queue-based shaping | Supported |
| Type B protection(dual-homing) | Not supported |
| Type B protection(single-homing) | Supported |
| Type C protection(dual-homing) | Not supported |
| Type C protection(single-homing) | Supported |
| 1588v2 | Not supported |
| Rogue ONT detection and isolation | Supported |
| Automatic shutdown at high temperature | Supported |
| Energy saving for service boards | Supported |
| D-CCAP | Not supported |
| GPON SFP Module Specification | |
| Type | B+ Module : One-fiber bi-directional optical module, class B+
C+ Module : One-fiber bi-directional optical module, class C+ C++ Module: One-fiber bi-directional optical module, class C++ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimun Output Optical Power | B+ Module : 1.50 dBm
C+ Module : 3.00 dBm C++ Module: 6.00 dBm |
| Maximum Output Optical Power | B+ Module : 5.00 dBm
C+ Module : 7.00 dBm C++ Module : 10.00 dBm |
| Maximum Receiver Sensitivity | B+ Module : -28.00 dBm
C+ Module : -32.00 dBm C++ Module: -35.00 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Maximum distance difference between two ONUs under the same PON port | 40 km |
| Maximum number of MAC addresses | 16384 |
| T-CONTs per PON port | 1024 |
| Service flows per PON board | 16368 |
| Overload Optical Power | B+ Module : -8.0 dBm
C+ Module : -12.0 dBm C++ Module : -15.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 25W; Maximum:50W |
| Maximum Frame Size | 2052 bytes |
| Operating temperature | -40°C to +65°C |
Additional information
| Weight | 3.5000 kg |
|---|
