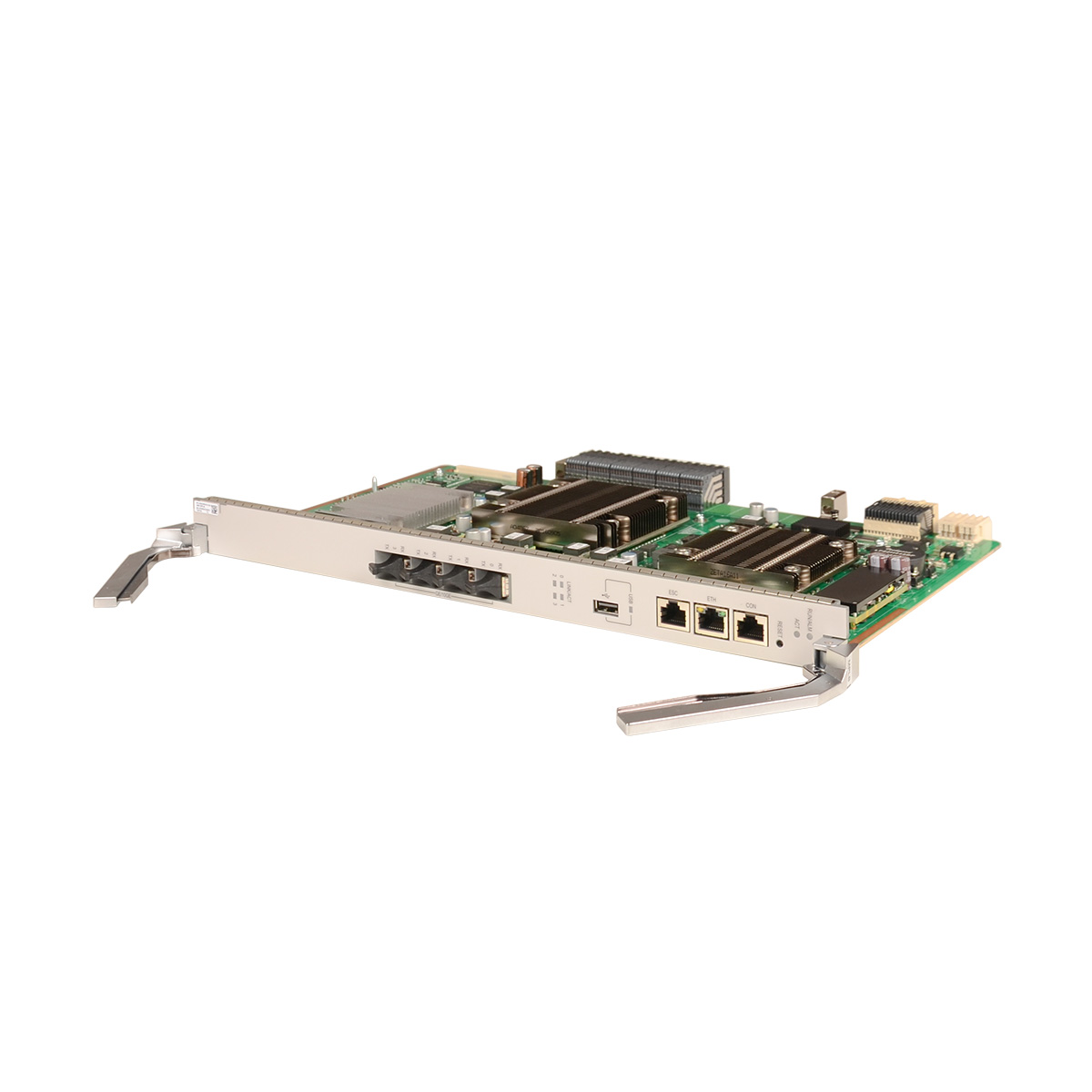

H901MPLB

MA5800-X7/X15/X17 main control board with 4-port 10GE/GE optical uplink port

3-5 days

Shenzhen Warehouse

SKU: 03022RWC Category:

Description

Huawei MA5800 X7/X15/X17 main control board integrated with 4-port 10GE/GE optical uplink port

The H901MPLB board is a super control unit board for optical access.

It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.

The H901MPLB board can also function as the management and control core of the integrated network management system (NMS).

It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel.

In this manner, the H901MPLB board configures, manages, and controls the device, and also implements the simple route protocol functions.



Function
Bandwidth per slot 200Gbit/s (load sharing mode)
MAC address table 262144
Access ONT 17408
Multicast user 17408
Configurable multicast channel 4096
Concurrent multicast channel 4000
IPv4 routing table 65536
IPv6 routing table 16384
Service port 262144
ARP table 65536
ACL rule 1042
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled,
a maximum of 9216 bytes can be supported.
Environment
Operating temperature -40°C to +65°C
Power consumption Static: 62W
Maximum: 117 W
Mechanical Specification
Dimensions(mm) 31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg) 2.2

Additional information

Weight 3.5000 kg
Dimensions 50.0000 × 33.0000 × 8.0000 cm

Differences between control boards

Board Specifications H901MPLA H902MPLA H901MPLB H901MPSC H901MPLE
Bandwidth per slot (load balancing mode) 100 Gbit/s 100 Gbit/s 200 Gbit/s 80 Gbit/s
  • 20 Gbit/s (default)
  • 40 Gbit/s (middle mode)
  • 100 Gbit/s (large mode)
Upstream or cascading port 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports 4 x 10GE/GE ports
ALM port No No No Yes (7 Boolean value inputs and 1 Boolean value output) No
BITS/TOD port No No No Yes (1 external clock/time input and output) No
MAC address table size 262143 262143 262143 262143
  • 32768 (default)
  • 131072 (middle mode)
  • 262143 (large mode)
Access ONTs 17408 17408 17408 4096 17408
Multicast users 17408 17408 17408 4096 17408
Static programs
  • 4096 (earlier than V100R017C00)
  • 8192 (V100R017C00 and later versions)
8192
  • 4096 (earlier than V100R017C00)
  • 8192 (V100R017C00 and later versions)
8192 (V100R017C10 and later versions) 8192
Online programs V100R016C00: 4000

V100R016C10:

  • IPv4: 4000
  • IPv6: 2000

V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
  • IPv4: 8000
  • IPv6: 2000
V100R016C00: 4000

V100R016C10:

  • IPv4: 4000
  • IPv6: 2000

V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
V100R017C10 and later versions:

  • IPv4: 8000
  • IPv6: 2000
  • IPv4: 8000
  • IPv6: 2000
IPv4 routing table size 65536 65536 65536 65536
  • 5120 (default)
  • 12288 (middle mode)
  • 65636 (large mode)
IPv6 routing table size 16384 16384 16384 16384
  • 5120 (default)
  • 6144 (middle mode)
  • 16384 (large mode)
Service ports 139264 139264 139264 32768 139264
ND table size 16384 16384 16384 16384
  • 4096 (default)
  • 8192 (middle mode)
  • 16384 (large mode)
ARP table size
  • 66048 (earlier than V100R017C10)
  • 98816 (V100R017C10)
  • 131072 (V100R018C00 and later versions)
  • 66048 (V100R017C00)
  • 98816 (V100R017C10 version)
  • 131072 (V100R018C00 and later versions)
  • 66048 (earlier than V100R017C10)
  • 98816 (V100R017C10)
  • 131072 (V100R018C00 and later versions)
  • 98816 (V100R017C10)
  • 131072 (V100R018C00 and V100R018C10 versions)
  • 32768 (V100R019C00 and later versions)
  • 8192 (default)
  • 16384 (middle mode)
  • 131072 (large mode)
Ethernet synchronization Yes Yes Yes Yes Yes
1588v2 Yes Yes Yes Yes Yes
1588ACR Yes Yes Yes No Yes
D-CCAP Yes Yes Yes Yes Yes
