Huawei S5735S-L24T4S-A1 switch supports 24* 10/100/1000BASE-T ports, 4* GE SFP ports, 1* AC power fixed

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735S-L24T4S-A1 Overview

Huawei S5735S-L24T4S-A1  switch supports 24* 10/100/1000BASE-T ports, 4* GE SFP ports,  1* AC power fixed

Huawei S5735S-L24T4S-A1 switch has a built-in AC power module and does not support pluggable power modules.

Huawei S5735S-L24T4S-A1 switch has a built-in fan for forced air cooling. Air flows in from the left side and front panel and exhausts from the right side.

When working properly at a normal temperature, the device meets the desktop-class noise requirements. However, the fan speed may be high and the noise may be loud during device startup.

S5735S-L24T4S-A1 basic information
Item Details
Description S5735S-L24T4S-A1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
Part Number 98011307
Model S5735S-L24T4S-A1
First supported version V200R020C10

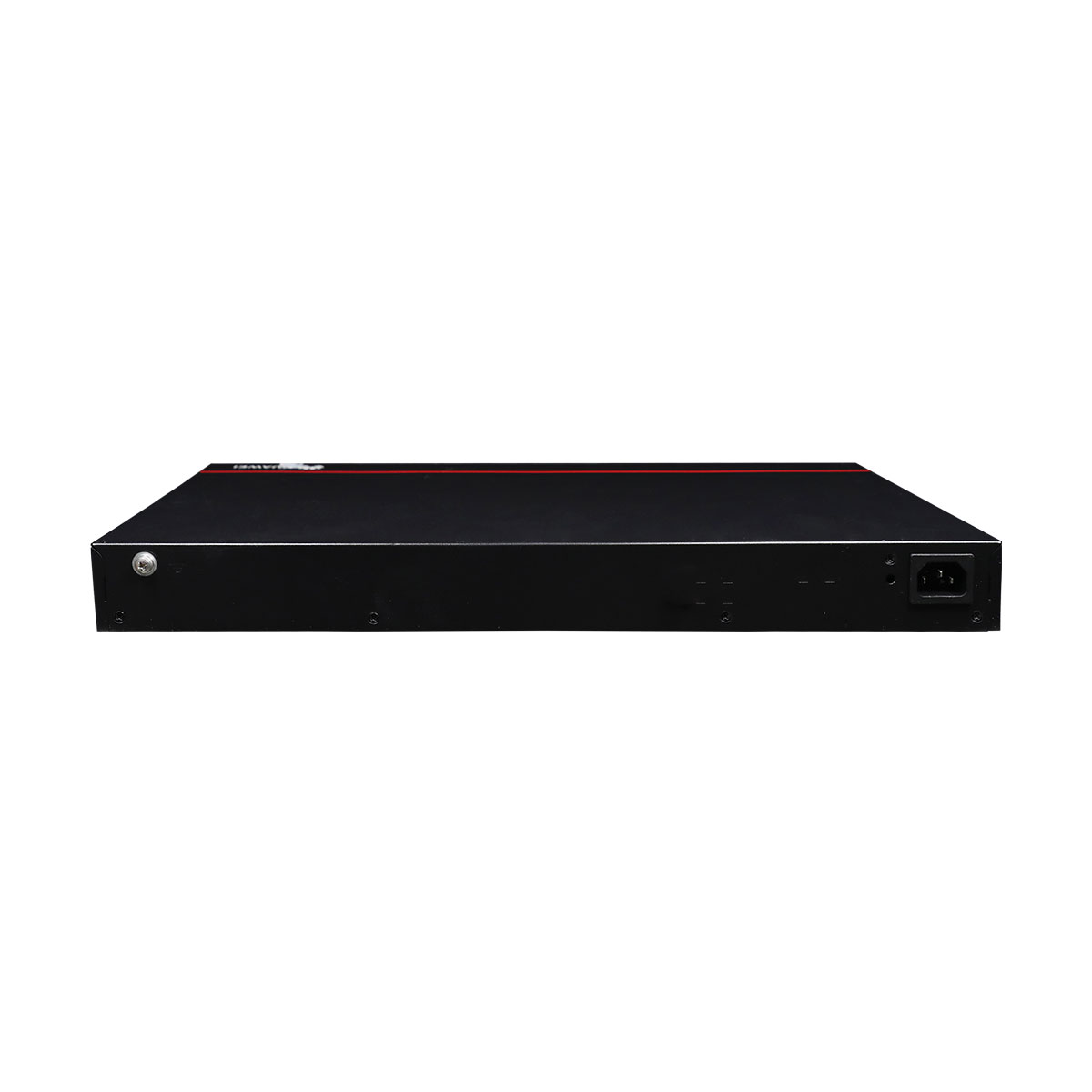

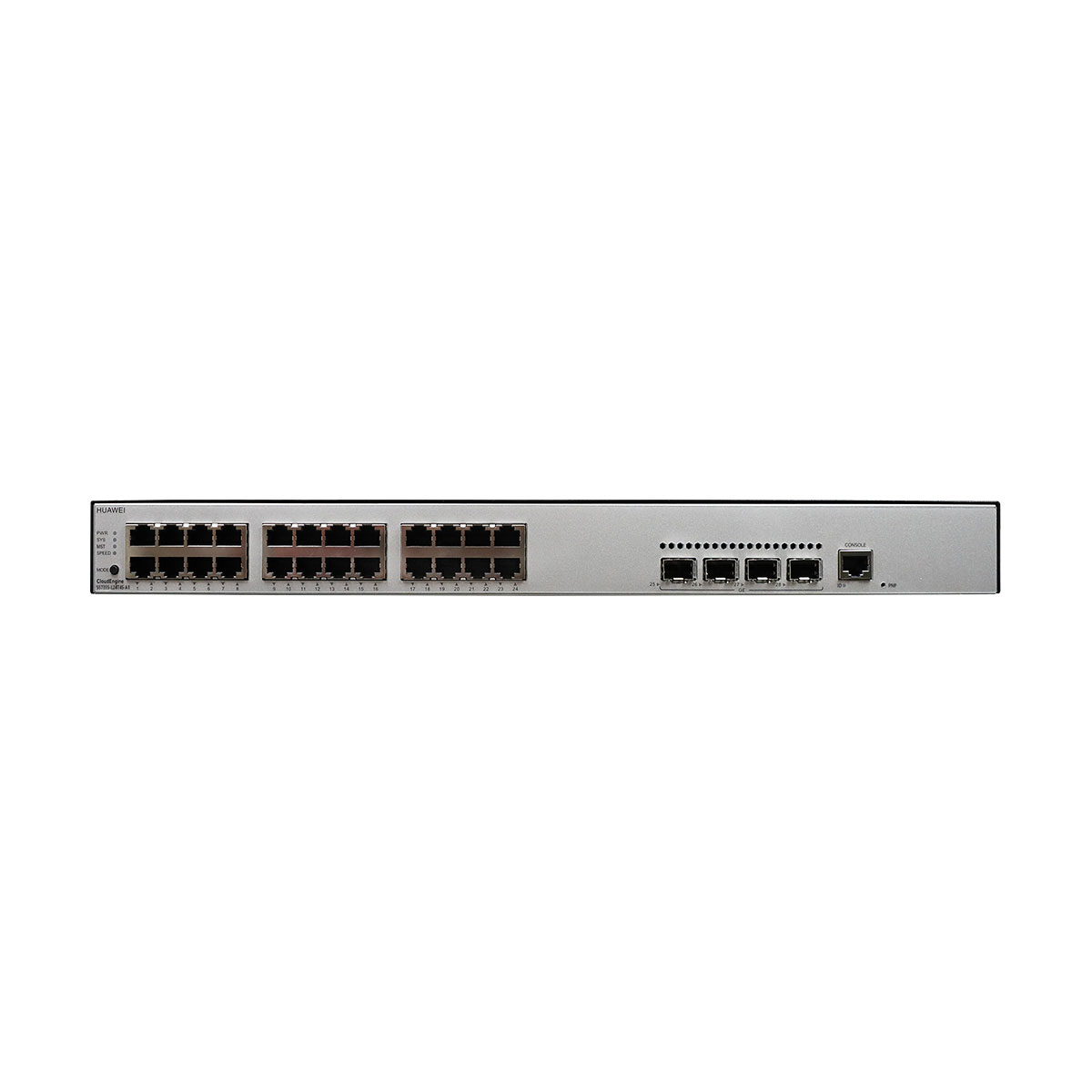

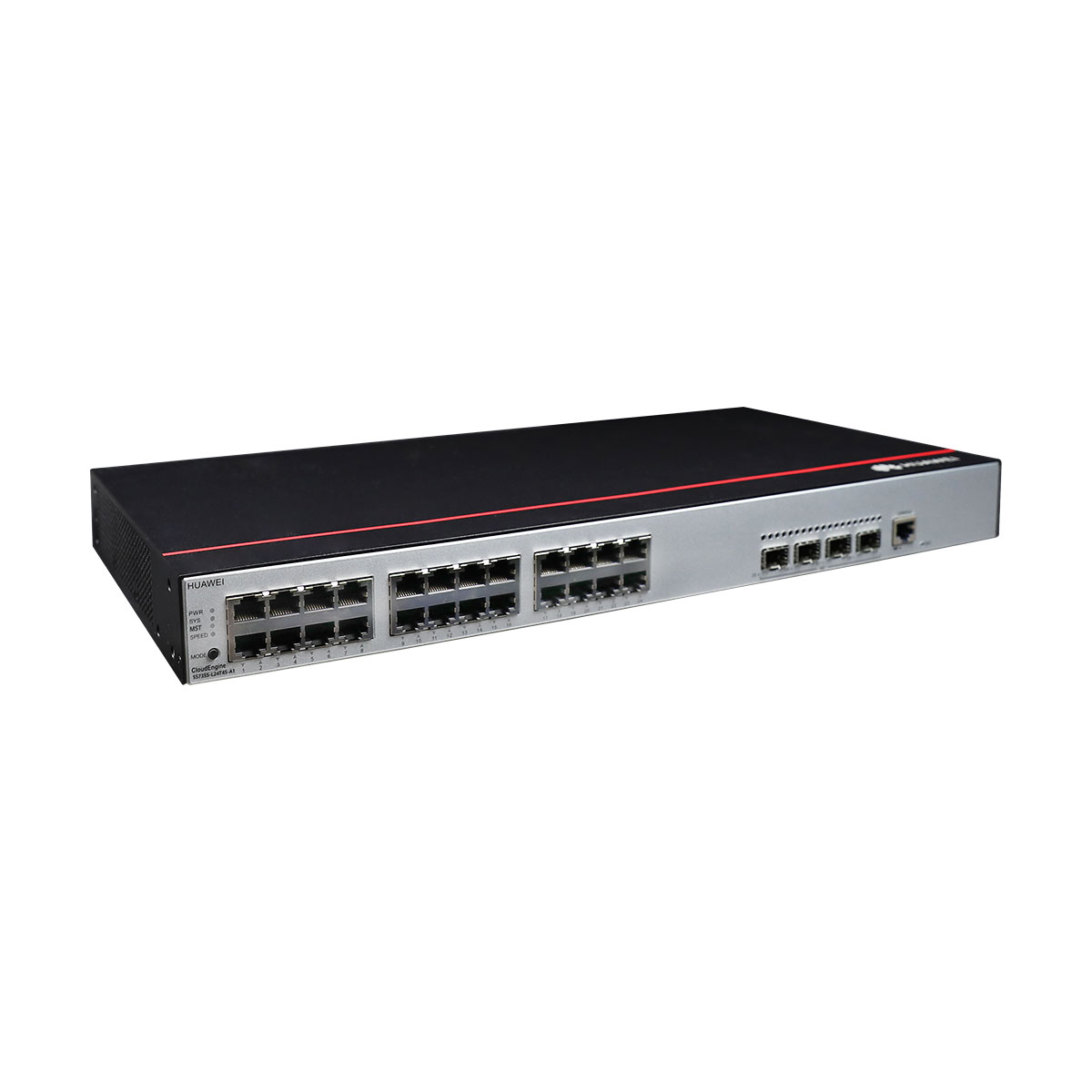

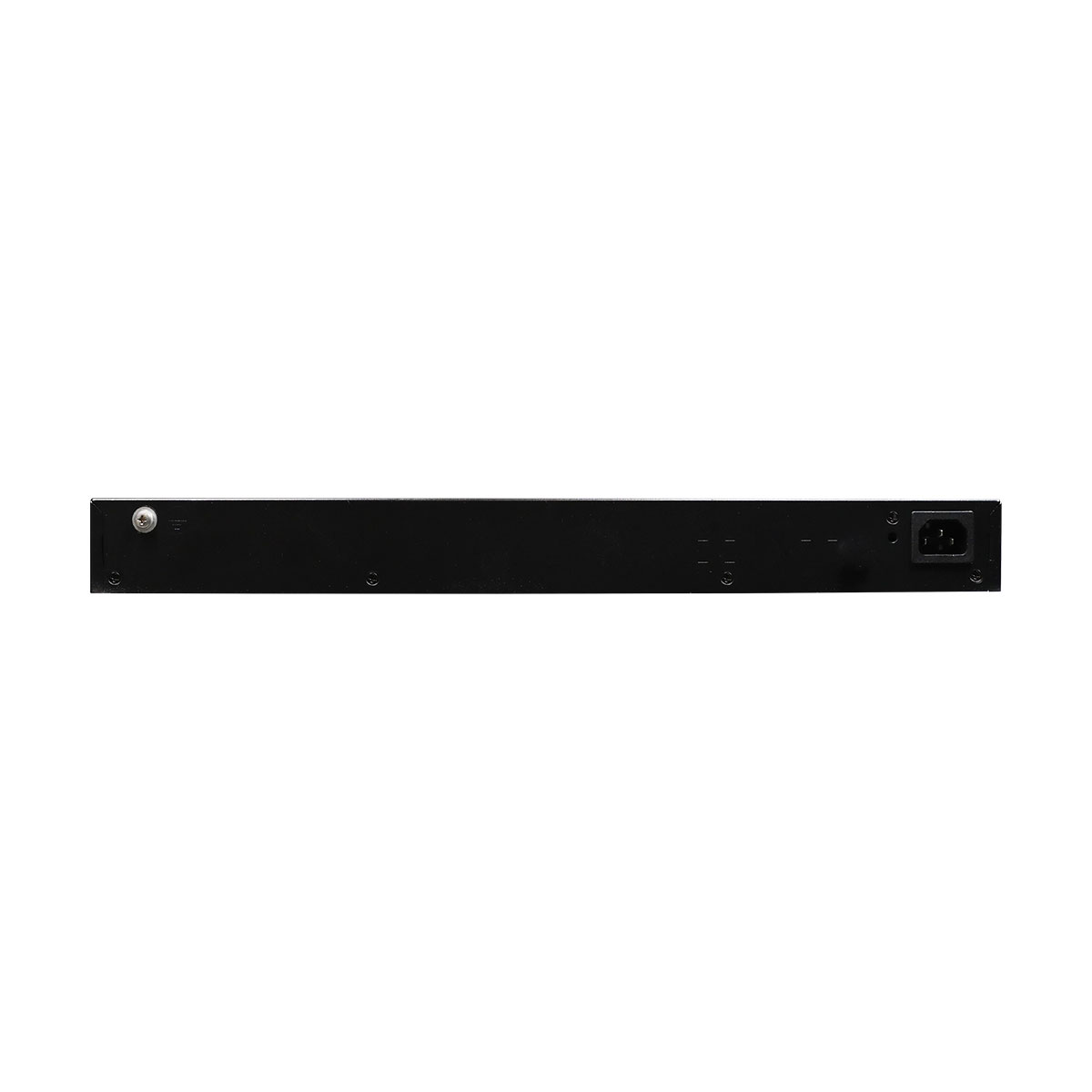

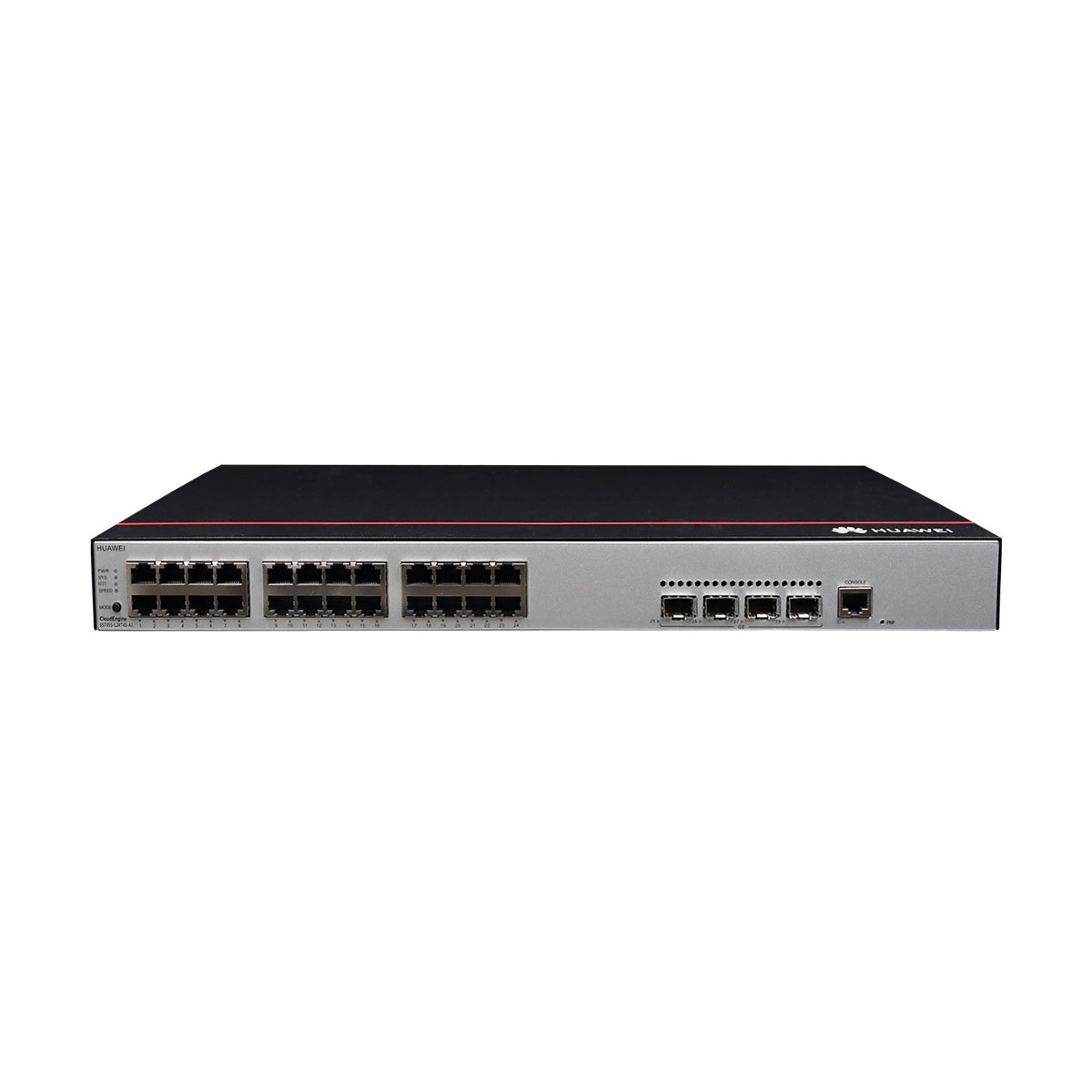

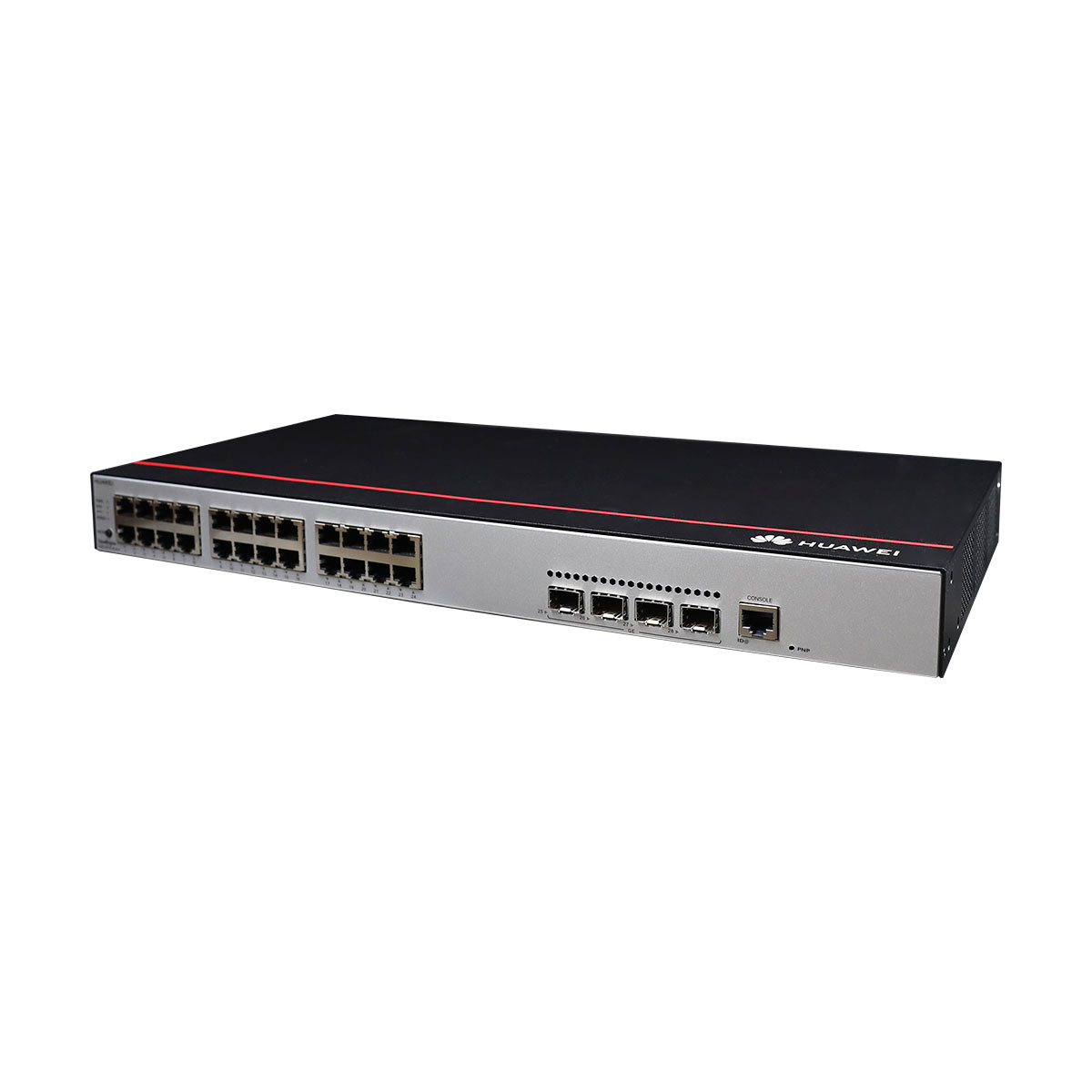

S5735S-L24T4S-A1 appearance



1 24* 10/100/1000BASE-T PoE+ ports 2 4* 1000BASE-X GE SFP ports
3 One console port 4 One PNP button
5 Ground screw 6 Jack for AC power cable locking strap
7 AC socket – –
Item S5735S-L24T4S-A1
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.45 kg (5.4 lb)
Weight with packaging [kg(lb)] 3.34 kg (7.36 lb)
Typical power consumption [W] 32.7 W
Typical heat dissipation [BTU/hour] 111.58 BTU/hour
Maximum power consumption [W] 47.6 W
Maximum heat dissipation [BTU/hour] 162.42 BTU/hour
MTBF [year] 66.16 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 39 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)
-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 2 A
