Huawei S5735-L24T4X-QA1 switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, AC power supply

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S5735-L24T4S-QA1 overview

This huawei S5735-L24T4X-QA1 switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, AC power supply, which is one model of Huawei S5735-L series switch.

Huawei CloudEngine S5735-L series are simplified gigabit Ethernet switches that provide allGE downlink ports and GE or 10GE uplink ports.

CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to thedesktop. Built on next-generation, high-performance hardware and the Huawei Versatle Routing Platform (VRP), CloudEngine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and
diversified security control. They support multiple Layer 3 routing protocols and provide high performance and serviceprocessing capabilities.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5735-L24T4X-QA1 quick spec

24 10/100/1000BASE-T ports

4 10GE SFP+ ports

AC power supply

Forwarding performance:  96 Mpps

Switching capacity: 128 Gbps/336 Gbps

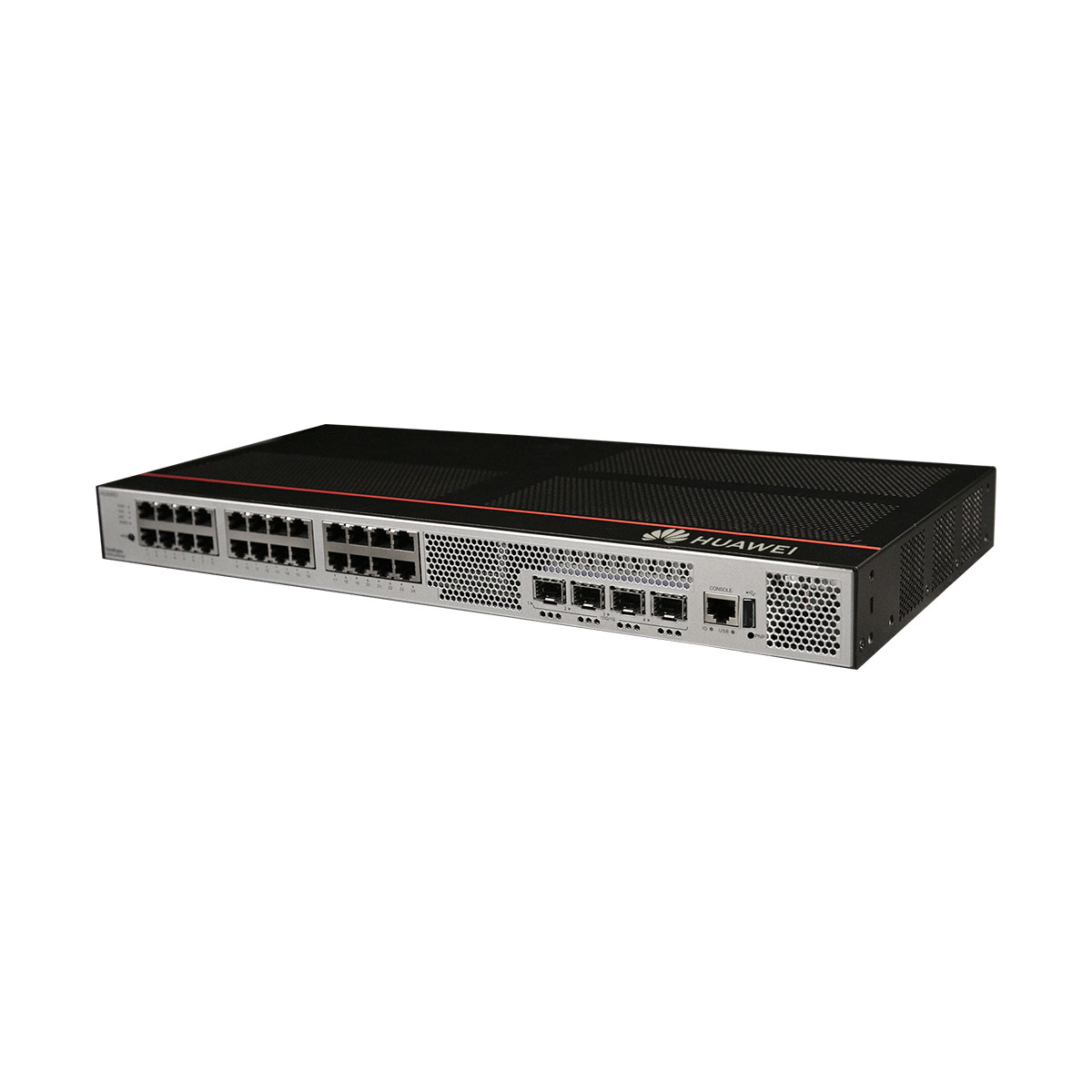

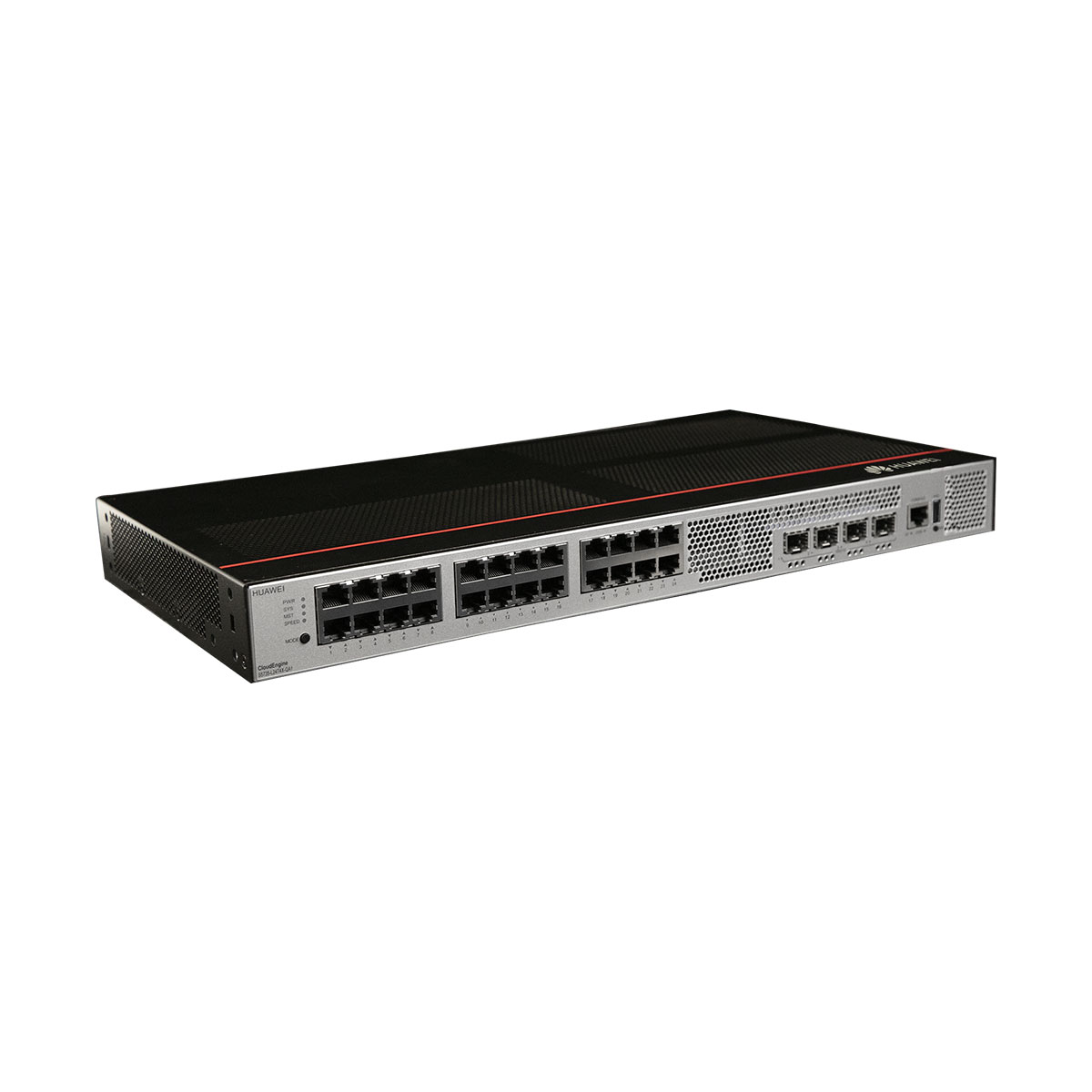

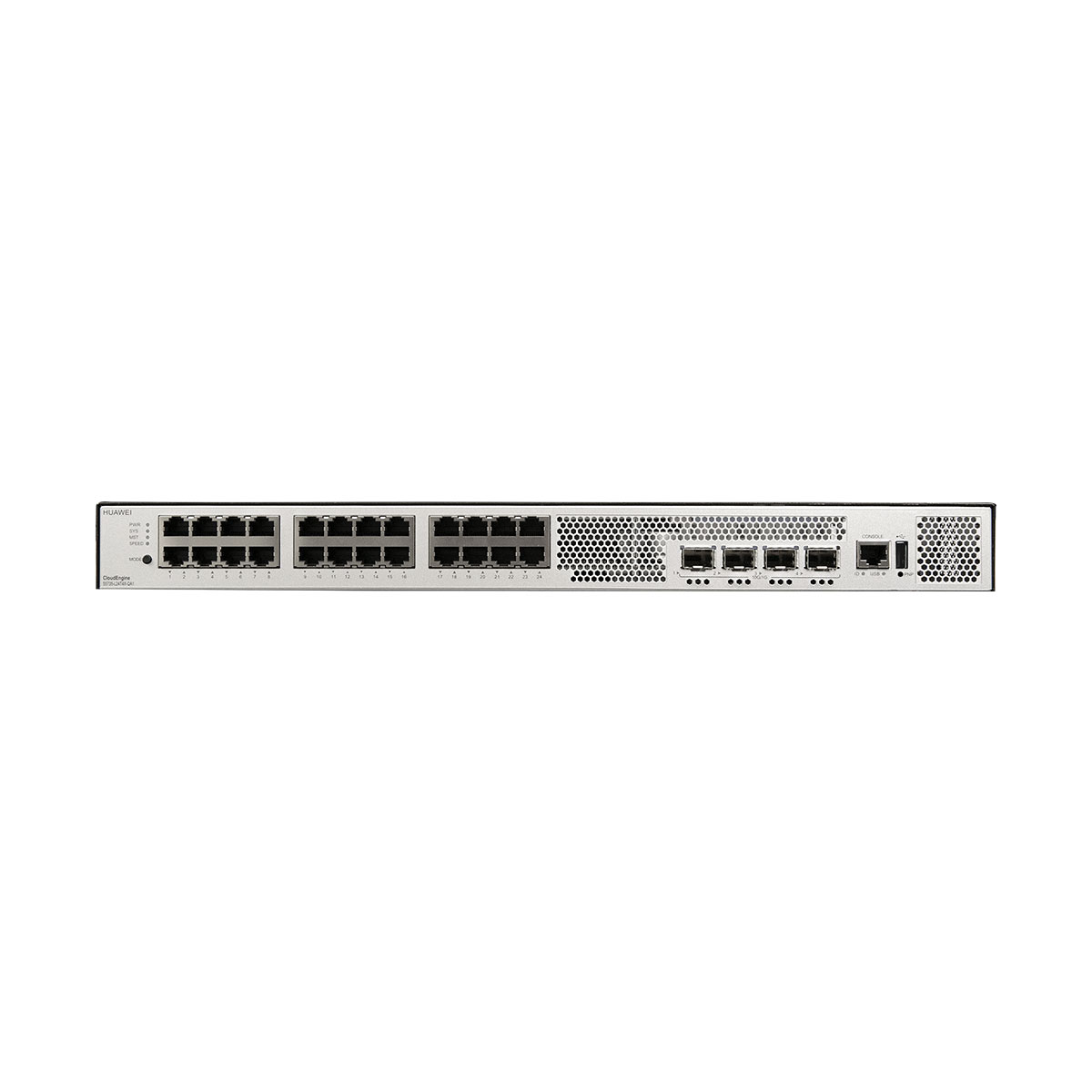

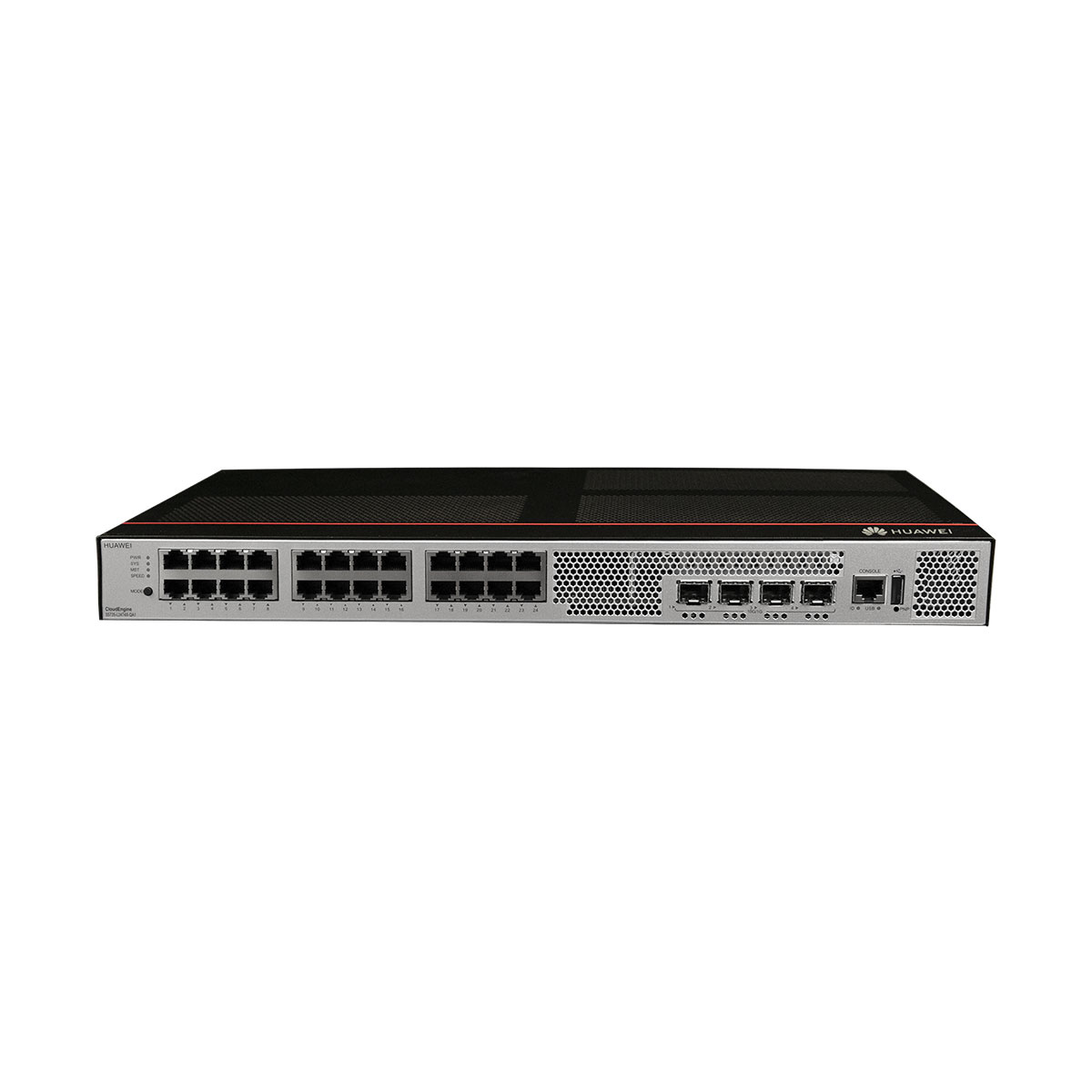

5735-L24T4X-QA1 appearance and structure



1 Twenty-four 10/100/1000BASE-T ports
2 Four 10GE SFP+ ports
3 One console port
4 One USB port
5 One PNP button
6 Ground screw
7 Jack for AC power cable locking strap
8 AC socket



Item S5735-L24T4X-QA1
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans None
Heat dissipation mode Natural heat dissipation
Airflow direction -
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.69 kg (8.14 lb)
Weight with packaging [kg(lb)] 4.45 kg (9.81 lb)
Typical power consumption [W] 30.8 W
Typical heat dissipation [BTU/hour] 105.09 BTU/hour
Maximum power consumption [W] 34 W
Maximum heat dissipation [BTU/hour] 116.01 BTU/hour
MTBF [year] 62.05 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans), < 20
Number of card slots 0
Number of power slots 0
Number of fans modules 0
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 2 A
