Description
CE6870-48S6CQ-EI overview
CE6870-48S6CQ-EI Huawei CE6800 switch supports 48*10GE SFP+, 6*100GE QSFP28

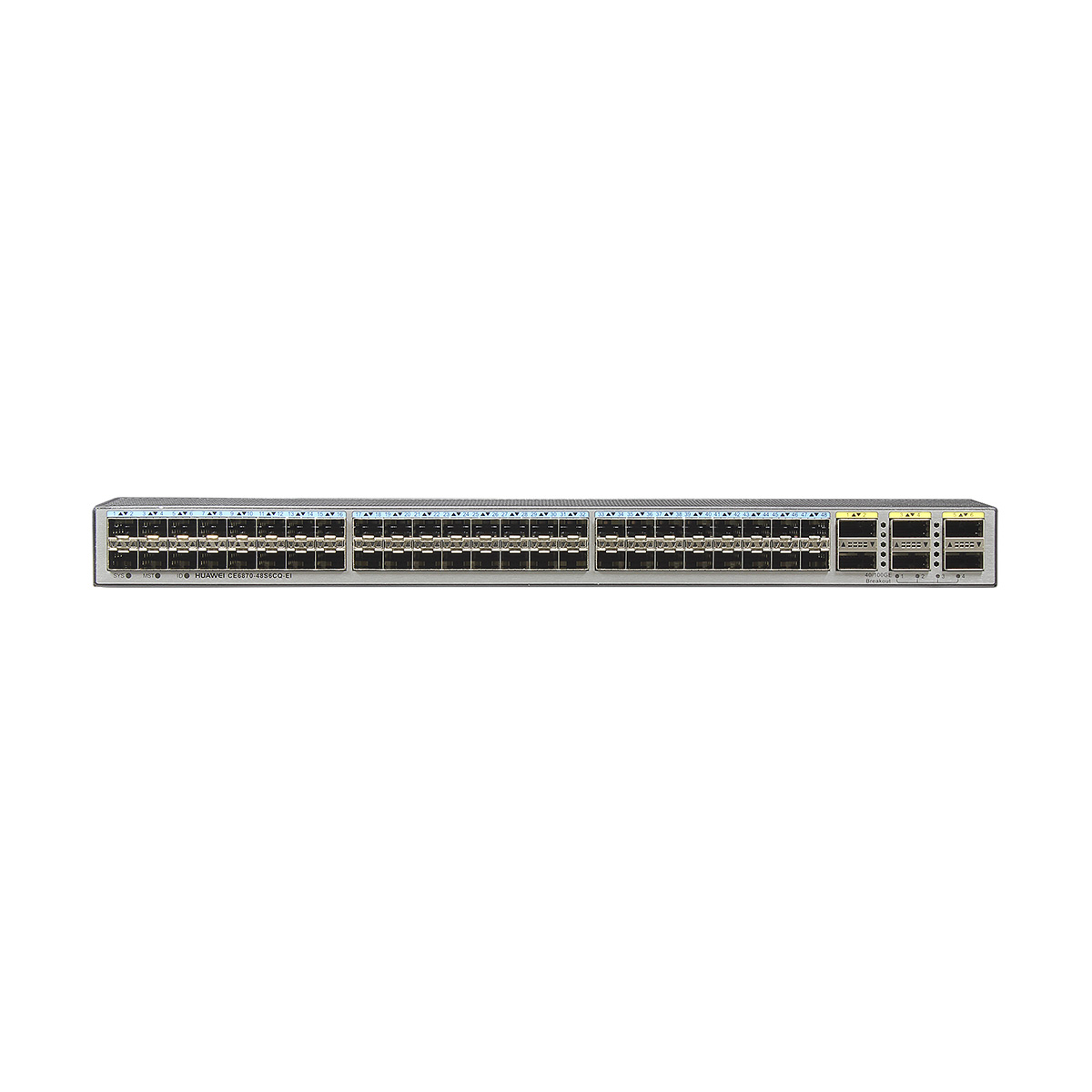

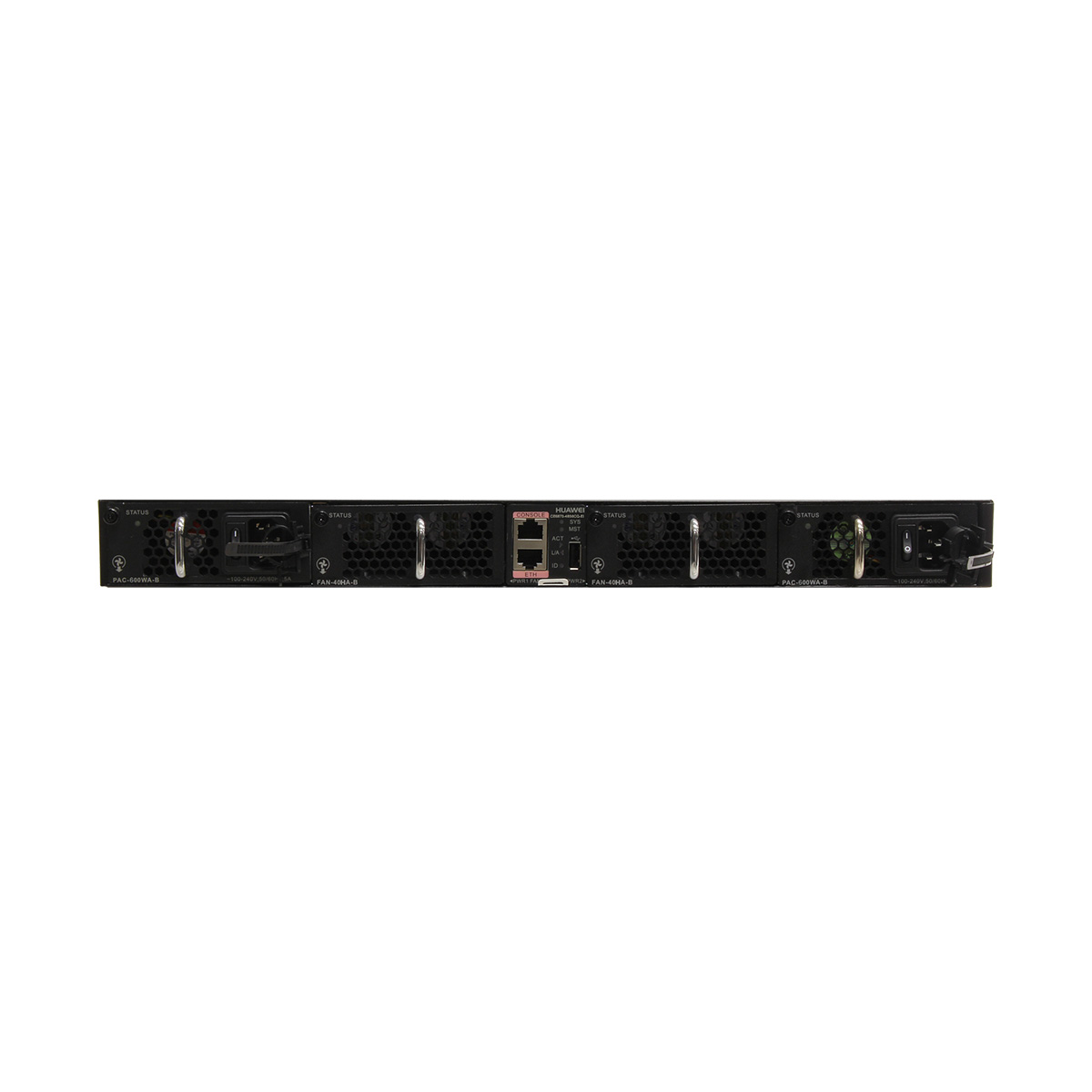

CE6870-48S6CQ-EI appearance
| 1 | Power supply slot 1
Applicable power modules:
|
2 | Power supply slot 2
Applicable power modules:
|
| 3 | Fan slot 1
Applicable fan modules:
|
4 | Fan slot 2
Applicable fan modules:
|
| 5 | Console port | 6 | ETH management port (RJ45) |
| 7 |
Barcode label
|
8 | USB port |
| 9 | Forty-eight 10GE SFP+ Ethernet optical ports | 10 | Six 40GE/100GE QSFP28 Ethernet optical ports |
| 11 | Three port-side mounting holes for mounting brackets | 12 | Four power-supply-side mounting holes for mounting brackets |
| 13 | Ground screw | – | – |
