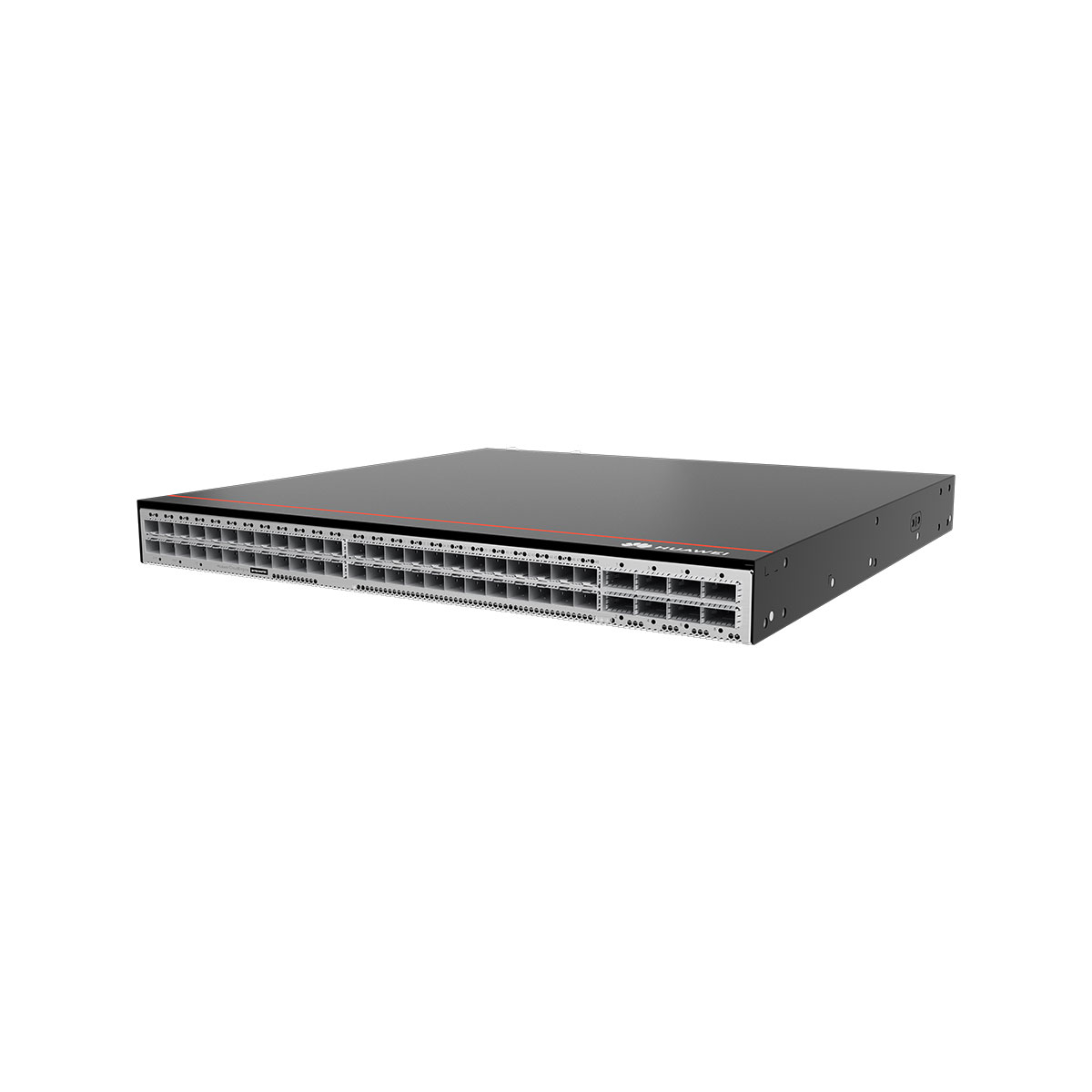

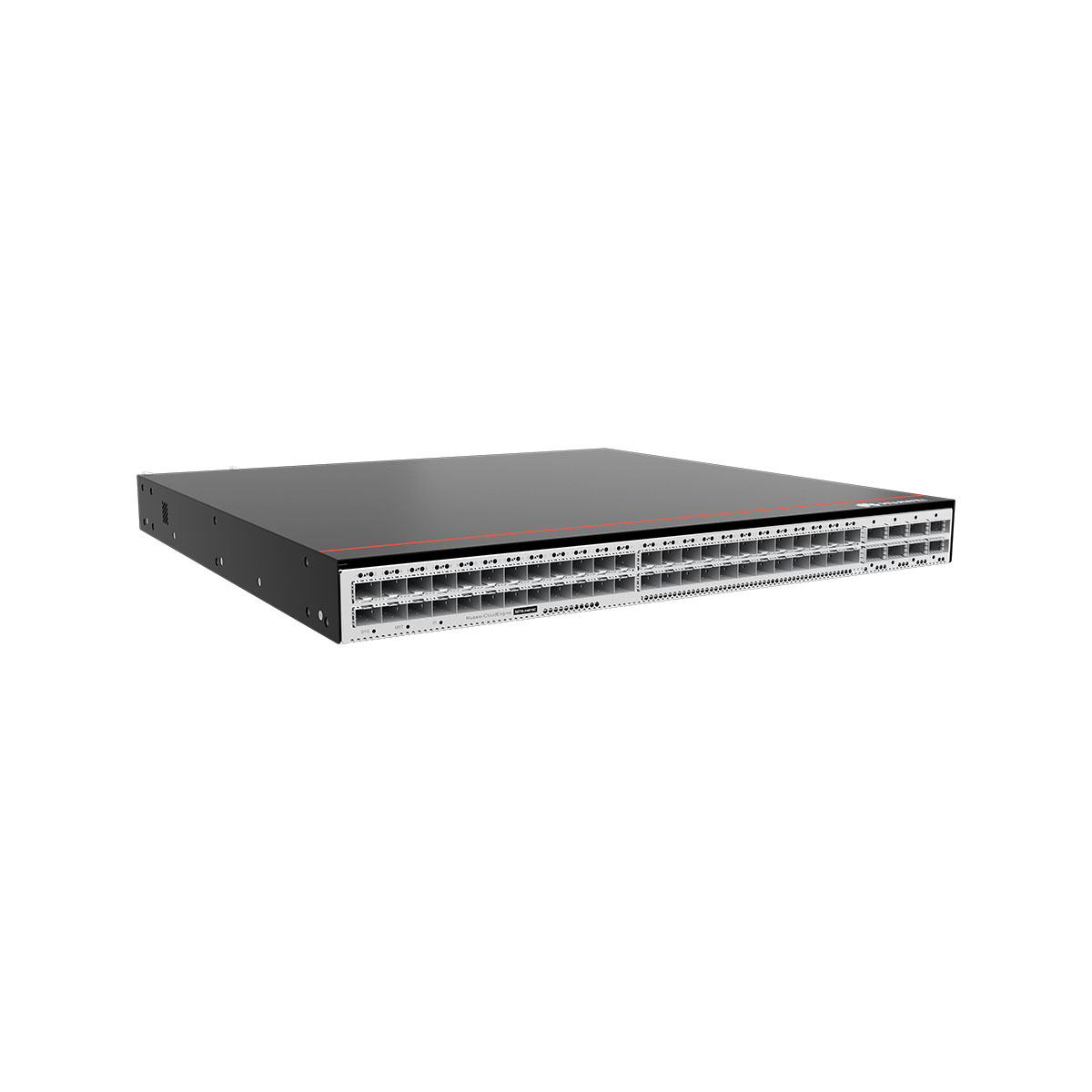

Huawei S6750-H48Y8C support 48*25GE SFP28 ports, 8*100GE QSFP28 ports, without power module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

S6750-H48Y8C overview

The Huawei CloudEngine S6750-H series 25GE switches are next-generation enterprise-class core and aggregation switches, featuring 48 x 25GE optical downlink ports and 8 x 100GE optical uplink ports. These switches deliver high performance, exceptional reliability, cloud-based management, and intelligent O&M.

Built on Huawei’s industry-leading software and hardware platforms, the S6750-H series is designed with security, IoT, and cloud integration in mind. It supports advanced technologies such as free mobility, VXLAN, SRv6, and network slicing, ensuring a superior user experience and carrier-grade reliability.

Ideal for building cloud campus networks, these switches serve as core devices in small to medium-sized campus networks or as aggregation switches in large-scale campus environments. They are widely deployed across industries such as transportation, manufacturing, and education, helping global enterprises accelerate their digital transformation.

Item Details
Description S6750-H48Y8C (48*25GE SFP28 ports, 8*100GE QSFP28 ports, without power module)
Part Number 02355UEL
Model S6750-H48Y8C



S5736-S48T4XC Appearance

S6750-H48Y8C

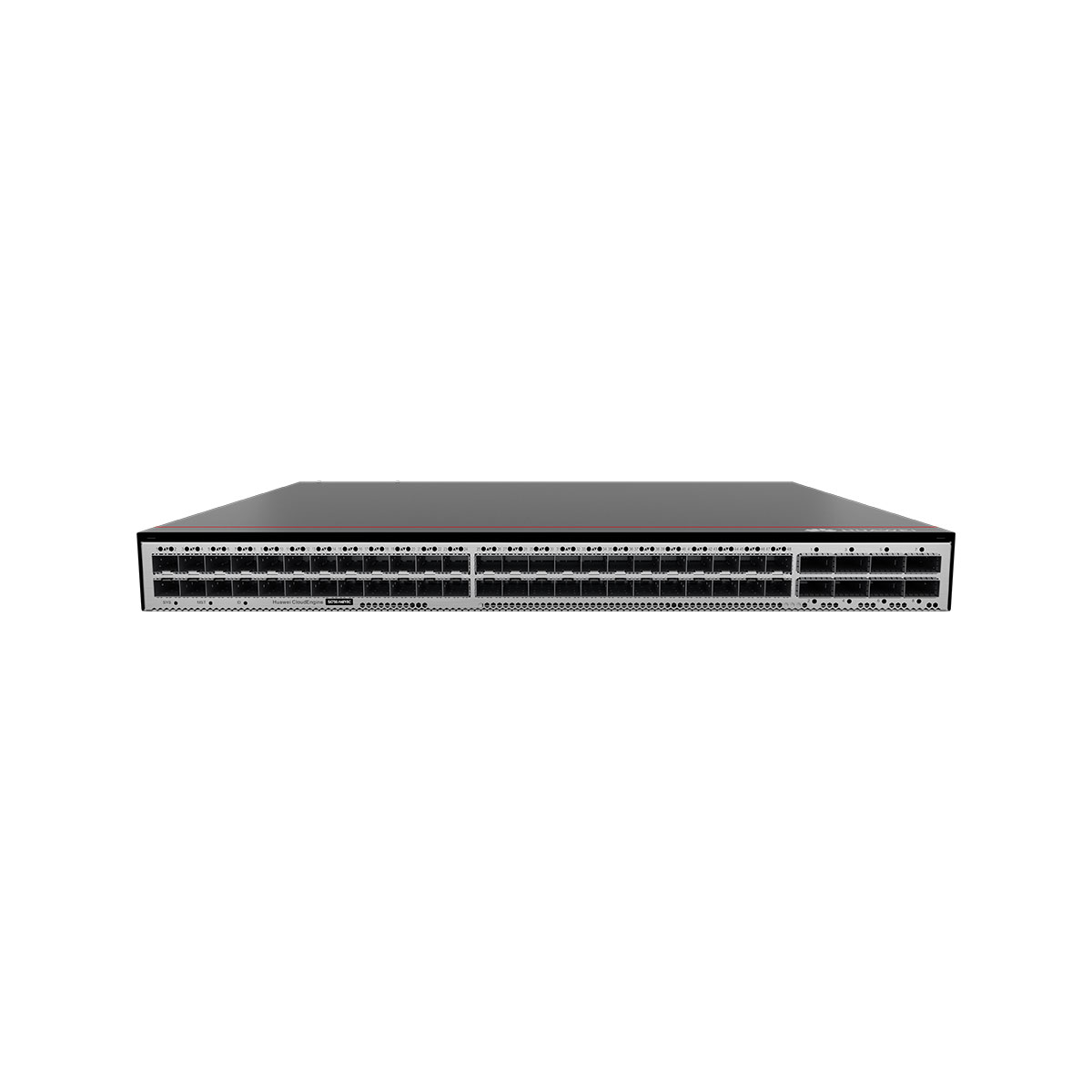

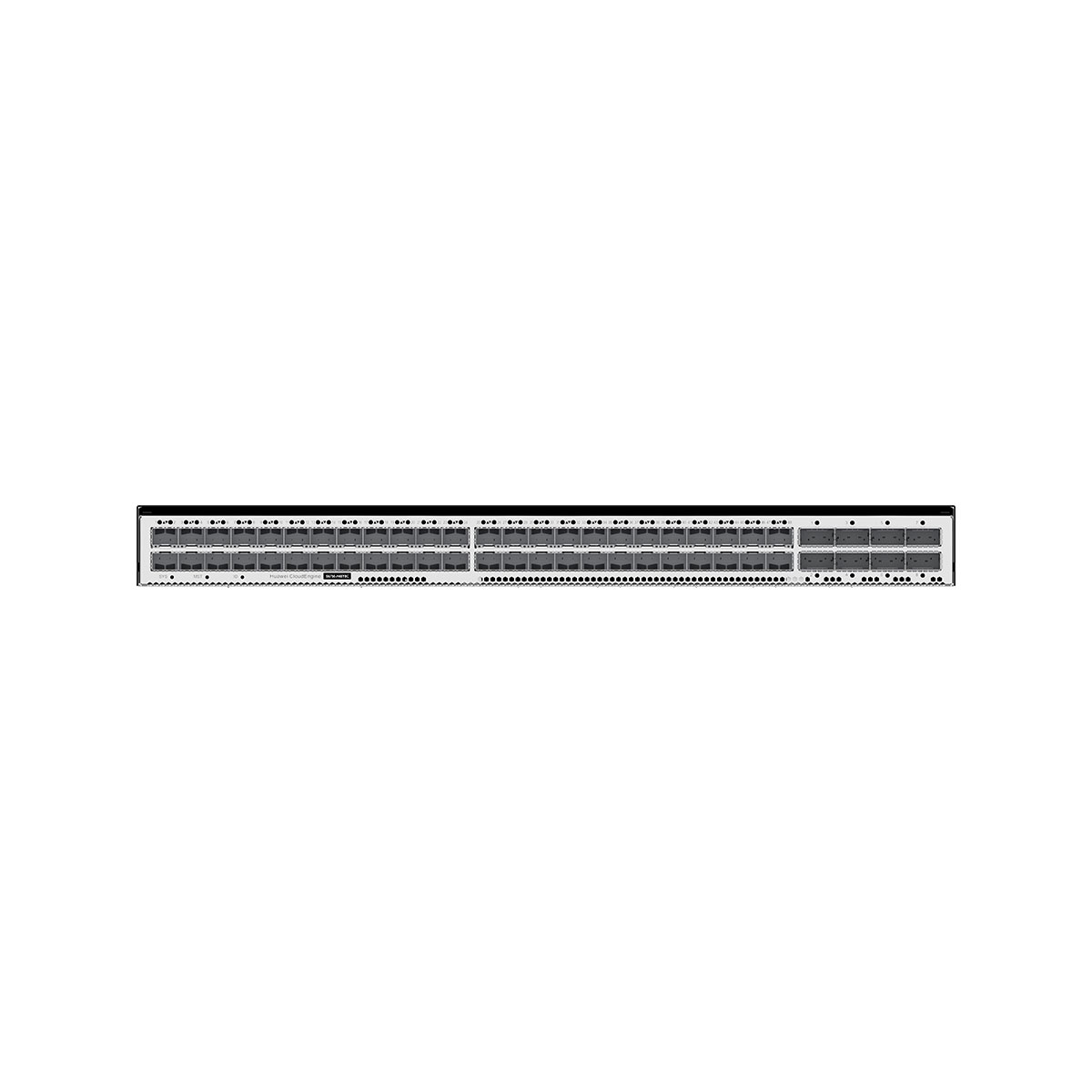

1 Forty-eight 1GE/10GE/25GE SFP28 optical ports 2 Eight 40GE/100GE QSFP28 optical ports
3 Ground screw

NOTE:

It is used with a ground cable.

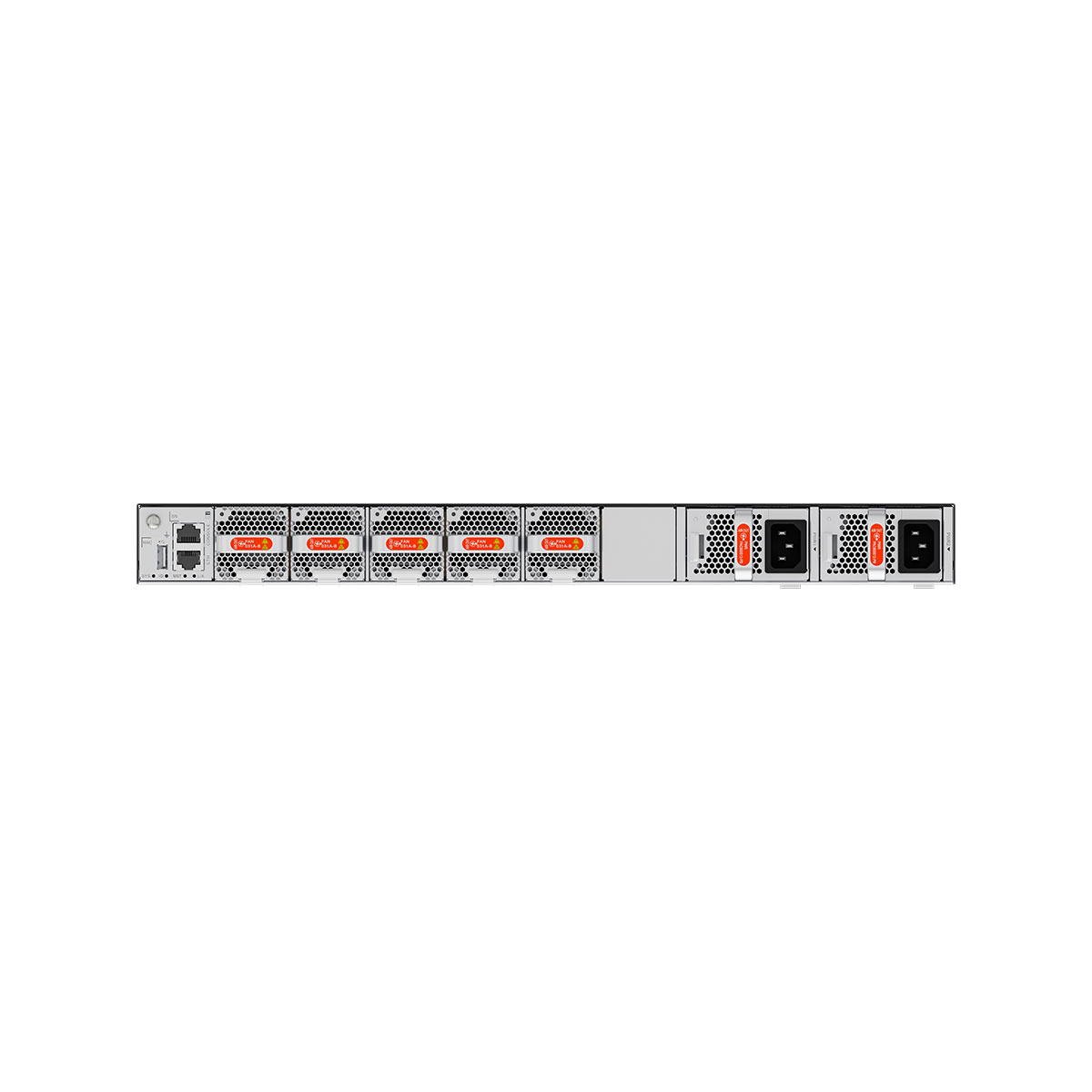

 4 One USB port
5 One console port 6 One ETH management port
7 Fan module slot 1

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

 8 Fan module slot 2

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))
9 Fan module slot 3

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

 10 Fan module slot 4

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))
11 Fan module slot 5

NOTE:

Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))

 12 Power module slot 1

NOTE:

Applicable power modules:

  • PDC400S12-CB (available since V600R024C00 version)
  • PAC600S12-PB
  • PAC1K2S12-PB
  • PDC1K2S12-CE
13 Power module slot 2

NOTE:

Applicable power modules:

  • PDC400S12-CB (available since V600R024C00 version)
  • PAC600S12-PB
  • PAC1K2S12-PB
  • PDC1K2S12-CE
 – –





Item S6750-H48Y8C
Typical power consumption [W] 30% traffic under the ATIS standard and dual power modules: 223 W
Typical heat dissipation [BTU/hour] 30% traffic under the ATIS standard and dual power modules: 760.90
Maximum power consumption [W] 100% traffic under the ATIS standard and dual power modules: 244 W High temperature 45°C (113°F), 100% traffic, and dual power modules: 342 W
Maximum heat dissipation [BTU/hour] 100% traffic under the ATIS standard and dual power modules: 832.55 High temperature 45°C (113°F), 100% traffic, and dual power modules: 1166.94
Static power consumption [W] 172 W
MTBF [years] 29.72 years
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 58.4 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 57.2 dB(A)
Number of card slots 0
Number of power slots 2
Number of fans modules 5
Redundant power supply 1+1 Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V]
  • AC input: 100 V AC to 240 V AC; 50/60 Hz
  • High-voltage DC input: 240 V DC
  • DC input: –48 V DC to –60 V DC
Input voltage range [V]
  • AC input: 90 V AC to 290 V AC; 45–65 Hz
  • High-voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC
Maximum input current [A] The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory 8 GB
Flash memory Physical space: 4 GB
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV]
  • Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
  • Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans Pluggable
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from front, air exhaustion from rear (front-to-rear)
PoE Not supported
Certification EMC certification Safety certification Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.4 in. x 17.58 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 6.96 kg (15.34 lb)
Weight with packaging [kg(lb)] 11.23 kg (24.76 lb)
