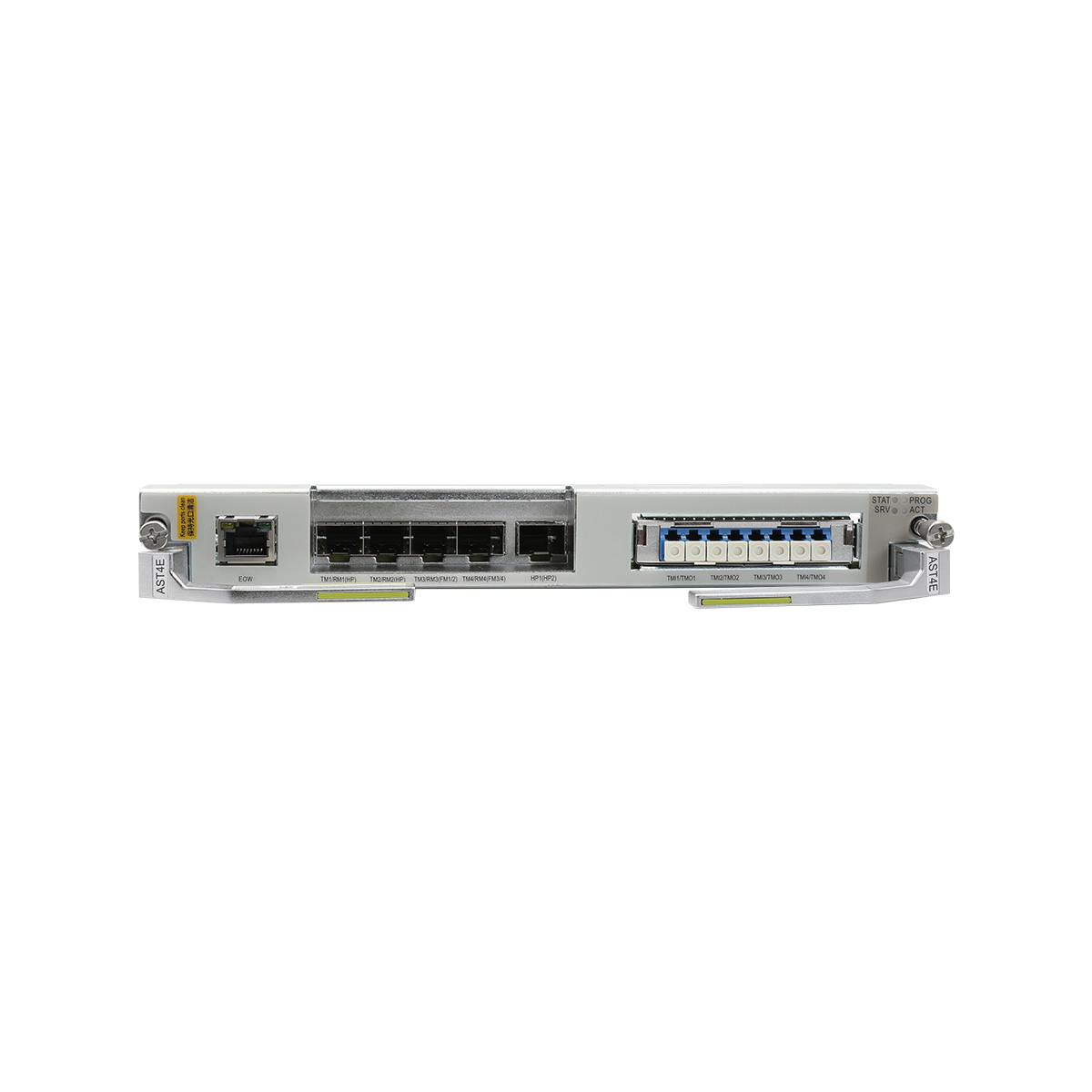

Huawei OptiX OSN 9800 TNG2AST4E four-directional optical supervisory channel and timing transmission unit (with Orderwire Phone)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG2AST4E Overview

TNG2AST4E four-directional optical supervisory channel and timing transmission unit (with Orderwire Phone).

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG2AST4 board has only one variant:  TNG2AST4E01.



Valid slots for the TNG2AST4E board in M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU12 IU1 to IU12
OptiX OSN 9800 M24 1 IU1 to IU5, IU8 to IU17, IU20 to IU24 IU1 to IU5, IU8 to IU17, IU20 to IU24
Item TNG2AST4E
Basic function
  • Receives, processes, and transmits four optical supervisory signals.
  • The OSC has no limitation on the distance between two optical line amplifiers. The failure of an optical line amplifier does not affect the performance of the OSC.
  • The board is independent of the system control board. When the system control board is not properly installed, the AST4E board can still ensure the pass-through of ECC at optical ports 1 and 2 or optical ports 3 and 4 and monitor other stations.
Operating wavelength of the OSC Supports 1511 nm and 1491 nm pluggable optical modules.
OSC signal regeneration function The board transmits signals from section to section. It also has the 3R function. In each regenerating station that has optical amplifiers, information can be correctly received and new supervisory signals are added.
Line fiber quality monitoring
  • The line fiber quality monitoring function can be used on the NMS, and the NMS will display monitoring figures and data. The online and offline applications of line fiber quality monitoring are supported.
  • The Fiber Doctor Management System Software Fee License needs to be purchased for this function.
Optical-layer ASON Supported
Physical clock Supported
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
High-precision clock synchronization Supported
NOTE:
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the system control board/clock board that supports high-precision clocks to support the high-precision clock synchronization function.
Loopback Supports outloops.
Orderwire phone port Supported
