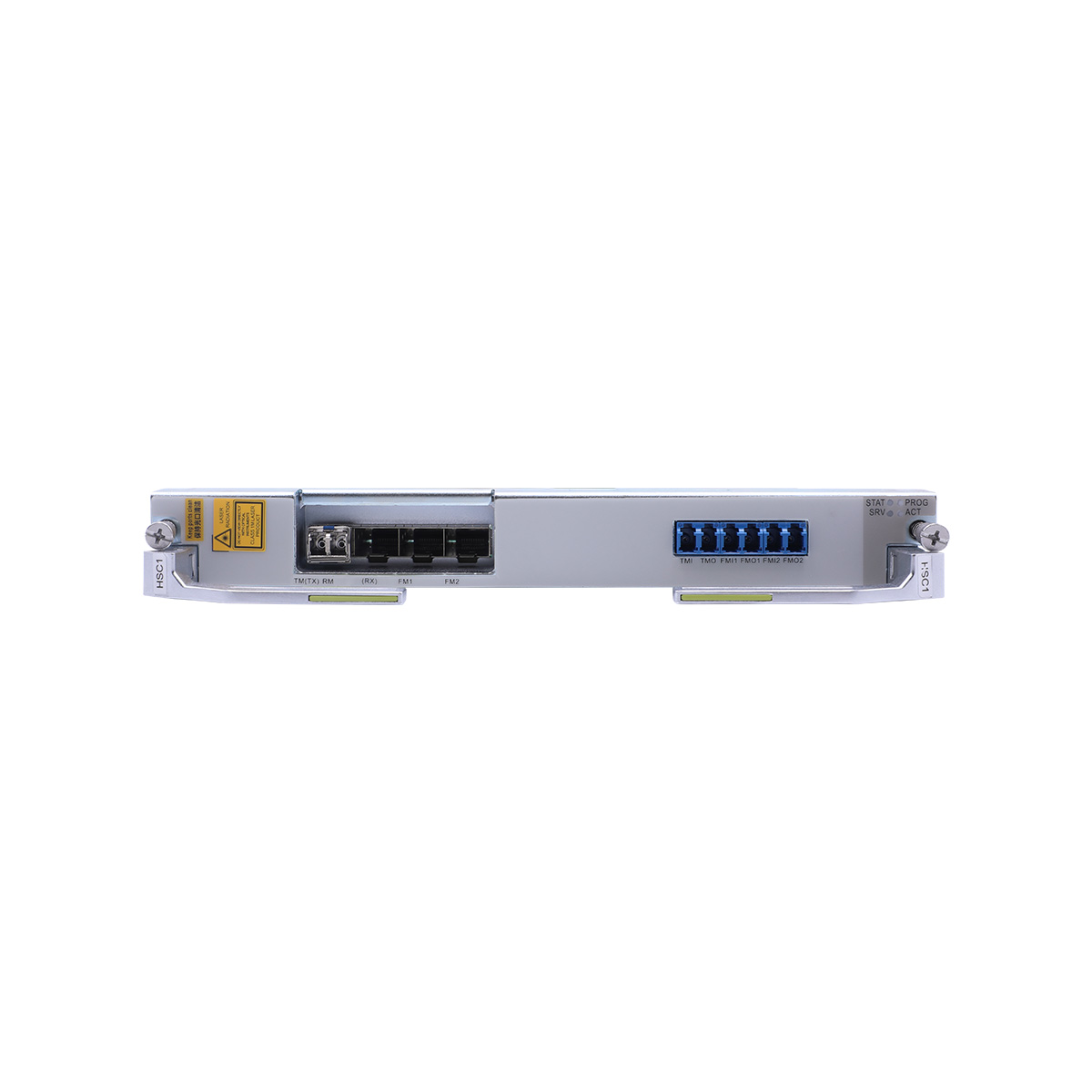

Huawei OptiX OSN 9800 TNG2HSC1 high power unidirectional optical supervisory channel board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG2HSC1 Overview

TNG2HSC1 high power unidirectional optical supervisory channel board.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG2HSC1 board has only one variant: TNG2HSC101, TNG2HSC106.



Valid slots for the TNG2HSC1 board in M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU12 IU1 to IU12
OptiX OSN 9800 M24 1 IU1 to IU5, IU8 to IU17, IU20 to IU24 IU1 to IU5, IU8 to IU17, IU20 to IU24
Item TNG2HSC1
Basic function
  • Receives, processes, and transmits one OSC signal in a specific direction.
  • The OSC channel has no limit on the distance between two optical line amplifiers (OLAs). The failure of an OLA has no adverse impact on OSC performance.
Operating wavelength of the OSC The operating wavelength of the G2HSC1 board is 1511 nm.
OSC signal regeneration function The board transmits signals from section to section. It also has the 3R function. In each regenerating station that has optical amplifiers, information can be correctly received and new supervisory signals are added.
Line fiber quality monitoring
  • The line fiber quality monitoring function can be used on the NMS, and the NMS will display monitoring figures and data. The online and offline applications of line fiber quality monitoring are supported.
  • The Fiber Doctor Management System Software Fee License needs to be purchased for this function.
Optical-layer ASON Supported
Physical clock Not supported
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
High-precision clock synchronization Not supported
Latency measurement Supports OTS latency measurement.
Loopback Supports Inloop, outloops.
