CE8850-64CQ-EI

CE8850-64CQ-EI

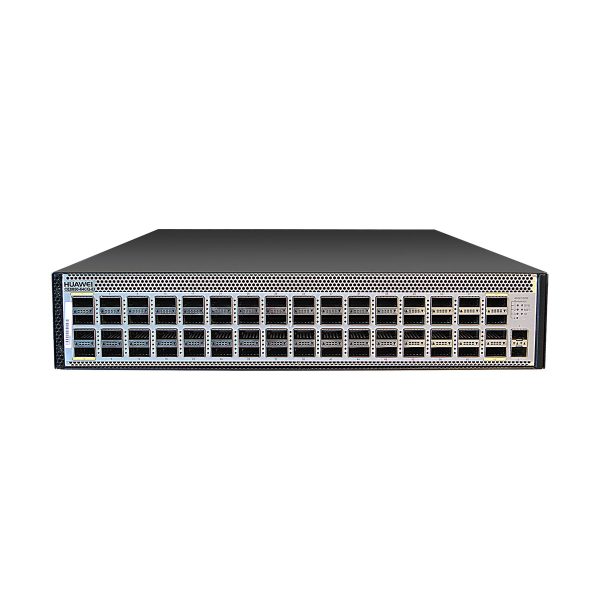

CE8850-64CQ-EI Huawei CE8800 switch supports 2*10GE SFP+, 64*100GE QSFP28

Huawei

3-5 days

Shenzhen Warehouse

SKU: 02351RFF Category:

Description

CE8850-64CQ-EI overview

CE8850-64CQ-EI Huawei CE8800 switch supports 2*10GE SFP+, 64*100GE QSFP28

CE8850-64CQ-EI appearance

CE8850-64CQ-EI

1 Ground screw 2 Two ETH management ports (RJ45)
3 ESN and MAC address label 4 Console port
5 USB port 6 Mini USB port
7 Fan slot 1 8 Fan slot 2
9 Fan slot 3 10 Power supply slot 1
11 Power supply slot 2 12 Sixty-four 40GE/100GE QSFP28 Ethernet optical ports
13 Two 10GE SFP+ Ethernet optical ports

These two ports are reserved for future function expansion and cannot be used currently.

14 Mounting holes for mounting brackets
CE8850-64CQ-EI application
Device Series Sub-series Device Model Short Name Supported Version
CE8800 CE8850 CE8850-64CQ-EI CE8850EI V200R005C00 to V200R021C00
Item CE8850-64CQ-EI
Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
    NOTE:

    When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 64 dBA
  • Front-to-back airflow: < 64 dBA
Power source type AC/DC/high-voltage DC
AC power input
  • Rated input voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input
  • Rated voltage of 240 V high-voltage DC power input: 240 V DC
  • Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC
  • Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC
  • Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
Rated input current
  • 1200 W AC&240 V DC power module (PAC-1K2WA series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC)
  • 1200 W high-voltage DC power module (PHD-1K2WA series): 8 A (240 V DC to 380 V DC)
  • 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Maximum power consumption 965W
Typical power consumption 375 W (100% throughput, QSFP28 cables on 64 ports, double power modules)
Maximum heat dissipation 3293BTU/hr
Typical heat dissipation 1280 BTU/hr (100% throughput, QSFP28 cables on 64 ports, double power modules)
Surge protection Power module:

  • AC: 4 kV in common mode and 2.5 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup 1+1 backup
Fan module backup The device supports 2+1 backup of fan modules. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.

NOTE:

A CE8850EI chassis uses three fan modules, with each fan module containing one fan. The three fans in the chassis work in 2+1 backup mode.

Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 35.98
Mean time to repair (MTTR) 1.68
Availability 0.999997043
Processor 1.5 GHz, eight-core
DRAM Memory 4GB
NOR Flash 32MB
NAND Flash 2GB
Physical specifications
  • Dimensions (H x W x D): 88.1 mm x 442.0 mm x 600.0 mm (3.47 in. x 17.4 in. x 23.6 in.)
  • Weight (with two power modules and three fan modules, calculated based on the heaviest model if multiple models are supported): 22.2 kg
