CR5D00E4XM25

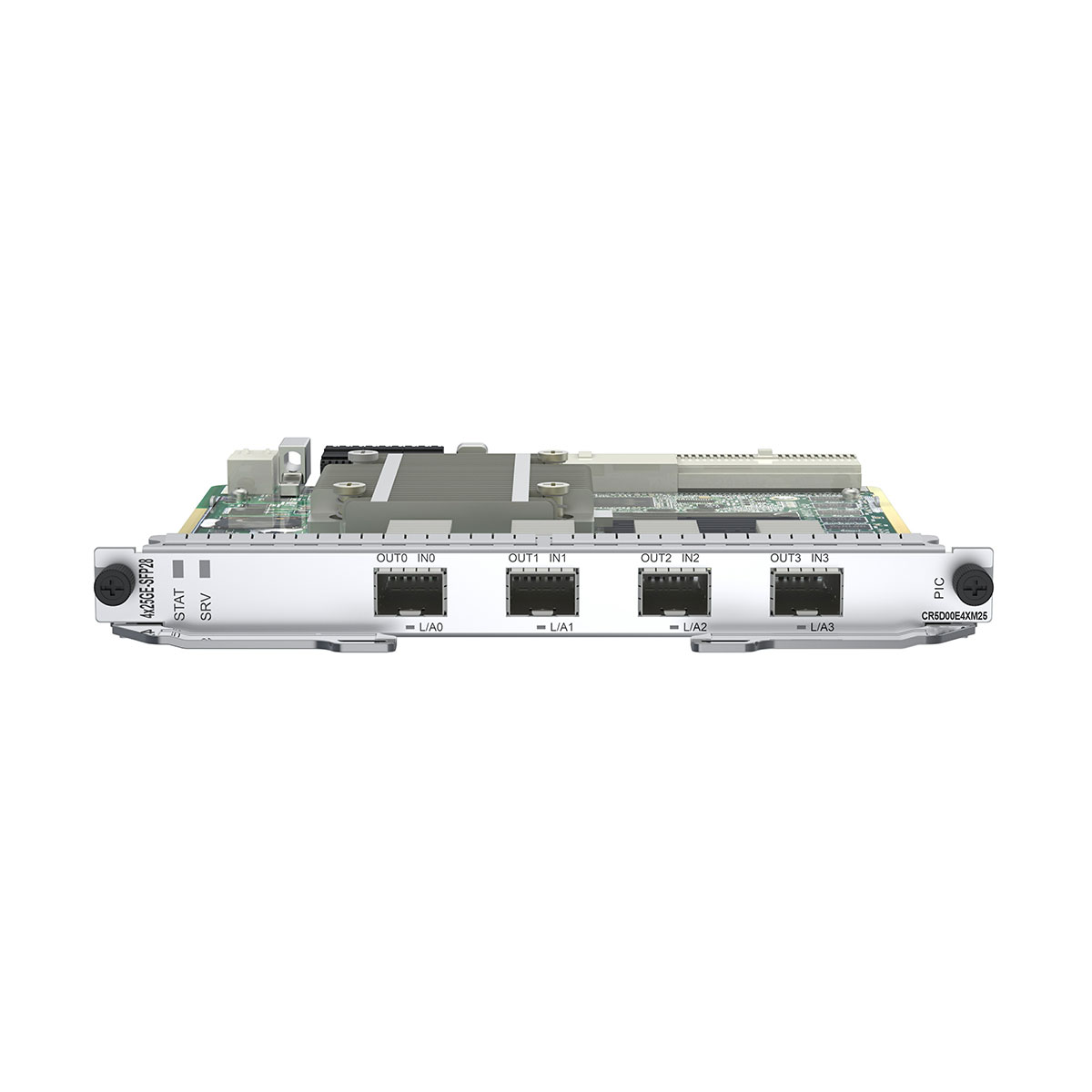

NE8000 CR5D00E4XM25(4-Port 25GE(SFP28)/10GE(SFP+) MACsec Physical Interface Card (PIC))
Huawei
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (1)
Description
Basic information about the CR5D00E4XM25
| Item | Details |
|---|---|
| Description | 4-Port 25GE(SFP28)/10GE(SFP+) MACsec Physical Interface Card (PIC) |
| Card type | Interface Card |
| Part Number | 03033BLK |
| Model | CR5D00E4XM25 |
| Silkscreen | 4x25GE-SFP28 |
Mappings between CR5D00E4XM25 and product models
|
Product Sub-Series
|
Product Model
|
First Supported Version
|
Limitations
|
|---|---|---|---|
| NetEngine 8000 M14 | CR8B0BKPACC2 | NetEngine 8000 M V800R012C00 | – |
| NetEngine 8000 M14 | CR8B0BKPDCC1 | NetEngine 8000 M V800R012C00 | – |
| NetEngine 8000 M8 | CR8BM8BKPDC1 | NetEngine 8000 M V800R011C10 | – |
| NetEngine 8000 M8 | CR8BM8BKPAC1 | NetEngine 8000 M V800R012C00 | – |
| Item | CR5D00E4XM25 |
| Basic function | Occupies one flexible card slot.
Supports the line-rate receiving and transmitting on four 25GE/10GE interfaces and supports SFP28/SFP+ optical modules on the interfaces. |
| Reliability and availability | Support for hot swap. |
| Restrictions and remarks | By default, 25GE/10GE auto-negotiation is supported. You can run the port-mode group-id command in the slot view to switch the mode to 10GE/GE auto-negotiation. |
| Breakout supported | No |
| Interface rate auto-sensing supported | In 25GE mode, 10GE/25GE auto-sensing supported; In 10GE mode, GE/10GE auto-sensing supported. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
| Weight without packaging [kg(lb)] | 0.7 kg(1.54 lb) |
| Typical power consumption [W] | 25.3 W |
| Typical heat dissipation [BTU/hour] | 82.15 BTU/hour |
| Long-term operating temperature [°C(°F)] | -40°C to 65°C(-40°F to 149°F) |
