CR5D00LAXF91

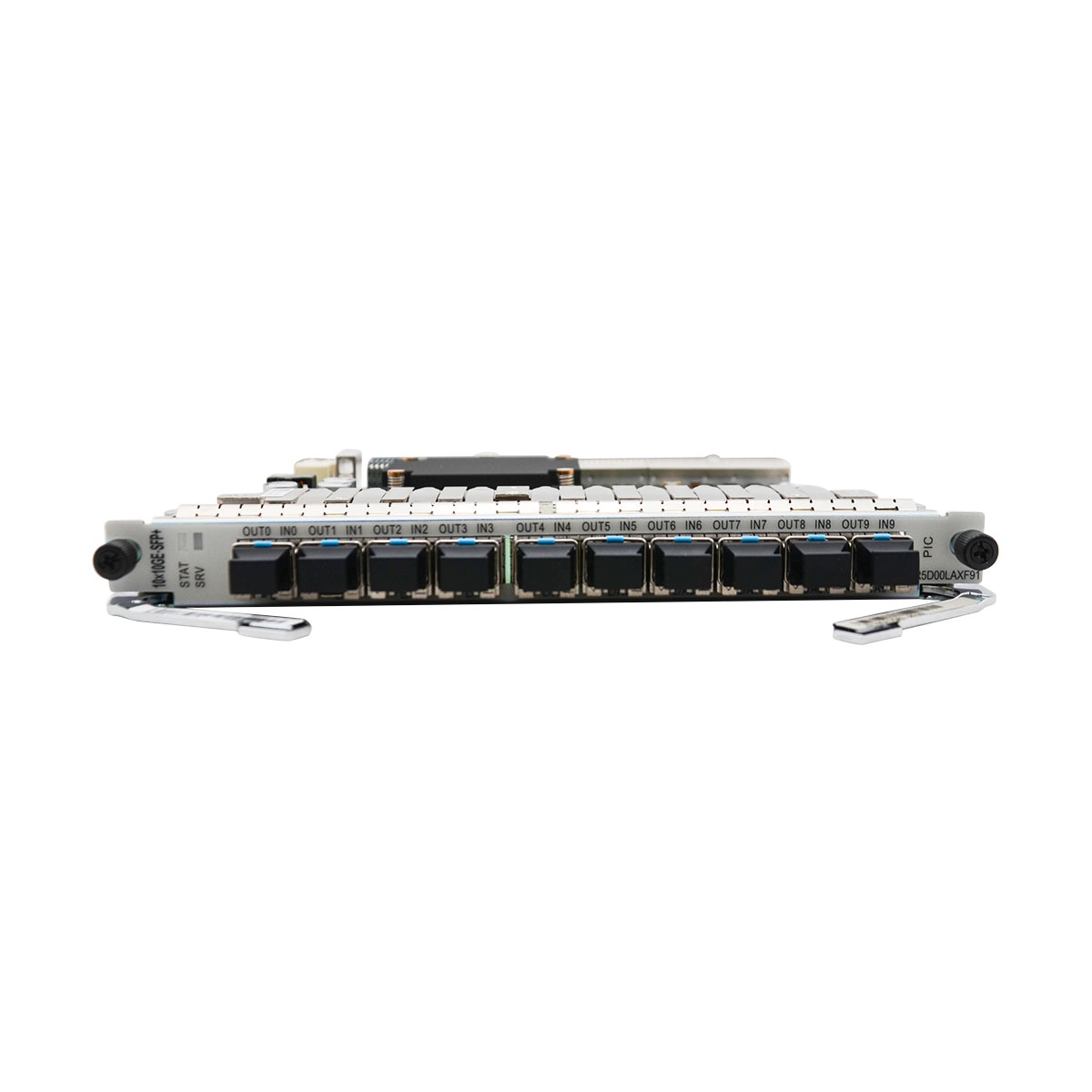

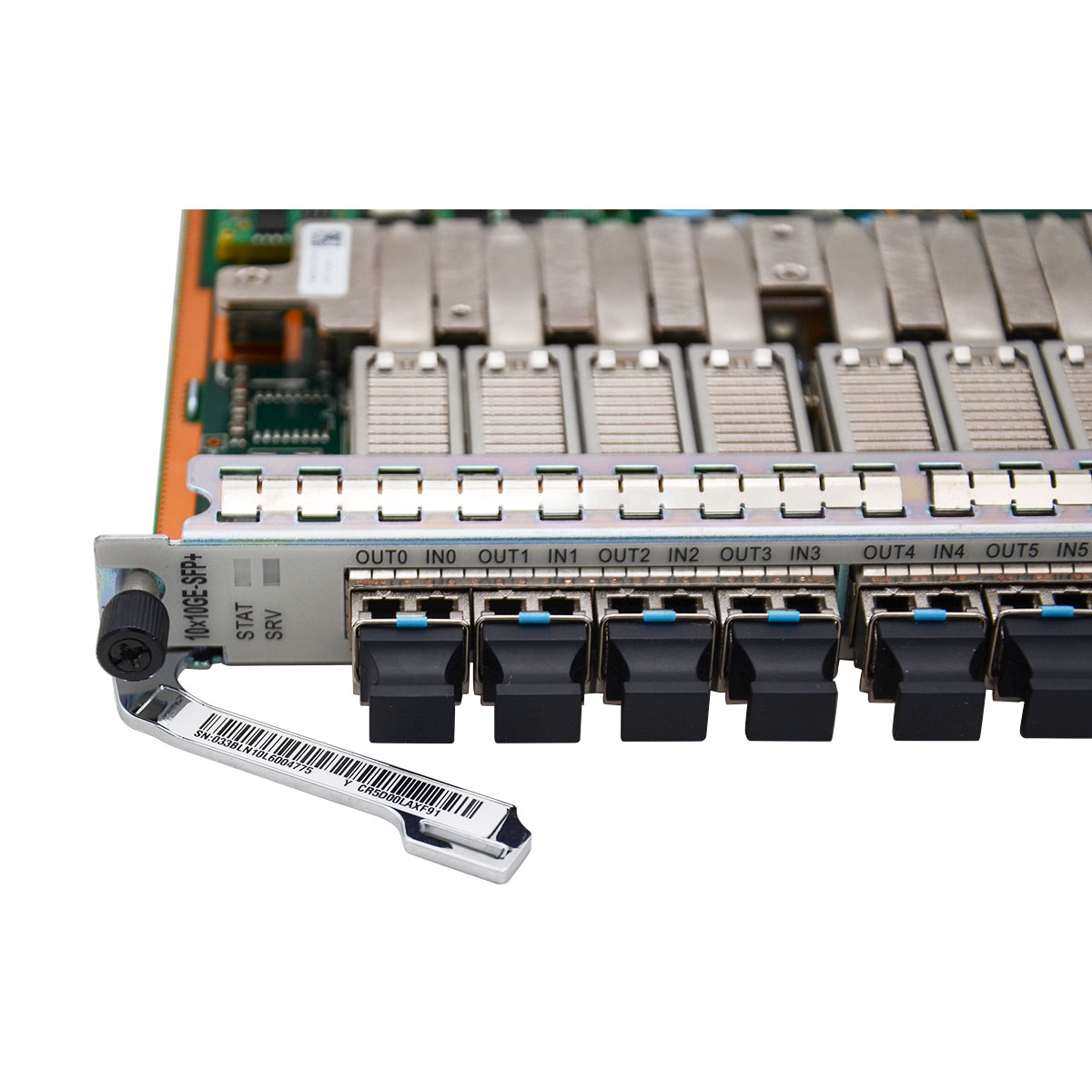

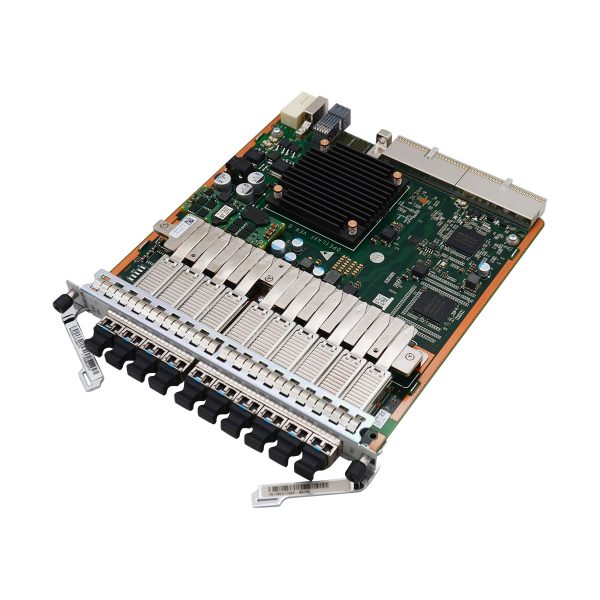

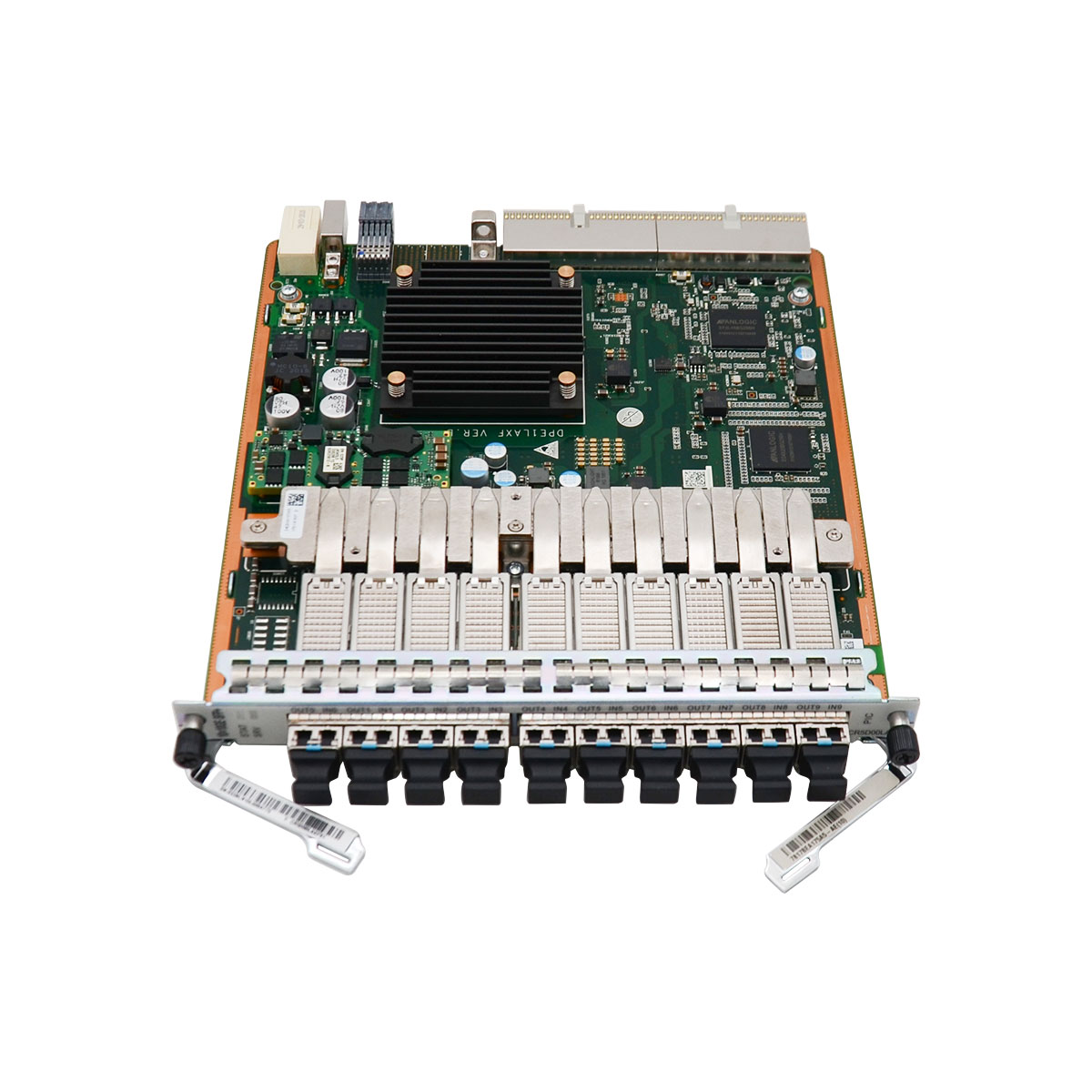

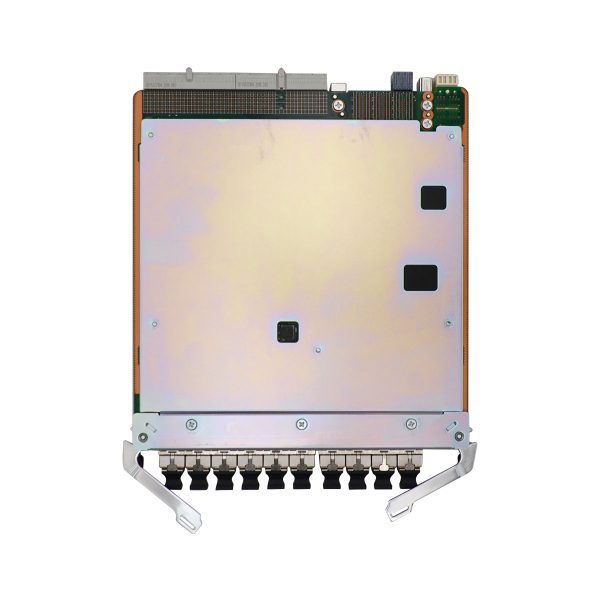

NE8000 CR5D00LAXF91(10*Port 10GE/GE LAN/WAN-SFP+ MACsec Physical Interface Card(PIC))
Huawei
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (0)
Description
Basic information about the CR5D00LAXF91
| Item | Details |
|---|---|
| Description | 10-Port 10GE/GE LAN/WAN-SFP+ MACsec Physical Interface Card(PIC) |
| Card type | Interface Card |
| Part Number | 03033BLN |
| Model | CR5D00LAXF91 |
| Silkscreen | 10x10GE-SFP+ |
Mappings between CR5D00LAXF91 and product models
|
Product Sub-Series
|
Product Model
|
First Supported Version
|
Limitations
|
|---|---|---|---|
| NetEngine 8000 M14 | CR8B0BKPACC2 | NetEngine 8000 M V800R012C00 | Long-term operating temperature: -40 °C to 65 °C (-40 °F to 149 °F) |
| NetEngine 8000 M14 | CR8B0BKPDCC1 | NetEngine 8000 M V800R012C00 | Long-term operating temperature: -40 °C to 65 °C (-40 °F to 149 °F) |
| NetEngine 8000 M14 | CR8B0BKPACC1 | NetEngine 8000 M V800R012C10 | – |
| NetEngine 8000 M8 | CR8BM8BKPDC1 | NetEngine 8000 M V800R011C10 | Long-term operating temperature: -40 °C to 65 °C (-40 °F to 149 °F) |
| NetEngine 8000 M8 | CR8BM8BKPAC1 | NetEngine 8000 M V800R012C00 | Long-term operating temperature: -40 °C to 65 °C (-40 °F to 149 °F) |
| Item | CR5D00LAXF91 |
|---|---|
| Basic function | Occupies one flexible card slot.
Supports the line-rate receiving and transmitting on ten 10GE/GE interfaces and supports SFP+/SFP optical modules on the interfaces. |
| Reliability and availability | Support for hot swap. |
| Restrictions and remarks | Ports 2–5 belong to a port group, and ports 6–9 belong to another one. In LAN/WAN switching, the mode of ports in a port group must be switched at the same time. |
| Breakout supported | No |
| Interface rate auto-sensing supported | Supports GE/10GE auto-sensing. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
| Weight without packaging [kg(lb)] | 0.8 kg(1.76 lb) |
| Typical power consumption [W] | 32.6 W |
| Typical heat dissipation [BTU/hour] | 105.8 BTU/hour |
| Long-term operating temperature [°C(°F)] | -40°C to 65°C(-40°F to 149°F) |
