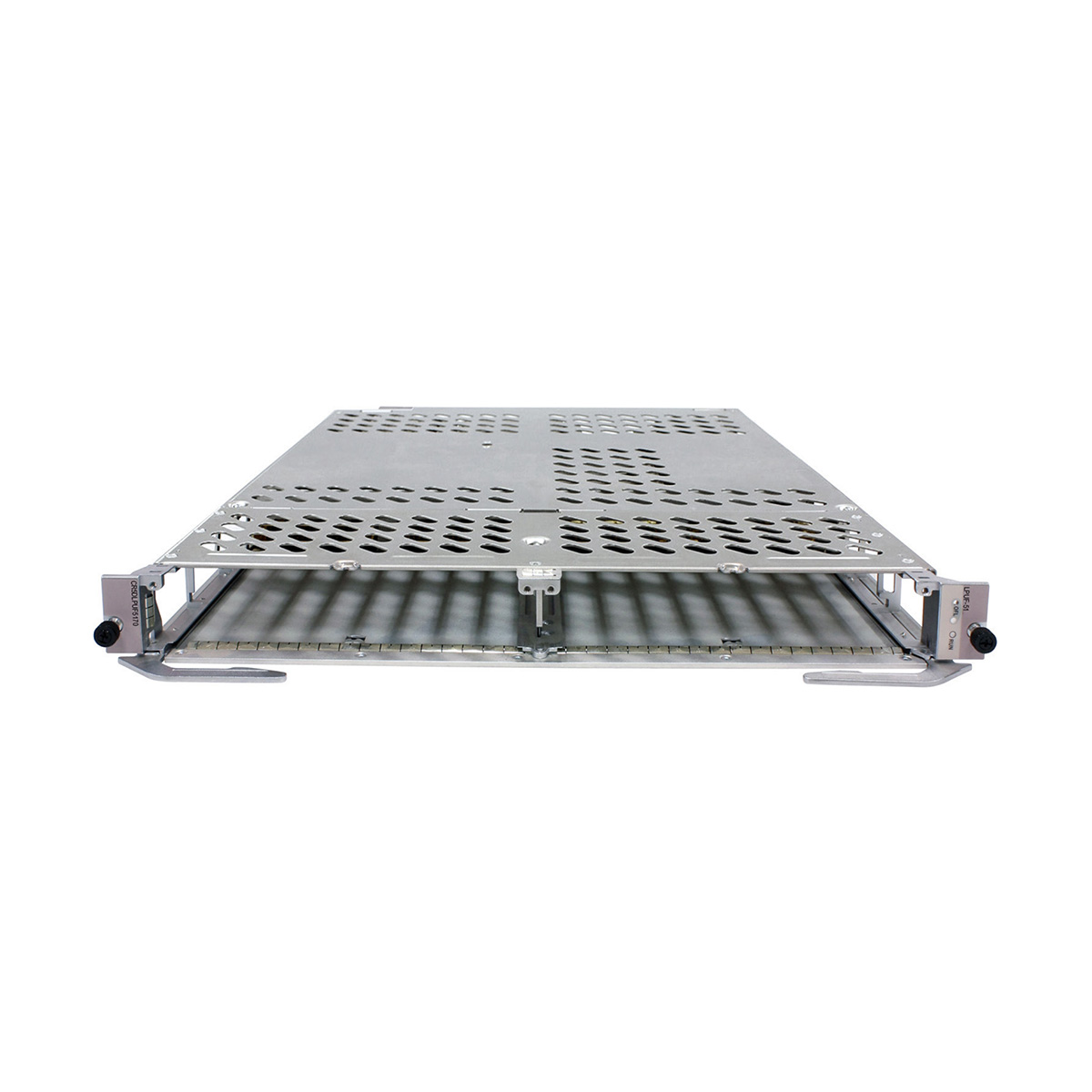

CR5DLPUF5170

CR5DLPUF5170

Flexible Card Line Processing Unit(LPUF-51,2 sub-slots)

SKU: 03054393 Category:

Description

CR5DLPUF5170 subcard:

24-Port 100/1000Base-X-SFP Flexible Card A(P51-A)

2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P51-A)

5-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P51-A, Occupy two sub-slots)

20-Port 10/100/1000Base-RJ45 Flexible Card A(P51-A)

2-Port OC-192c/STM-64c POS-XFP Flexible Card(P51-A)

24-Port 1000Base-X-SFP Flexible Card E(P51-E)

24-Port 1000Base-X-SFP Flexible Card E(P52-E)

5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(P51-E, Occupy two sub-slots)

2-Port 10GBase LAN/WAN-SFP+ Flexible Card E(P51-E)

5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(P52-E, Occupy two sub-slots)

2-Port 10GBase LAN/WAN-SFP+ Flexible Card E(P52-E)

2-Port 10GBase LAN/WAN-SFP+ Flexible Card H(P51-H)

24-Port 1000Base-X-SFP Flexible Card H(P51-H)

8-Port OC-48c/STM-16c POS-SFP Flexible Card(P120)

tem CR5DLPUF5170
Line-Rate capability Supports 50G line-rate processing and provides low-cost and customized solutions.
Slot information The board provides a maximum of two half-width slots and each slot can hold one FPIC card.
Reliability and availability Hot swappable.
Working mode Full-duplex
Dimensions (H x W x D) 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption 180.0 W
Weight 6.6 kg (14.55 lb)

Additional information

Weight 15.0000 kg
Dimensions 75.0000 × 57.0000 × 17.0000 cm
