GPON Terminal with 4*GE LAN + 2.4G / 5G AX1800 WIFI


3-5 days

Shenzhen Warehouse

SKU: 2009419 Category:

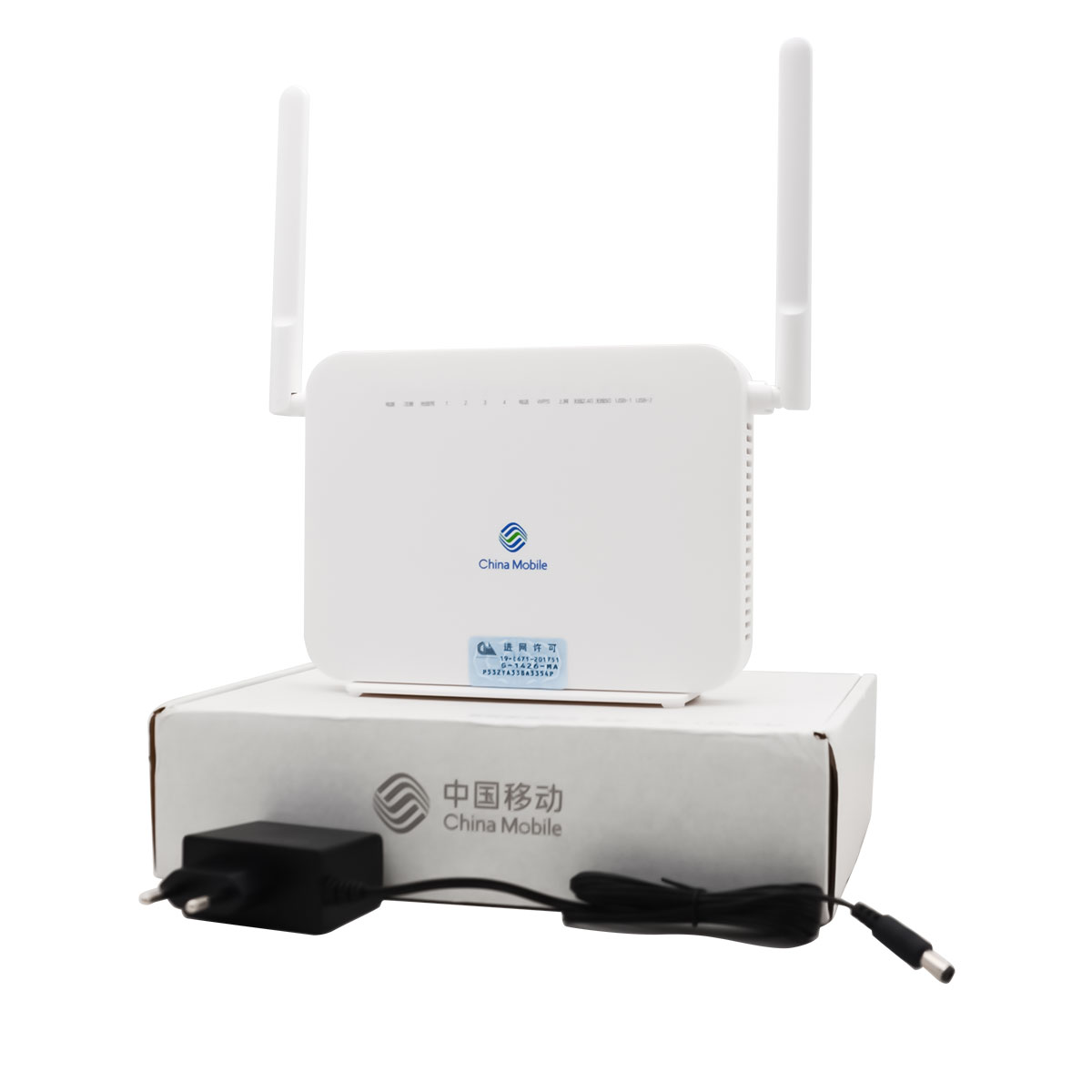

G-1426-MA overview

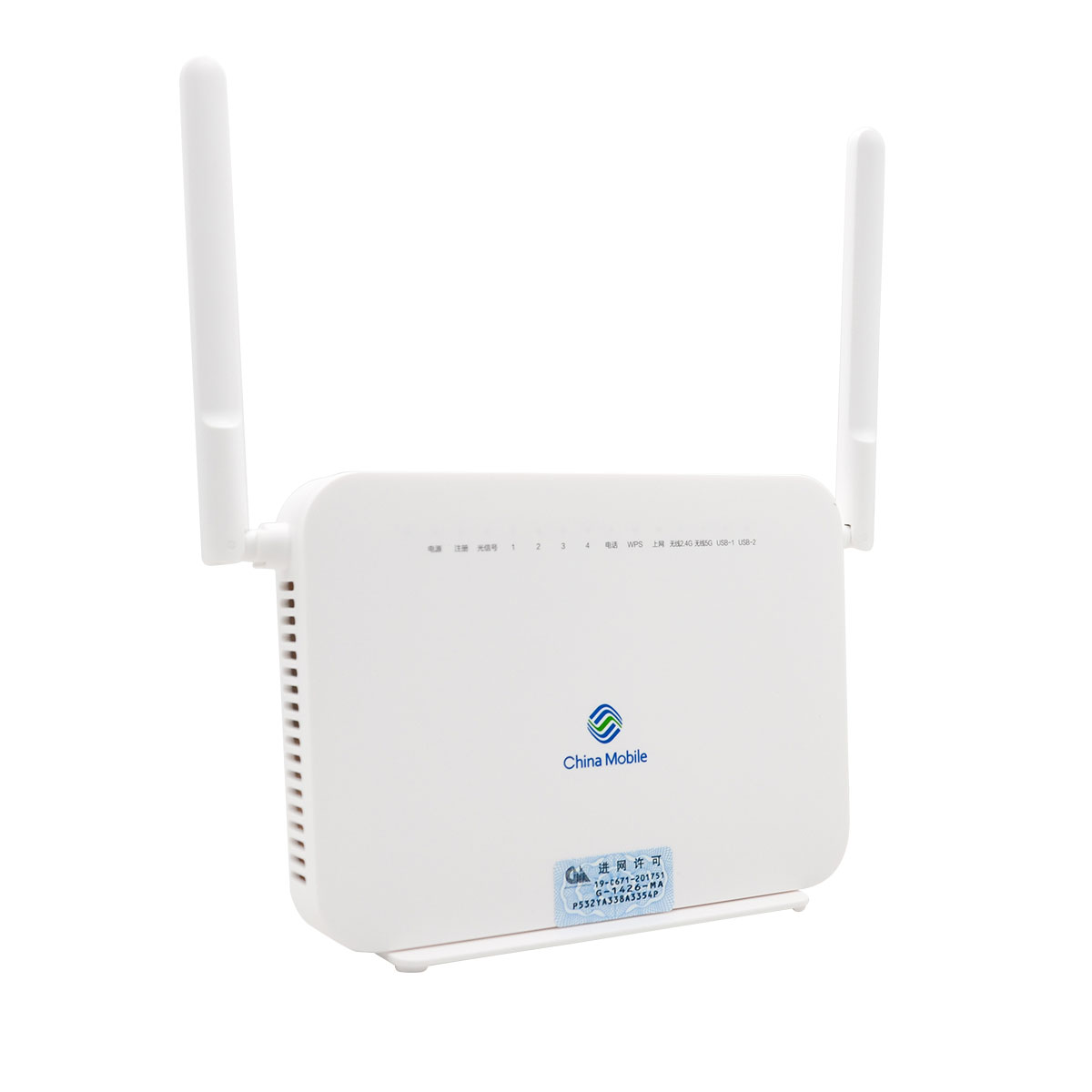

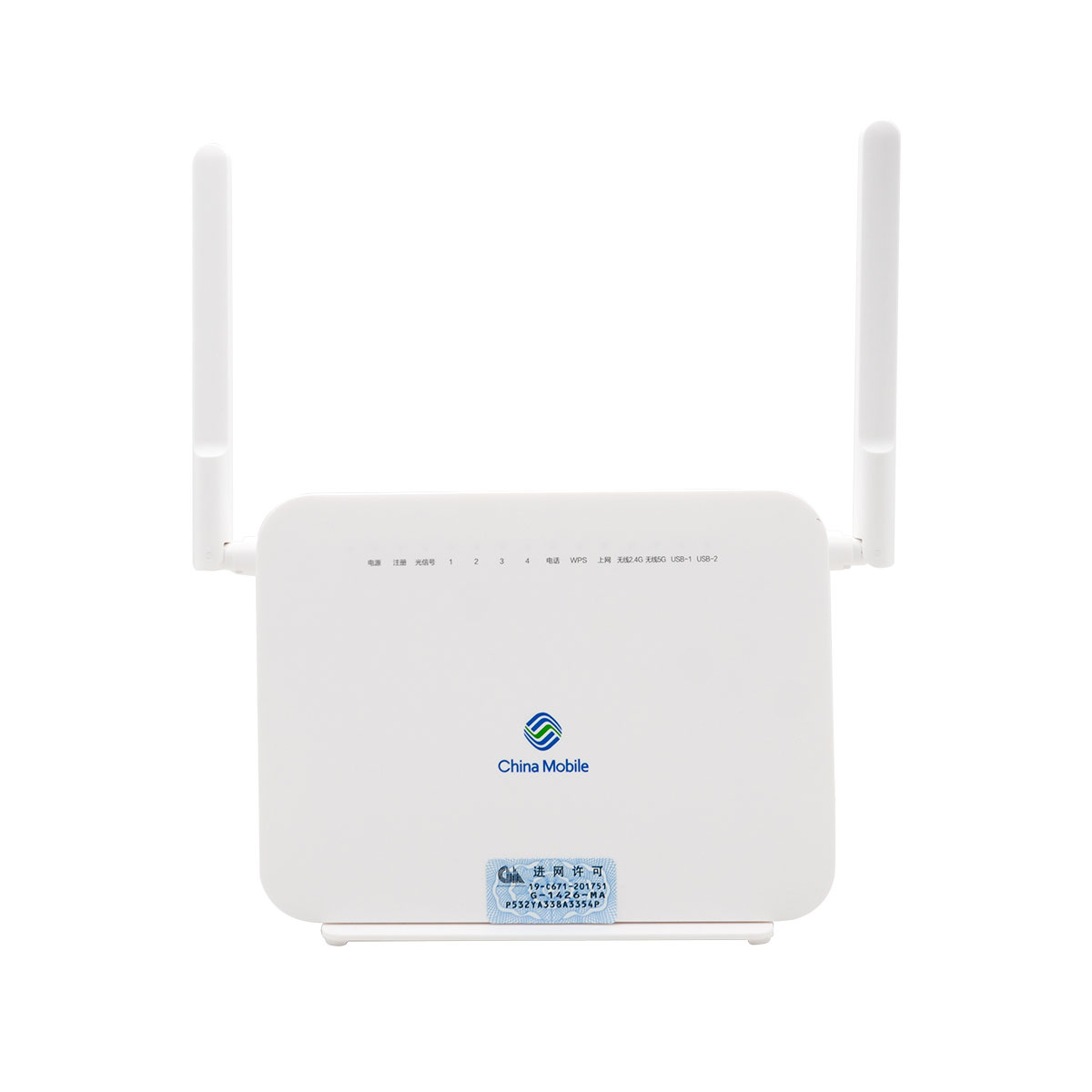

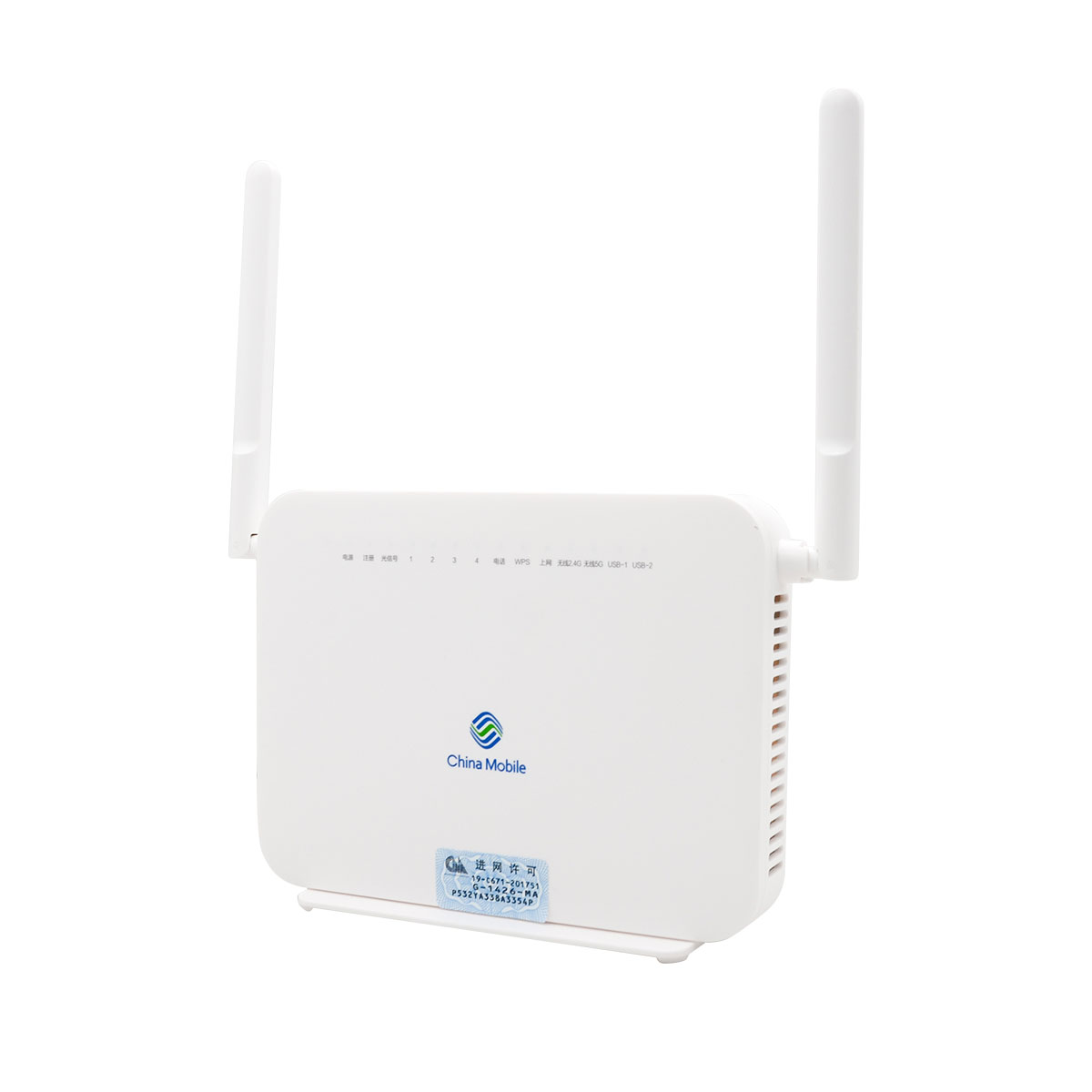

GPON Terminal with 4*GE LAN + 2.4G / 5G AX1800 WIFI

The G-1426-MA is a high-end home in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. TheG-1426-MA provides one POTS ports, four GE Internet port. It features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.


Item G-1426-MA
PON Interface SC/UPC
Firmware Language English
XPON GPON firmware
Power supply 12V DC 1A US UK EU AU
Fiber Type Single Fiber Single Mode
Item G-1426-MA

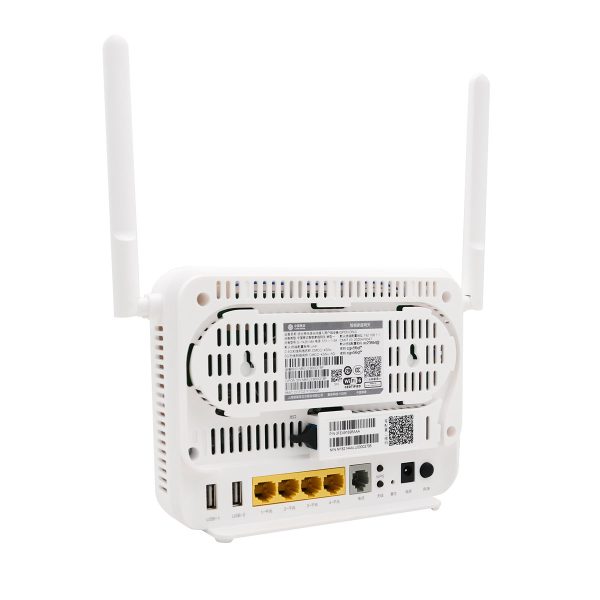

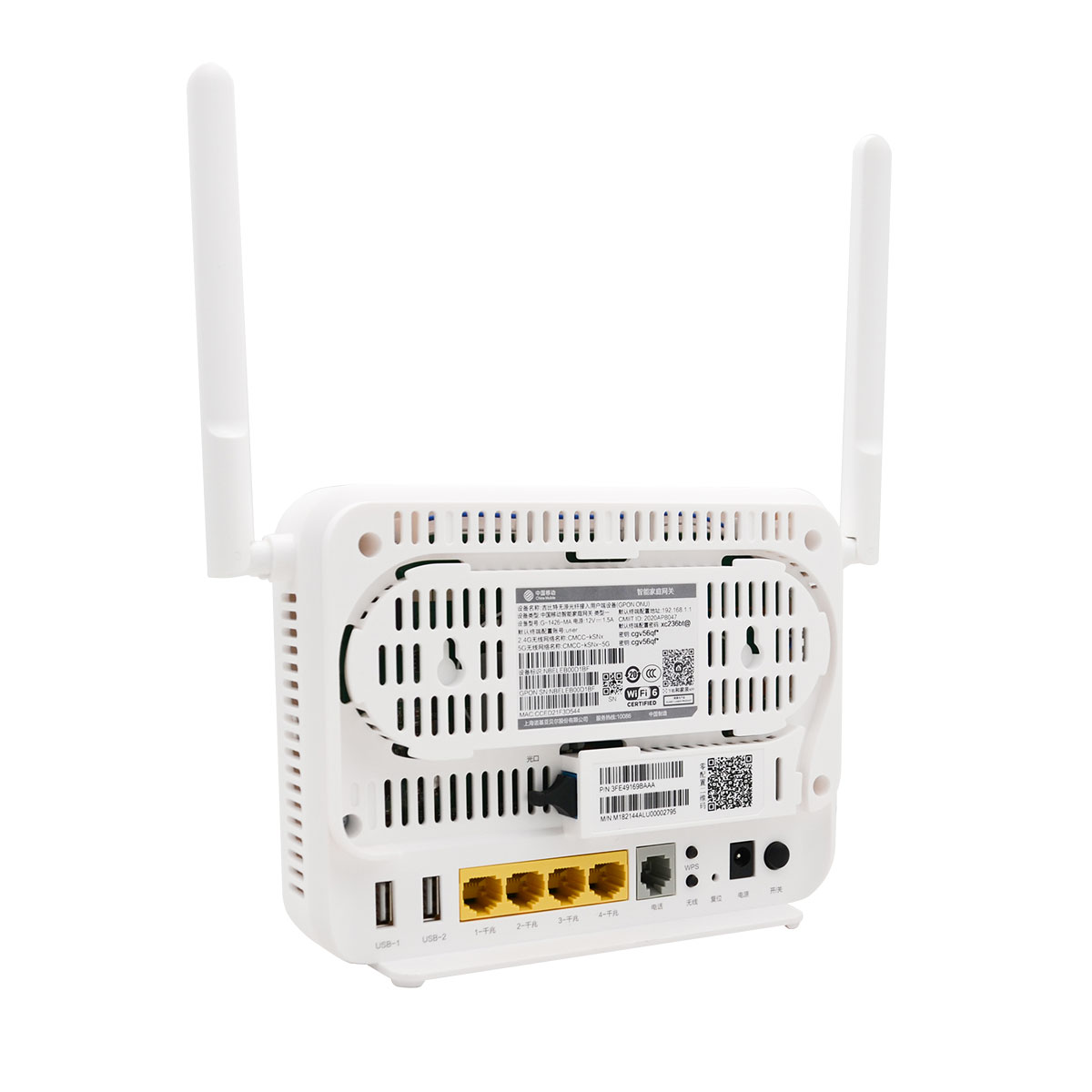

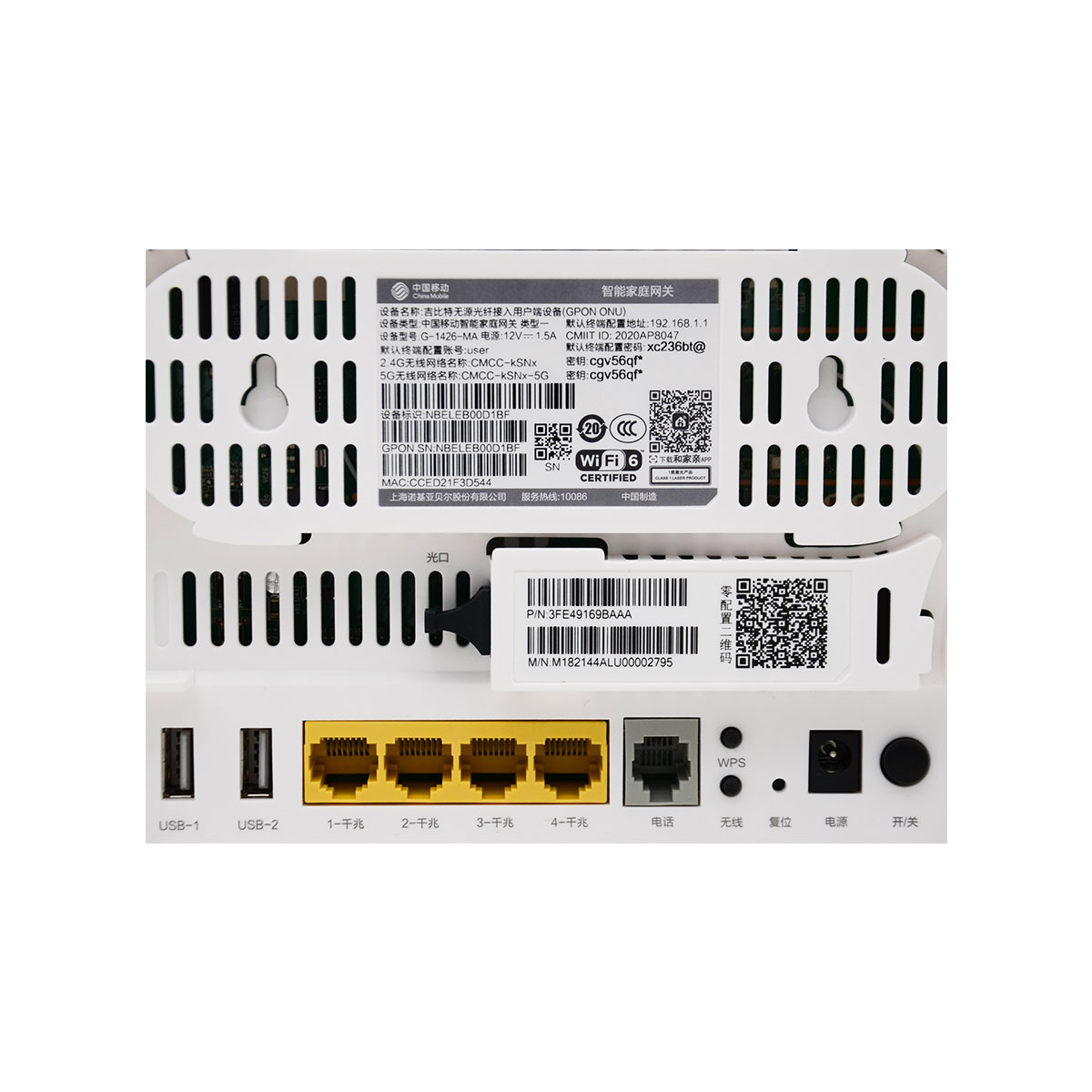

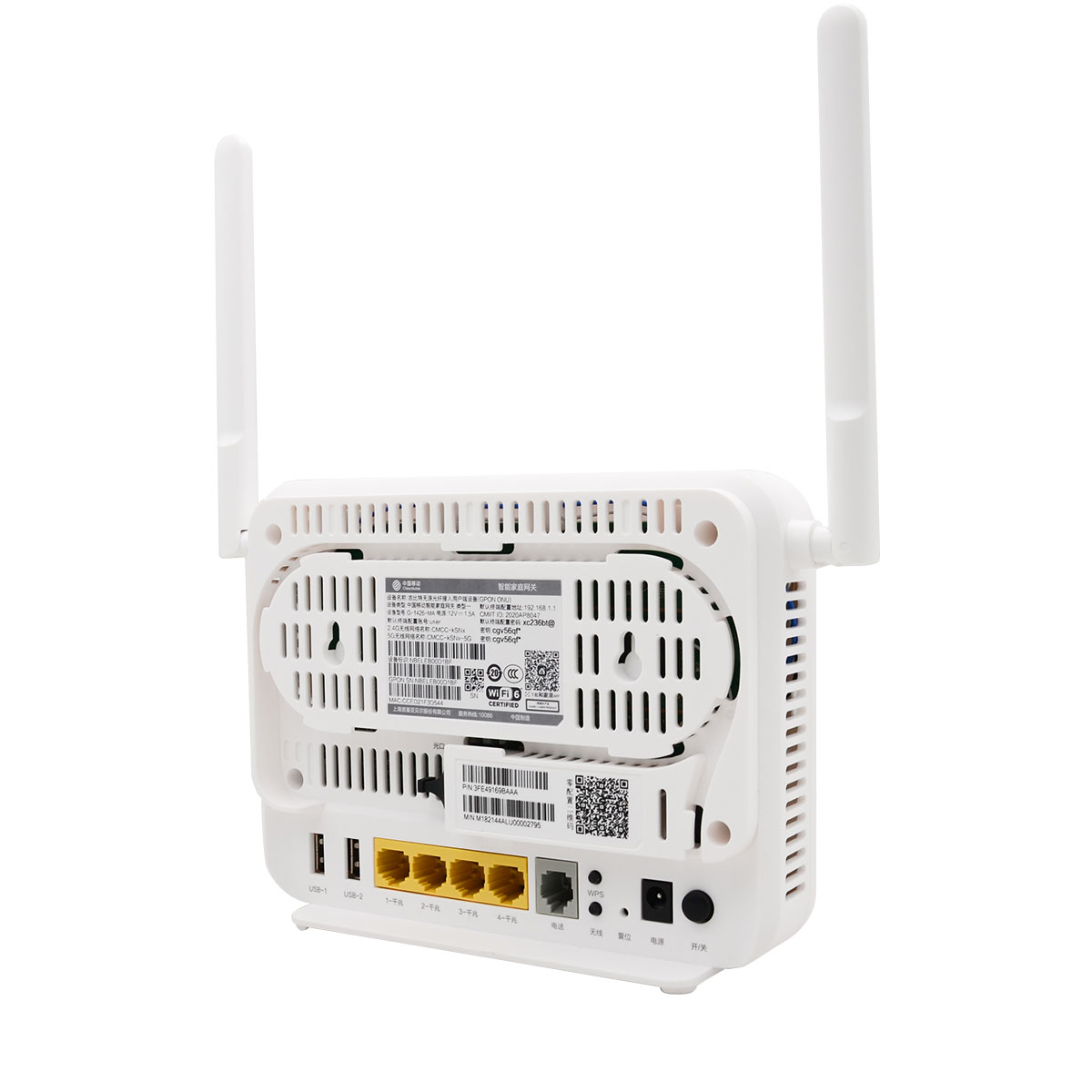

Ports 1*SC/UPC connector for GPON, 4*RJ-45 ports for GE&FE interface, 1*RJ-11 ports for VolP
Lights Power, PON, LOS, Internet, LAN1, LAN2, LAN3, LAN4, Phone, Wi-Fi, WPS
Antenna External
VoIP SIP (RFC3261), Codec: G.711 (μ-law and A-law), G.729, G.722, RTP/RTCP(RFC 1890)
WIFI Frequency: 2.4 GHz, 5GHz, IEEE 802.11a/n/ac Wi-Fi @ 5GHz(2×2), IEE 802.11b/g/n Wi-Fi @ 2.4GHz(2×2), WPA/WPA2 Security
