Description
GFBN Overview

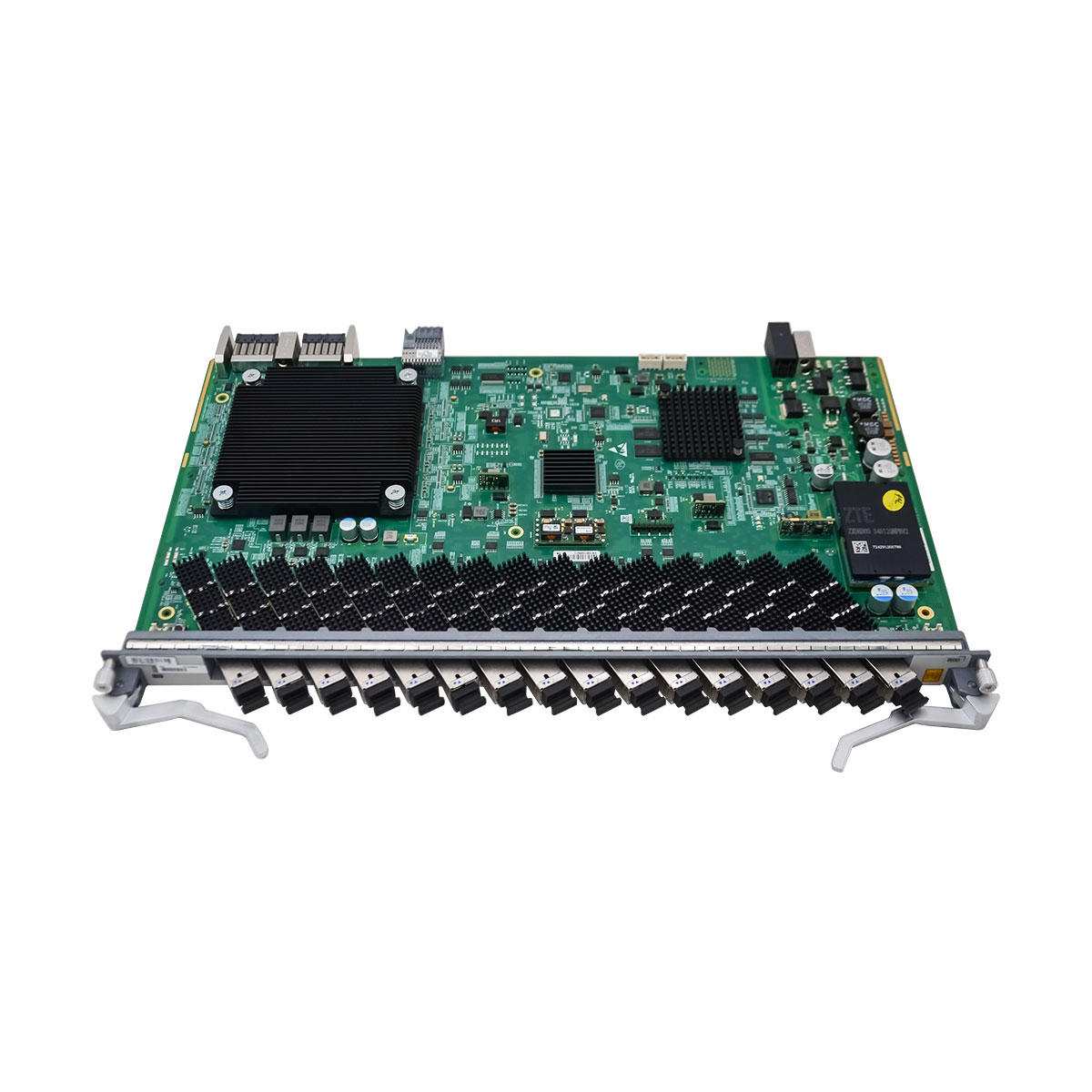

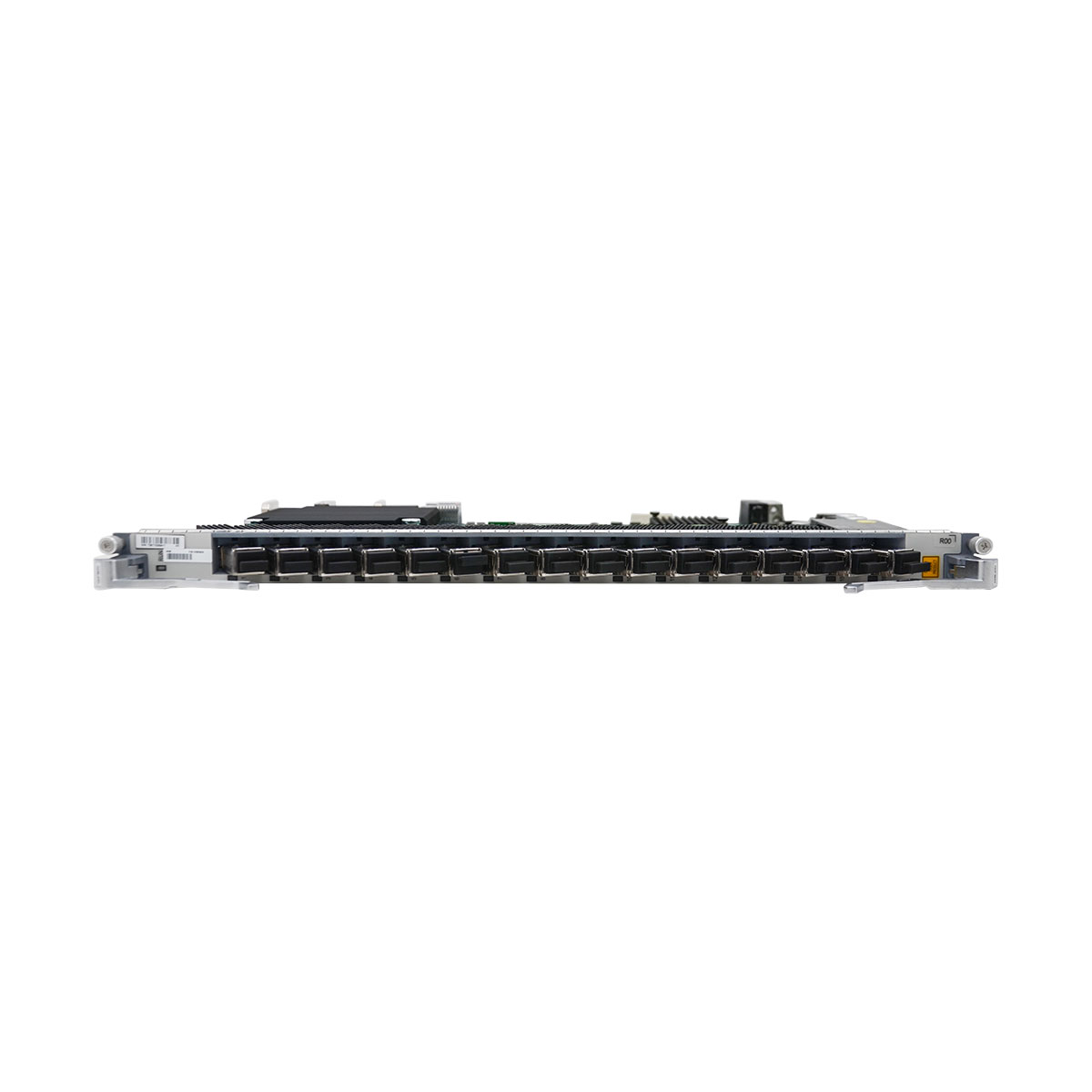

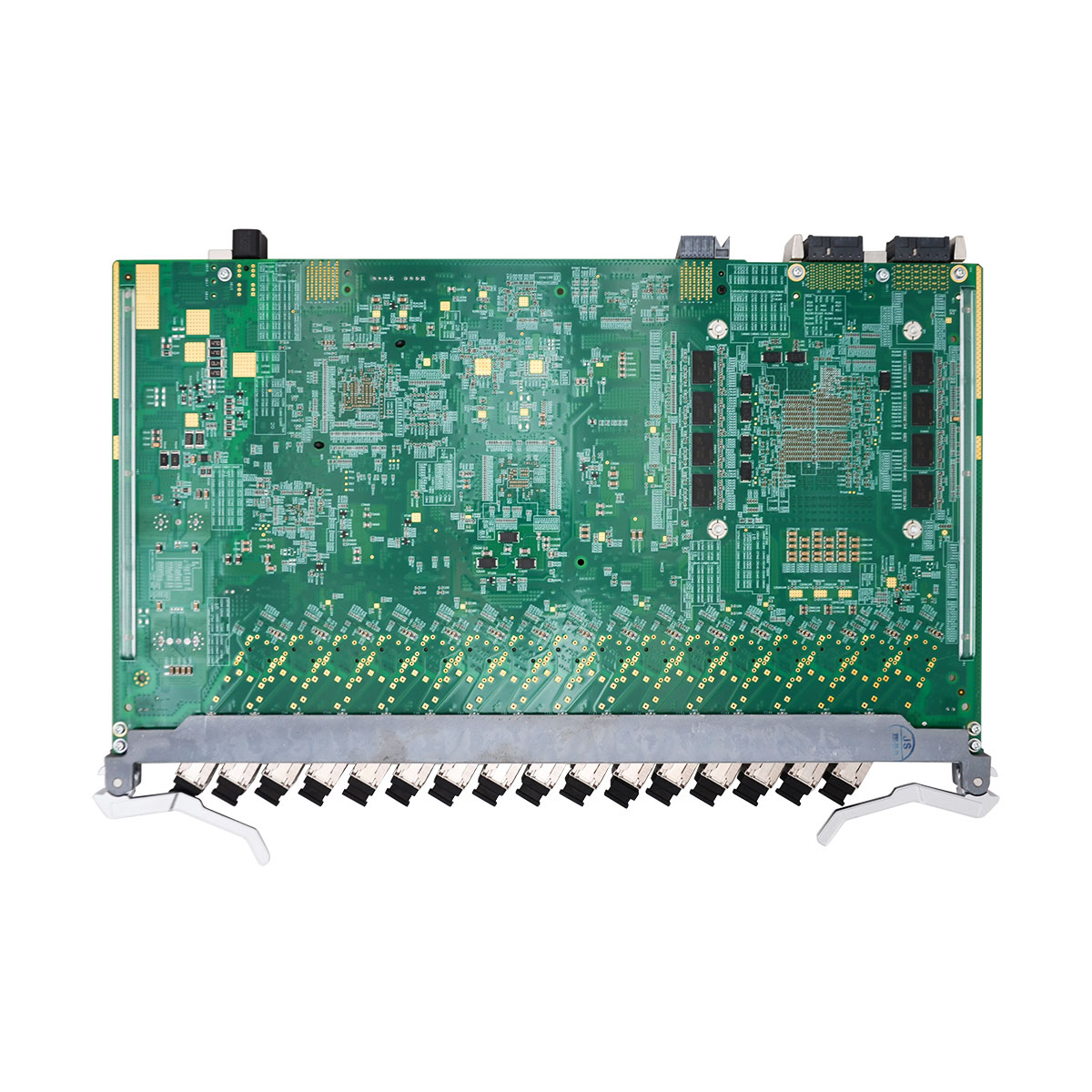

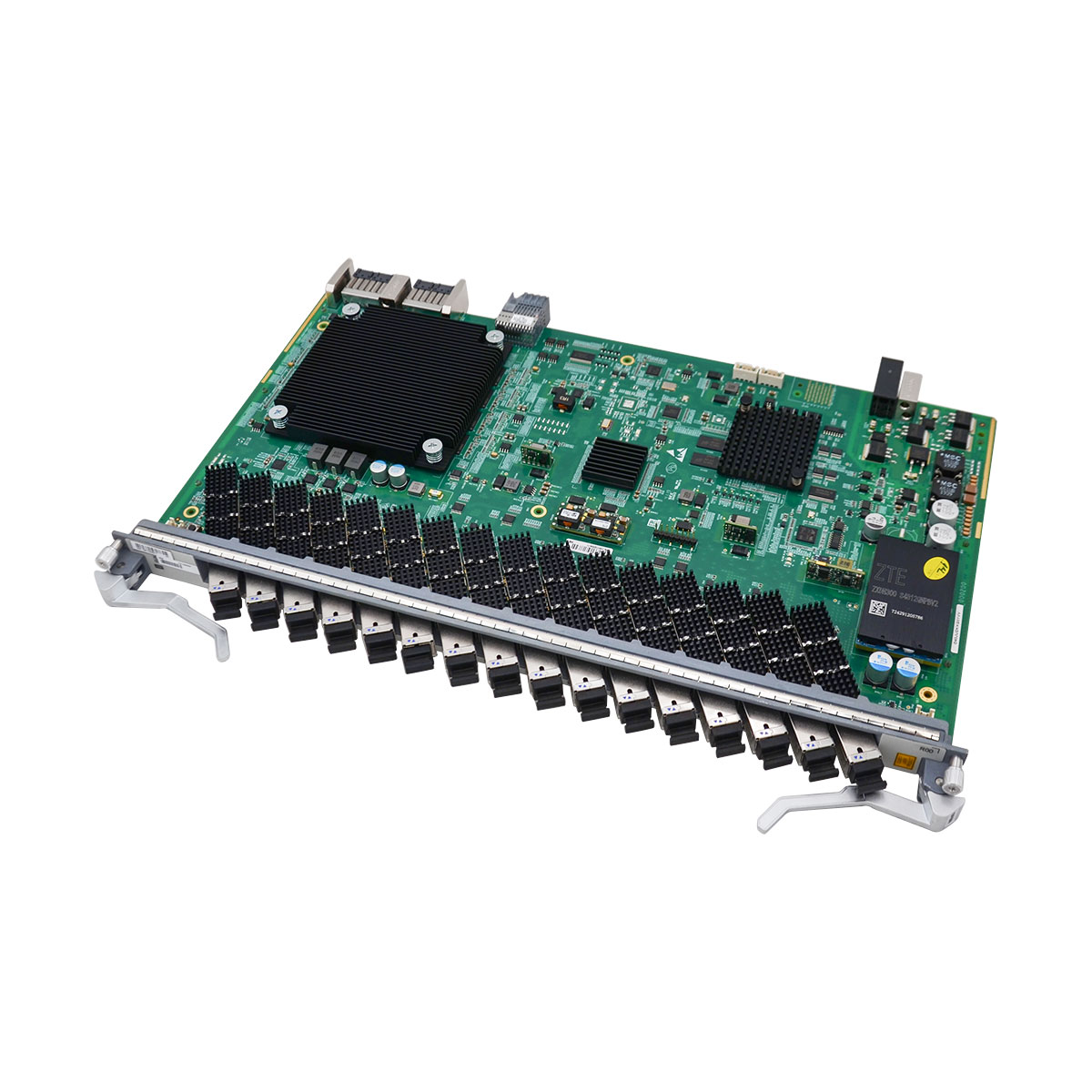

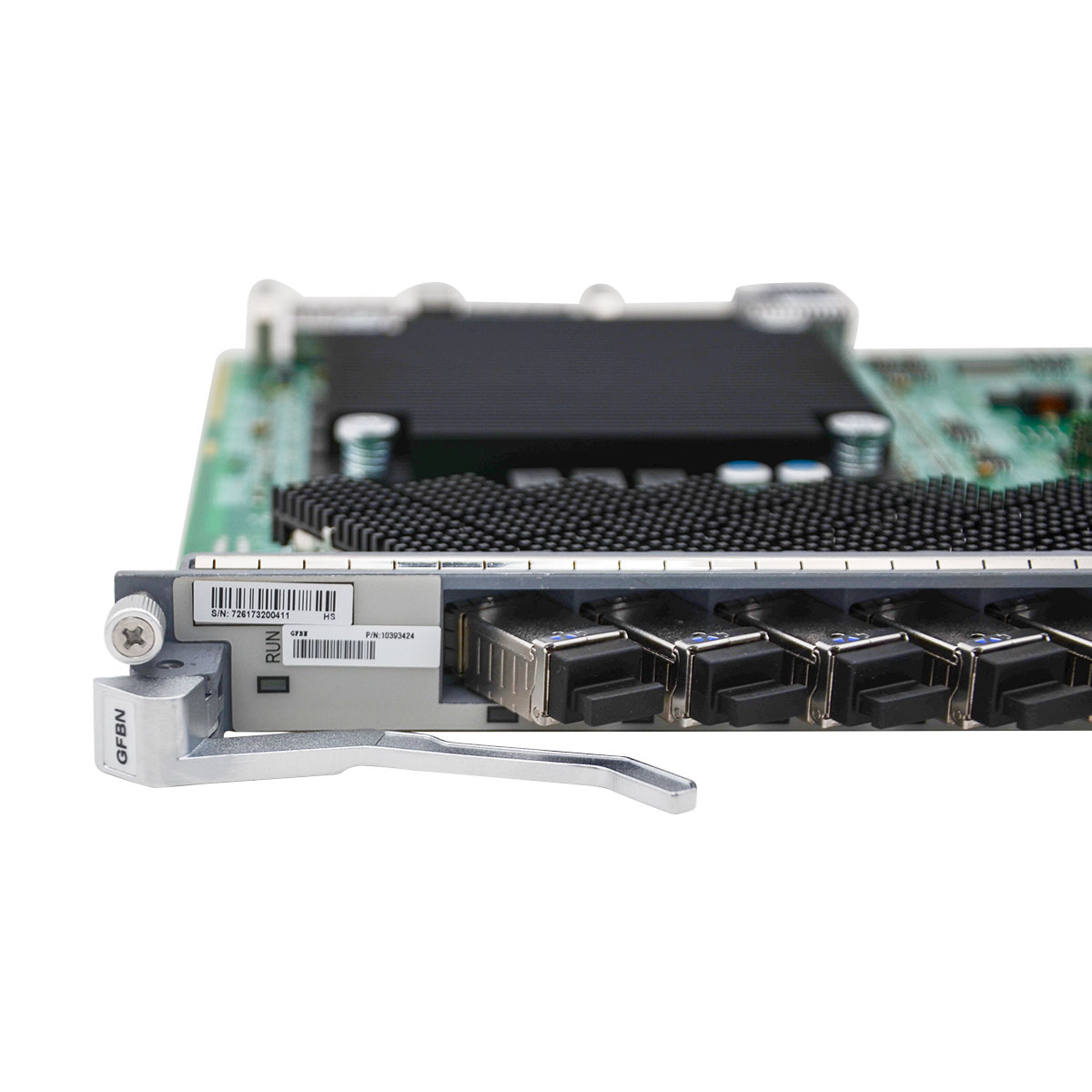

ZTE GPBN ZXA10 C600/C650/C680 16-port XG-PON and GPON Combo OLT interface board with N2a/C+module
GFBN Features
Maximum optical split ratio: 1:128
Supports optical power monitoring
Supports the ALS function of optical modules
Supports hot swapping
Modules of the GFBN Subscriber Card
| Module | Function |
| Management and control module | Configures, controls, and manages the card. |
| PONMAC module | Implements all the functions on the PON layer defined in ITU-T G.984.3. |
| NP module | Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156. |
| Optical module | Provides a GPON optical interface that complies with ITU-T G.984.2. |
| Clock module | Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781. |
Operating Principle of GFBN Subscriber Card
| Item | GFBN |
| Port | 16-port |
| Type | C+ Module: Single Fiber Bidirectional Optical Module, Class C+
N2a Module: Single Fiber Bidirectional Optical Module N2a |
| Operating Wavelength | C+ Module:
Tx: 1490 nm, Rx: 1310 nm N2a Module: Tx: 1577 nm, Rx: 1270 nm |
| Port Rate | C+ Module:
Tx: 2.488Gbit/s, Rx: 1.244 Gbit/s N2a Module: Tx: 10 Gbit/s, Rx: 2.488 Gbit/s |
| Minimun Output Optical Power | C+ Module: 3dBm
N2a Module: 4dBm |
| Maximum Output Optical Power | C+ Module: 7dBm
N2a Module: 8dBm |
| Maximum Receiver Sensitivity | C+ Module: -32dBm
N2a Module: -29.5dBm |
| Interface | XG-PON & GPON Combo |
| Function | XG-PON & GPON service access |

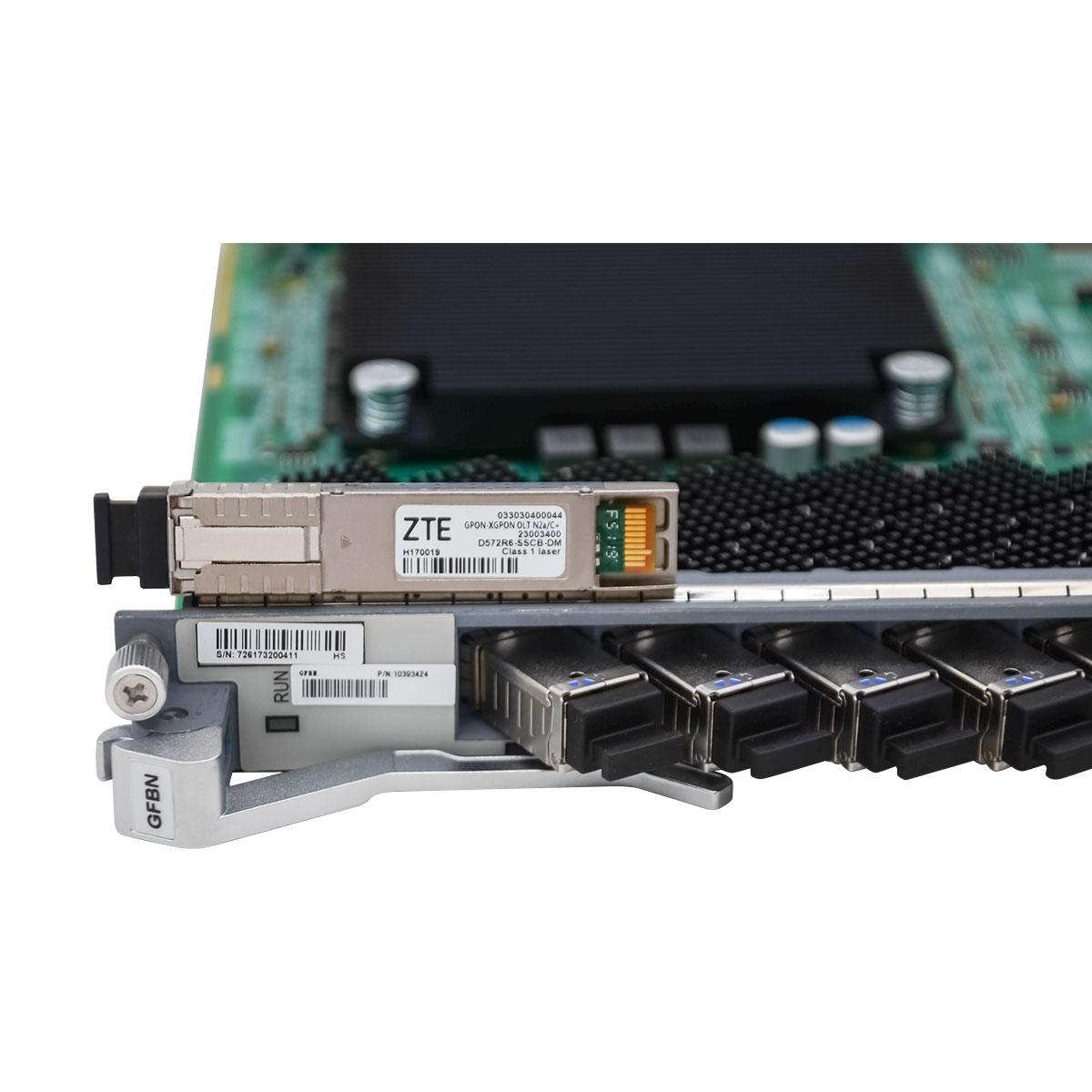

| Encapsulation Type | C+ Module: SFP
N2a Module: SFP+ |
| Optical fiber type | Single mode |
| Optical Connector Type | SC/UPC |
| Transmission distance | 20 km |
| Extinction ratio | 8.2dB |
| Weight | 1.46kg |
| Dimensions (W x D x H) | 393.1 mm × 23.9 mm × 214 mm |
Additional information
| Weight | 1.46 kg |
|---|---|
| Dimensions | 39.31 × 2.39 × 21.4 cm |
