H801MCUD

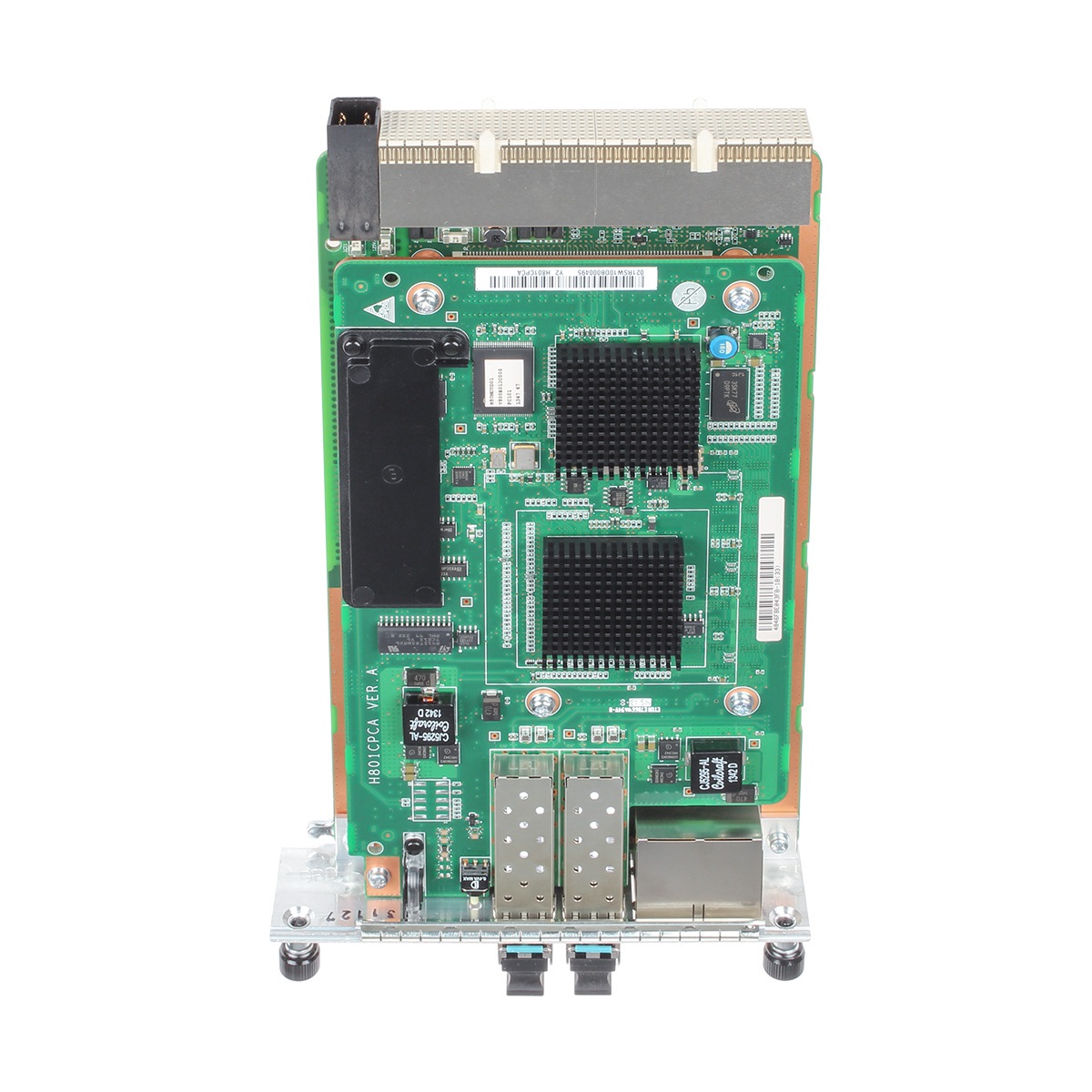

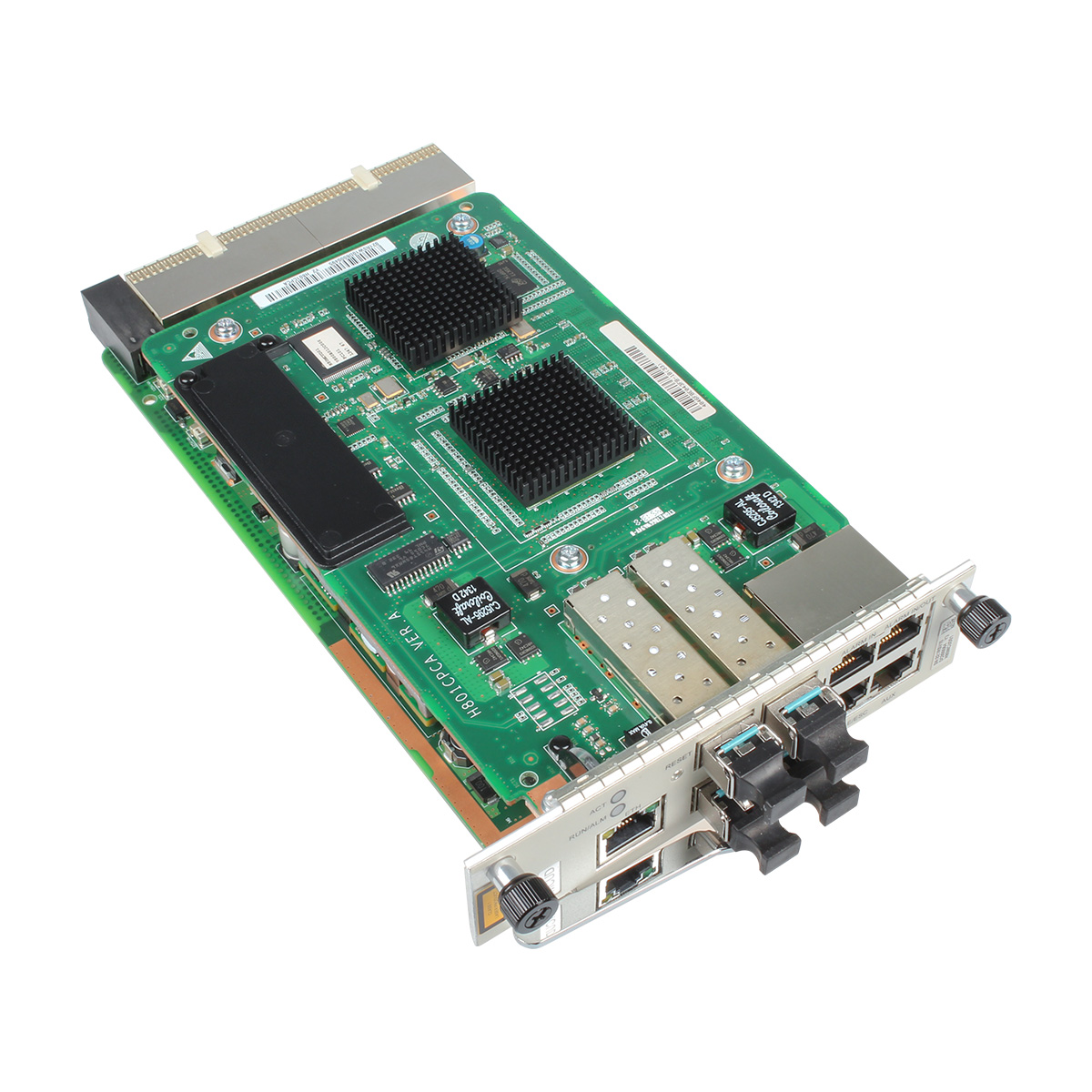

Huawei MA5608T MCUD main control board integrated with 4-port GE optical uplink port

SKU: 03021RSV Category:

Description

Huawei MA5608T MCUD main control board integrated with 4-port GE optical uplink port

Item MCUD
LAN switch 24 x GE + 4 x 10GE
Switching capacity 256 Gbit/s (active/standby mode)
512 Gbit/s (load sharing mode)
Bandwidth per slot 10 Gbit/s (active/standby mode)
20 Gbit/s (load sharing mode)
MAC address table 32768
Access user 2048
Multicast user 2048
Configurable multicast channel 4096
Concurrent multicast channel 2000
IPv4 routing table 5120
IPv6 routing table 5120
Service port 20480
ARP table 8192
ACL rule 896
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
VRF (L3 VPN) Supported
Operating temperature -25°C to +65°C
Power consumption Static: 24 W
Maximum: 26 W
Mechanical Specification
Dimensions(mm) 233 (W) x 134 (D) x 34 (H)
Weight(kg) 1

Additional information

Weight 2.5000 kg
Dimensions 34.0000 × 25.5000 × 10.0000 cm
