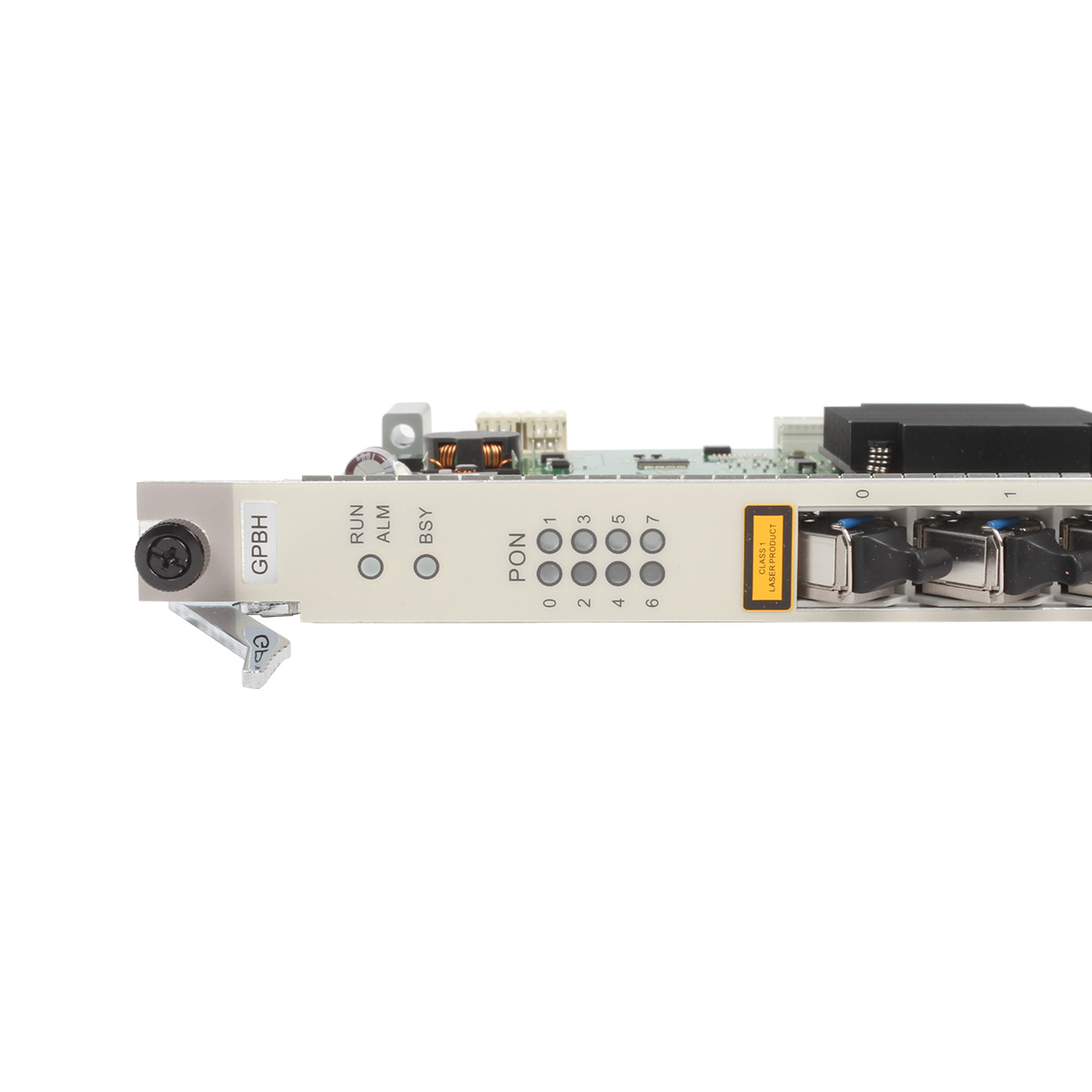

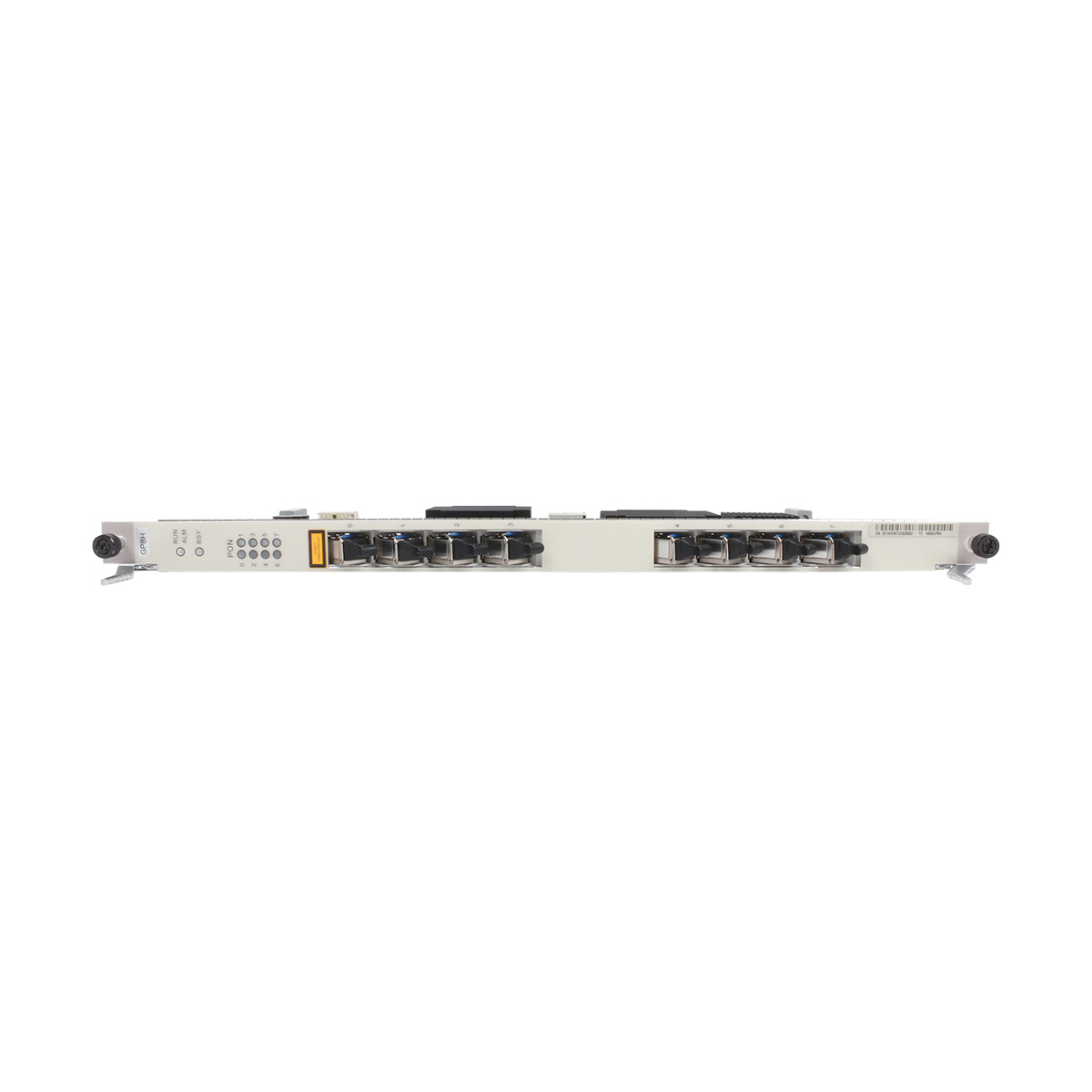

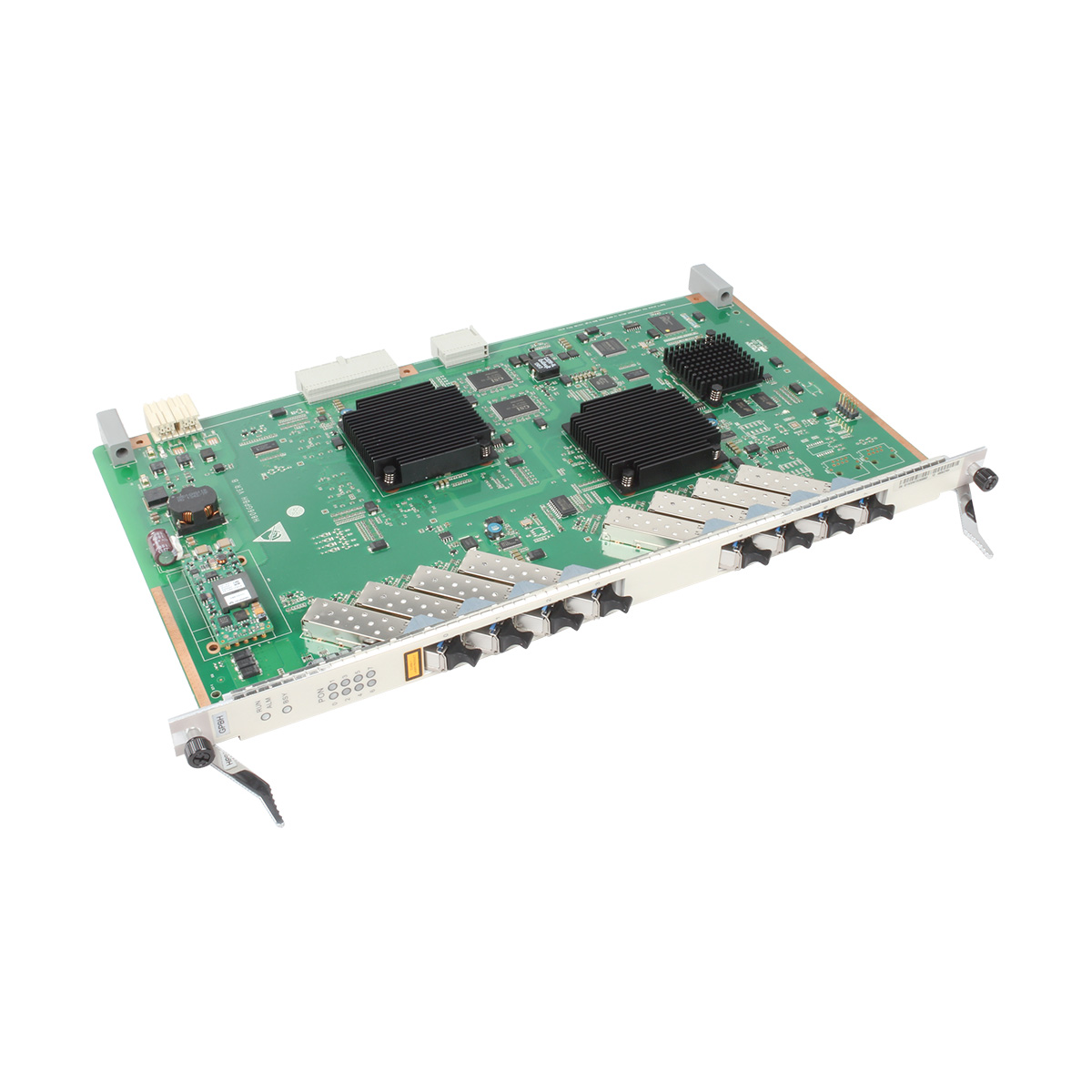

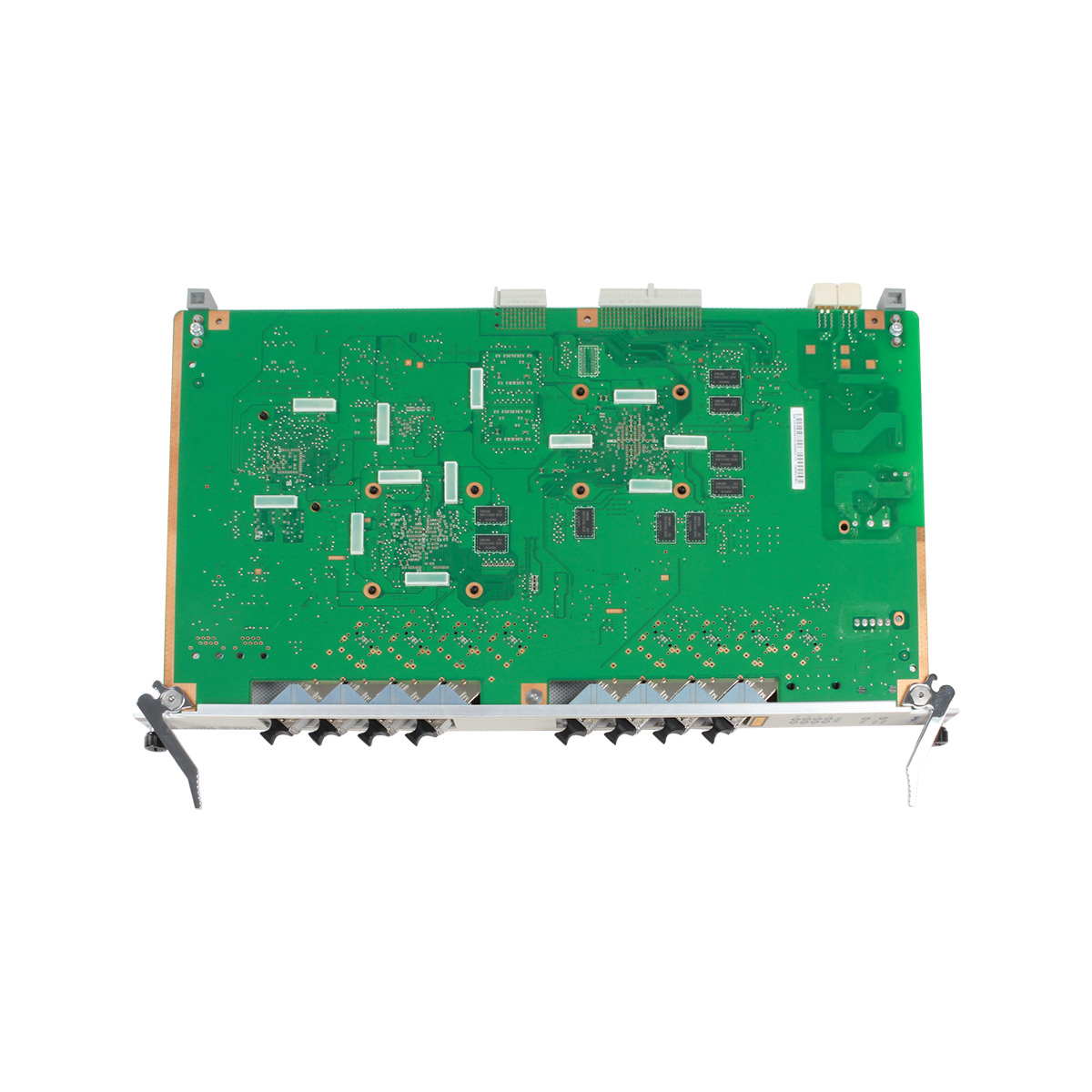

Huawei H807GPBH 8-port GPON OLT Interface Board with C++ module, apply to Huawei MA5608T/MA5680T/MA5683T

SKU: 03022MLN-C++module Category:

Description

Item H807GPBH C++
Service ports
GPON Port 8- GPON Port
GPON SFP Module Specification
Type B+ Module : One-fiber bi-directional optical module, class B+

C+ Module : One-fiber bi-directional optical module, class C+

C++ Module: One-fiber bi-directional optical module, class C++

Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimum Output Optical Power C++ Module: 6.00 dBm
Maximum Output Optical Power C++ Module : 10.00 dBm
Maximum Receiver Sensitivity C++ Module: -35.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C++ Module: -15.00 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (mm) 22.86 (W) x 237.00 (D) x 395.40 (H)
Power Consumption and Maximum Frame Size
Power Consumption H806GPBH : Static: 32 W, Maximum: 46 W
H807GPBH:  Static: 32 W, Maximum: 46 W
Maximum Frame Size 2004 bytes
Operating temperature -25°C to +65°C

Additional information

Weight 3.5000 kg
Dimensions 50.0000 × 33.0000 × 8.0000 cm
